120W budget
Up to 30W per port within the 120W total supply.

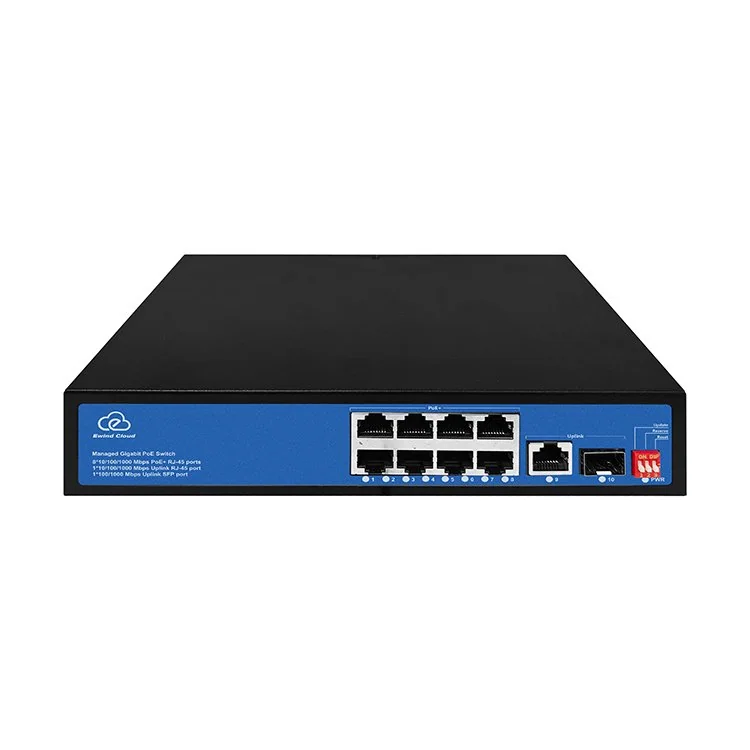

Model: EW-ES3010CG-AP
8-Port Gigabit Cloud Smart PoE Switch
- 8 × Gigabit PoE ports with IEEE 802.3af/at
- 1 × Gigabit RJ45 and 1 × Gigabit SFP uplink
- 120W total PoE budget and built-in AC supply
- Cloud platform and mobile app remote management
Project inquiry
Request pricing and lead time
Tell us your model, quantity and project requirements. Our networking team will help you find the right fit.
Overview
EW-ES3010CG-AP is the 8-port Gigabit cloud smart PoE variant with eight PoE ports, one Gigabit RJ45 uplink, one Gigabit SFP uplink and a 120W budget. EWIND Cloud adds remote topology and maintenance tools.
RJ45 + SFP uplink
Copper and fiber uplinks simplify upstream connections.
Cloud managed
Remote monitoring, topology and alarm support through EWIND Cloud.
Compact install
Desktop enclosure for CCTV, offices and SMB networks.
| Specification | Details |
|---|---|
| PoE ports | 8 × 10/100/1000Mbps RJ45; IEEE 802.3af/at |
| Uplinks | 1 × 10/100/1000Mbps RJ45 and 1 × 1000Mbps SFP |
| PoE power | 15.4W standard / 30W maximum per port; 120W total |
| Switching performance | 20Gbps; 19.5Mpps; store-and-forward |
| Memory | 2K MAC table; 1M buffer |
| Power supply | Built-in 100–240VAC, 50/60Hz |
| Dimensions / weight | 220 × 145 × 40mm; net under 1.1kg, gross under 1.3kg |
| Installation | Desktop |
| Environment | Operating −20°C to +55°C; storage −40°C to +75°C |
| Protection / warranty | IP30; ESD and surge protection; 3-year warranty |

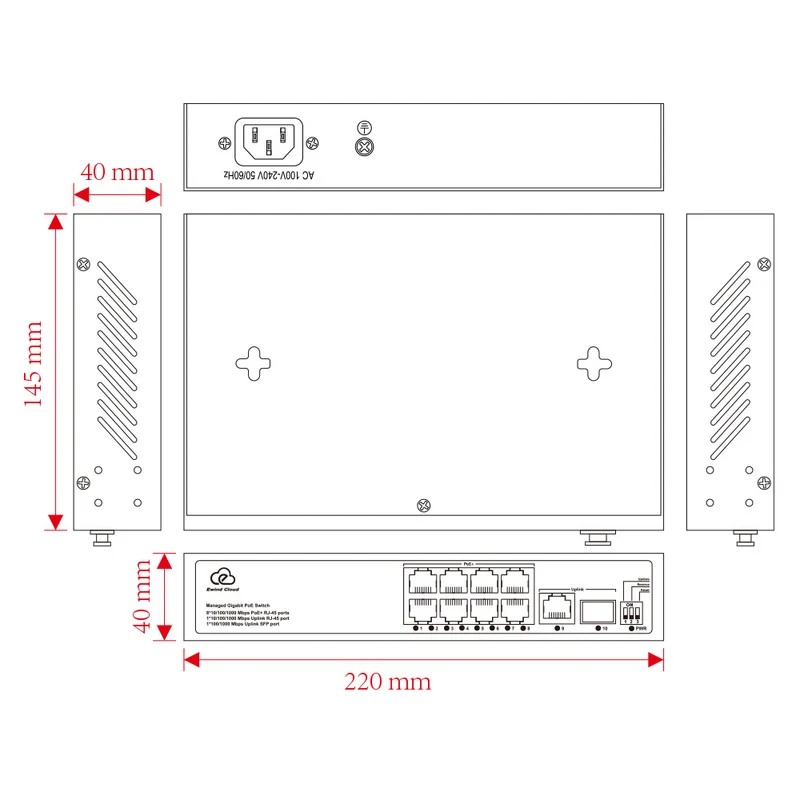

Dimensions
Order information
| Content | Quantity | Unit |
|---|---|---|
| 8-Port Gigabit Cloud Smart PoE Switch (EW-ES3010CG-AP) | 1 | SET |
| AC power cord | 1 | PC |
| User guide | 1 | PC |
| Warranty card | 1 | PC |
Applications
Enterprise, campus and security networks.
EW-ES3010CG-AP Resources
PDF · Specifications · Installation · Ordering
