Model: EW-ES3006FGSH-AP

4-Port Gigabit Cloud-Managed PoE Switch with 2 SFP Uplinks

4 × 10/100/1000Mbps PoE ports · port 4 up to 90W
2 × 100/1000M SFP fiber uplinks
Cloud/mobile management · 65W supply · 12Gbps switching

Project inquiry

Request pricing and lead time

Tell us your model, quantity and project requirements. Our networking team will help you find the right fit.

info@ewindnet.com

Overview

EW-ES3006FGSH-AP adds cloud and mobile management to four Gigabit PoE ports and two 100/1000M SFP uplinks. Port 4 supports 802.3bt up to 60W/90W, while remote alarms, ONVIF topology and AI DIP modes simplify small distributed networks.

Mixed-power PoE

Ports 1–4 support af/at; port 4 adds bt up to 60W/90W within the 65W supply.

Gigabit fiber uplinks

Two SFP slots connect the managed PoE segment to multimode or single-mode fiber backbones.

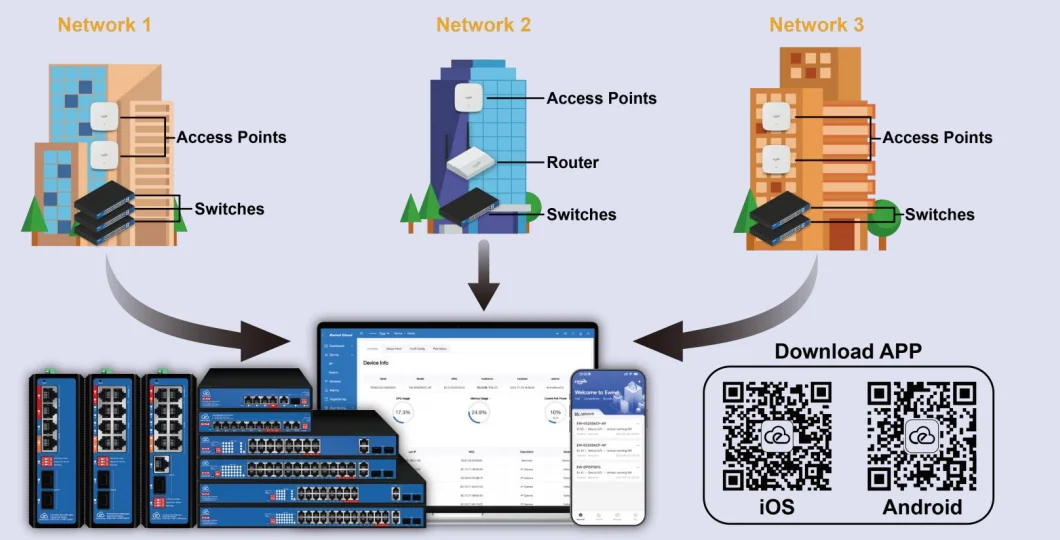

Cloud operations

Remote alarms, ONVIF topology, PoE scheduling, VLAN isolation and watchdog recovery support small sites.

Product technical specifications
Specification	Details
Model	EW-ES3006FGSH-AP
PoE ports	4 × 10/100/1000BASE-T PoE
PoE classes	Ports 1–4: IEEE 802.3af/at; port 4: IEEE 802.3af/at/bt up to 60W/90W
Fiber uplinks	2 × 100/1000Mbps SFP data ports
Switching / forwarding	12Gbps / 8.928Mpps
MAC / buffer	2K / 2M
Power supply / budget	Built-in AC 100–240V, 50/60Hz; 65W
Management	Cloud platform and mobile app; VLAN, PoE scheduling, Watchdog, alarms, ONVIF topology and DIP controls

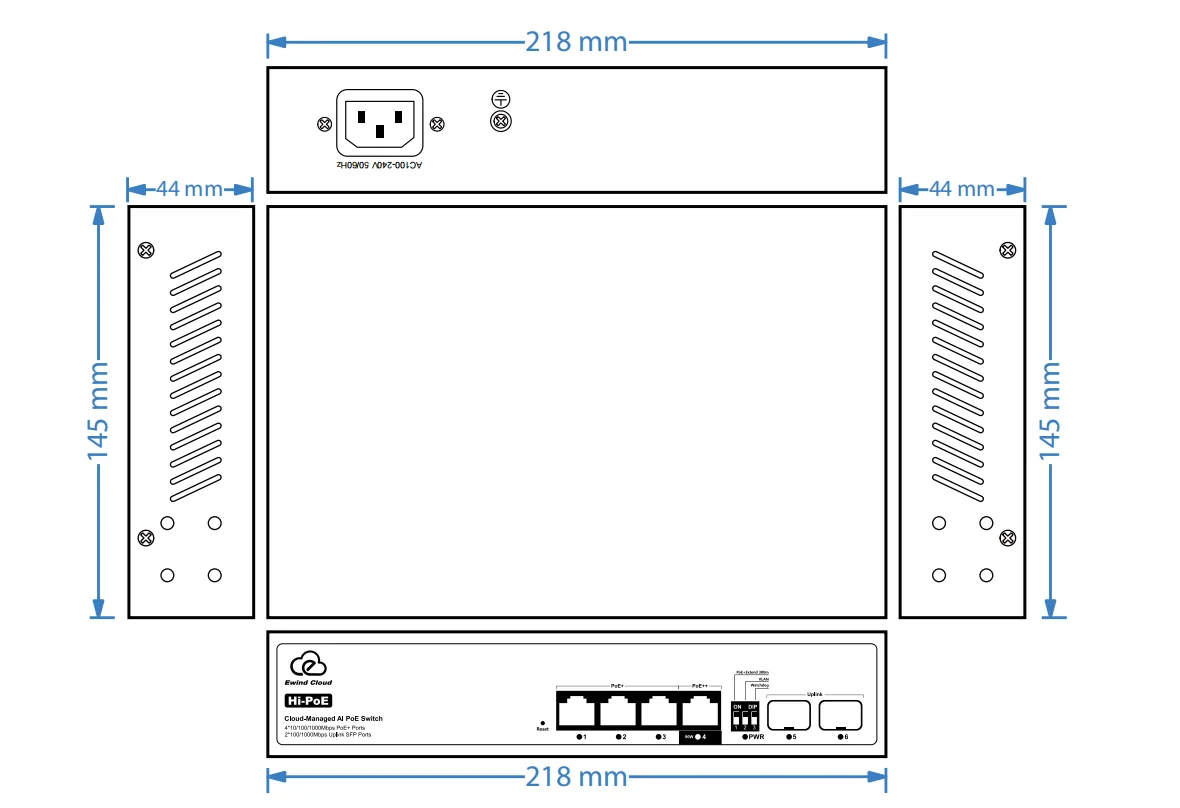

Dimensions / installation	218 × 145 × 44 mm; desktop or wall mount
Protection / environment	IP30; −20 to +55°C; 5–90% RH
Warranty	3 years; lifetime maintenance
