Compact PoE access
Four IEEE 802.3af/at ports supply compatible cameras and other endpoints within a shared 65W budget.

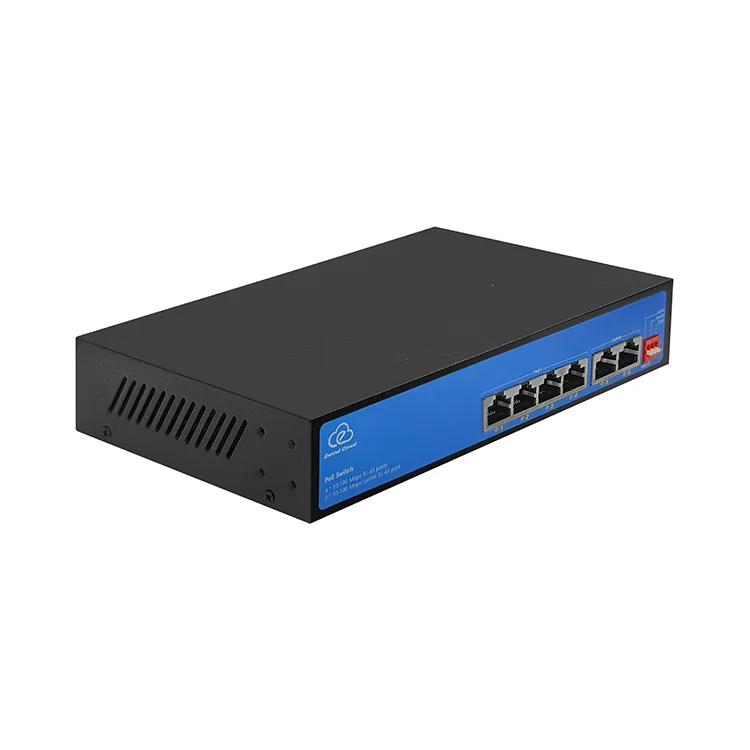

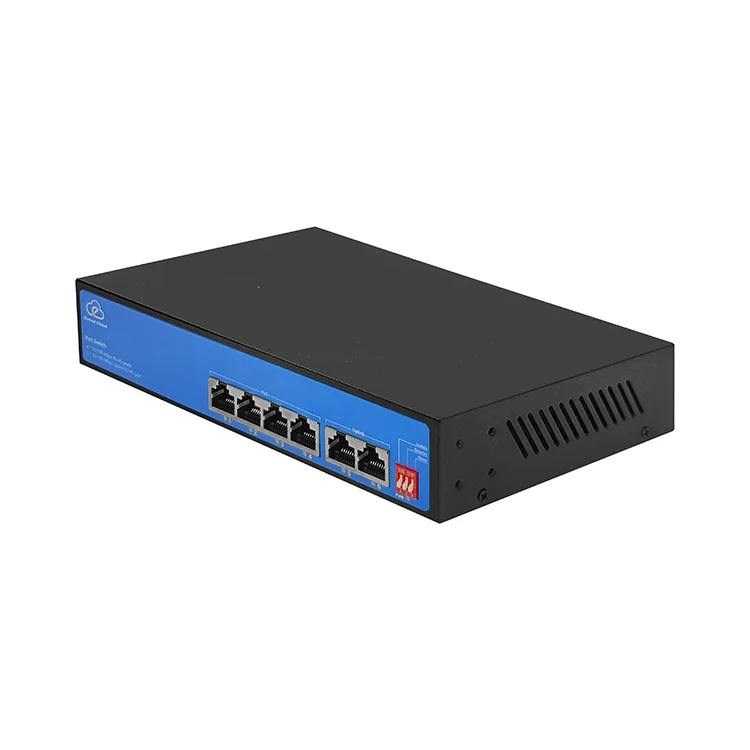

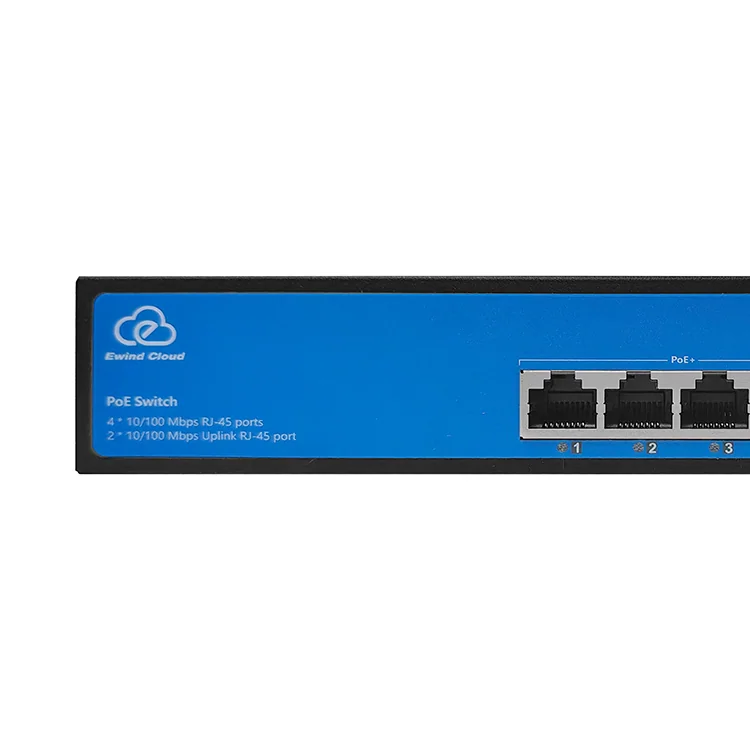

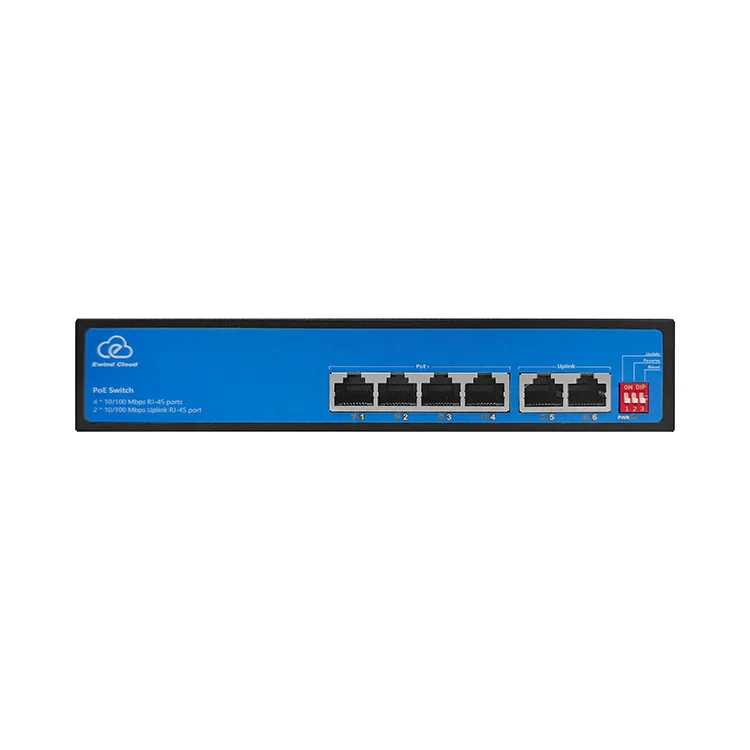

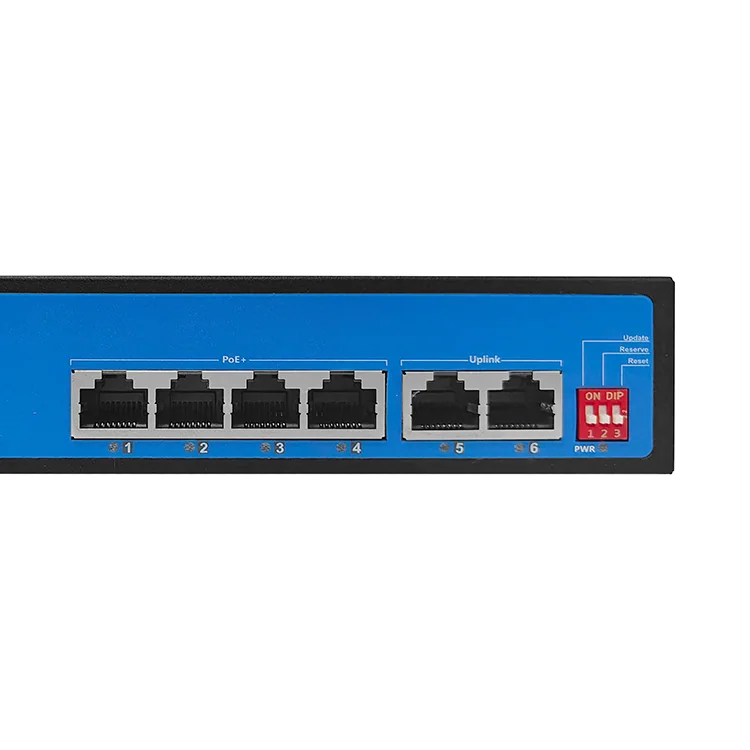

Model: EW-ES2006CF-AP
4-Port Fast Ethernet Cloud PoE Switch with 2 Uplinks

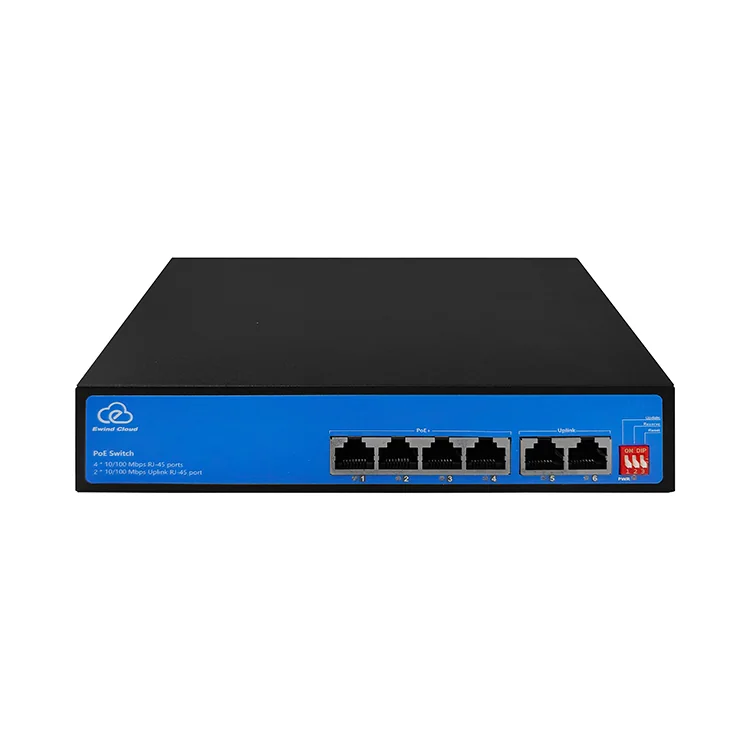

- 4 × 10/100Mbps PoE ports + 2 × 10/100Mbps uplinks
- 65W PoE budget · up to 30W per port
- EWIND Cloud and mobile app management
Project inquiry
Request pricing and lead time
Tell us your model, quantity and project requirements. Our networking team will help you find the right fit.
Overview
EW-ES2006CF-AP connects four PoE endpoints and two Fast Ethernet uplinks with a 65W power budget. EWIND Cloud and the mobile app provide remote port control, PoE scheduling, alerts and device topology for small CCTV and access networks.

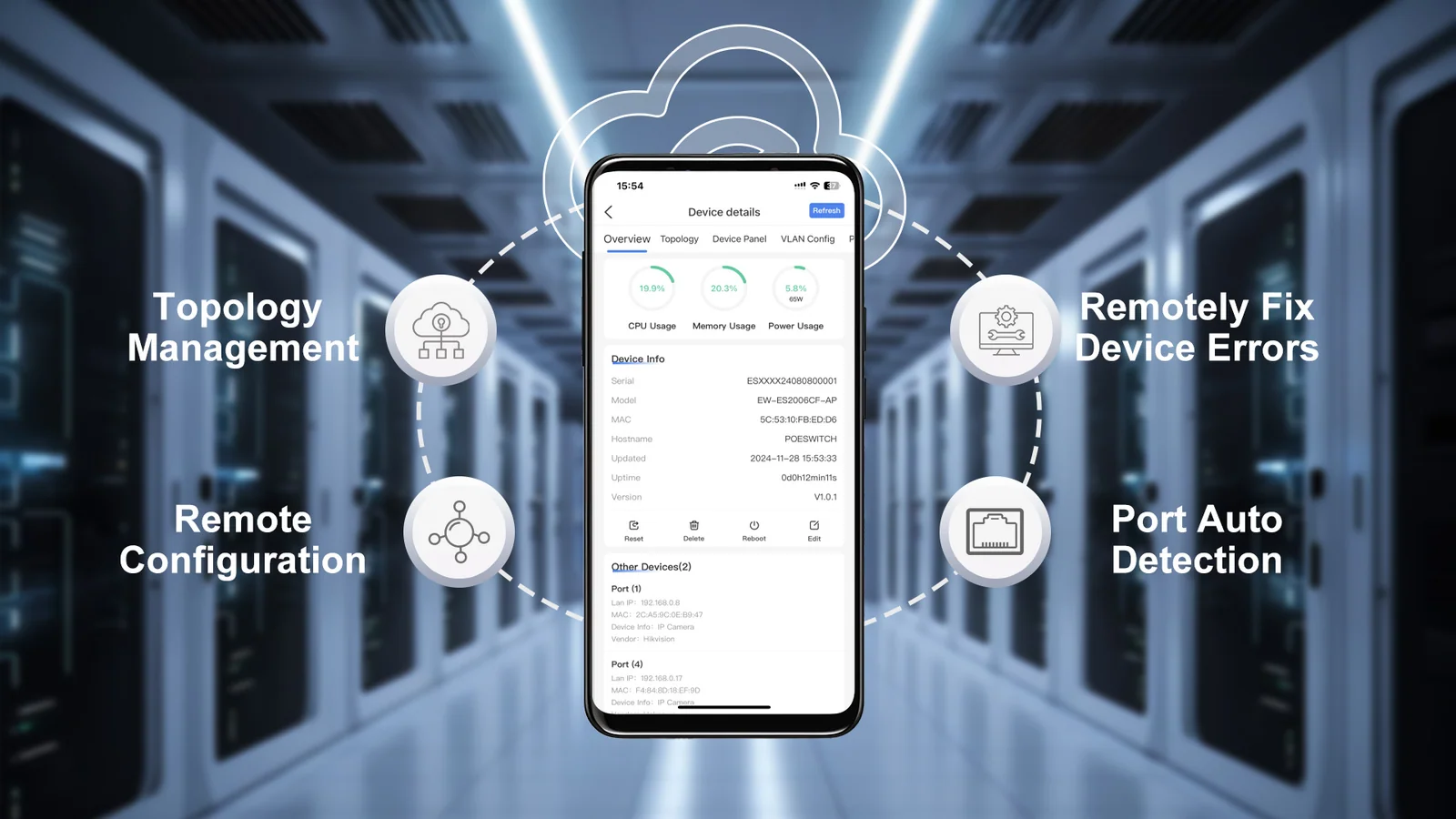

Remote maintenance
View topology, receive alerts and restart ports through the EWIND Cloud platform or mobile app.

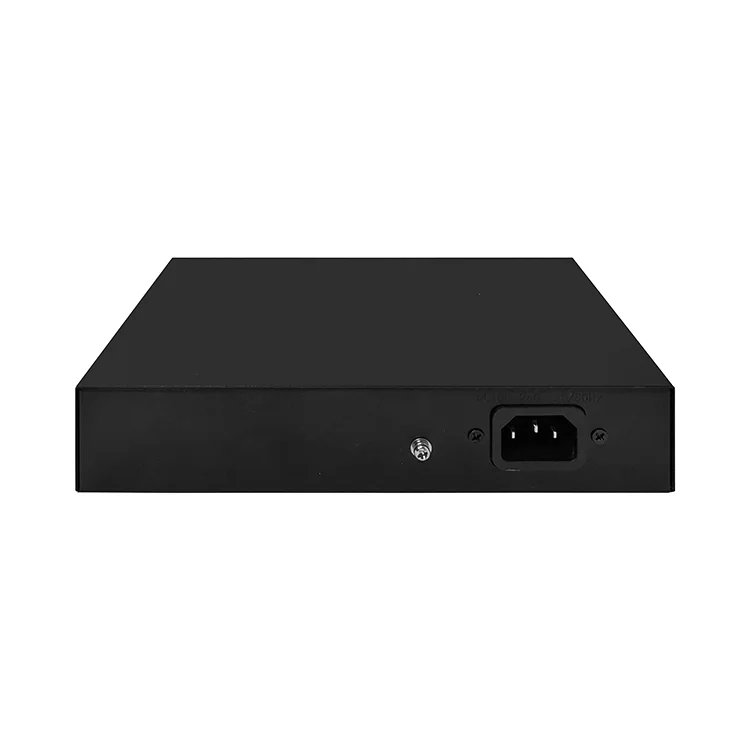

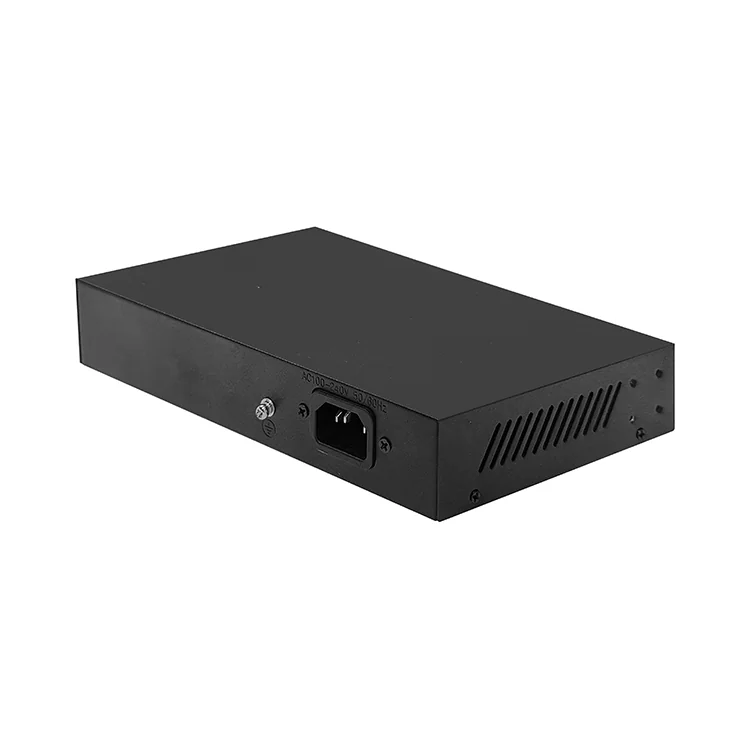

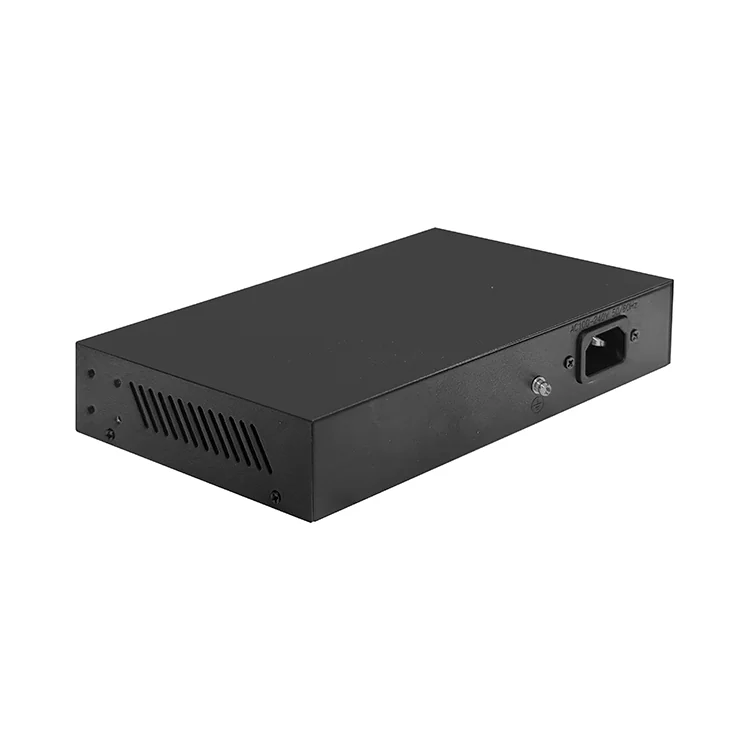

Integrated AC power
The internal 100–240V AC supply keeps desktop installations compact without an external power adapter.
| Specification | Details |
|---|---|
| Model | EW-ES2006CF-AP |
| PoE ports | 4 × 10/100BASE-TX RJ45 |
| Uplink ports | 2 × 10/100BASE-TX RJ45 |
| PoE standard / port limit | IEEE 802.3af/at; up to 30W per port |
| Total PoE budget | 65W |
| Management | EWIND Cloud platform and mobile app |
| Switching capacity | 1.2 Gbps |
| MAC address table | 1K entries |
| Power input | Built-in supply; 100–240V AC, 50/60Hz |

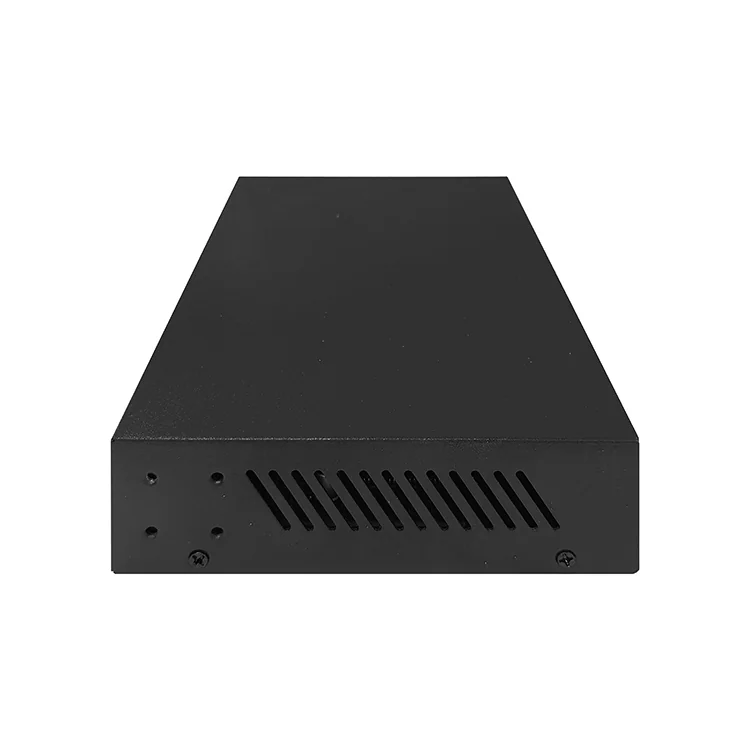

| Installation / enclosure | Desktop; IP30 |
| Operating environment | −20 to +55°C; 5–90% RH, non-condensing |
| Dimensions | 195 × 130 × 40 mm, per datasheet |
| Warranty | 3 years |
Order information
| Content | Quantity | Unit |
|---|---|---|
| EW-ES2006CF-AP cloud PoE switch | 1 | SET |
| AC power cord | 1 | PCS |
| User guide | 1 | PCS |
| Warranty card | 1 | PCS |
Applications
Remote monitoring and maintenance for small CCTV installations through EWIND Cloud.
EW-ES2006CF-AP Resources
PDF · Specifications · Installation · Ordering
