Model: EW-ES3028CGSH-AP

24-Port Gigabit Cloud-Managed AI PoE Switch with 2 SFP Uplinks

24 × 10/100/1000Mbps PoE ports · ports 21–24 up to 90W
2 × Gigabit RJ45 + 2 × 100/1000M SFP uplinks
Cloud/mobile management · 360W supply · 56Gbps switching

Project inquiry

Request pricing and lead time

Tell us your model, quantity and project requirements. Our networking team will help you find the right fit.

info@ewindnet.com

Overview

EW-ES3028CGSH-AP combines twenty-four Gigabit PoE ports, two Gigabit RJ45 uplinks and two SFP fiber uplinks with cloud and mobile management. Ports 21–24 support 802.3bt up to 90W, while remote alarms, ONVIF topology and AI DIP modes support distributed sites.

Mixed-power PoE

Ports 1–24 support af/at; ports 21–24 add bt up to 90W per port within the 360W supply.

Four uplink ports

Two Gigabit RJ45 and two SFP fiber ports connect the managed PoE segment to copper or fiber backbones.

Cloud operations

Remote web/app management, real-time alarms, ONVIF topology discovery and AI DIP controls support distributed sites.

Product technical specifications
Specification	Details
Model	EW-ES3028CGSH-AP
PoE ports	24 × 10/100/1000BASE-T PoE
PoE classes	Ports 1–24: IEEE 802.3af/at; ports 21–24: IEEE 802.3af/at/bt up to 90W
RJ45 uplinks	2 × 10/100/1000Mbps data ports
Fiber uplinks	2 × 100/1000Mbps SFP data ports
Switching / forwarding	56Gbps / 41.664Mpps
MAC / buffer	8K / 4M
Power supply / budget	Built-in AC 100–240V, 50/60Hz; 360W
Management	Cloud platform and mobile app; VLAN, PoE scheduling, Watchdog, alarms, ONVIF topology and DIP controls

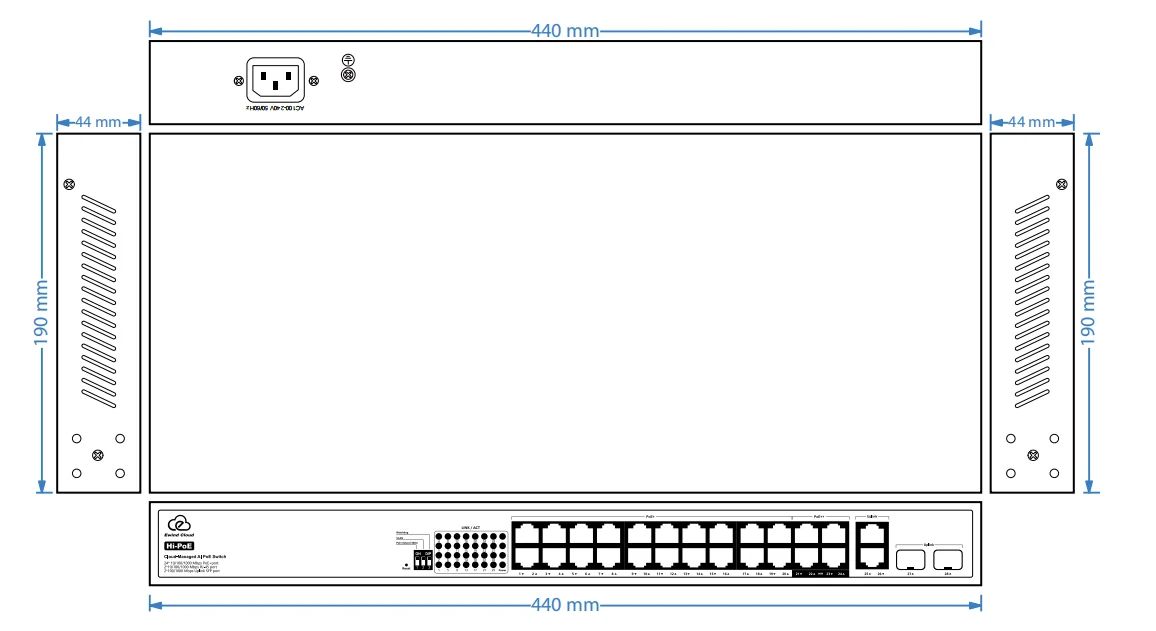

Dimensions / installation	440 × 190 × 44 mm; desktop or rack mount
Protection / environment	IP30; −20 to +55°C; 5–90% RH
Warranty	3 years; lifetime maintenance
