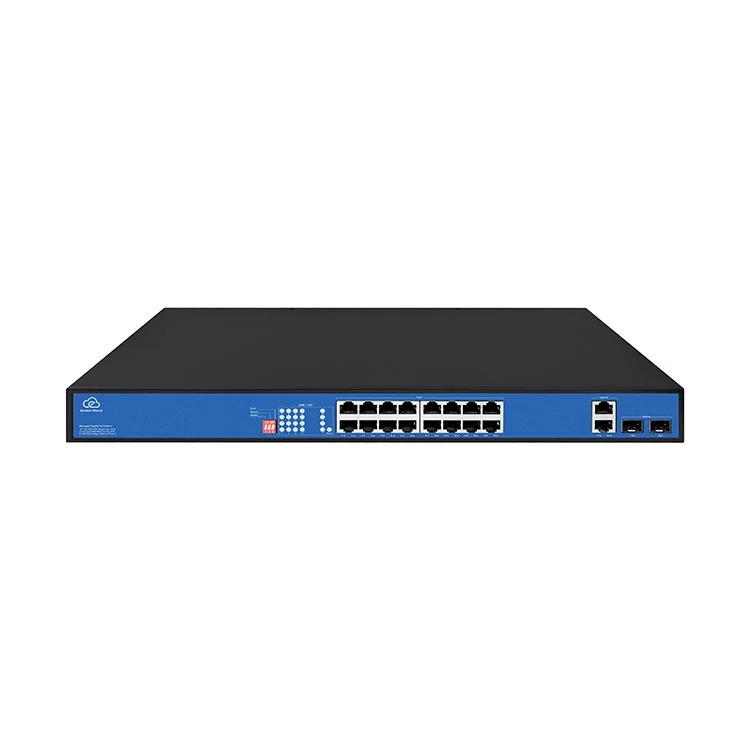

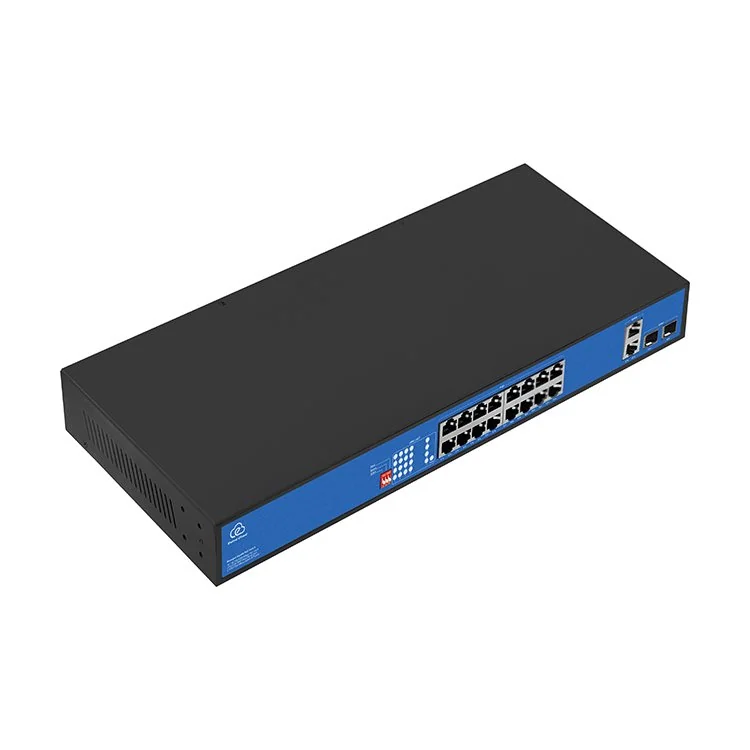

Model: EW-ES3020CG-AP

16-Port Gigabit Cloud Smart PoE Switch

16 × Gigabit PoE ports with IEEE 802.3af/at

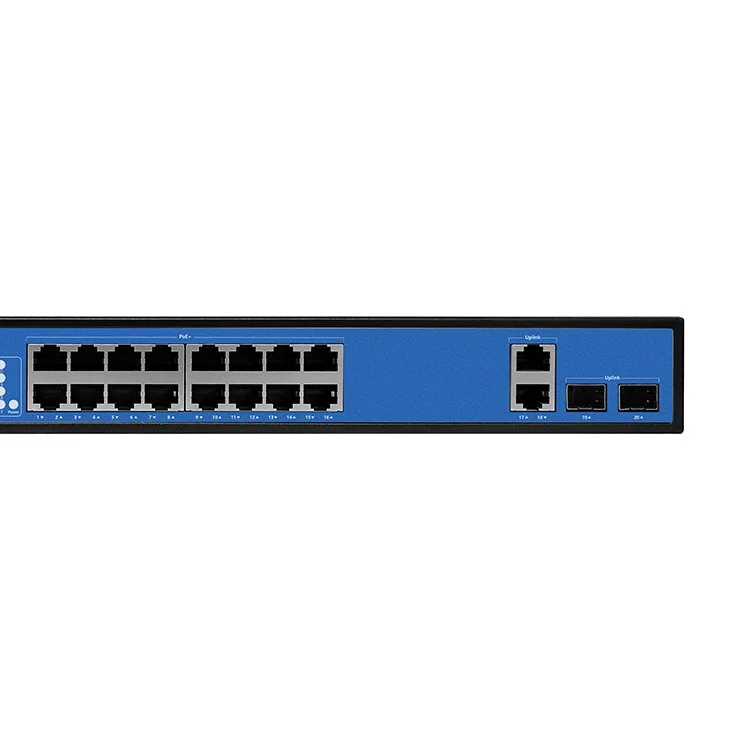

2 × Gigabit RJ45 and 2 × Gigabit SFP uplinks
300W total PoE budget and built-in 100–240VAC supply
Cloud platform and mobile app topology management

Project inquiry

Request pricing and lead time

Tell us your model, quantity and project requirements. Our networking team will help you find the right fit.

info@ewindnet.com

Overview

EW-ES3020CG-AP is the 16-port Gigabit cloud smart PoE variant with 16 PoE ports, dual Gigabit RJ45 uplinks, dual Gigabit SFP uplinks and a 300W budget. Cloud topology and remote maintenance keep CCTV networks easy to operate.

300W budget

Up to 30W per port within the 300W total supply.

Four uplinks

Two Gigabit RJ45 and two Gigabit SFP uplinks.

Cloud managed

Remote monitoring, topology and alarm support through EWIND Cloud.

Flexible install

Desktop or rack mounting for CCTV and SMB networks.

Product technical specifications
Specification	Details
PoE ports	16 × 10/100/1000Mbps RJ45; IEEE 802.3af/at
Uplinks	2 × 10/100/1000Mbps RJ45 and 2 × 1000Mbps SFP
PoE power	15.4W standard / 30W maximum per port; 300W total
Switching performance	40Gbps; 29.76Mpps; store-and-forward
Memory	8K MAC table; 4M buffer

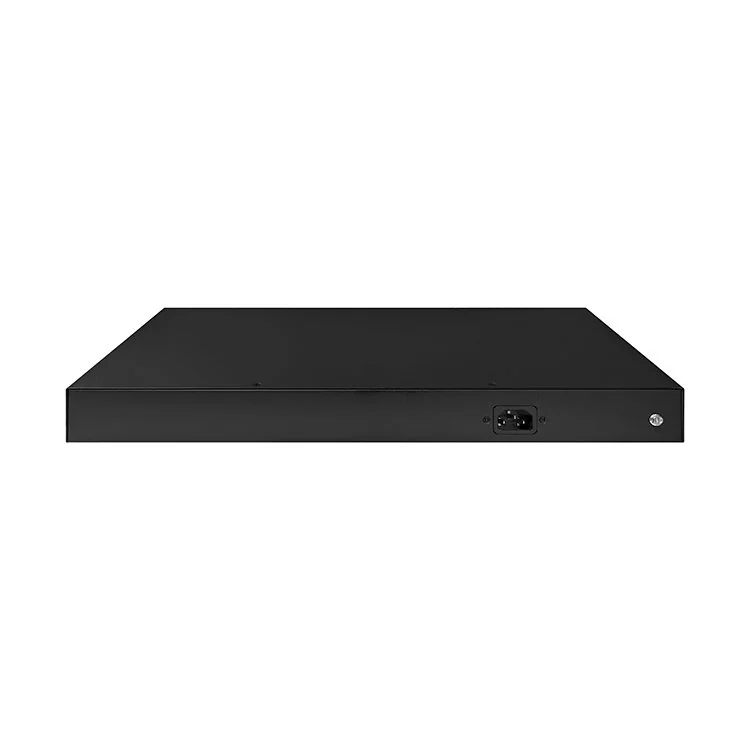

Power supply	Built-in 100–240VAC, 50/60Hz

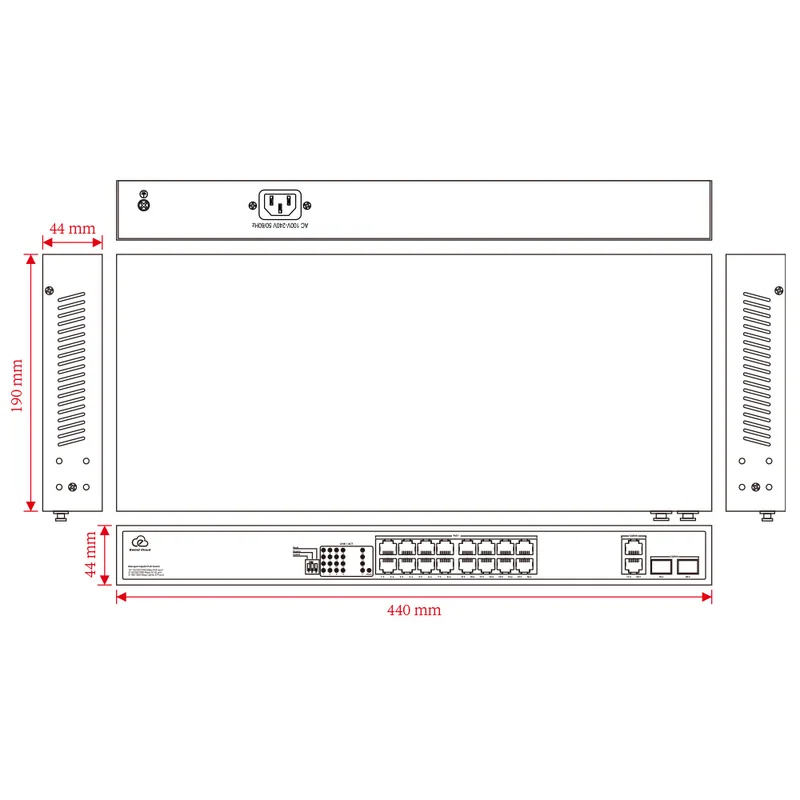

Dimensions / weight	440 × 190 × 44mm; net under 2.8kg, gross under 3kg
Installation	Desktop or rack mounted
Environment	Operating −20°C to +55°C; storage −40°C to +75°C
Protection / warranty	IP30; ESD and surge protection; 3-year warranty
