Model: EW-ES3006CG-AP

4-Port Gigabit Cloud Smart PoE Switch

4 × 10/100/1000Mbps PoE ports with IEEE 802.3af/at
1 × Gigabit RJ45 and 1 × Gigabit SFP uplink
65W total PoE budget with up to 30W per PoE port
EWIND Cloud and mobile app remote management

Project inquiry

Request pricing and lead time

Tell us your model, quantity and project requirements. Our networking team will help you find the right fit.

info@ewindnet.com

Overview

EW-ES3006CG-AP is the compact 4-port Gigabit cloud smart PoE switch with one Gigabit RJ45 uplink, one Gigabit SFP uplink and a 65W total PoE budget. EWIND Cloud adds remote monitoring and topology management for security and small business networks.

65W PoE budget

Power up to four powered devices with up to 30W available per port.

Copper + fiber uplinks

Use the Gigabit RJ45 or SFP uplink for flexible upstream connections.

Remote management

EWIND Cloud provides topology, alarms and remote maintenance tools.

Compact deployment

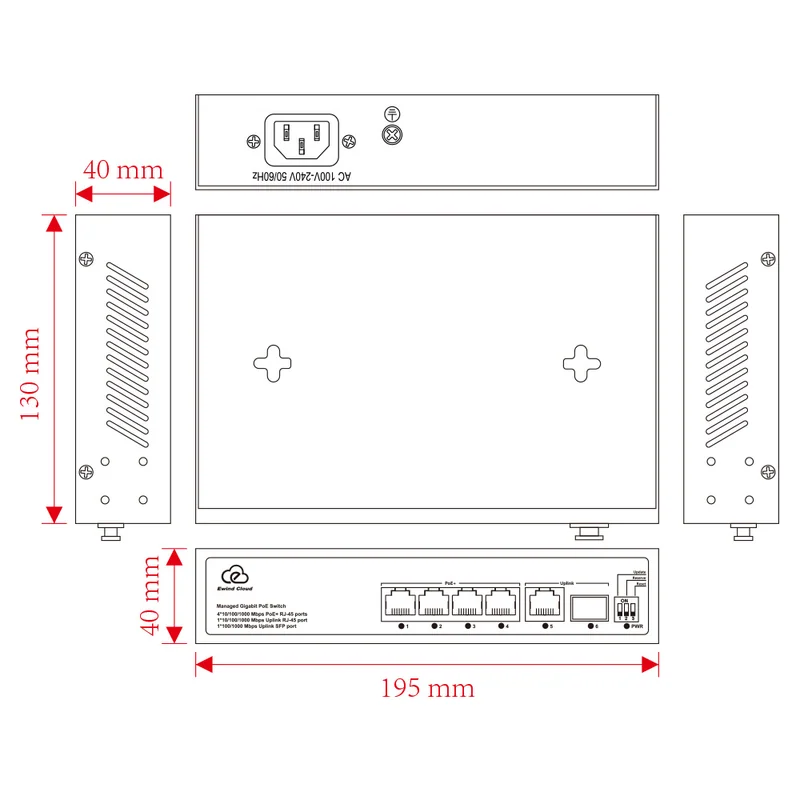

195 × 130 × 40mm desktop enclosure for CCTV, offices and SMB networks.

Product technical specifications
Specification	Details
PoE ports	4 × 10/100/1000Mbps RJ45; IEEE 802.3af/at
Uplinks	1 × 10/100/1000Mbps RJ45 and 1 × 1000Mbps SFP
PoE power	15.4W standard / 30W maximum per port; 65W total
Switching performance	12Gbps; 11.7Mpps; store-and-forward
Memory	2K MAC table; 1M buffer
Power supply	Built-in 100–240VAC, 50/60Hz
Dimensions / weight	195 × 130 × 40mm; net under 0.85kg, gross under 1kg
Installation	Desktop
Environment	Operating −20°C to +55°C; storage −40°C to +75°C
Protection / warranty	IP30; ESD and surge protection; 3-year warranty
