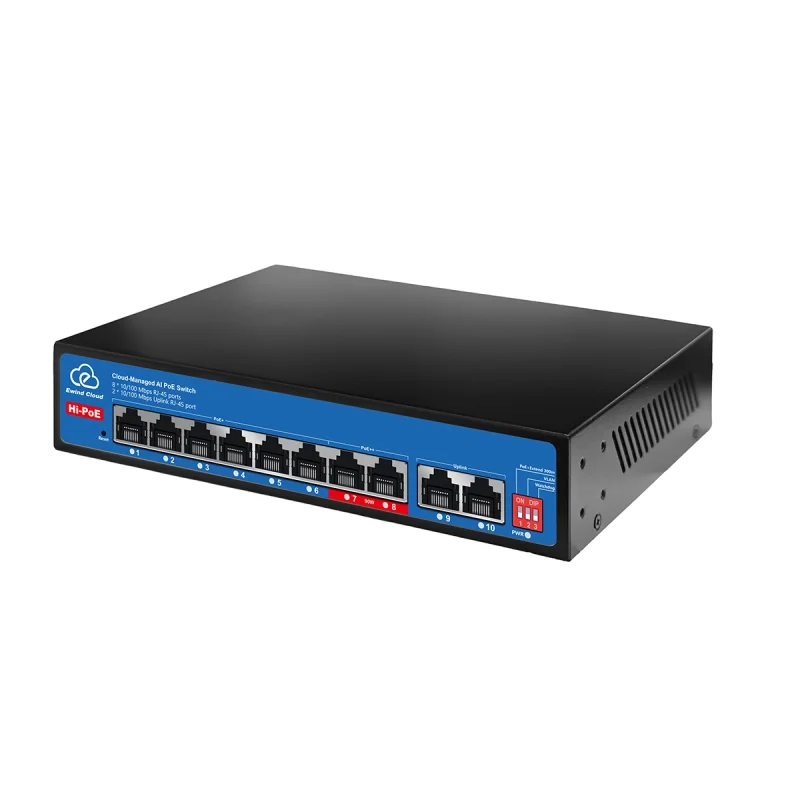

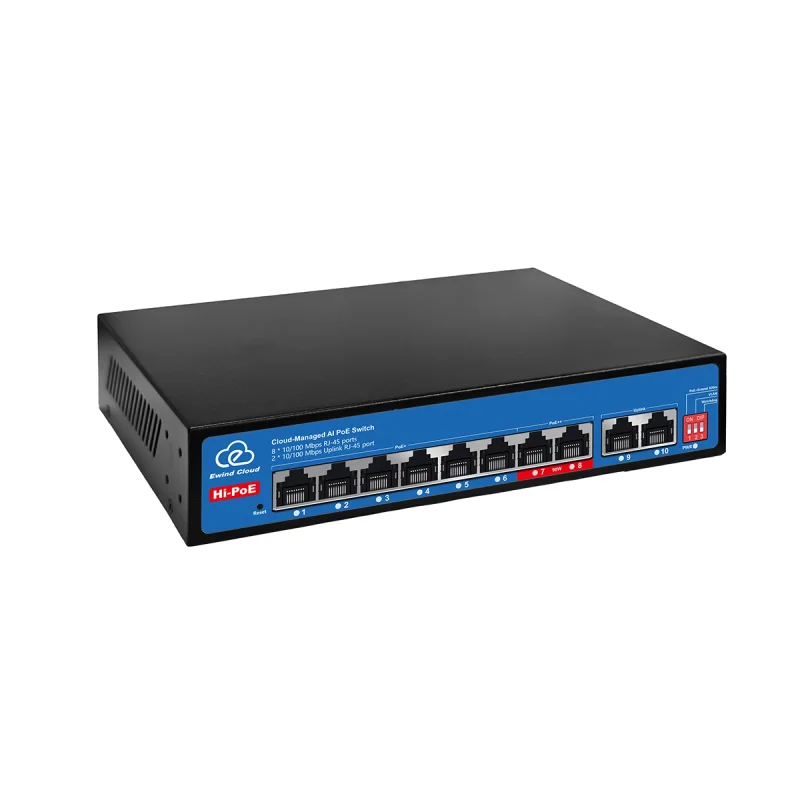

Model: EW-ES2010CFSH-AP

8-Port Fast Ethernet Cloud-Managed PoE Switch

8 × 10/100Mbps PoE ports · ports 7–8 up to 90W
2 × 10/100Mbps RJ45 uplinks
EWIND cloud/app management · 120W supply · 3-year warranty

Project inquiry

Request pricing and lead time

Tell us your model, quantity and project requirements. Our networking team will help you find the right fit.

info@ewindnet.com

Overview

EW-ES2010CFSH-AP adds cloud management to eight 10/100Mbps PoE ports and two 10/100Mbps RJ45 uplinks. Ports 7–8 support IEEE 802.3af/at/bt up to 90W per port, while the EWIND platform provides remote monitoring, alarms, topology discovery and port control.

Flexible PoE output

Ports 1–8 support IEEE 802.3af/at; ports 7–8 additionally support IEEE 802.3bt up to 90W per port.

Cloud-managed edge

The EWIND platform and mobile app provide remote status, alerts, fault detection, port reset and configuration.

Topology and recovery

ONVIF discovery maps connected devices, while DIP controls extend mode, VLAN isolation and PoE watchdog recovery.

Product technical specifications
Specification	Details
Model	EW-ES2010CFSH-AP

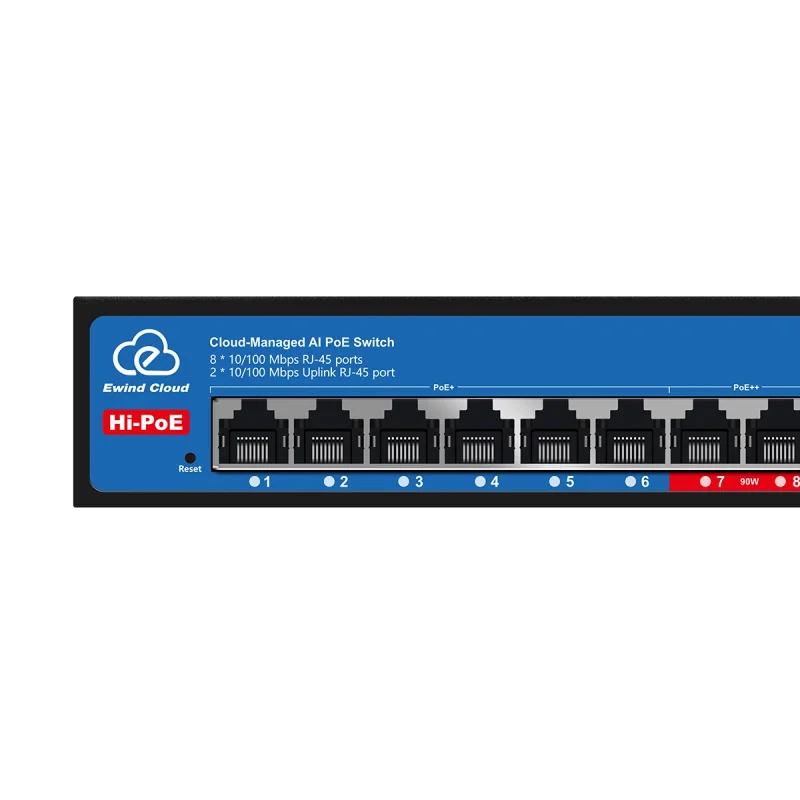

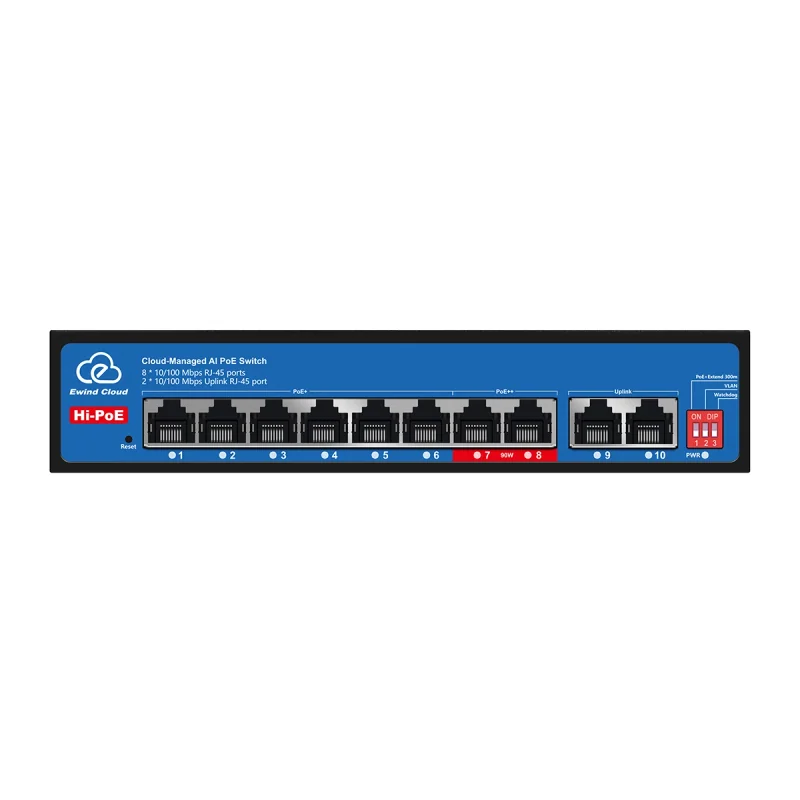

PoE ports	8 × 10/100BASE-T PoE; ports 1–8
High-power PoE	Ports 7–8 support IEEE 802.3af/at/bt, up to 90W per port
Uplinks	2 × 10/100BASE-T RJ45 data ports
Total power / supply	120W; built-in AC 100–240V, 50–60Hz
Management	Cloud-managed; web platform, mobile app and DIP controls
Switching / forwarding	2Gbps / 1.488Mpps
MAC / buffer	2K / 2M

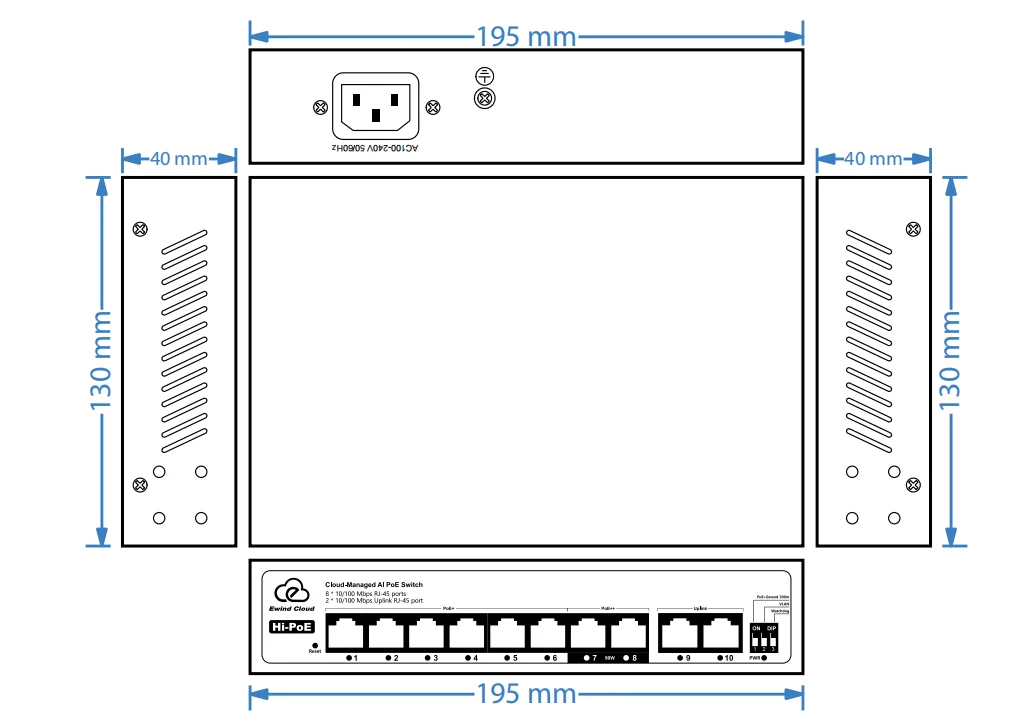

Dimensions / installation	195 × 130 × 40 mm; desktop or wall mount
Protection / environment	IP30; −20 to +55°C; 5–90% RH
Warranty	3 years; lifetime maintenance

Advanced capabilities

Detailed network functions stay available here without interrupting the main selection path.

Cloud workflow

The EWIND cloud platform and app support remote monitoring, real-time alarm notifications, fault detection, port reset and network configuration.

DIP-switch functions

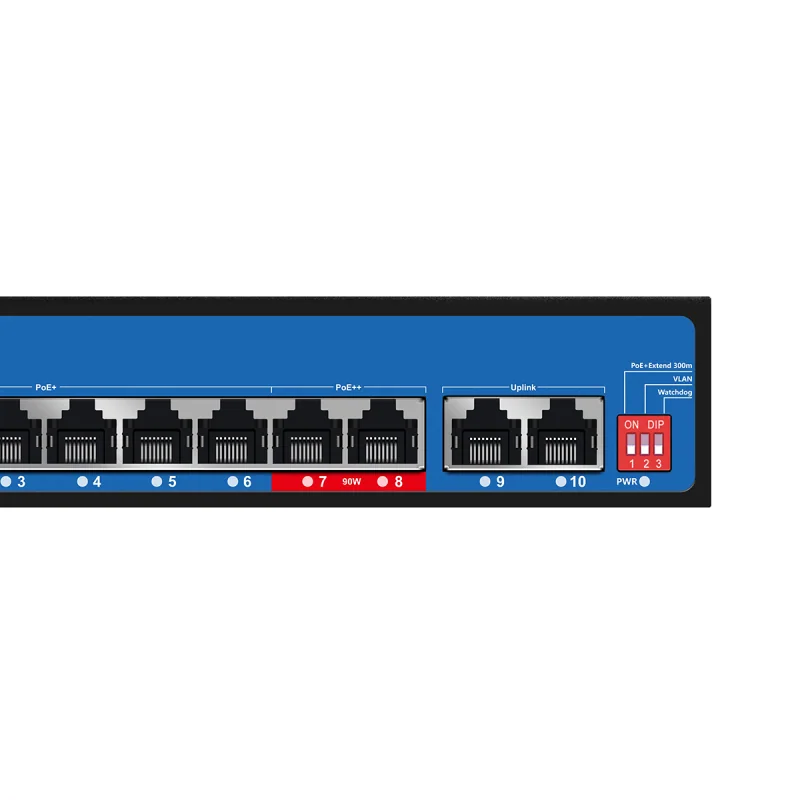

The three-position DIP control provides AI Extend 300m transmission with 10Mbps limit on the extended port, per-port isolation/VLAN, and AI PoE watchdog recovery. Other ports keep 1000Mbps within 100m in extend mode.

Power planning

The 120W supply is shared across the PoE ports. Ports 7–8 can request up to 90W each under IEEE 802.3bt; verify the aggregate endpoint load against the installed power budget.

Topology discovery

ONVIF discovery identifies connected devices for the cloud topology map; endpoint compatibility still depends on the connected device and network configuration.
