Remote network control
Cloud and mobile monitoring, port restart and alarm notifications.
Model: EW-ES3028CG-AP
24-Port Gigabit Cloud Managed PoE Switch
- 24 Gigabit IEEE 802.3af/at PoE ports
- 2 Gigabit RJ45 + 2 Gigabit SFP uplinks
- 360W PoE budget; up to 30W per port
- Cloud and mobile access with topology and alerts
Project inquiry
Request pricing and lead time
Tell us your model, quantity and project requirements. Our networking team will help you find the right fit.
Overview
EW-ES3028CG-AP combines 24 Gigabit PoE access ports with two Gigabit RJ45 and two Gigabit SFP uplinks. A 360W PoE budget and EWIND cloud management support remote port control, power scheduling and surveillance network monitoring.
360W PoE budget
Shared power for 24 IEEE 802.3af/at access ports.
Four Gigabit uplinks
Two RJ45 and two SFP connections for upstream networks.
Surveillance monitoring
ONVIF discovery, topology mapping and PoE auto-alive checks.
| Specification | Details |
|---|---|
| PoE access ports | 24 × Gigabit RJ45 |
| Uplinks | 2 × Gigabit RJ45 + 2 × Gigabit SFP |
| PoE standard | IEEE 802.3af/at |
| PoE power budget | 360W total; 30W maximum per port |
| Switching capacity | 56Gbps |
| Forwarding rate | 41.66Mpps |
| MAC address table | 16K entries |
| Power input | 100–240V AC, 50/60Hz |
| Dimensions (W × D × H) | 440 × 190 × 44mm |
| Operating temperature | −20°C to +55°C |
| Installation / enclosure | Desktop or rack; IP30 |
| Warranty | 3 years |

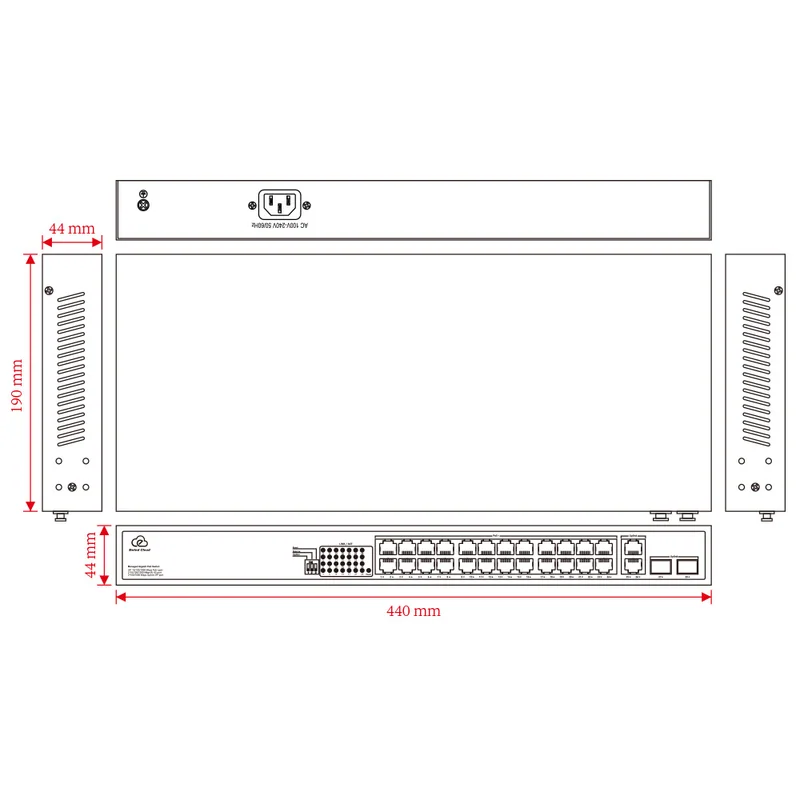

Dimensions
Order information
| Content | Quantity | Unit |
|---|---|---|
| EW-ES3028CG-AP 24-port Gigabit cloud managed PoE switch | 1 | SET |
| AC power cord | 1 | PC |
| Rack-mount brackets | 1 | PAIR |
| Quick installation guide | 1 | PC |
EW-ES3028CG-AP Resources
PDF · Specifications · Installation · Ordering
