Model: EW-ES2028CFSH-AP

24-Port Fast Ethernet Cloud-Managed PoE Switch with 2 SFP Uplinks

24 × 10/100Mbps PoE ports · ports 21–24 up to 90W
2 × Gigabit RJ45 + 2 × 100/1000M SFP uplinks
Cloud/mobile management · 300W supply · 12.8Gbps switching

Project inquiry

Request pricing and lead time

Tell us your model, quantity and project requirements. Our networking team will help you find the right fit.

info@ewindnet.com

Overview

EW-ES2028CFSH-AP brings cloud and mobile management to twenty-four Fast Ethernet PoE ports, two Gigabit RJ45 uplinks and two 100/1000M SFP uplinks. Ports 21–24 support 802.3bt up to 90W, while remote alarms, ONVIF topology and AI DIP modes simplify distributed sites.

Mixed-power PoE

Ports 1–24 support af/at; ports 21–24 add bt up to 90W per port within the 300W supply.

Four uplink ports

Two Gigabit RJ45 and two SFP fiber ports connect the managed Fast Ethernet segment to copper or fiber backbones.

Cloud operations

Remote web/app management, real-time alarms, ONVIF topology discovery and AI DIP controls support distributed sites.

Product technical specifications
Specification	Details
Model	EW-ES2028CFSH-AP
PoE ports	24 × 10/100BASE-T PoE
PoE classes	Ports 1–24: IEEE 802.3af/at; ports 21–24: IEEE 802.3af/at/bt up to 90W
RJ45 uplinks	2 × 10/100/1000Mbps data ports
Fiber uplinks	2 × 100/1000Mbps SFP data ports
Switching / forwarding	12.8Gbps / 4.166Mpps
MAC / buffer	8K / 2M
Power supply / budget	Built-in AC 100–240V, 50/60Hz; 300W
Management	Cloud platform and mobile app; VLAN, PoE scheduling, Watchdog, alarms, ONVIF topology and DIP controls

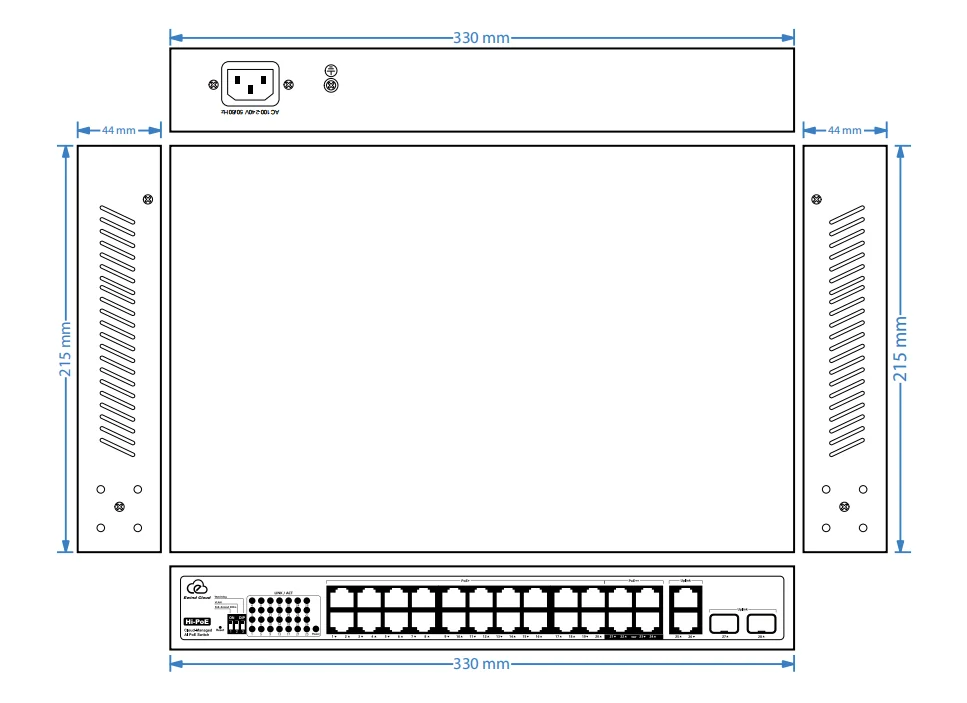

Dimensions / installation	330 × 215 × 44 mm; desktop or rack mount
Protection / environment	IP30; −20 to +55°C; 5–90% RH
Warranty	3 years; lifetime maintenance
