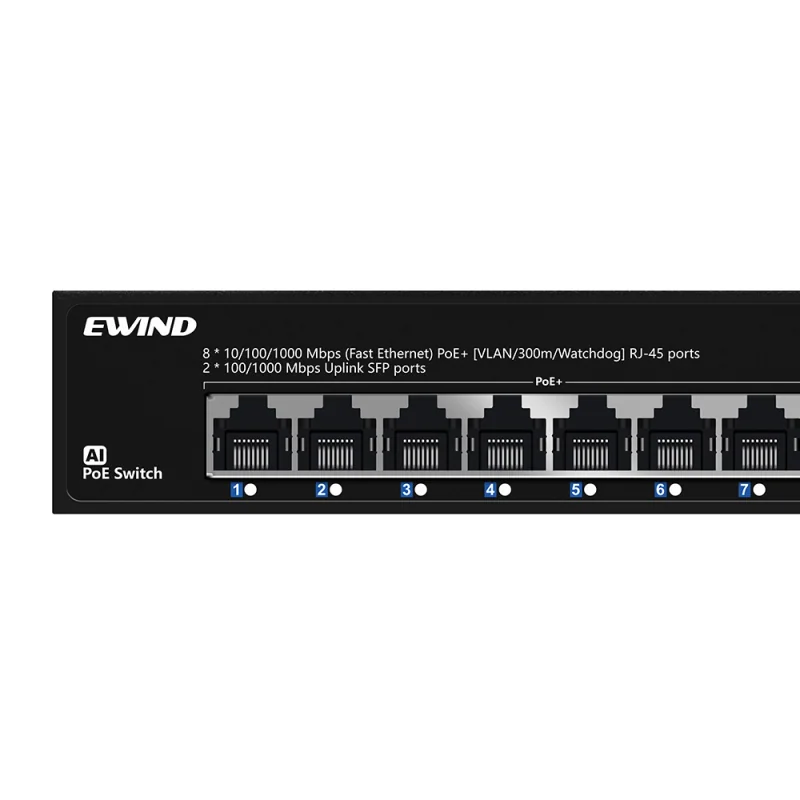

Eight Gigabit PoE outputs
Ports 1–8 support IEEE 802.3af/at with 15.4W standard power and up to 30W per port.
Model: EW-S1710FG-AP

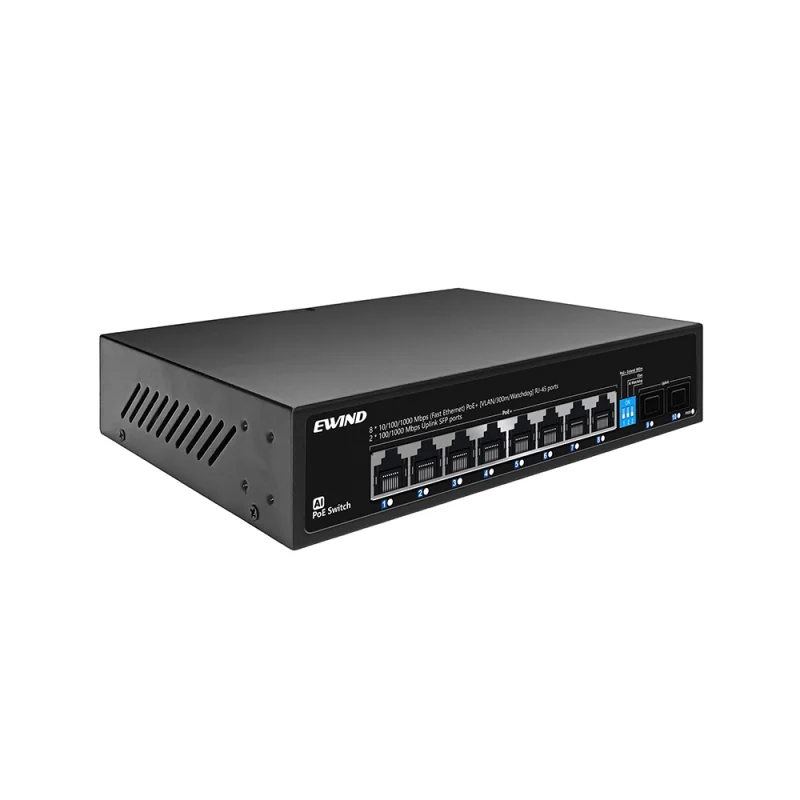

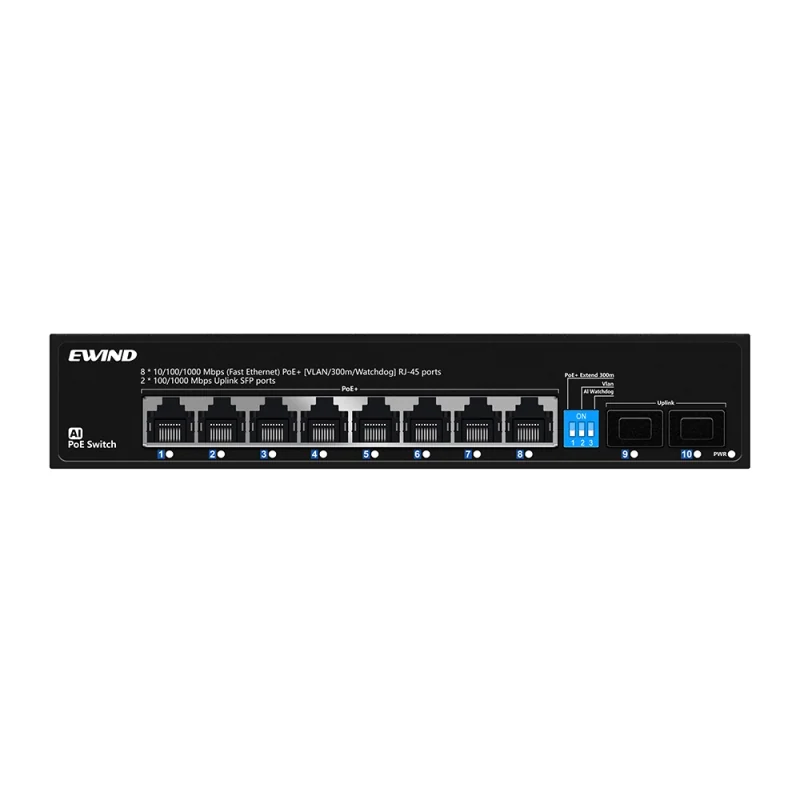

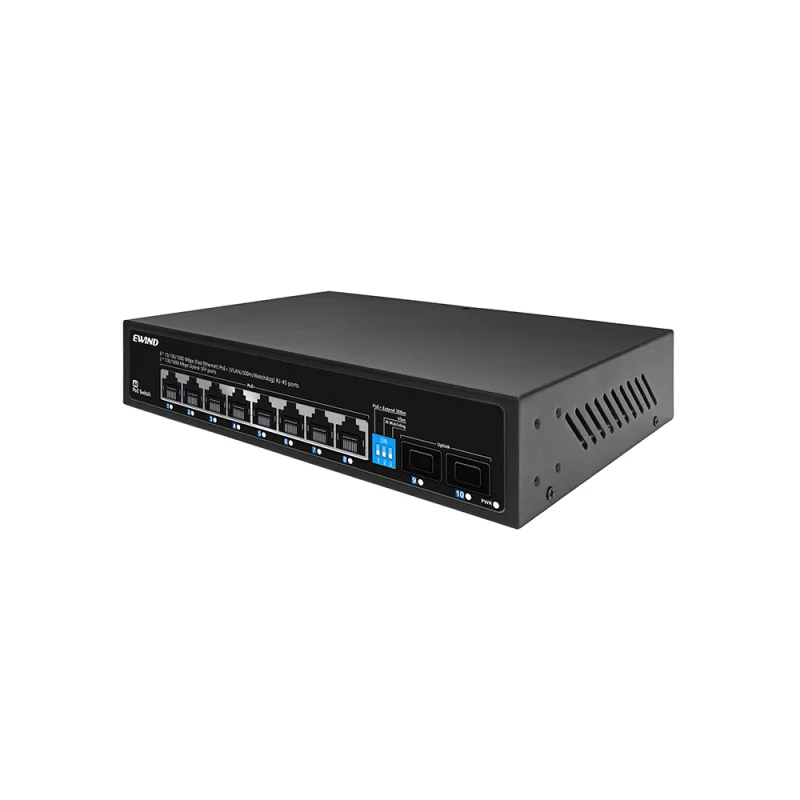

10-Port Full Gigabit PoE Switch with 2 SFP Uplinks
- 8 × 10/100/1000Mbps PoE ports · IEEE 802.3af/at
- 2 × 100/1000Mbps SFP fiber uplinks
- 120W total PoE power · 20Gbps switching · 300m extend mode
Project inquiry
Request pricing and lead time
Tell us your model, quantity and project requirements. Our networking team will help you find the right fit.
Overview
EW-S1710FG-AP provides eight Gigabit PoE ports and two 100/1000Mbps SFP uplinks for fiber backed surveillance and wireless networks. It combines 120W PoE capacity with 300m extend mode, VLAN isolation and AI PoE watchdog recovery in a compact unmanaged enclosure.
Two SFP uplinks
The two data-only SFP slots support 100/1000Mbps fiber modules for longer upstream links.

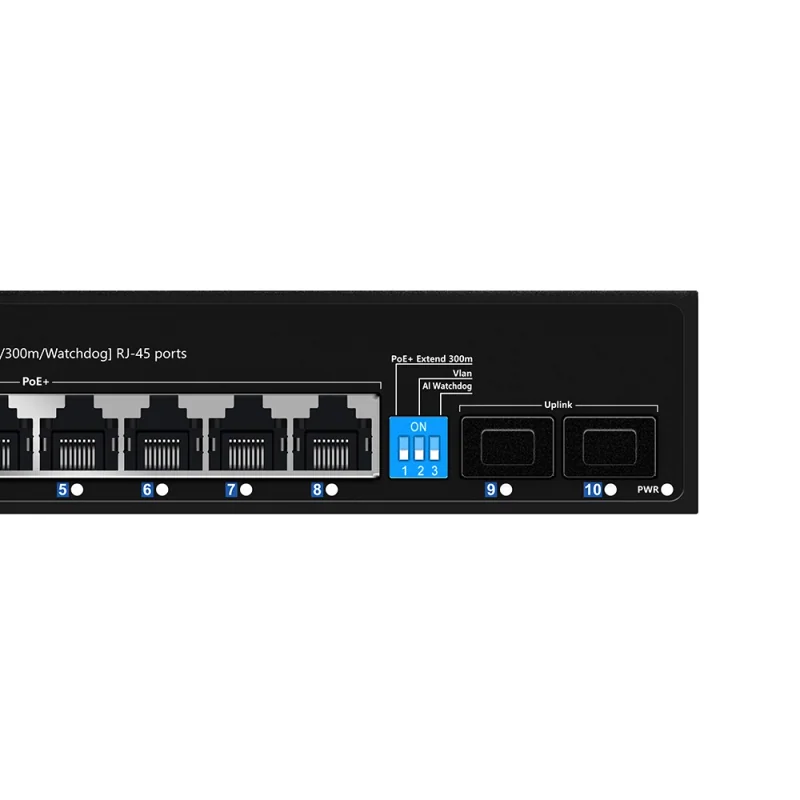

Extend, VLAN and watchdog
DIP modes provide 300m transmission, ports 1–4 isolation/VLAN and AI PoE watchdog recovery.
| Specification | Details |
|---|---|
| Model | EW-S1710FG-AP |
| PoE ports | 8 × 10/100/1000BASE-T PoE; ports 1–8 |
| Fiber uplinks | 2 × 100/1000BASE-X SFP data slots |
| PoE standard / port limit | IEEE 802.3af/at; 15.4W standard, up to 30W per port |
| Total power / input | 120W; built-in AC 100–240V, 50–60Hz |
| Management | Unmanaged; DIP-switch controls |
| Switching / forwarding | 20Gbps / 14.88Mpps |
| MAC / buffer | 2K / 2M |
| Dimensions / installation | 195 × 130 × 40 mm; desktop or wall mount |
| Protection / environment | IP30; −20 to +55°C; 5–90% RH |
| Warranty | 1 year; lifetime maintenance |

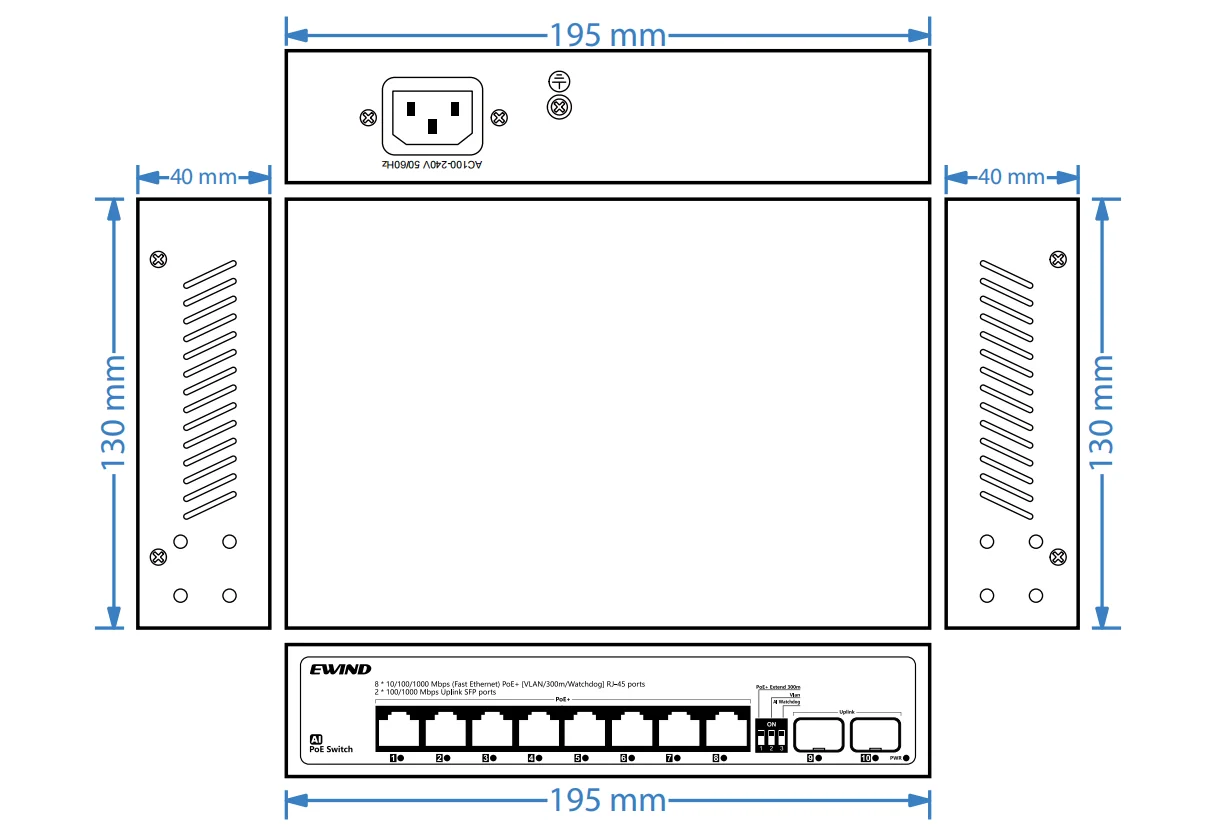

Dimensions
Order information
| Content | Quantity | Unit |
|---|---|---|
| 10 Ports Full Giga PoE Switch with 2*Giga SFP (EW-S1710FG-AP) | 1 | SET |
| User Guide | 1 | PC |
| Warranty Card | 1 | PC |

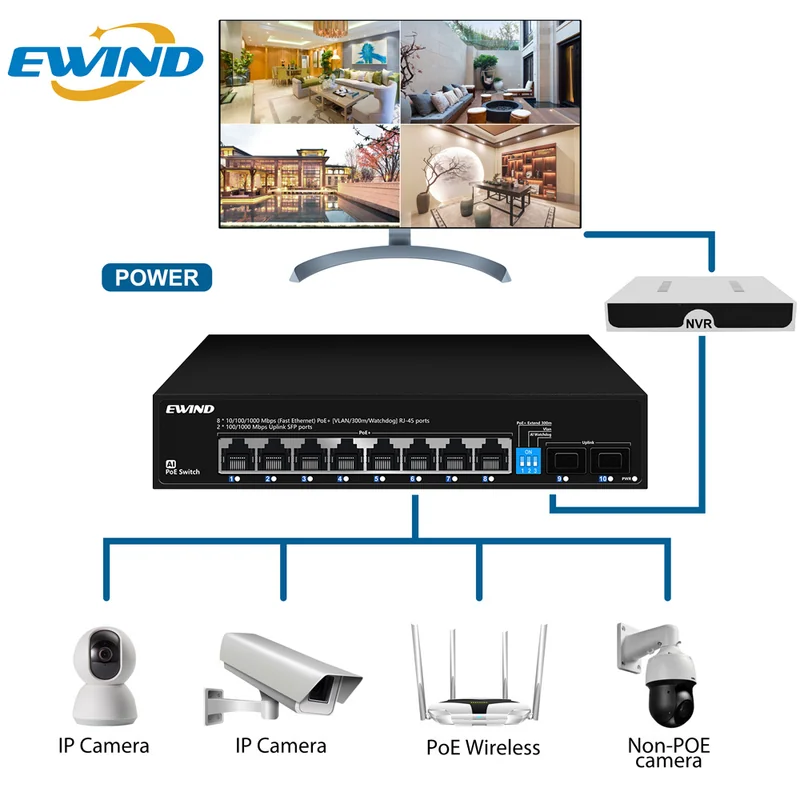

Applications
Surveillance, wireless access and access-control networks that need fiber uplinks from a compact PoE edge switch.
