Four PoE outputs
Ports 1–4 support IEEE 802.3af/at with 15.4W standard power and up to 30W per port.
Model: EW-S1706CG-AP
4-Port Gigabit Unmanaged PoE Switch with 2 RJ45 Uplinks
- 4 × 10/100/1000Mbps PoE ports · up to 30W per port
- 2 × 10/100/1000Mbps Gigabit RJ45 uplinks
- 65W built-in AC supply · extend, VLAN and AI watchdog DIP modes
Project inquiry
Request pricing and lead time
Tell us your model, quantity and project requirements. Our networking team will help you find the right fit.
Overview

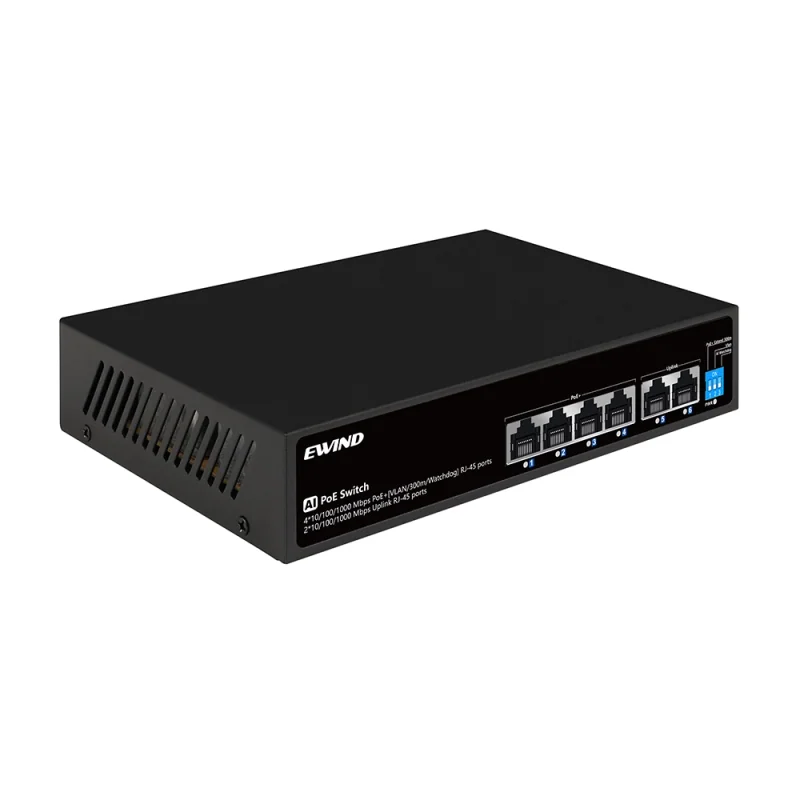

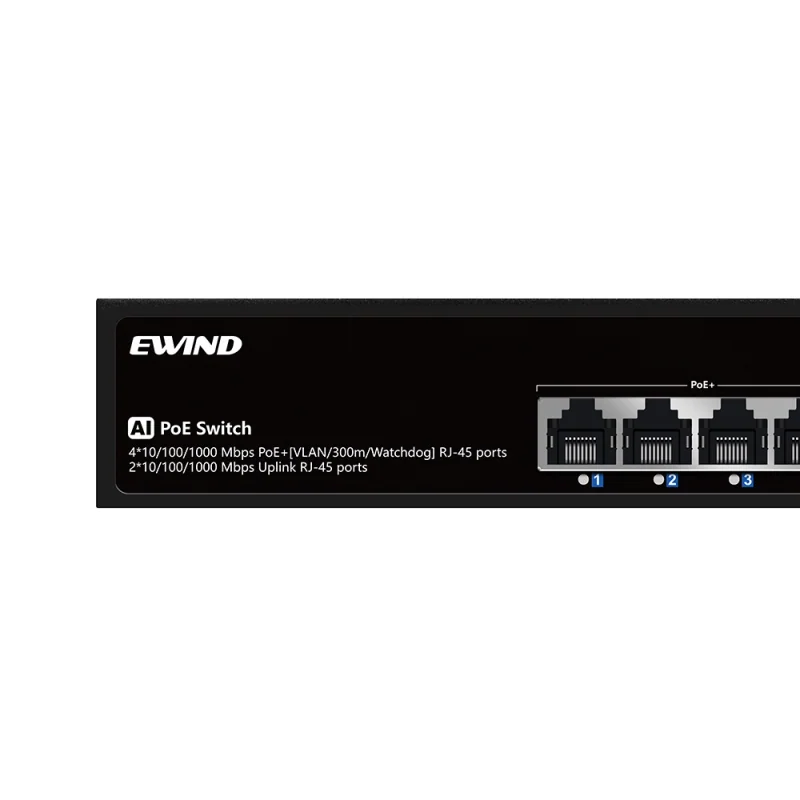

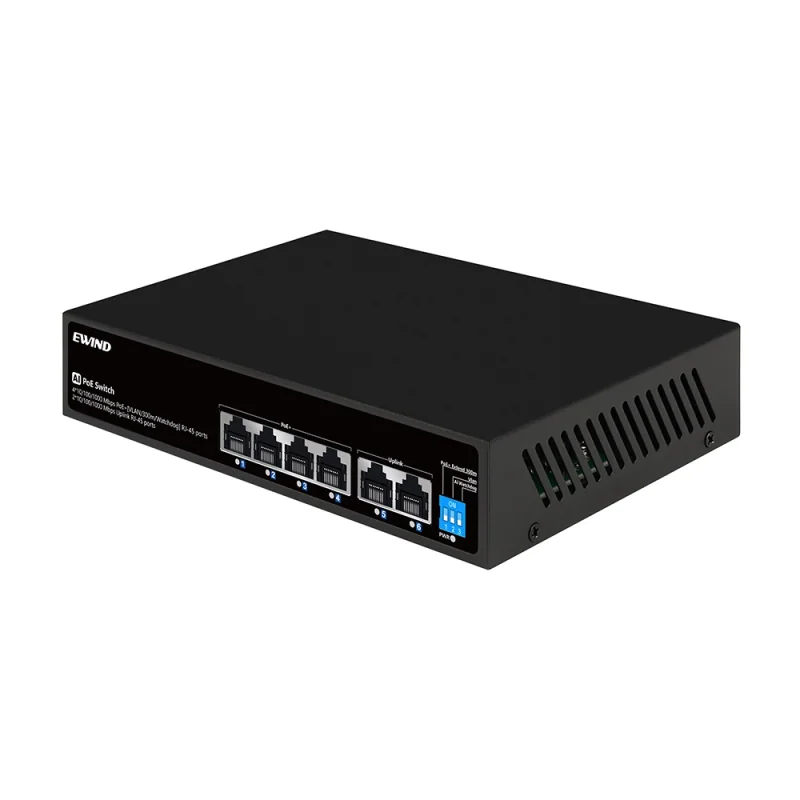

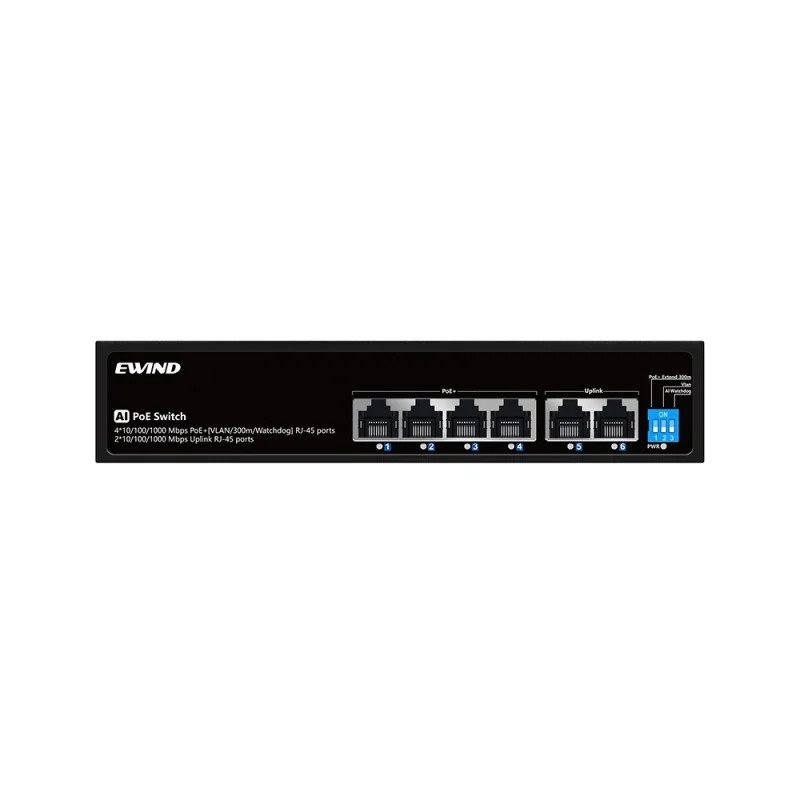

EW-S1706CG-AP is a compact unmanaged Gigabit PoE switch with four PoE ports and two Gigabit RJ45 uplinks. Its 65W built-in AC supply, 300m extend mode, VLAN isolation and AI PoE watchdog suit small camera, phone and access-point deployments.
Two Gigabit uplinks
Two data-only Gigabit RJ45 ports connect the compact PoE segment to the upstream network.

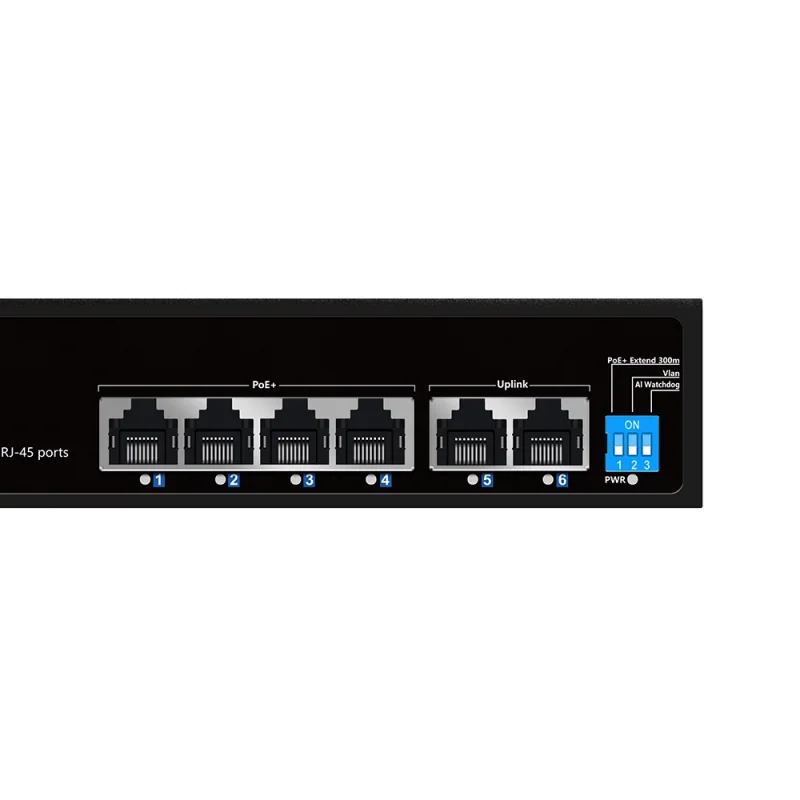

Simple hardware controls
DIP switches enable 300m extend, per-port VLAN isolation and AI PoE watchdog recovery.
| Specification | Details |
|---|---|
| Model | EW-S1706CG-AP |
| PoE ports | 4 × 10/100/1000BASE-T PoE; ports 1–4 |
| Uplinks | 2 × 10/100/1000BASE-T RJ45 data ports |
| PoE standard / port limit | IEEE 802.3af/at; 15.4W standard, up to 30W per port |
| Power supply / budget | Built-in AC 100–240V, 50/60Hz; 65W |
| Management | Unmanaged; DIP-switch extend, VLAN isolation and AI PoE watchdog |
| Switching / forwarding | 12Gbps / 8.9Mpps |
| MAC / buffer | 2K / 1M |
| Dimensions / installation | 195 × 130 × 40 mm; desktop or wall mount |
| Protection / environment | IP30; −20 to +55°C; 5–90% RH |
| Warranty | 1 year; lifetime maintenance |

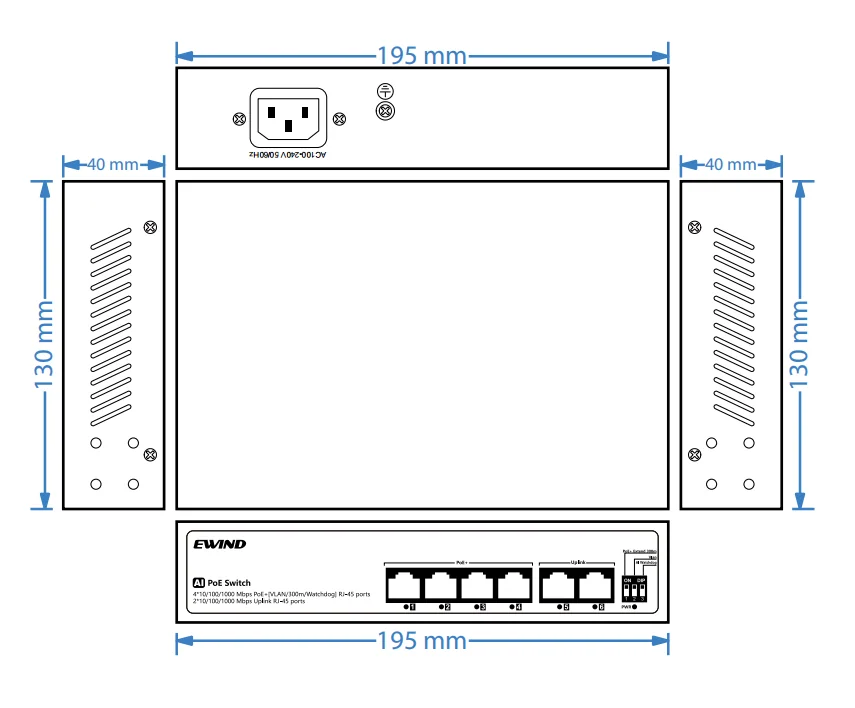

Dimensions
Order information
| Content | Quantity | Unit |
|---|---|---|
| EW-S1706CG-AP full Gigabit AI Watchdog PoE switch | 1 | SET |
| User guide and warranty card | 1 | PC |
