Model: EW-S1827CF-AP

24-Port Fast Ethernet Hi-PoE Switch with Gigabit Uplinks

24 Fast Ethernet PoE + 2 Gigabit RJ45 + 1 Gigabit SFP
Ports 21–24: up to 60W Hi-PoE
300W built-in supply; fanless enclosure
Extend, isolation and PoE watchdog DIP controls

Project inquiry

Request pricing and lead time

Tell us your model, quantity and project requirements. Our networking team will help you find the right fit.

info@ewindnet.com

Overview

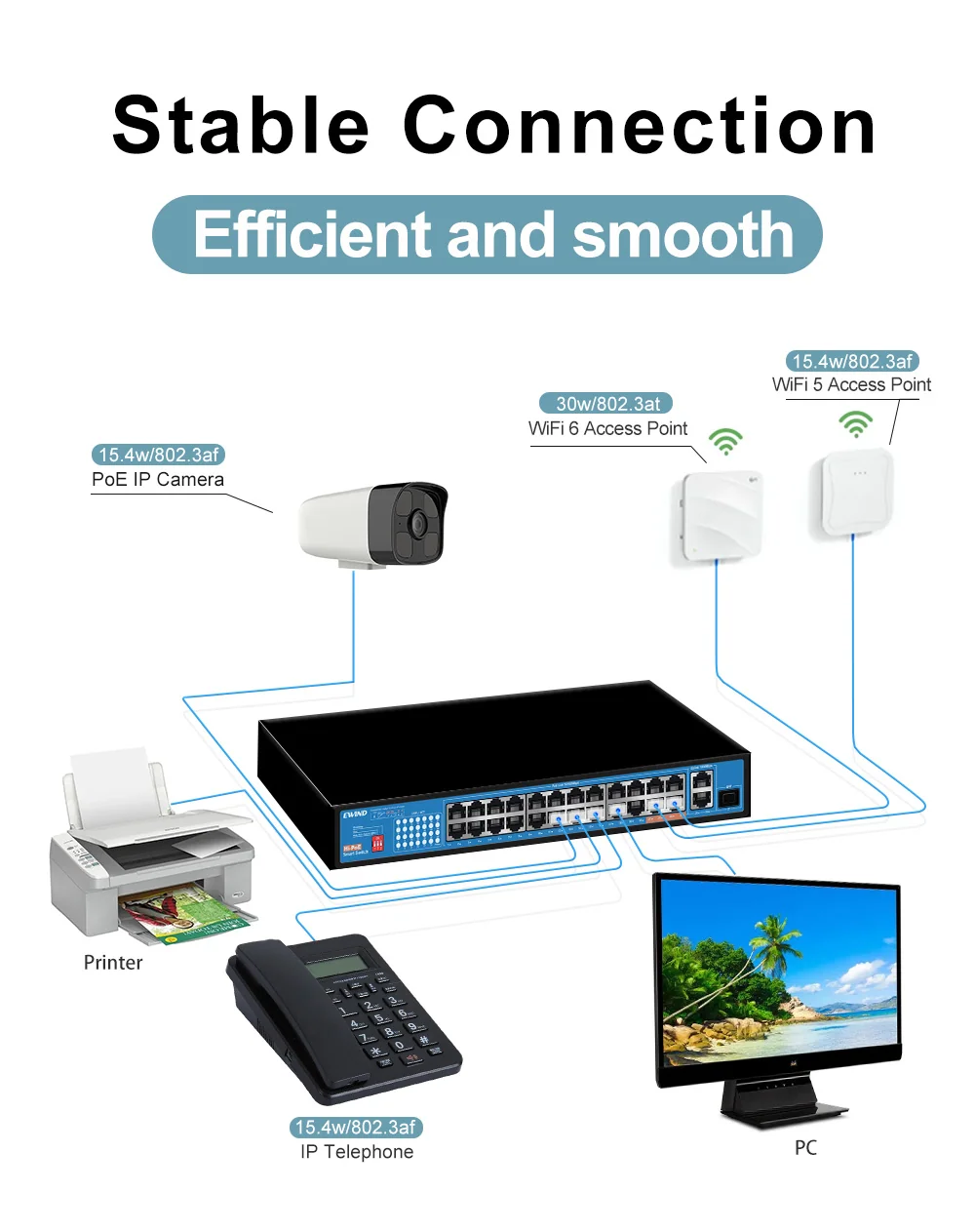

EW-S1827CF-AP connects 24 Fast Ethernet PoE devices to two Gigabit copper uplinks and one Gigabit SFP uplink. The fanless unmanaged switch includes a 300W supply, four Hi-PoE ports rated up to 60W and DIP controls for extension, isolation and watchdog recovery.

Four Hi-PoE ports

Ports 21–24 are rated up to 60W; ports 1–20 are rated up to 30W.

Copper and fiber uplinks

Two Gigabit RJ45 ports and one 100/1000Mbps SFP slot connect upstream devices.

Automatic recovery

PoE watchdog can restart an unresponsive powered device; isolation separates access ports.

Product technical specifications
Specification	Details
Model	EW-S1827CF-AP
PoE ports	24 × 10/100BASE-TX RJ45
Uplinks	2 × Gigabit RJ45 + 1 × 100/1000Mbps SFP
PoE compatibility	IEEE 802.3af/at
Per-port power	Ports 1–20: up to 30W; ports 21–24: up to 60W Hi-PoE
Power supply	300W; AC 100–240V, 50–60Hz
Management	Unmanaged; E/V/D DIP controls
Switching capacity	10.8Gbps
Forwarding rate / MAC table	8.05Mpps / 8K entries
Dimensions	310 × 205 × 44 mm
Operating temperature	−20°C to +55°C
Warranty	2 years
