Model: EW-S1950CG-AP

48-Port Gigabit Unmanaged PoE Switch with 2 SFP Uplinks

48 × 10/100/1000Mbps PoE ports · up to 30W per port
2 × 100/1000M SFP uplinks
400W built-in AC supply · 100Gbps switching · 1U rack mount

Project inquiry

Request pricing and lead time

Tell us your model, quantity and project requirements. Our networking team will help you find the right fit.

info@ewindnet.com

Overview

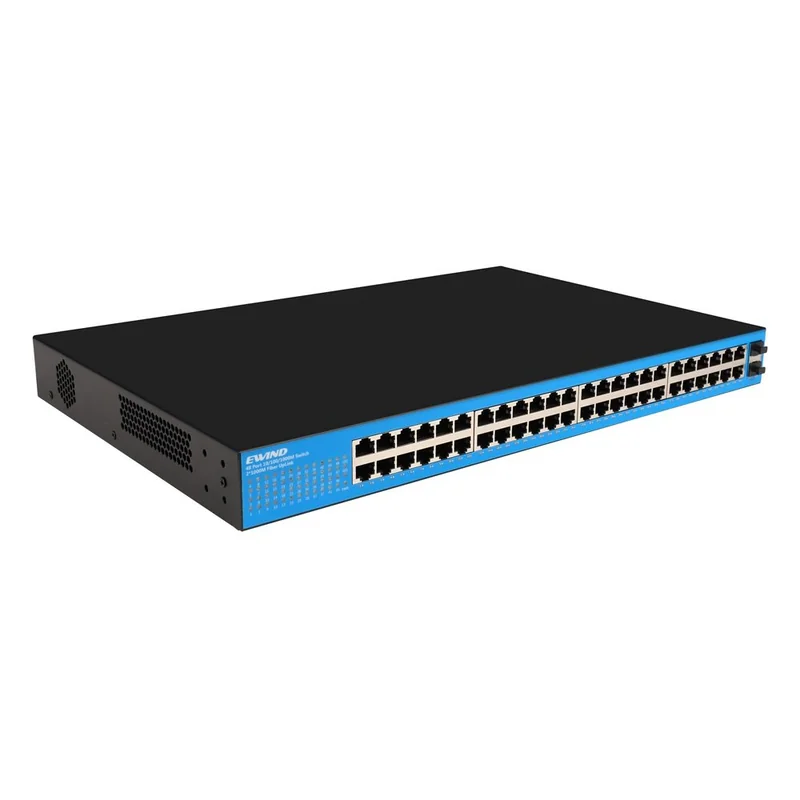

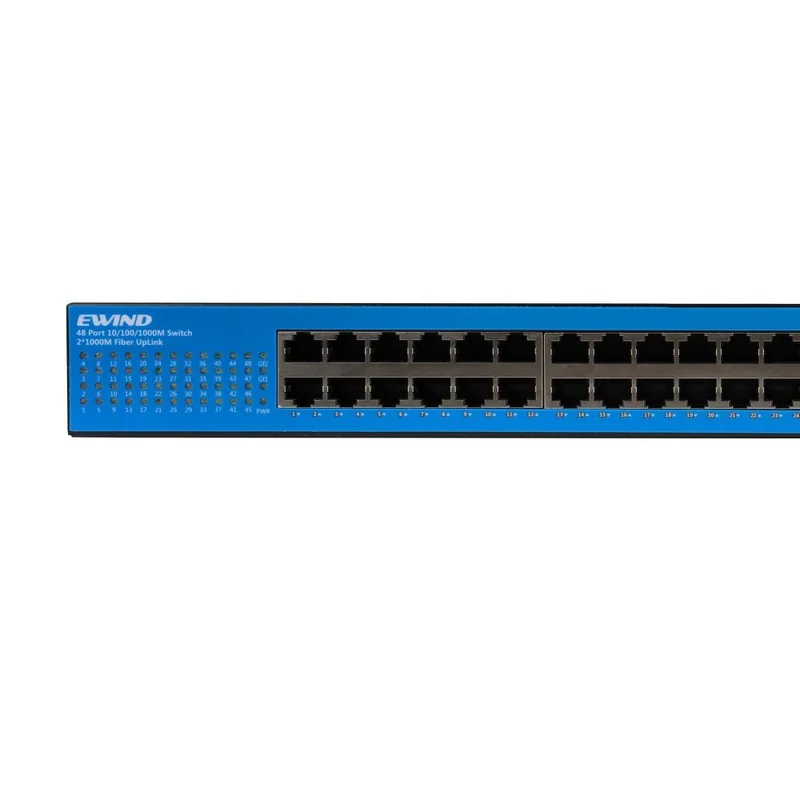

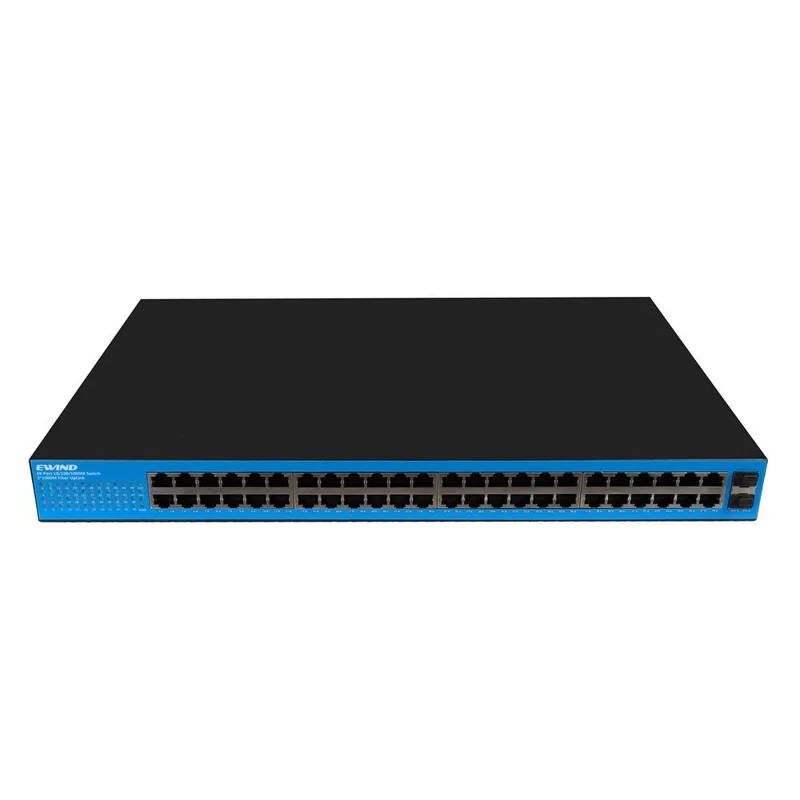

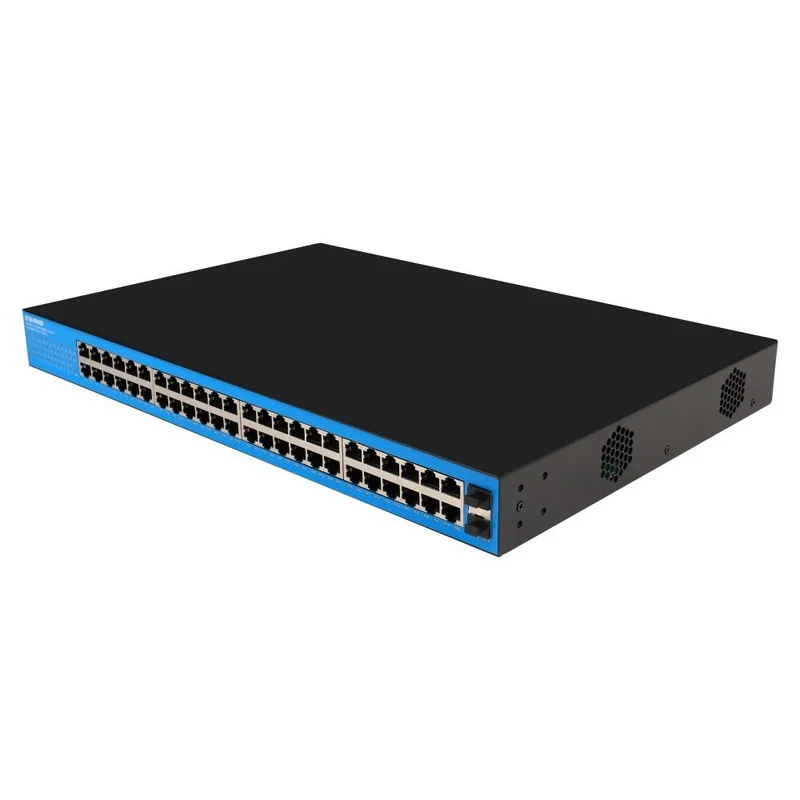

EW-S1950CG-AP provides forty-eight Gigabit PoE ports and two Gigabit SFP uplinks in a 1U full-size chassis. Its 400W internal AC supply, 100Gbps switching capacity and 30W-per-port AF/AT support suit dense surveillance, campus and office networks.

High-density PoE

Ports 1–48 support IEEE 802.3af/at with 15.4W standard power and up to 30W per port.

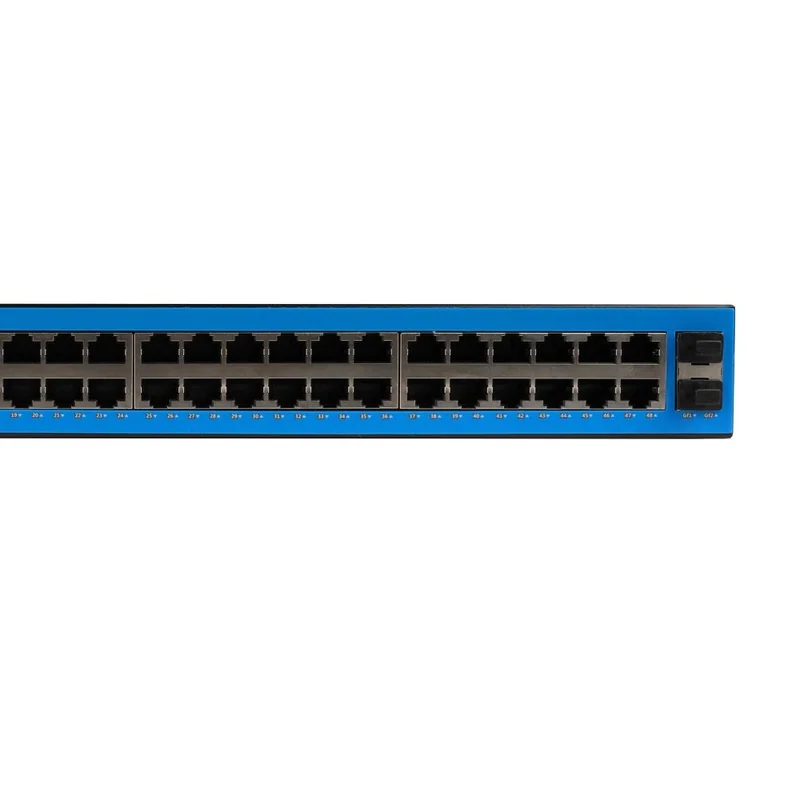

Two SFP uplinks

Two Gigabit SFP slots accept separately purchased modules for fiber backbone or recorder connections.

Predictable fan-cooled chassis

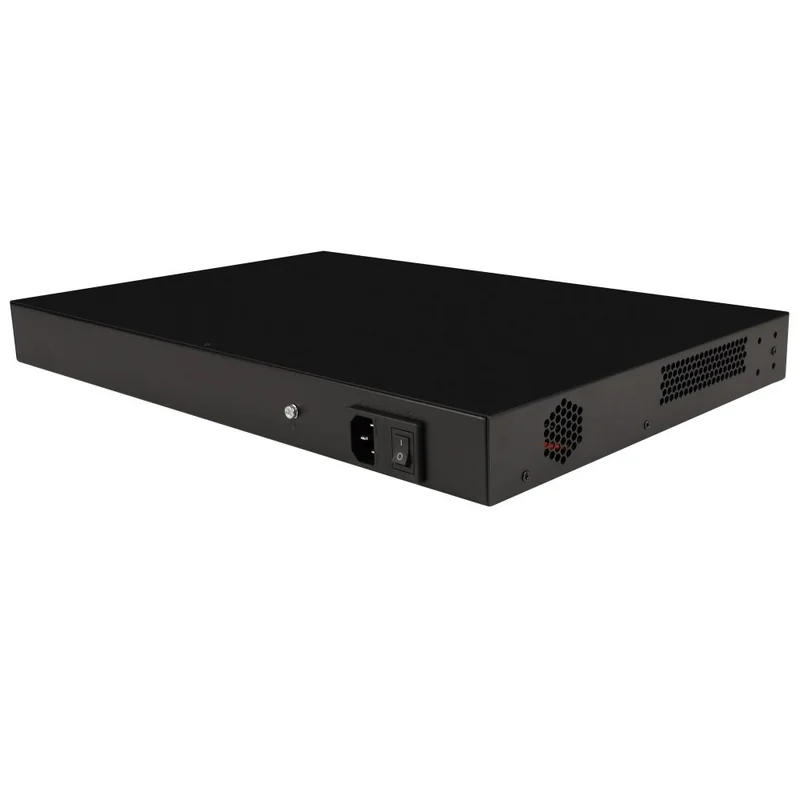

A 400W internal supply and 1U rack format support dense endpoint deployments in network cabinets.

Product technical specifications
Specification	Details
Model	EW-S1950CG-AP
PoE ports	48 × 10/100/1000BASE-T PoE; ports 1–48
Uplinks	2 × 100/1000M SFP data ports
PoE standard / port limit	IEEE 802.3af/at; 15.4W standard, up to 30W per port
Switching / forwarding	100Gbps / 74.44Mpps
MAC / buffer	8K / 4M
Power supply / budget	Built-in AC 100–240V, 50/60Hz; 400W
Management	Unmanaged; plug-and-play PoE switching

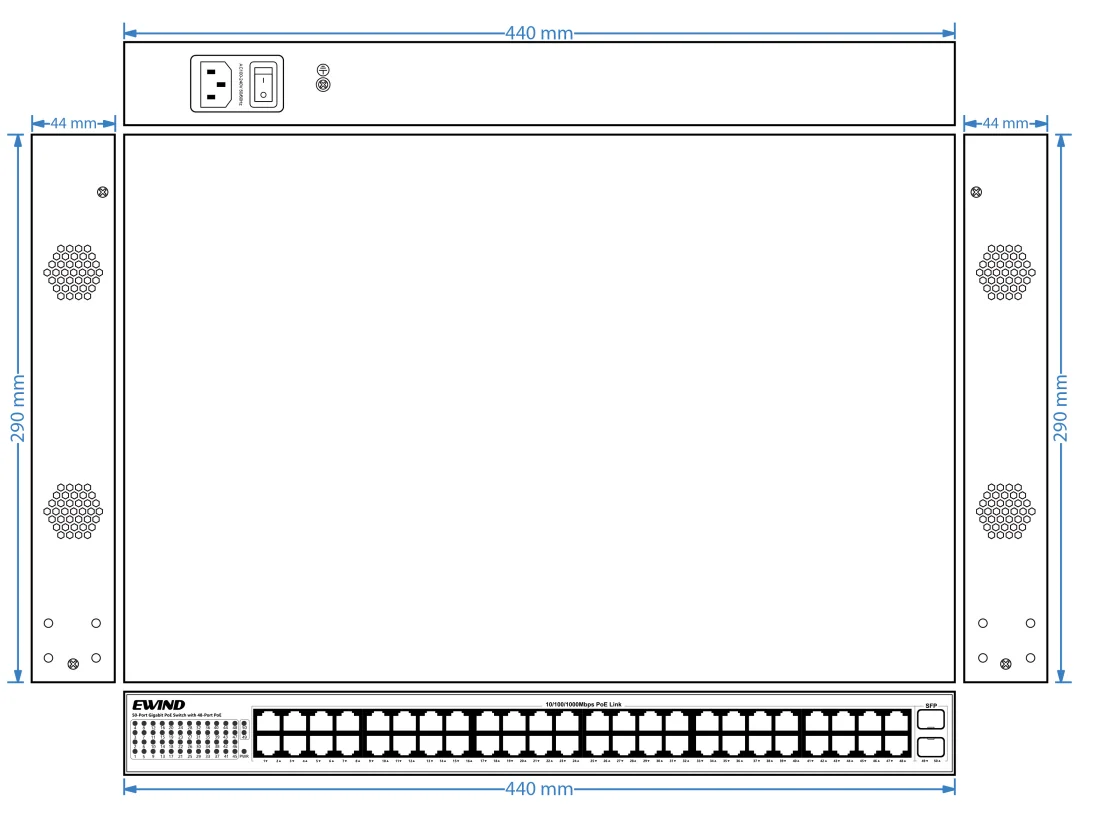

Dimensions / installation	440 × 290 × 44 mm; desktop or rack mount
Protection / environment	IP30; −20 to +55°C; 5–90% RH
Warranty	3 years; lifetime maintenance
