Model: EW-EPIS3906FGSH-4GE

4-Port Gigabit Cloud-Managed Industrial Hybrid PoE Switch

4 × Gigabit PoE ports with 12/24/48V hybrid output modes
2 × 100/1000M SFP fiber uplinks
DC 9–57V redundant input · IP40 · −40 to +75°C

Project inquiry

Request pricing and lead time

Tell us your model, quantity and project requirements. Our networking team will help you find the right fit.

info@ewindnet.com

Overview

EW-EPIS3906FGSH-4GE combines four Gigabit PoE ports with two 100/1000M SFP uplinks in a rugged cloud-managed industrial chassis. Ports 1–2 provide selectable 12/24V output, port 3 supports 802.3af/at and port 4 adds 802.3bt up to 90W.

Mixed-voltage PoE

Ports 1–2 support non-standard 12/24V output, port 3 supports af/at at 48V and port 4 supports bt up to 90W.

Industrial fiber uplinks

Two SFP slots accept separately purchased modules for multimode or single-mode Gigabit links.

Cloud-managed resilience

Remote alarms, ONVIF topology, watchdog, 300m extend and redundant DC input support distributed sites.

Product technical specifications
Specification	Details
Model	EW-EPIS3906FGSH-4GE
PoE ports	4 × 10/100/1000BASE-T PoE
Output modes	Ports 1–2: 12V up to 9.6W or 24V up to 19.2W; port 3: IEEE 802.3af/at up to 30W; port 4: IEEE 802.3bt up to 90W
Fiber uplinks	2 × 100/1000M SFP data ports
Switching / forwarding	12Gbps / 8.9Mpps
MAC / buffer / jumbo frame	8K / 2M / 10K
Power input	DC 9–57V via DC jack and redundant dual 5-pin industrial Phoenix terminals
Management	Cloud platform and mobile app; watchdog, 300m extend, 12/24V DIP switching, alarms and ONVIF topology

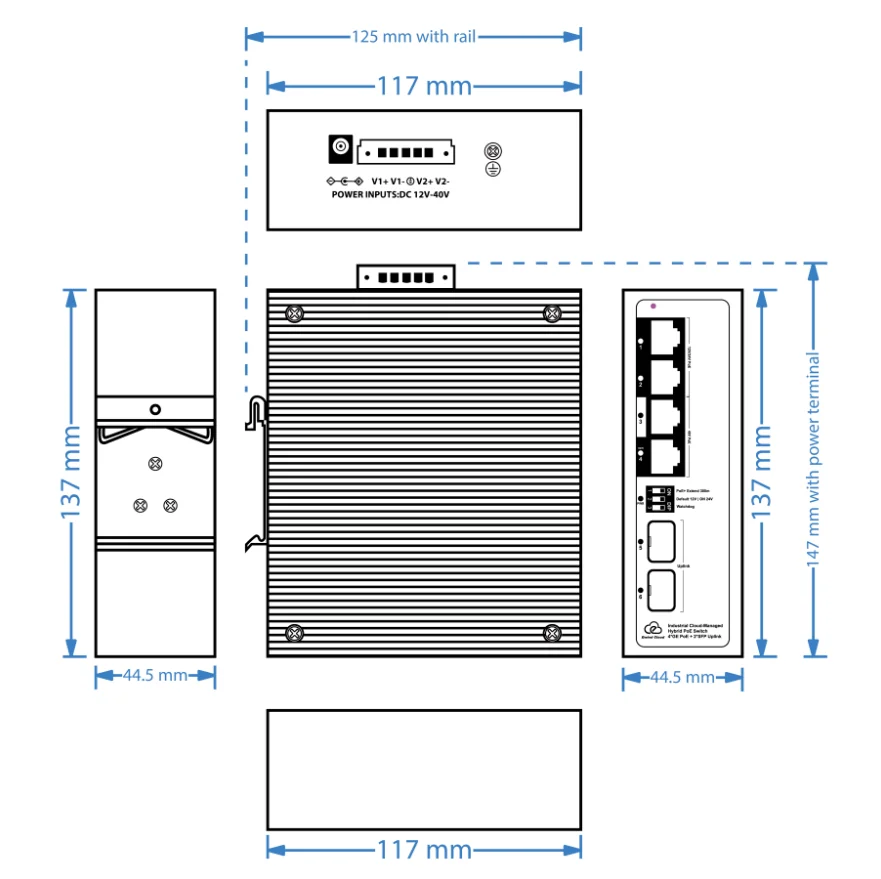

Dimensions / weight	137 × 117 × 42 mm; 0.8kg net
Protection / environment	IP40; 6kV surge; −40 to +75°C; 5–95% RH
Warranty	5 years; lifetime maintenance
