Managed PoE
Allocate, schedule and monitor IEEE 802.3af/at power per port.
Model: EW-PIS3810M-8GE
10-Port Gigabit L2+ Managed Industrial PoE Switch
- 8 × 10/100/1000Mbps PoE ports with IEEE 802.3af/at
- 2 × 100/1000Mbps SFP uplinks and RS232 console
- Up to 30W per PoE port and 240W source power specification
- L2+ routing, VLAN, ERPS, QoS, ACL and secure management
Project inquiry
Request pricing and lead time
Tell us your model, quantity and project requirements. Our networking team will help you find the right fit.
Overview
EW-PIS3810M-8GE is an industrial L2+ managed PoE switch with eight Gigabit PoE ports, two Gigabit SFP uplinks, an RS232 console and redundant 48–57VDC inputs. VLAN, ERPS, routing, QoS and secure management support industrial surveillance and automation networks.
Fiber uplinks
Two Gigabit SFP slots connect industrial cabinets over copper or fiber.
L2+ resilience
ERPS, STP/RSTP/MSTP, static routing and VLAN controls support resilient networks.
Harsh environments
Wide temperature range, 6kV lightning protection and IP40 protection suit field use.
| Specification | Details |
|---|---|
| Interfaces | 8 × 10/100/1000Mbps PoE RJ45; 2 × 100/1000Mbps SFP; RS232 console |
| PoE standard | IEEE 802.3af/at; up to 30W per port |

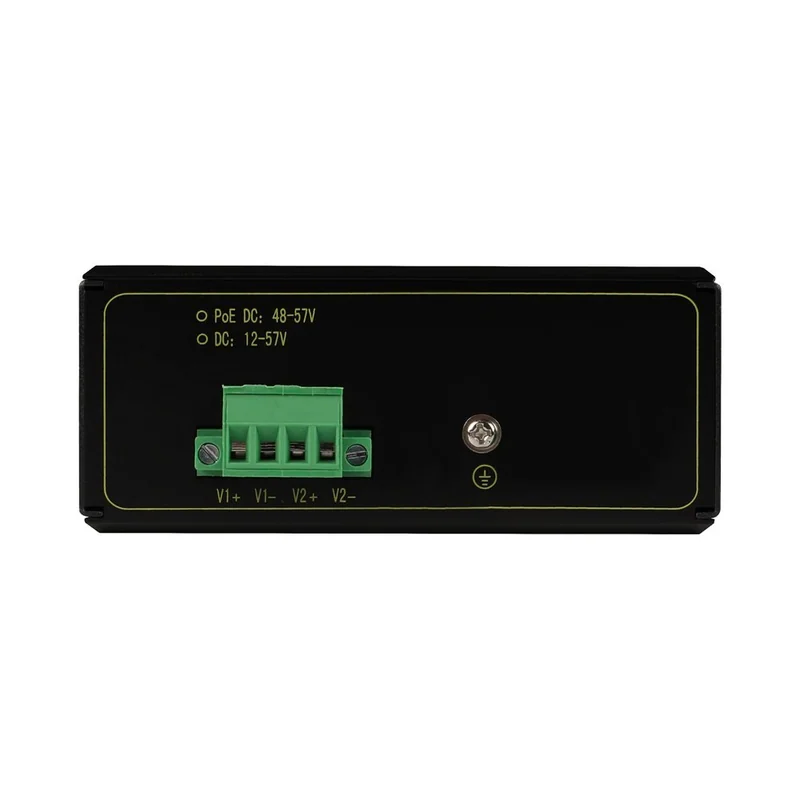

| Power input / budget | 48–57VDC redundant Phoenix terminals; 240W total input specification |
| Switching performance | Non-blocking; 14.88Mpps at 64 bytes; store-and-forward |
| Memory | 8K MAC table; 4M buffer; 10K jumbo frames |
| Fiber reach | Multimode 850nm up to 500m; single-mode 1310nm up to 40km or 1550nm up to 120km |
| Layer 2+ features | 4K VLAN, QinQ, Voice VLAN, MAC VLAN, LACP, STP/RSTP/MSTP, IGMP/MLD snooping and ERPS |
| Layer 3 / security | IPv4/IPv6 management, static/default routes, ACL, 802.1X, RADIUS, SSH2.0, HTTPS and IP/MAC/VLAN binding |
| Dimensions / weight | 165 × 120 × 52mm; net under 0.8kg, gross under 1.2kg |
| Environment / protection | Operating −40°C to +85°C; storage −40°C to +125°C; IP40; 6kV lightning and industrial EMC protection |
| Warranty | 5 years; lifelong maintenance |

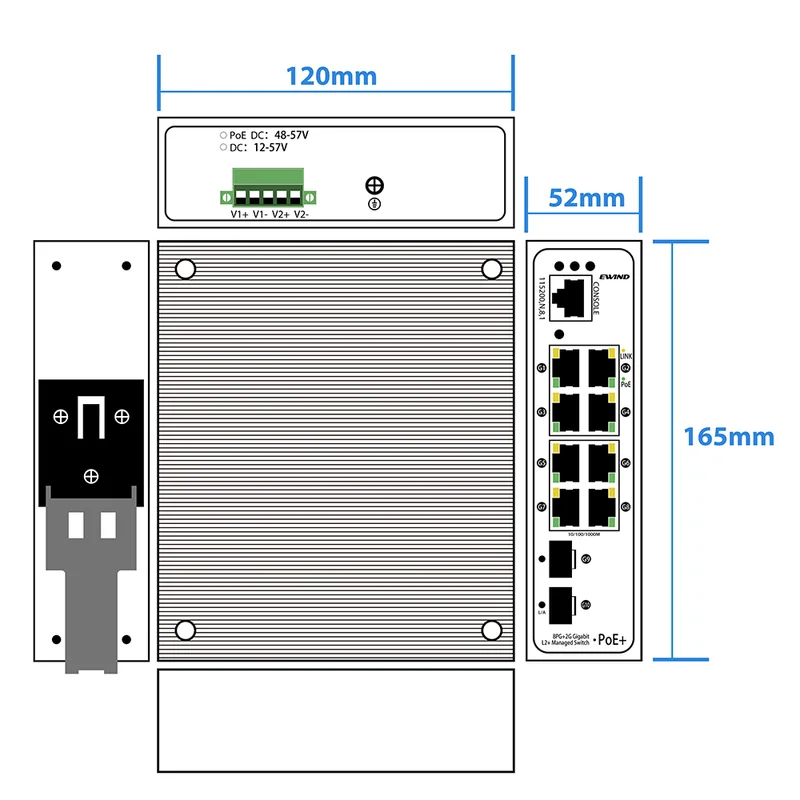

Dimensions
Order information
| Content | Quantity | Unit |
|---|---|---|
| 10 Ports Full Gigabit Managed Industrial PoE Switch (EW-PIS3810M-8GE) | 1 | SET |
| User guide | 1 | PC |
| Warranty card | 1 | PC |
Applications
Industrial CCTV, traffic systems, factory automation and harsh-environment Ethernet networks.
EW-PIS3810M-8GE Resources
PDF · Specifications · Installation · Ordering
