Eight Gigabit PoE ports
Eight Gigabit copper ports power cameras, APs and industrial edge devices.
Model: EW-PIS5712M-8GE
12-Port Gigabit Managed Industrial PoE Switch with 10G SFP+
- 8 × 10/100/1000Mbps PoE ports and 4 × 10G SFP+ uplink slots
- L2+ managed switching with console port and one-button reset
- IEEE 802.3af/at PoE with 30W maximum per port and 240W total
- 128Gbps non-blocking switching capacity, 16K MAC and 12M buffer
Project inquiry
Request pricing and lead time
Tell us your model, quantity and project requirements. Our networking team will help you find the right fit.
Overview
EW-PIS5712M-8GE is an L2+ industrial PoE switch with eight Gigabit PoE ports, four 10G SFP+ uplinks, console management and 240W power for high-throughput industrial networks.
Four 10G SFP+ uplinks
Four high-speed fiber slots provide 10G aggregation and long-distance backbone options.
L2+ managed
Console access, reset control and managed protocol support fit controlled industrial networks.
240W industrial PoE
Redundant DC input, IP40 protection and 240W power support critical edge deployments.
| Specification | Details |
|---|---|
| Interfaces | 8 × 10/100/1000Base-T PoE ports, 4 × 10G SFP+ uplink slots, RS232 console and fault switch |
| PoE standard | IEEE 802.3af/at; 30W maximum per port |
| Management | L2+ managed network type with one-button factory reset |
| Switching performance | Store-and-forward; 128Gbps non-blocking switching capacity and 71.4/83Mpps forwarding rate listed in the source |
| Memory | 16K MAC table, 12M buffer memory and 10K jumbo frames |
| Fiber reach | Multimode 850nm up to 500m; single-mode 1310nm up to 40km or 1550nm up to 120km |
| Power | 48–57VDC industrial input; 240W total; standby under 12W and full load under 240W |
| Dimensions and weight | 165 × 148 × 54mm; net under 1.1kg and gross under 1.5kg |
| Environment | Operating −40℃ to +85℃; storage −40℃ to +125℃; operating humidity 5%–90% RH, non-condensing |
| Protection | IP40, 6kV lightning protection and industrial ESD/EFT/surge protection |
| Warranty | 5 years, lifelong maintenance |

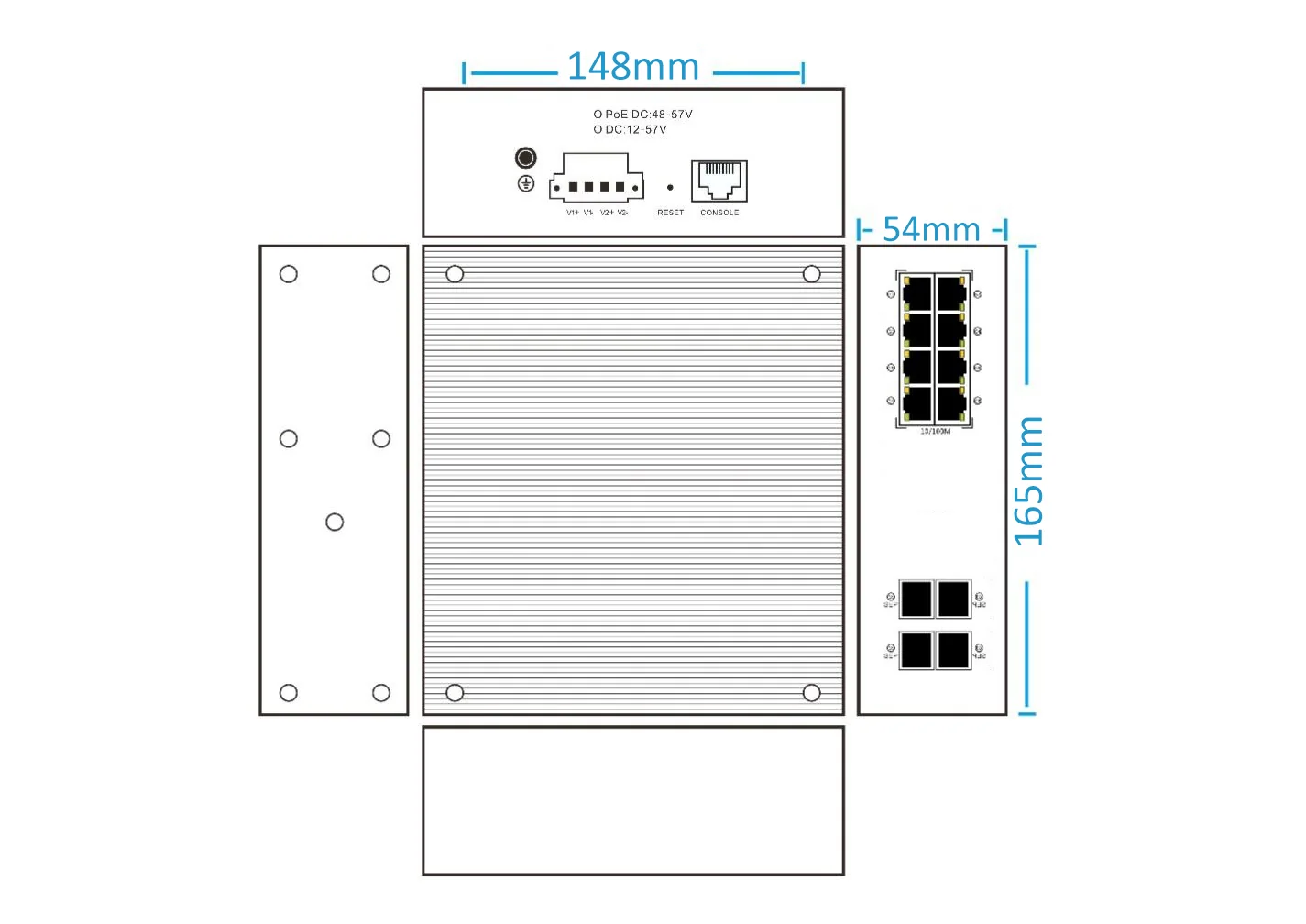

Dimensions

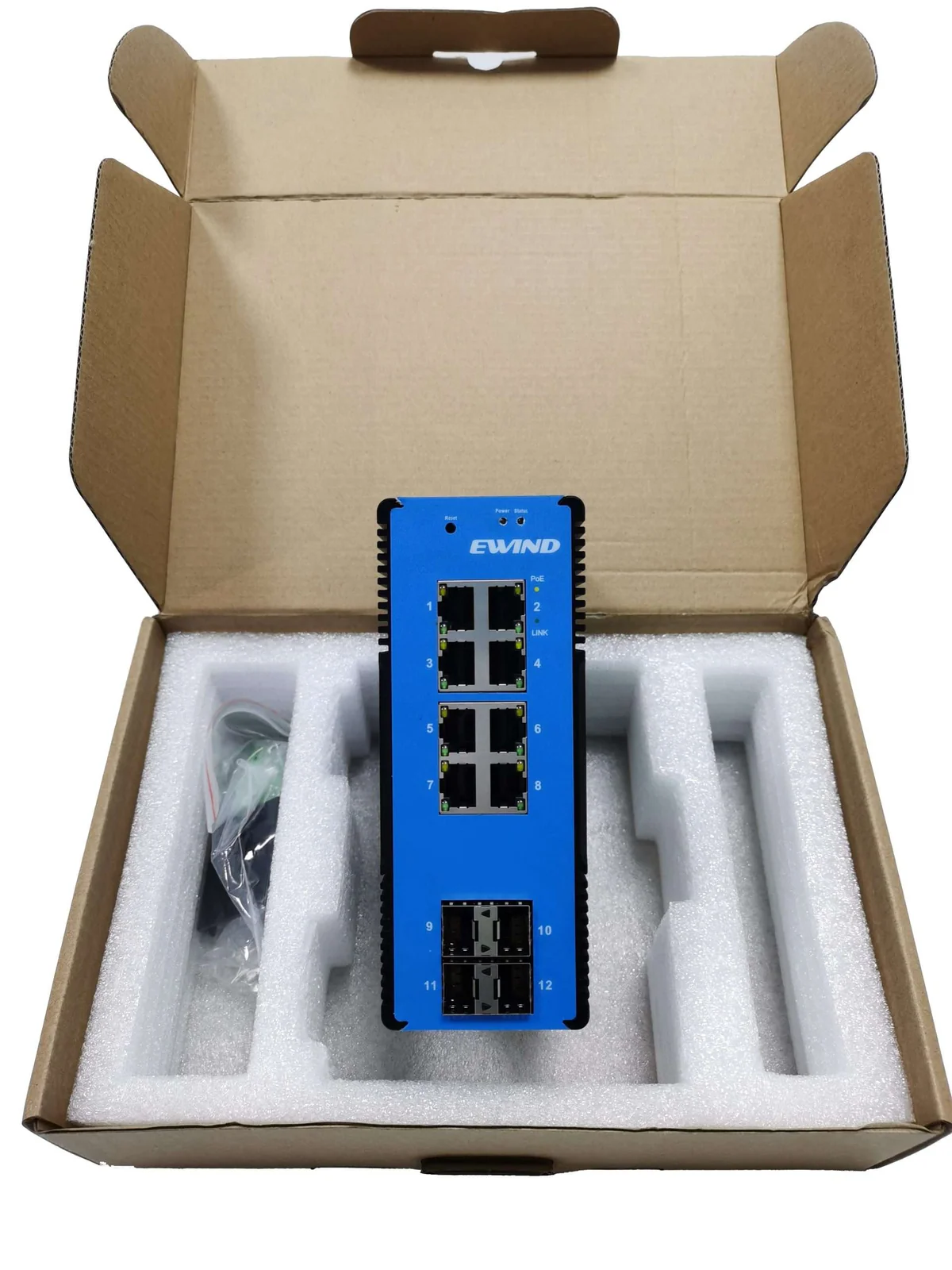

Order information
| Content | Quantity | Unit |
|---|---|---|
| 12 Ports Full Gigabit Managed Industrial PoE Switch (EW-PIS5712M-8GE) | 1 | SET |
| User Guide | 1 | PC |
| Warranty Card | 1 | PC |
Applications
High-throughput industrial PoE aggregation for CCTV, transportation, energy and traffic networks.
