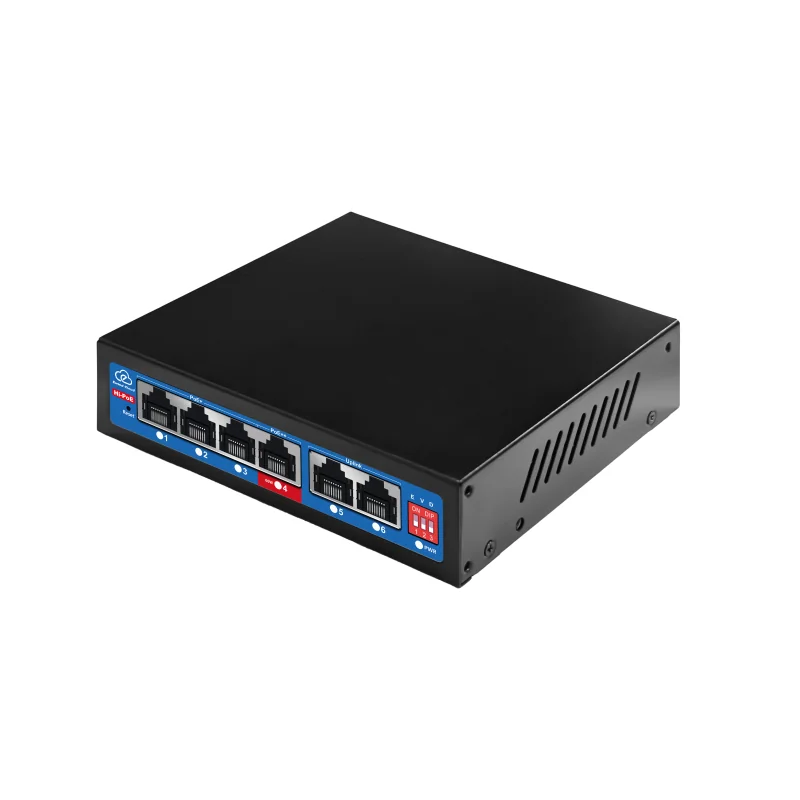

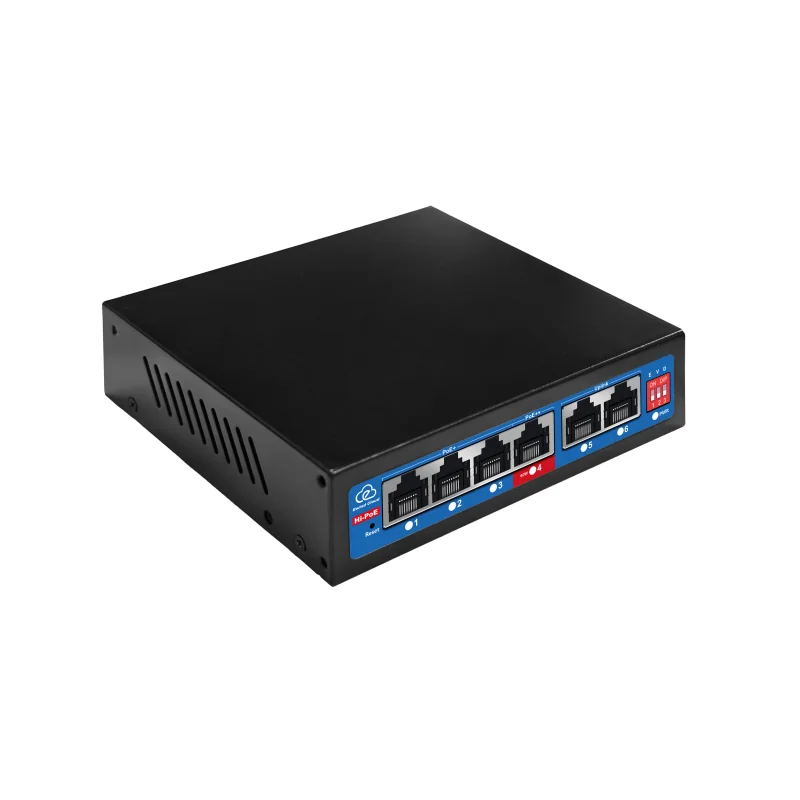

Model: EW-ES2006CFSH-AP

4-Port Fast Ethernet Cloud-Managed PoE Switch

4 × 10/100Mbps PoE ports · port 4 up to 90W
2 × 10/100Mbps data-only uplinks
Cloud/mobile management · 65W supply · 300m extend mode

Project inquiry

Request pricing and lead time

Tell us your model, quantity and project requirements. Our networking team will help you find the right fit.

info@ewindnet.com

Overview

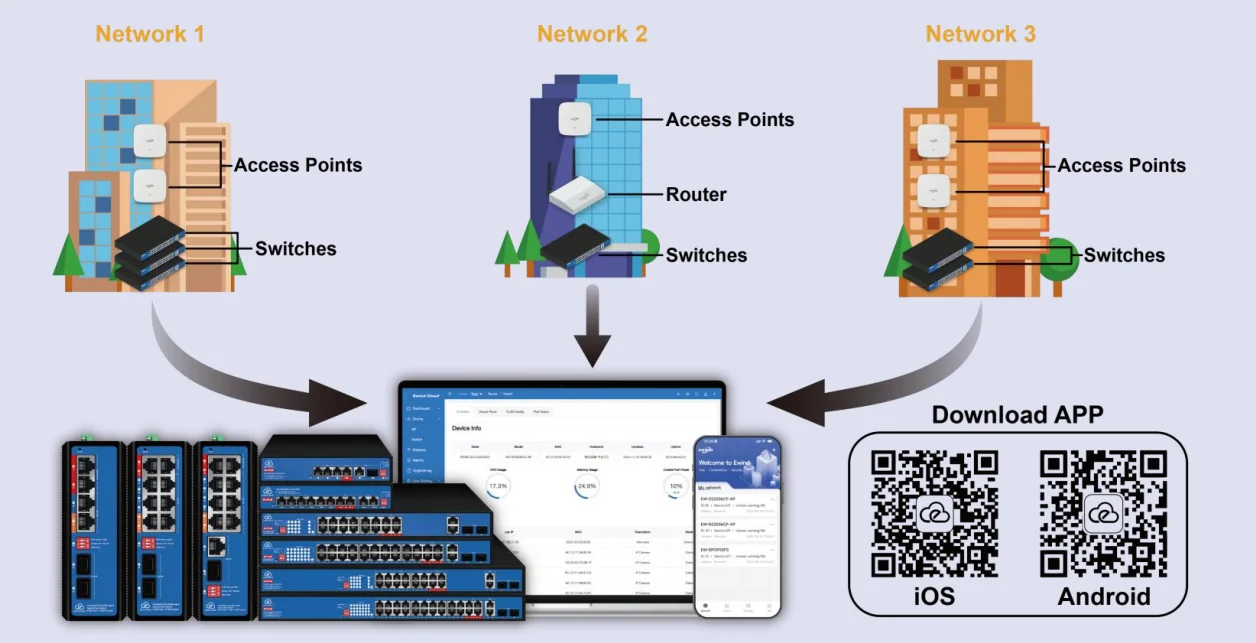

EW-ES2006CFSH-AP is a compact cloud-managed switch with four Fast Ethernet PoE ports and two 10/100Mbps uplinks. Port 4 supports 802.3bt up to 90W, while cloud alarms, ONVIF topology and AI DIP modes simplify small distributed deployments.

Mixed-power PoE

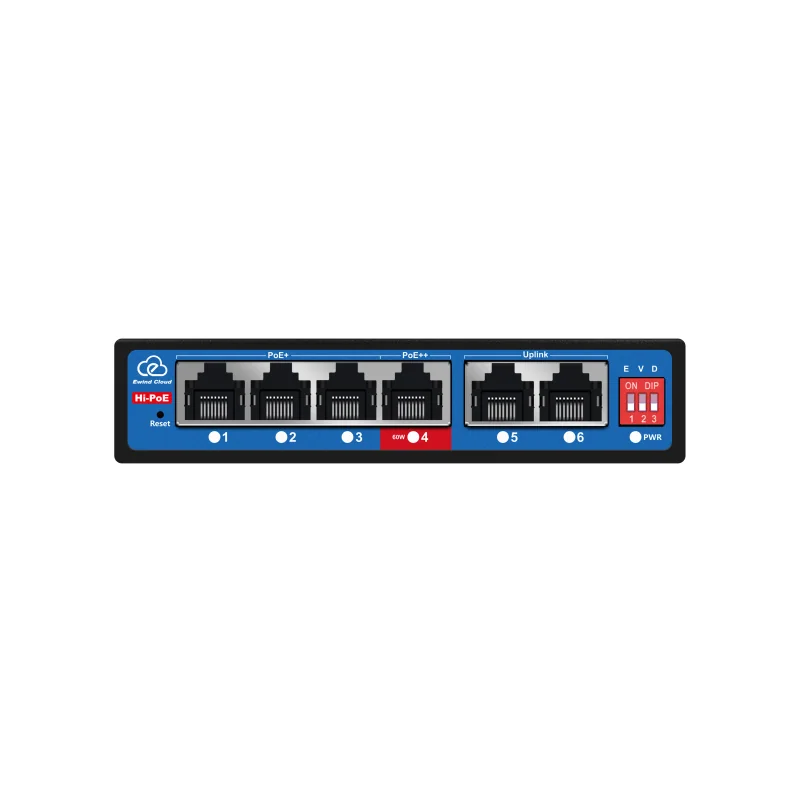

Ports 1–4 support af/at; port 4 adds bt up to 60W/90W within the 65W supply.

Compact uplinks

Two 10/100Mbps RJ45 uplinks connect the cloud-managed PoE segment to the upstream network.

Cloud and AI controls

Remote alarms, ONVIF topology, PoE scheduling, VLAN isolation and watchdog recovery support small sites.

Product technical specifications
Specification	Details
Model	EW-ES2006CFSH-AP
PoE ports	4 × 10/100BASE-T PoE
PoE classes	Ports 1–4: IEEE 802.3af/at; port 4: IEEE 802.3af/at/bt up to 60W/90W
Uplinks	2 × 10/100BASE-T data ports
Switching / forwarding	1.2Gbps / 0.893Mpps
MAC / buffer	2K / 2M

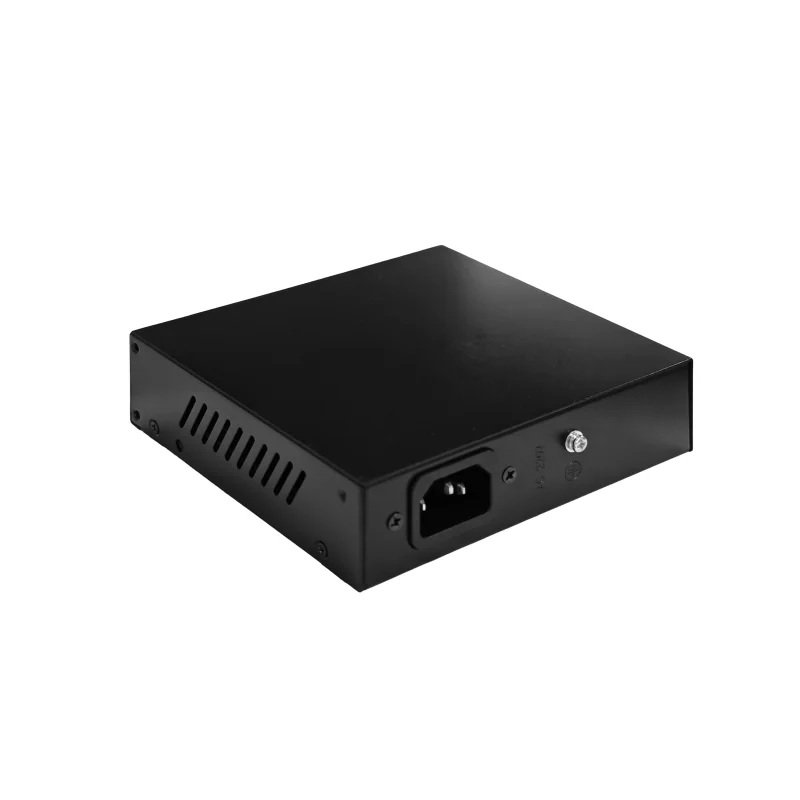

Power supply / budget	Built-in AC 100–240V, 50/60Hz; 65W
Management	Cloud platform and mobile app; VLAN, PoE scheduling, Watchdog, alarms, ONVIF topology and DIP controls

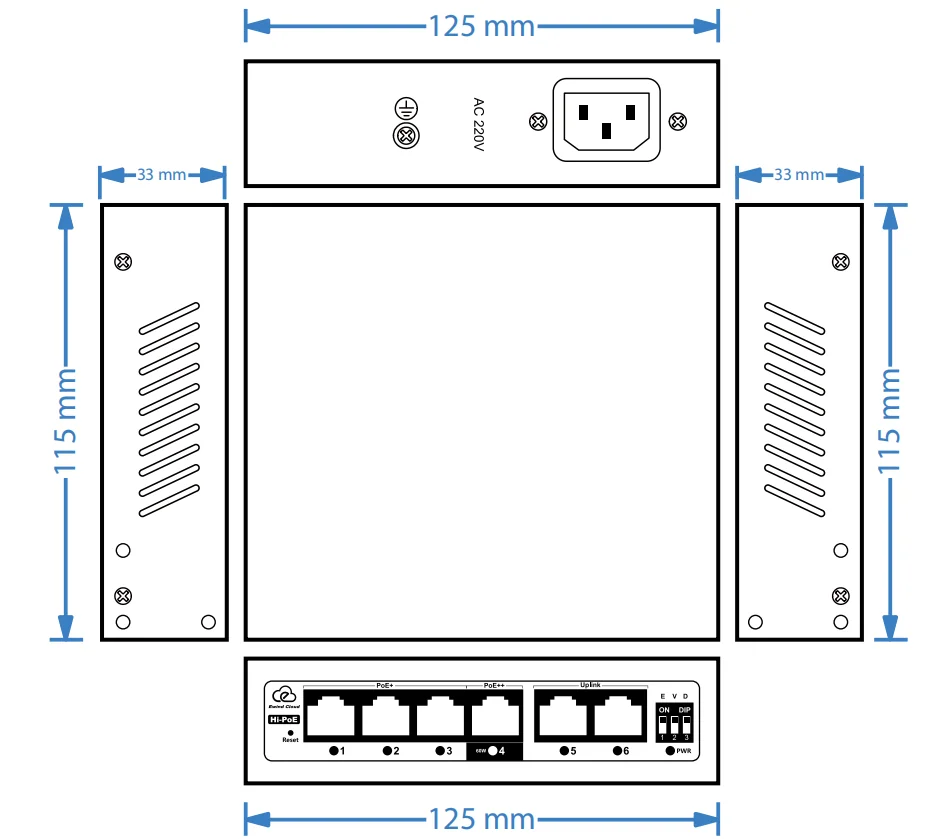

Dimensions / installation	125 × 115 × 33 mm; desktop or wall mount
Protection / environment	IP30; −20 to +55°C; 5–90% RH
Warranty	3 years; lifetime maintenance
