Model: EW-S1906CFG-DP

4-Port Gigabit PoE Switch with 1 SFP and 1 RJ45 Uplink

4 × 10/100/1000Mbps PoE ports · up to 30W per port
1 × Gigabit RJ45 uplink + 1 × 100/1000M SFP slot
60W default PoE budget · 52VDC external adapter · IP30

Project inquiry

Request pricing and lead time

Tell us your model, quantity and project requirements. Our networking team will help you find the right fit.

info@ewindnet.com

Overview

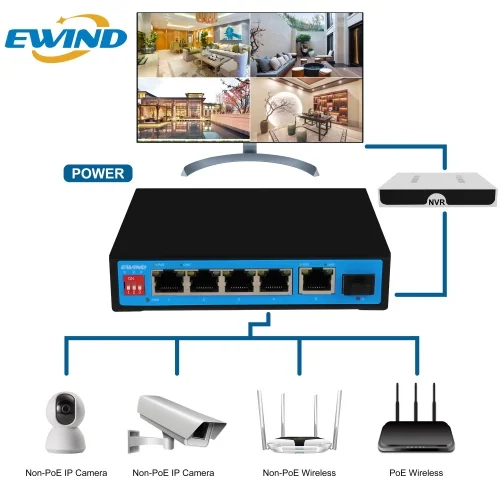

EW-S1906CFG-DP combines four Gigabit PoE ports with one Gigabit RJ45 uplink and one 100/1000M SFP slot. Its compact external-power design, extended-reach mode, isolation/VLAN and AI PoE watchdog suit small surveillance and access networks.

Four PoE outputs

Ports 1–4 support IEEE 802.3af/at with up to 30W per port and a default 60W shared supply.

Copper and fiber uplinks

A dedicated Gigabit RJ45 uplink and a 100/1000M SFP slot provide flexible upstream media.

Hardware recovery controls

DIP switches provide extended reach, isolation/VLAN and AI PoE watchdog recovery on ports 1–4.

Product technical specifications
Specification	Details
Model	EW-S1906CFG-DP
PoE ports	4 × 10/100/1000BASE-T PoE; ports 1–4
Uplinks	1 × 10/100/1000BASE-T RJ45 data port; 1 × 100/1000M SFP slot
PoE standard / port limit	IEEE 802.3af/at; up to 30W per port
Total PoE budget / input	60W default at 52VDC; 120W option
Management	Unmanaged; DIP-switch extend, isolation/VLAN and AI PoE watchdog
Switching / forwarding	12Gbps / 8.93Mpps
MAC / buffer	4K / 2M
Power supply	External adapter; default 60W

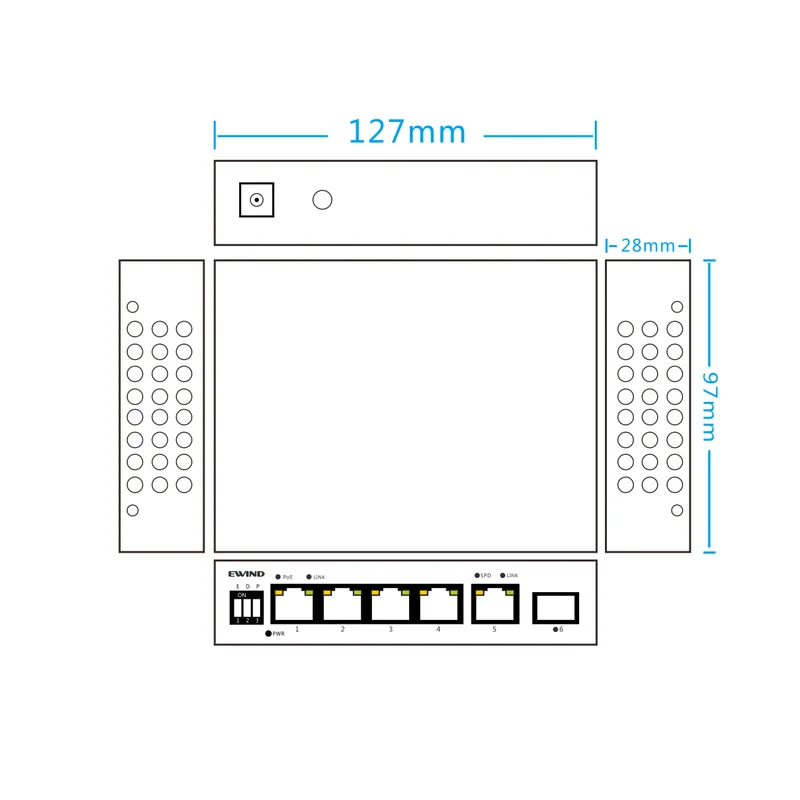

Dimensions / installation	127 × 97 × 28 mm; desktop or wall mount
Protection / environment	IP30; −20 to +55°C; 5–90% RH, non-condensing
Warranty	3 years; lifetime maintenance
