Model: EW-S1820CG-AP

16-Port Gigabit PoE Switch with 2 RJ45 and 2 SFP Uplinks

16 × 10/100/1000Mbps PoE ports · up to 30W per port
2 × Gigabit RJ45 + 2 × 100/1000M SFP uplinks
300W internal AC supply · fanless · desktop, wall or 1U rack mount

Project inquiry

Request pricing and lead time

Tell us your model, quantity and project requirements. Our networking team will help you find the right fit.

info@ewindnet.com

Overview

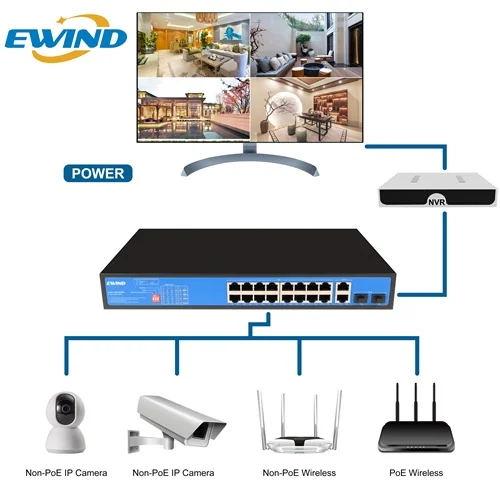

EW-S1820CG-AP combines sixteen Gigabit PoE ports with two dedicated Gigabit RJ45 uplinks and two 100/1000M SFP slots. A fanless 300W AC supply, extended-reach mode, isolation/VLAN and PoE watchdog make it a quiet high-density switch for cameras, access points and phones.

Sixteen PoE outputs

Ports 1–16 support IEEE 802.3af/at with up to 30W per port and a shared 300W budget.

Four uplink choices

Two Gigabit RJ45 data ports and two SFP slots connect the PoE segment to copper or fiber backbones.

Quiet hardware modes

Fanless cooling, extended reach, isolation/VLAN and AI PoE watchdog controls simplify edge deployments.

Product technical specifications
Specification	Details
Model	EW-S1820CG-AP
PoE ports	16 × 10/100/1000BASE-T PoE; ports 1–16
RJ45 uplinks	2 × 10/100/1000BASE-T data ports
Fiber uplinks	2 × 100/1000BASE-X SFP data slots
PoE standard / port limit	IEEE 802.3af/at; up to 30W per port
Total PoE budget / supply	300W; built-in AC 100–240V, 50/60Hz
Switching / forwarding	40Gbps non-blocking / 29.76Mpps
MAC / buffer	8K / 4M
Management	Unmanaged; DIP-switch extend, isolation/VLAN and AI PoE watchdog

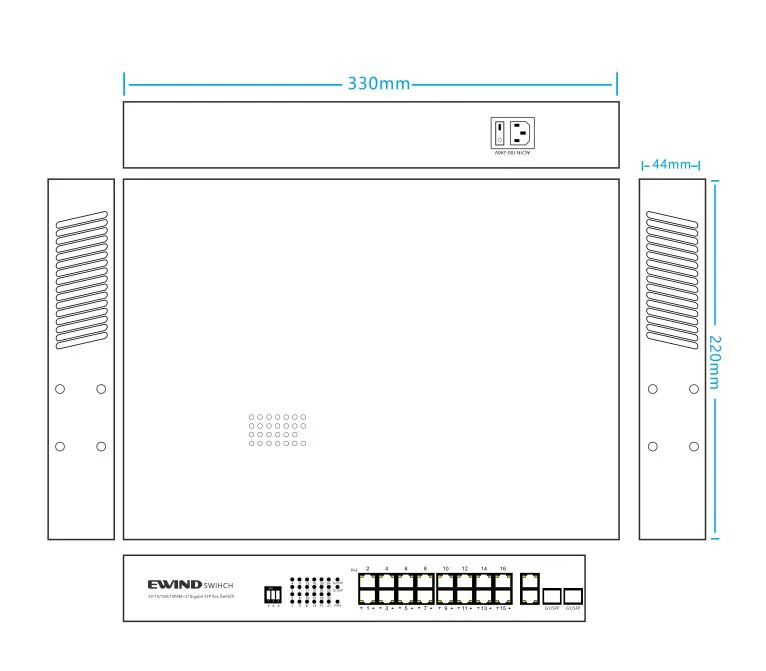

Dimensions / installation	330 × 220 × 44 mm; desktop, wall or 19-inch 1U rack mount
Protection / environment	IP30; −20 to +55°C; 5–90% RH, non-condensing
Warranty	2 years; lifetime maintenance
