Reverse-PoE input
Ports 1–7 accept data and power from compatible reverse-PoE endpoints; output mode is configurable.
Model: EW-S2208CF

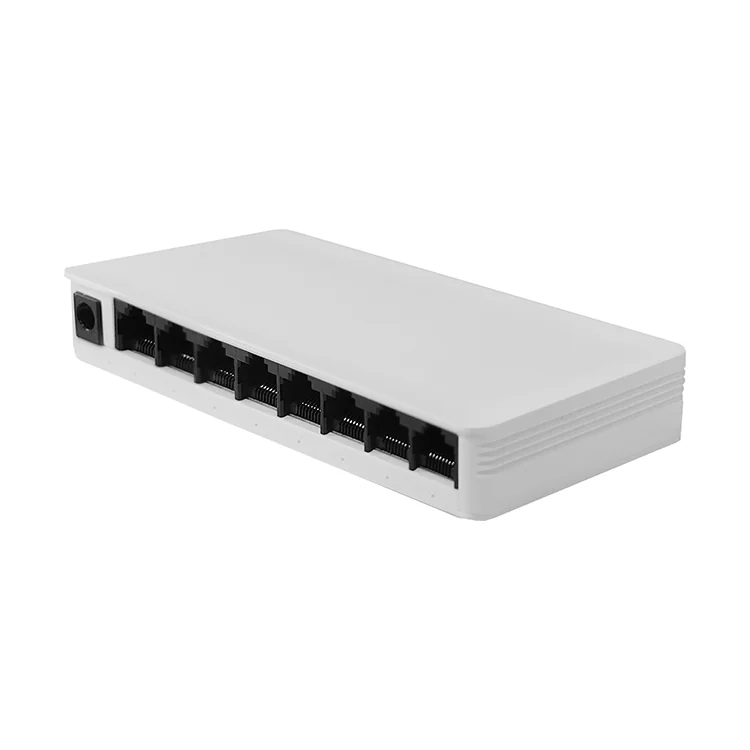

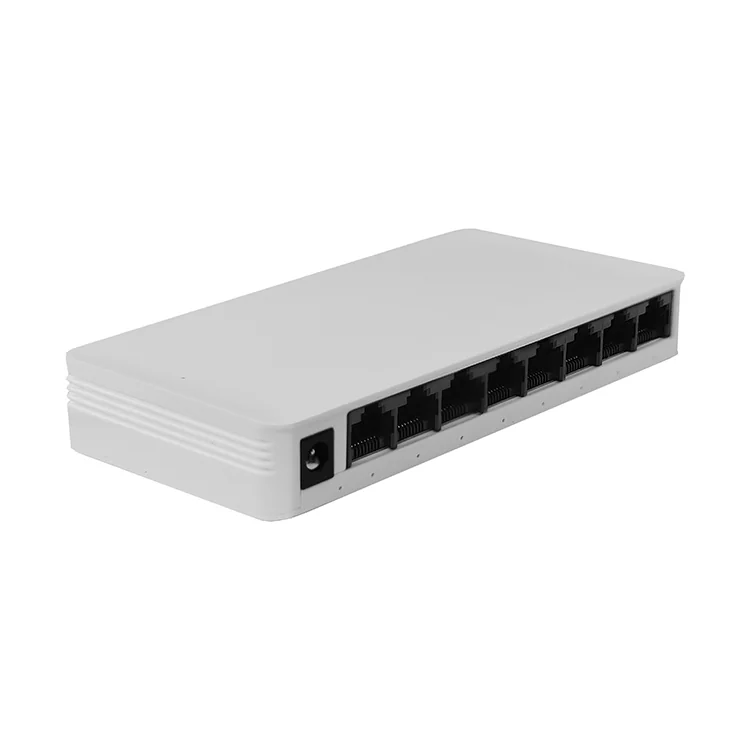

8-Port 100M Reverse PoE Switch with Dedicated Uplink
- 7 reverse-PoE downlinks + 1 dedicated uplink
- 10/100Mbps Fast Ethernet · 1.6Gbps bandwidth
- 12–57V reverse-PoE input · 140 × 60 × 20mm
Project inquiry
Request pricing and lead time
Tell us your model, quantity and project requirements. Our networking team will help you find the right fit.
Overview
EW-S2208CF accepts power and data through seven reverse-PoE downlinks and forwards traffic through a dedicated 10/100Mbps uplink. It supports shared or VLAN-isolated operation for deployments where endpoint-side power is fed back through Ethernet.
Dedicated uplink
Port 8 is a data-only 10/100Mbps uplink to the upstream network.
Shared or isolated modes
Choose standard sharing or VLAN isolation and enable storm, ARP and DHCP conflict protections.
| Specification | Details |
|---|---|
| Model | EW-S2208CF |
| Uplink | Port 8; 10/100BASE-T data |
| Reverse-PoE ports | Ports 1–7; 10/100BASE-T data + power input |
| Switching / bandwidth | Store-and-forward / 1.6 Gbps |
| MAC table | 1K entries |
| Reverse-PoE input | 12–57V on Ethernet pairs; customizable 5V/12V DC output |
| Network modes | Standard sharing or VLAN isolation |
| Cable reach | Up to 150m listed for 10/100 media; verify power loss and cable quality |
| Dimensions / weight | 140 × 60 × 20 mm; 0.15kg |
| Operating environment | −10 to +55°C; 10–90% RH, non-condensing |
| Warranty | 1 year |

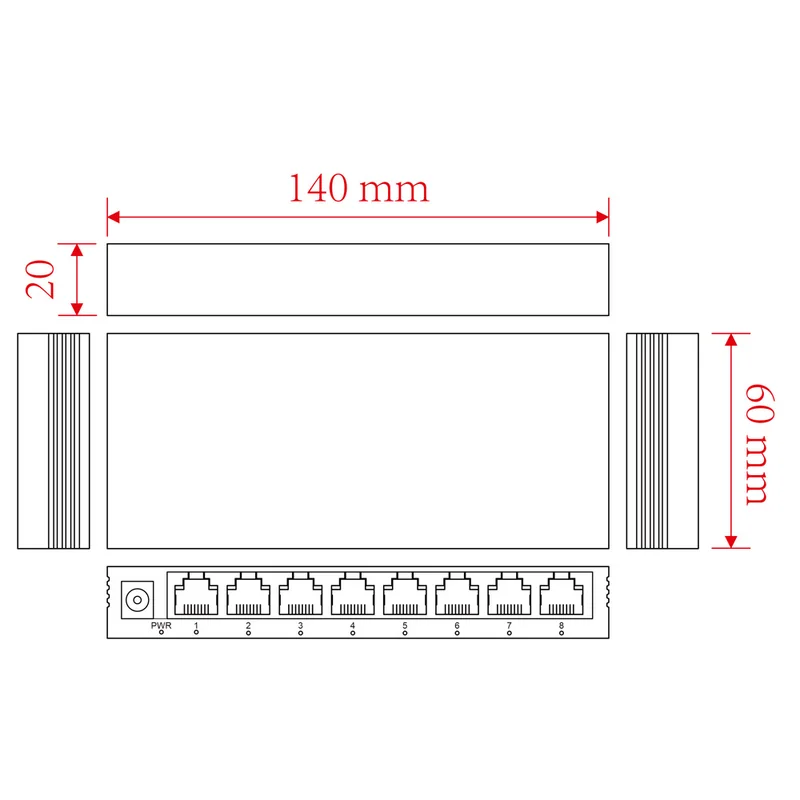

Dimensions
Order information
| Content | Quantity | Unit |
|---|---|---|
| EW-S2208CF reverse PoE switch | 1 | SET |
| User guide | 1 | PCS |
| Warranty card | 1 | PCS |
