28 total ports
24 powered Gigabit connections and four uplinks.
Model: EW-S1828CG-AP

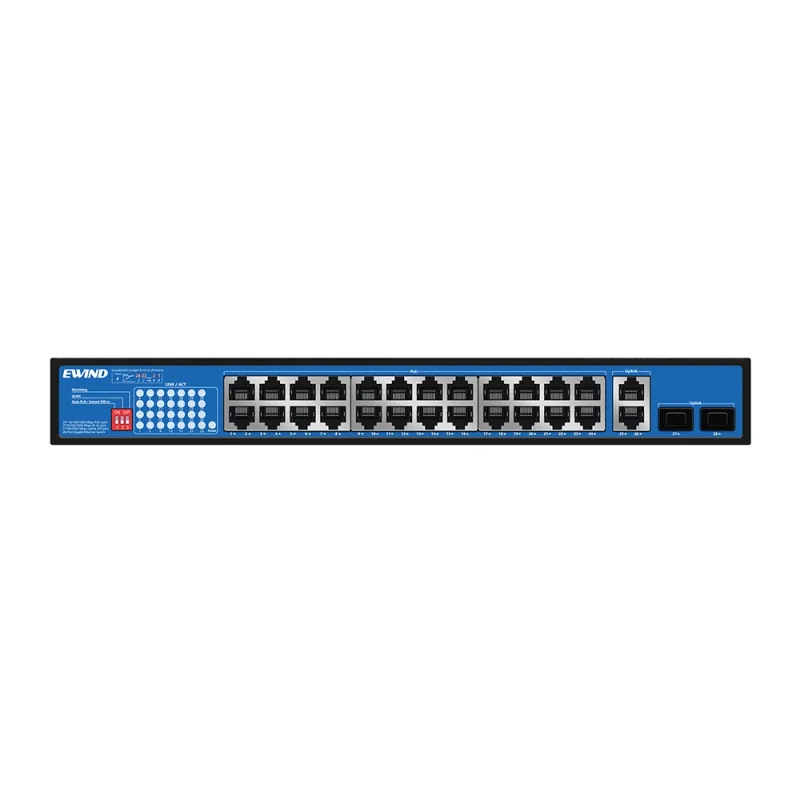

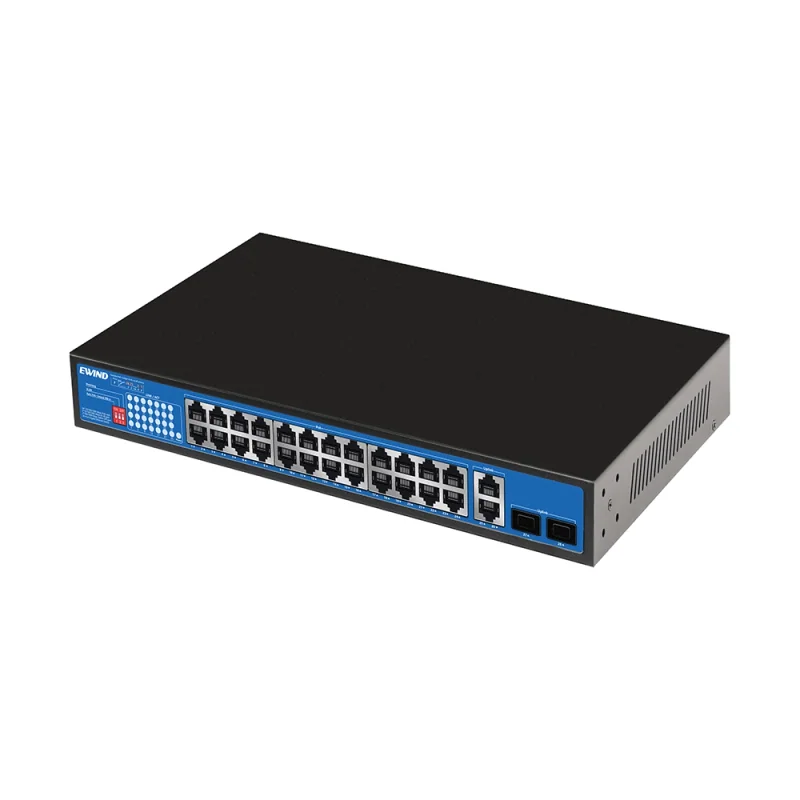

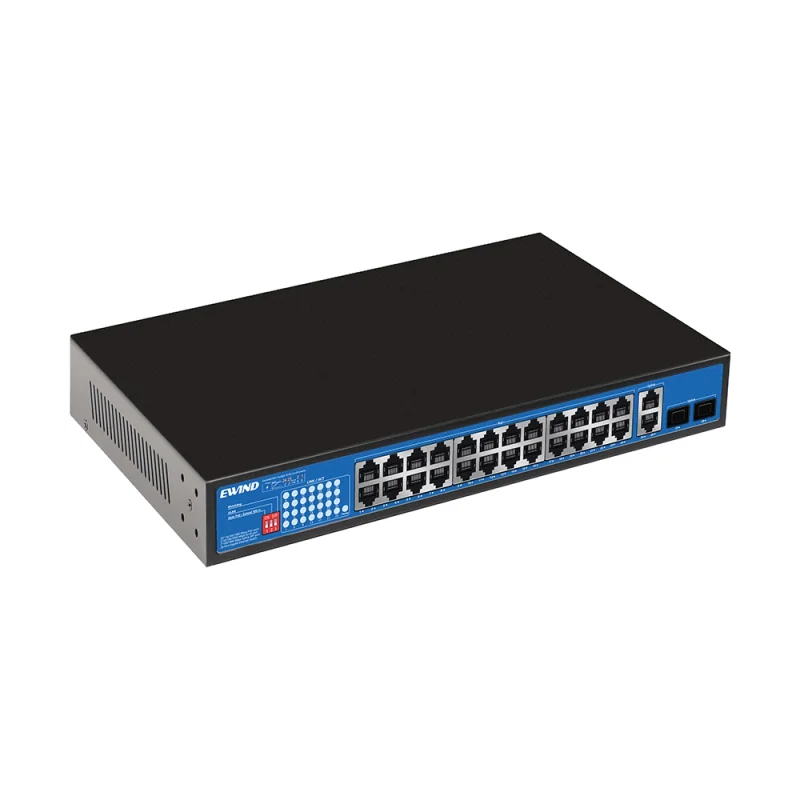

24-Port Gigabit Unmanaged PoE Switch with Four Uplinks
- 24 Gigabit IEEE 802.3af/at PoE ports

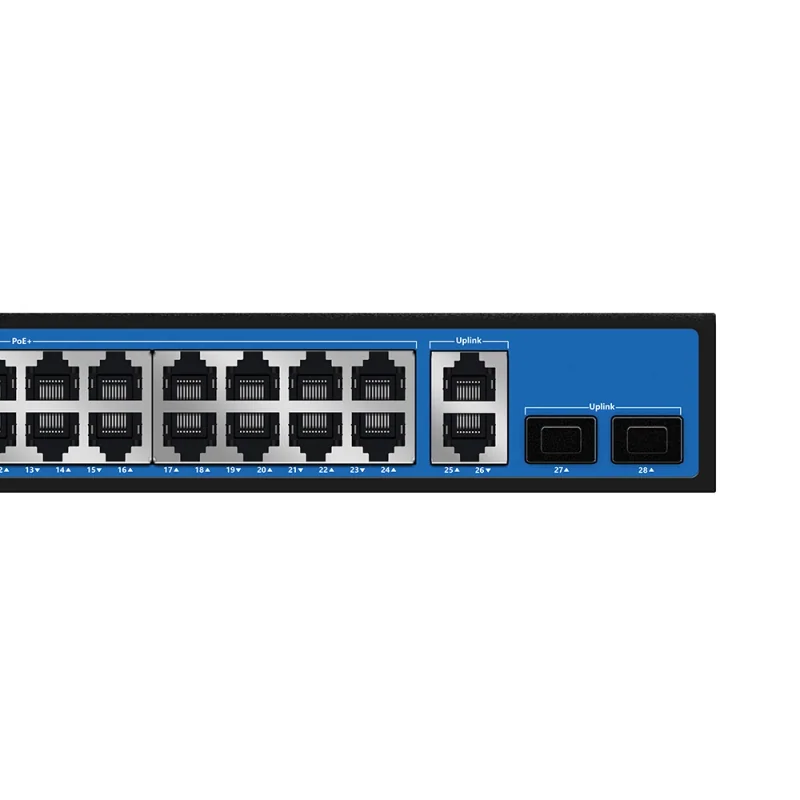

- 2 Gigabit RJ45 + 2 100/1000Mbps SFP uplinks
- 300W power supply; up to 30W per PoE port

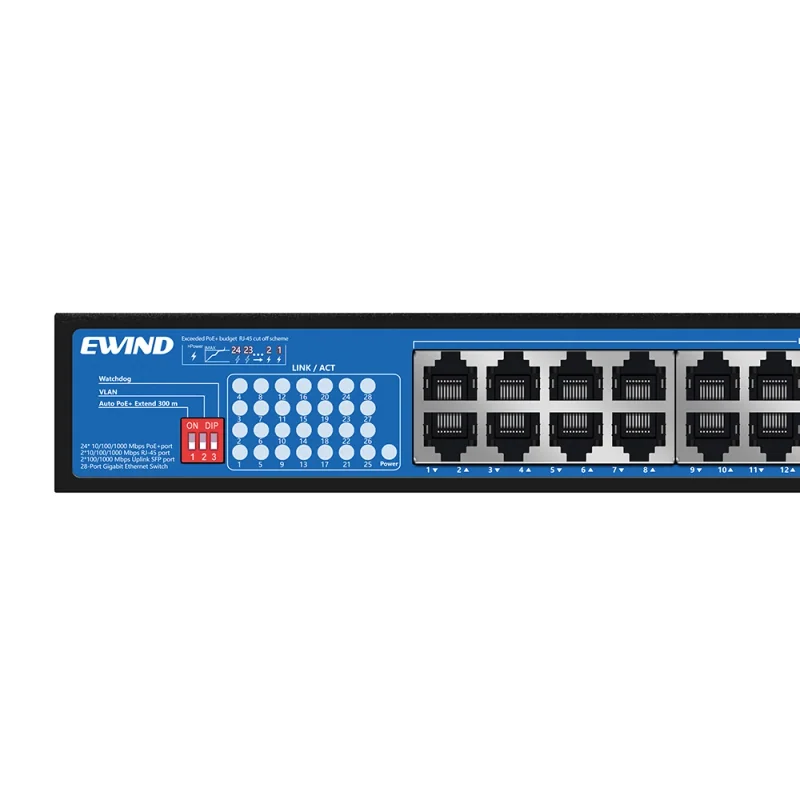

- Watchdog, isolation and 300m extend mode
Project inquiry
Request pricing and lead time
Tell us your model, quantity and project requirements. Our networking team will help you find the right fit.
Overview
EW-S1828CG-AP supplies 24 Gigabit PoE access ports with two Gigabit RJ45 and two 100/1000Mbps SFP uplinks. Its built-in 300W power supply and DIP-switch watchdog, isolation and extend functions support surveillance, office and campus access networks.
300W supply
IEEE 802.3af/at power with a 30W per-port limit.
PoE maintenance
Watchdog recovery and port priority for connected devices.
Rack installation
330 × 215 × 44mm enclosure with mounting brackets.
| Specification | Details |
|---|---|
| PoE access ports | 24 × 10/100/1000Mbps RJ45 |
| Copper uplinks | 2 × 10/100/1000Mbps RJ45 |
| Fiber uplinks | 2 × 100/1000Mbps SFP |
| PoE standard | IEEE 802.3af/at; maximum 30W per port |
| Power supply | Built-in 300W; 100–240V AC, 50/60Hz |
| Switching capacity | 56Gbps |
| Forwarding rate | 41.67Mpps |
| MAC address table | 8K entries |
| Dimensions (W × D × H) | 330 × 215 × 44mm |
| Operating temperature | −20°C to +55°C |
| Enclosure | IP30 |
| Warranty | 2 years |
Dimensions
Order information
| Content | Quantity | Unit |
|---|---|---|
| EW-S1828CG-AP 24-port Gigabit unmanaged PoE switch | 1 | SET |
| AC power cord | 1 | PC |
| User guide and warranty card | 1 | PC |
| Rack-mount brackets | 1 | PAIR |

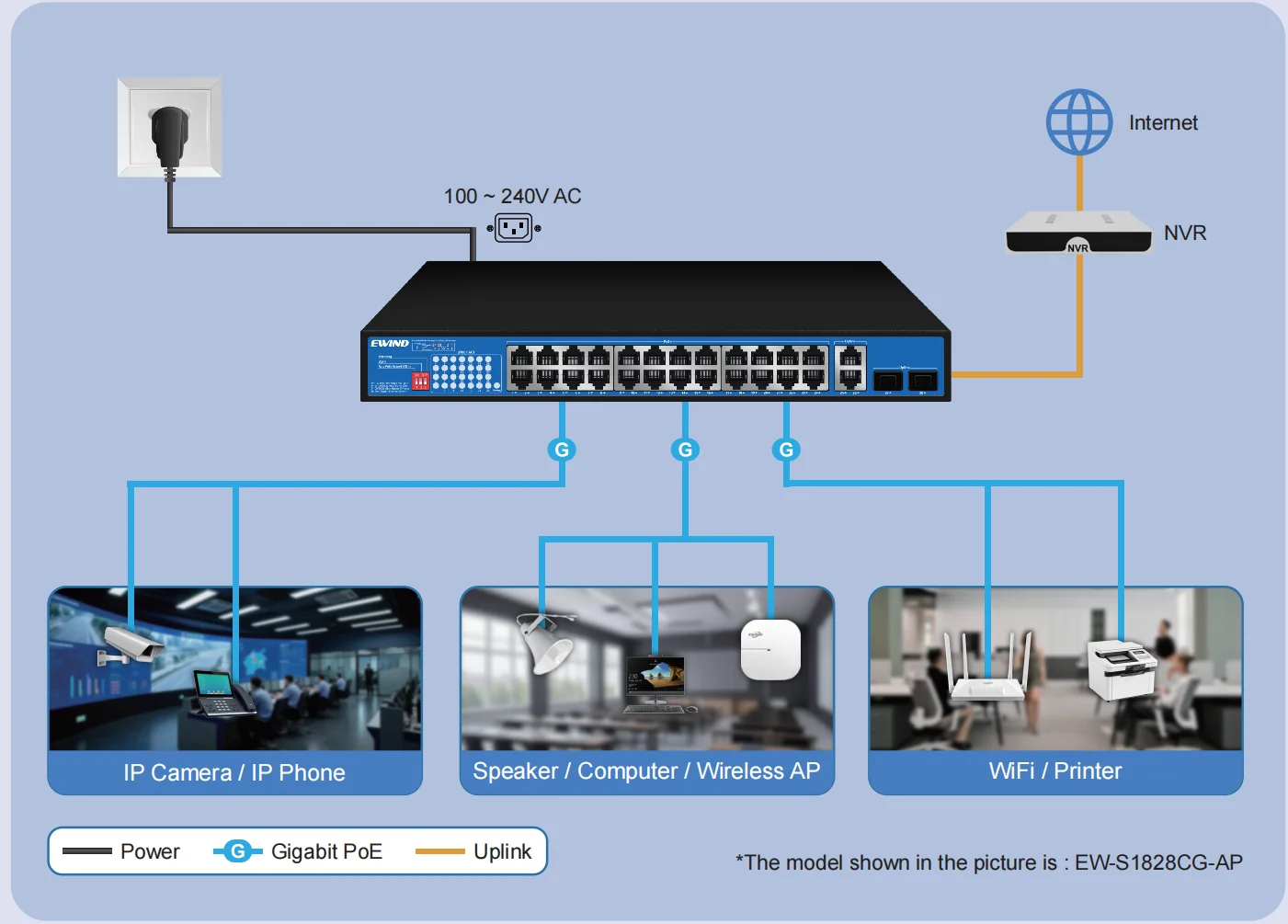

Applications
Gigabit access for surveillance, offices, hotels and campuses.
