Four PoE endpoints
Power compatible cameras and access points within the shared supply capacity.
Model: EW-S1906CF-DP
4-Port Fast Ethernet PoE Switch with 2 Uplinks and External Power
- 4 Fast Ethernet PoE ports + 2 Fast Ethernet uplinks
- IEEE 802.3af/at; up to 30W per port
- 60W external adapter included
- E/V/D DIP controls; 3-year warranty
Project inquiry
Request pricing and lead time
Tell us your model, quantity and project requirements. Our networking team will help you find the right fit.
Overview
EW-S1906CF-DP provides four Fast Ethernet PoE ports and two Fast Ethernet uplinks. A supplied 60W external adapter and DIP controls for extension, port isolation and watchdog recovery suit small camera and access-point networks.

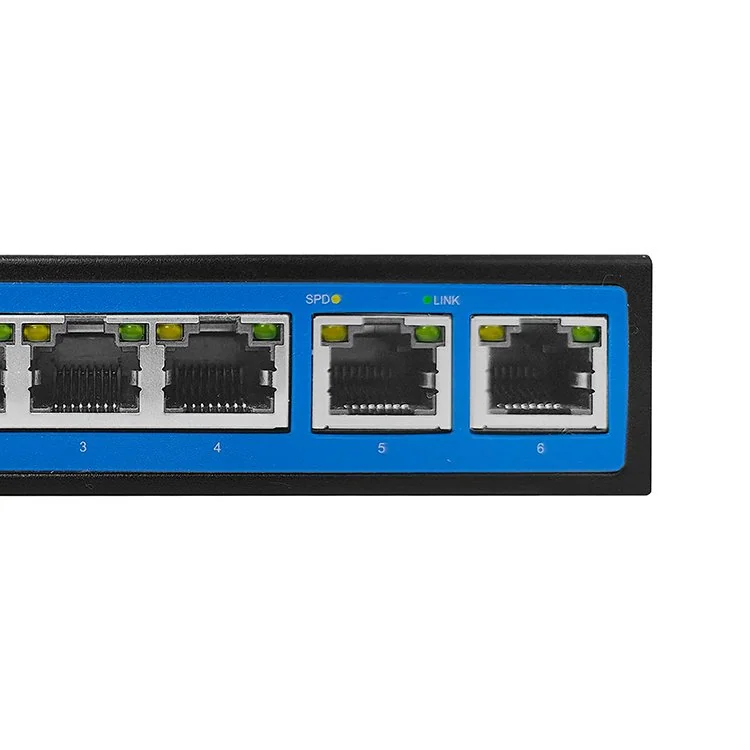

Two data uplinks
Dedicated 10/100Mbps uplinks connect the recorder and upstream network.

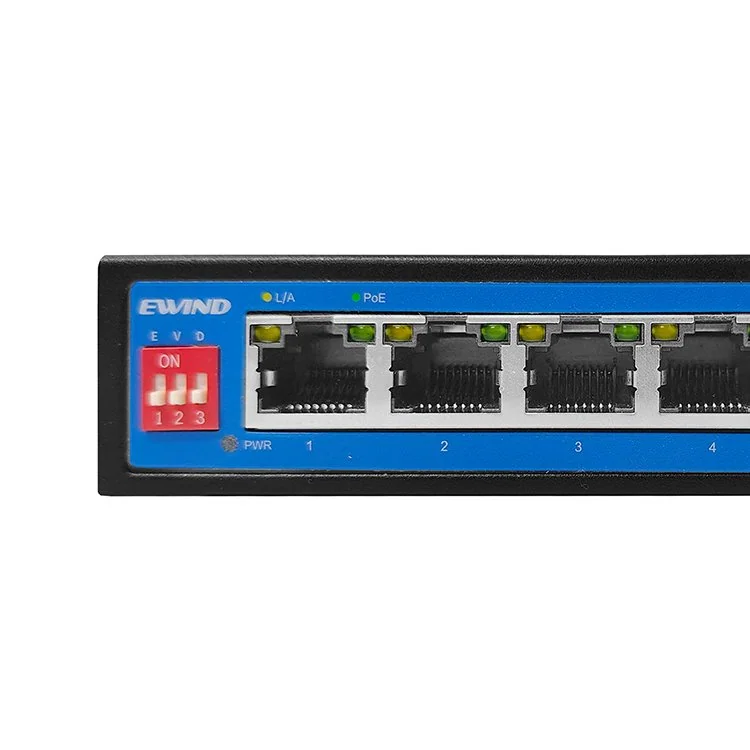

Simple DIP controls
Enable extended reach, access-port isolation and automatic PoE watchdog recovery.
| Specification | Details |
|---|---|
| Model | EW-S1906CF-DP |
| PoE ports | 4 × 10/100Mbps RJ45 |
| Uplinks | 2 × 10/100Mbps RJ45; data only |
| PoE standard | IEEE 802.3af/at; up to 30W per port |
| Default supply | 60W external adapter; 52V DC output |
| Adapter input | AC 100–240V, 50–60Hz |
| Management | Unmanaged; E/V/D DIP switches |
| Switching capacity / MAC table | 1.2Gbps / 1K entries |
| Nominal dimensions | 127 × 97 × 28 mm |
| Enclosure / mounting | IP30; desktop or wall |
| Operating temperature | −20°C to +55°C |
| Warranty | 3 years |

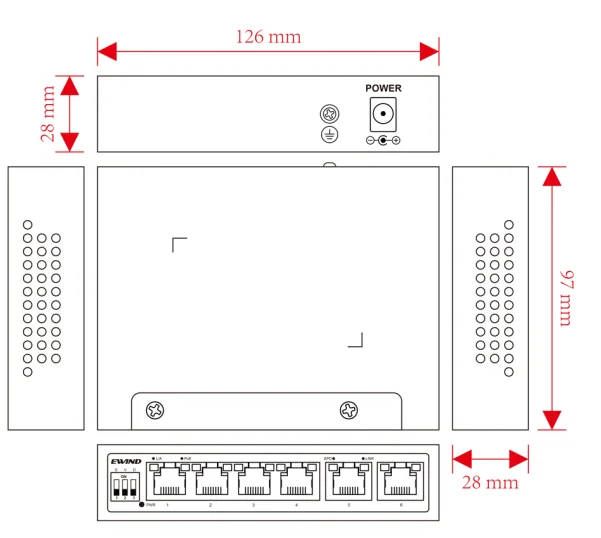

Dimensions
Order information
| Content | Quantity | Unit |
|---|---|---|
| EW-S1906CF-DP switch | 1 | SET |
| External 60W power adapter | 1 | PC |
| User guide | 1 | PC |
| Warranty card | 1 | PC |
