Model: EW-ES3020CGSH-AP

16-Port Gigabit Cloud-Managed AI PoE Switch with 2 SFP Uplinks

16 × 10/100/1000Mbps PoE ports · ports 13–16 up to 90W
2 × Gigabit RJ45 + 2 × 100/1000M SFP uplinks
Cloud/mobile management · 300W supply · 40Gbps switching

Project inquiry

Request pricing and lead time

Tell us your model, quantity and project requirements. Our networking team will help you find the right fit.

info@ewindnet.com

Overview

EW-ES3020CGSH-AP adds cloud and mobile management to sixteen Gigabit PoE ports, two Gigabit RJ45 uplinks and two SFP fiber uplinks. Ports 13–16 support higher-power 802.3bt endpoints up to 90W, while cloud alarms, ONVIF topology and AI DIP modes simplify distributed deployments.

Mixed-power PoE

Ports 1–16 support af/at; ports 13–16 add bt up to 90W per port within the 300W supply.

Four uplink ports

Two Gigabit RJ45 and two SFP fiber ports connect the managed PoE segment to copper or fiber backbones.

Cloud operations

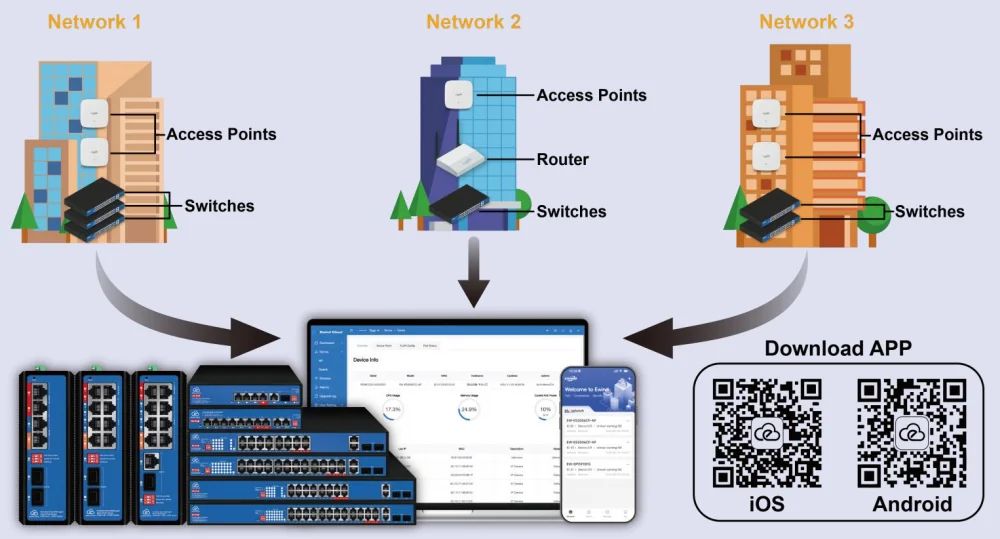

Remote web/app management, real-time alarms, ONVIF topology discovery and AI DIP controls support distributed sites.

Product technical specifications
Specification	Details
Model	EW-ES3020CGSH-AP
PoE ports	16 × 10/100/1000BASE-T PoE
PoE classes	Ports 1–16: IEEE 802.3af/at; ports 13–16: IEEE 802.3af/at/bt up to 90W
RJ45 uplinks	2 × 10/100/1000Mbps data ports
Fiber uplinks	2 × 100/1000Mbps SFP data ports
Switching / forwarding	40Gbps / 29.76Mpps
MAC / buffer	8K / 4M
Power supply / budget	Built-in AC 100–240V, 50/60Hz; 300W
Management	Cloud platform and mobile app; VLAN, PoE scheduling, Watchdog, alarms, ONVIF topology and DIP controls

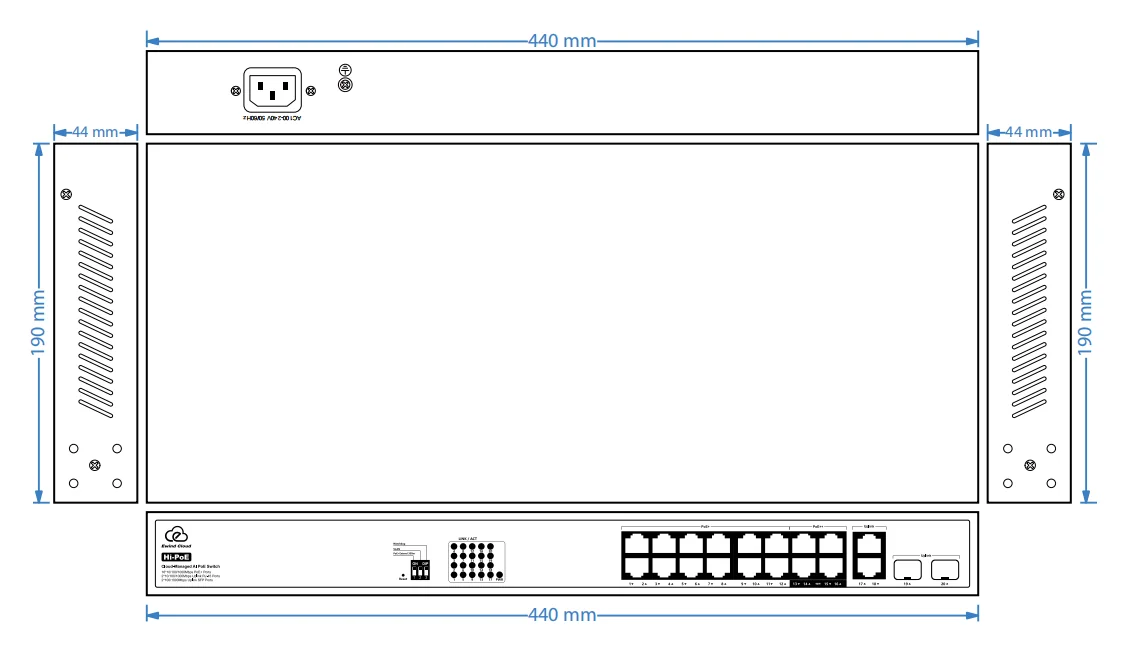

Dimensions / installation	440 × 190 × 44 mm; desktop or rack mount
Protection / environment	IP30; −20 to +55°C; 5–90% RH
Warranty	3 years; lifetime maintenance
