Remote maintenance
Check port status, receive alerts and restart ports through EWIND Cloud or the mobile app.
Model: EW-ES2028CF-AP
24-Port Fast Ethernet Cloud PoE Switch with 4 Gigabit Uplinks
- 24 Fast Ethernet PoE ports; 30W per port
- 2 Gigabit RJ45 + 2 Gigabit SFP uplinks
- 300W total PoE budget
- EWIND Cloud and mobile app management
Project inquiry
Request pricing and lead time
Tell us your model, quantity and project requirements. Our networking team will help you find the right fit.
Overview
EW-ES2028CF-AP provides 24 Fast Ethernet PoE ports and four Gigabit uplinks with a 300W PoE budget. EWIND Cloud and its mobile app support remote port control, PoE scheduling, alerts and topology views for surveillance and access networks.
Scheduled power
PoE schedules and device checks help maintain cameras and other powered endpoints.

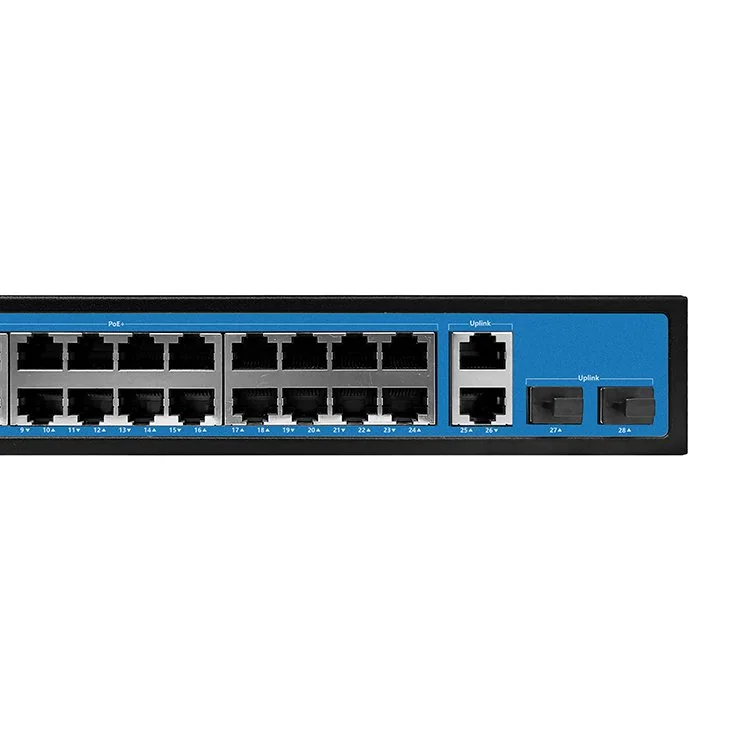

Four Gigabit uplinks
Separate copper and fiber uplinks connect recording systems and upstream switches.
| Specification | Details |
|---|---|
| Model | EW-ES2028CF-AP |
| PoE ports | 24 × 10/100Mbps RJ45 |
| Uplinks | 2 × Gigabit RJ45 + 2 × Gigabit SFP |
| PoE standard | IEEE 802.3af/at; up to 30W per port |
| PoE budget | 300W total |
| Management | EWIND Cloud platform and mobile app |
| Switching capacity | 12.8Gbps |
| MAC table | 8K entries |
| Power input | AC 100–240V, 50/60Hz; built-in supply |
| Dimensions | 330 × 215 × 44 mm |
| Operating temperature | −20°C to +55°C |
| Warranty | 3 years |

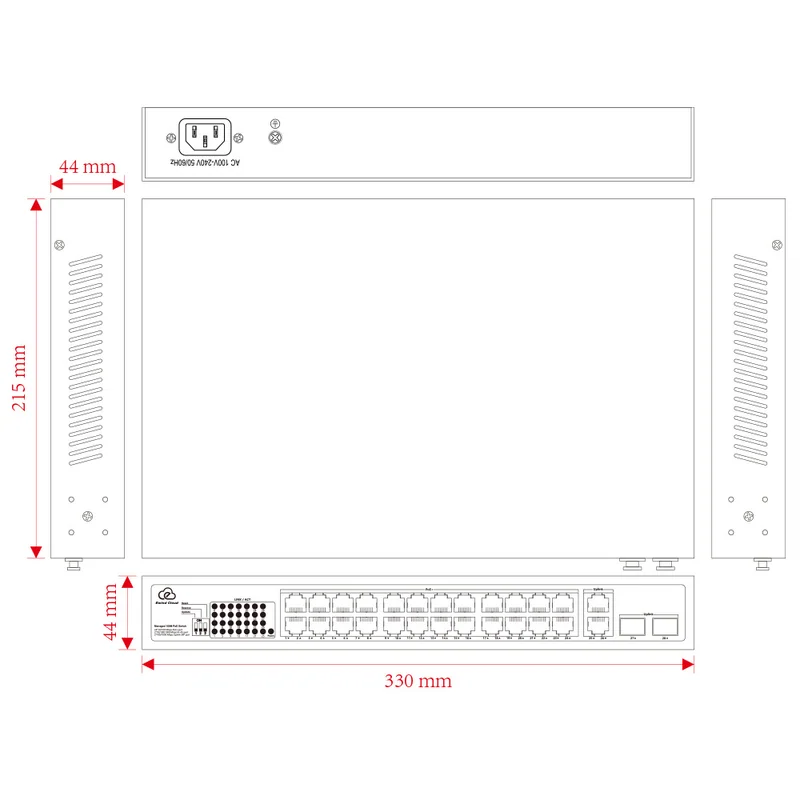

Dimensions
Order information
| Content | Quantity | Unit |
|---|---|---|
| EW-ES2028CF-AP switch | 1 | SET |
| AC power cord | 1 | PC |
| Rack mounting brackets | 1 | PAIR |
| Quick installation guide | 1 | PC |
EW-ES2028CF-AP Resources
PDF · Specifications · Installation · Ordering
