Twenty-four PoE outputs
Ports 1–24 supply compatible AF/AT endpoints with a 15.4W standard and 30W maximum per port.
Model: EW-S1726CFU-AP

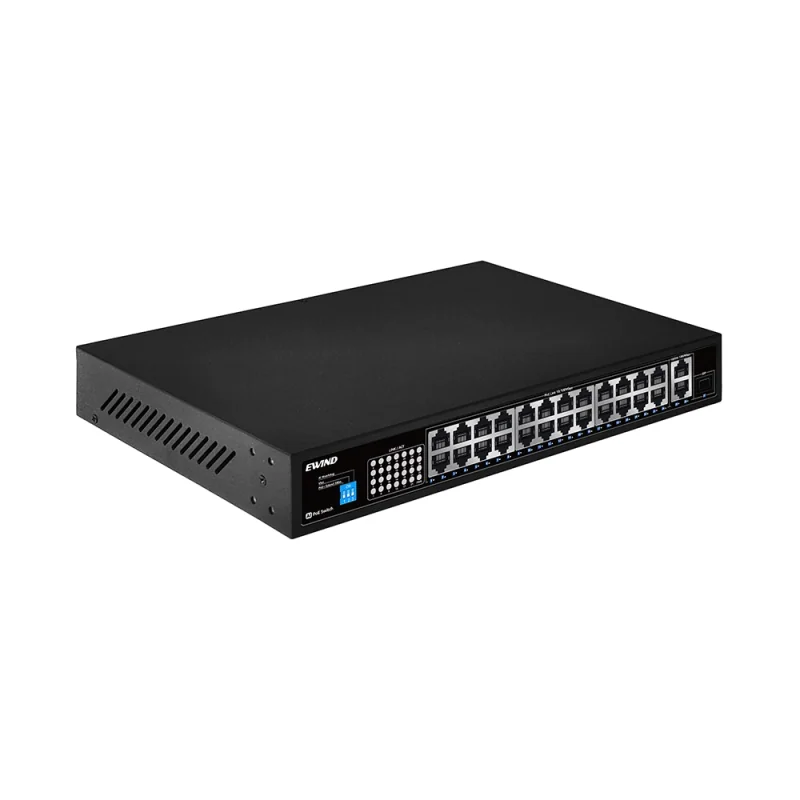

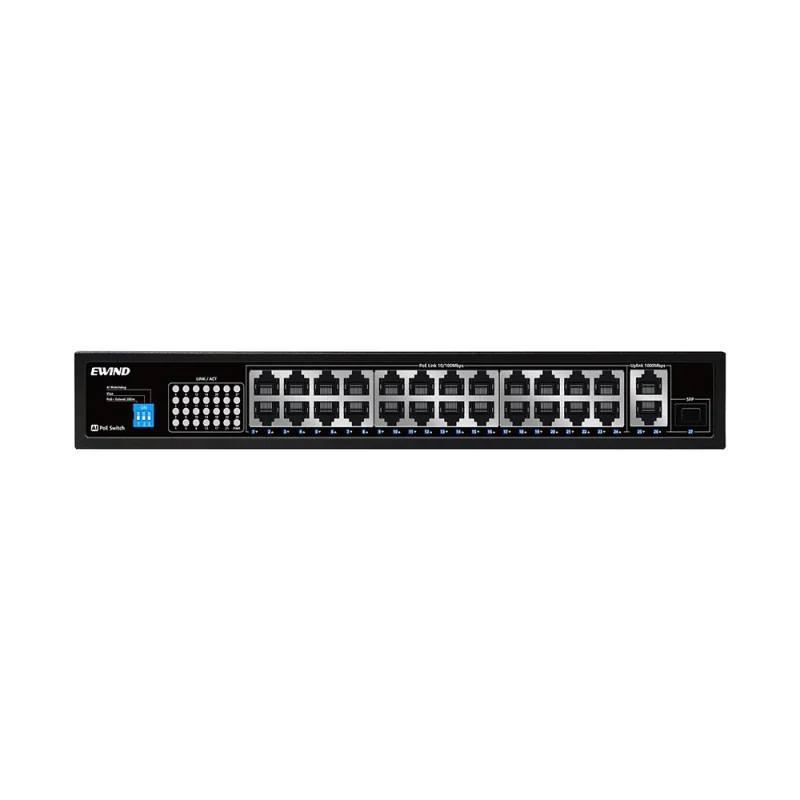

24-Port Fast Ethernet PoE Switch with 2 Gigabit RJ45 and 1 SFP Uplink
- 24 × 10/100Mbps PoE ports · up to 30W per port
- 2 × 10/100/1000Mbps RJ45 uplinks + 1 × Gigabit SFP

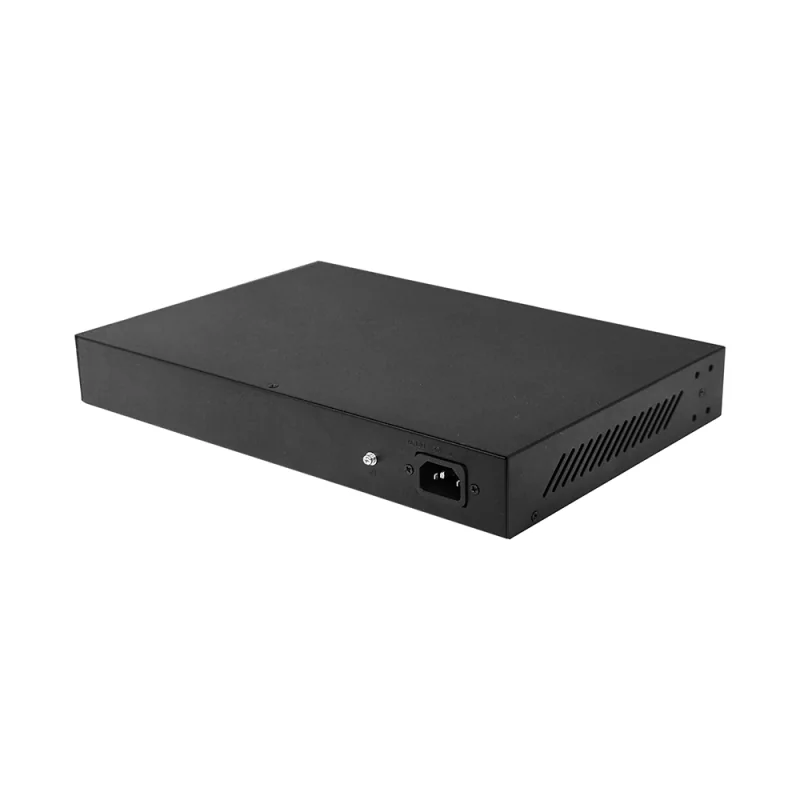

- 300W built-in AC supply · fanless · 310 × 205 × 44mm
Project inquiry
Request pricing and lead time
Tell us your model, quantity and project requirements. Our networking team will help you find the right fit.
Overview
EW-S1726CFU-AP is a fanless unmanaged PoE switch with twenty-four Fast Ethernet PoE ports, two Gigabit RJ45 uplinks and one Gigabit SFP slot. Its 300W internal supply, 300m extend mode, VLAN isolation and AI PoE watchdog support dense surveillance and access networks.

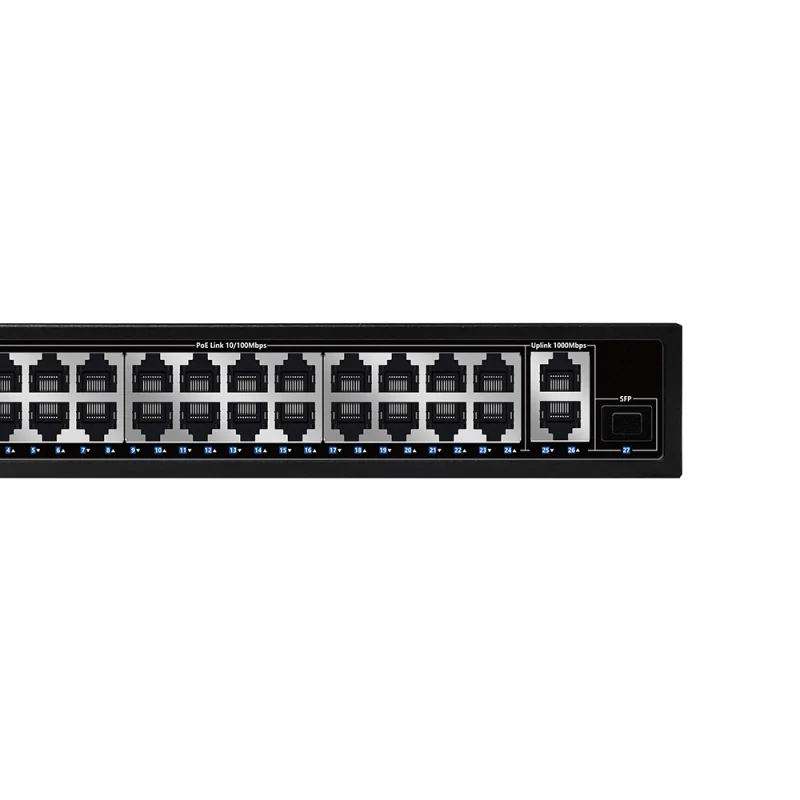

Three uplink choices
Two Gigabit RJ45 uplinks and one Gigabit SFP slot connect the Fast Ethernet segment to copper or fiber backbones.
Simple hardware modes

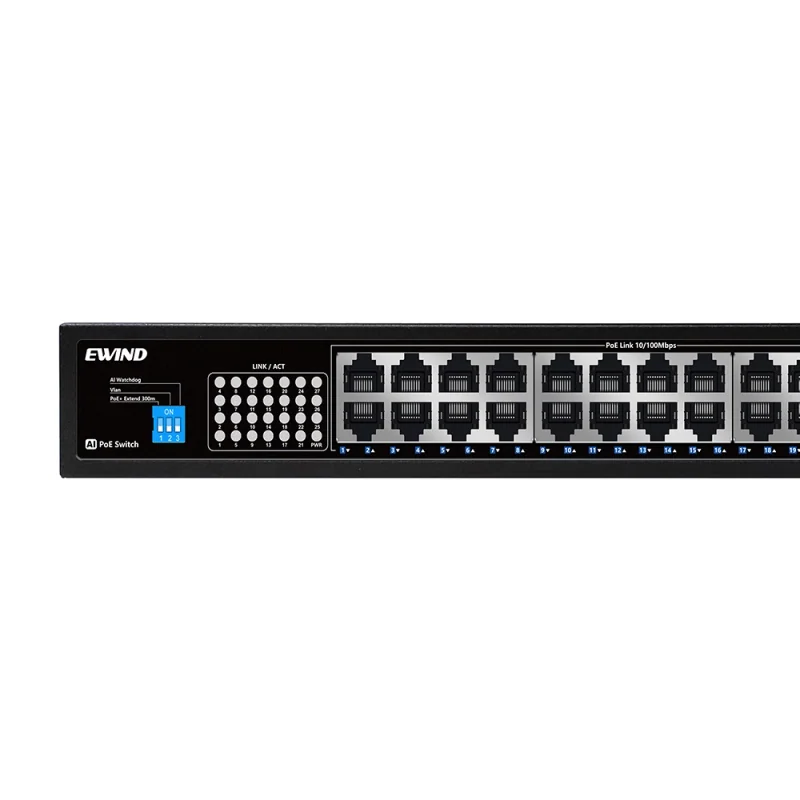

DIP switches provide 300m extended reach, VLAN isolation and AI PoE watchdog recovery across the PoE ports.
| Specification | Details |
|---|---|
| Model | EW-S1726CFU-AP |
| PoE ports | 24 × 10/100BASE-T PoE; ports 1–24 |
| RJ45 uplinks | 2 × 10/100/1000BASE-T data ports |
| Fiber uplink | 1 × 1000M SFP data slot |
| PoE standard / port limit | IEEE 802.3af/at; 15.4W standard, up to 30W per port |
| Power supply / budget | Built-in AC 100–240V; 300W |
| Management | Unmanaged; DIP-switch extend, VLAN isolation and AI PoE watchdog |
| Installation | Desktop or wall mount; hanging ears for the 16/24-port models |
| Dimensions | 310 × 205 × 44 mm |
| Environment | Fanless; indoor network installation |
| Warranty | 3 years; lifetime maintenance |

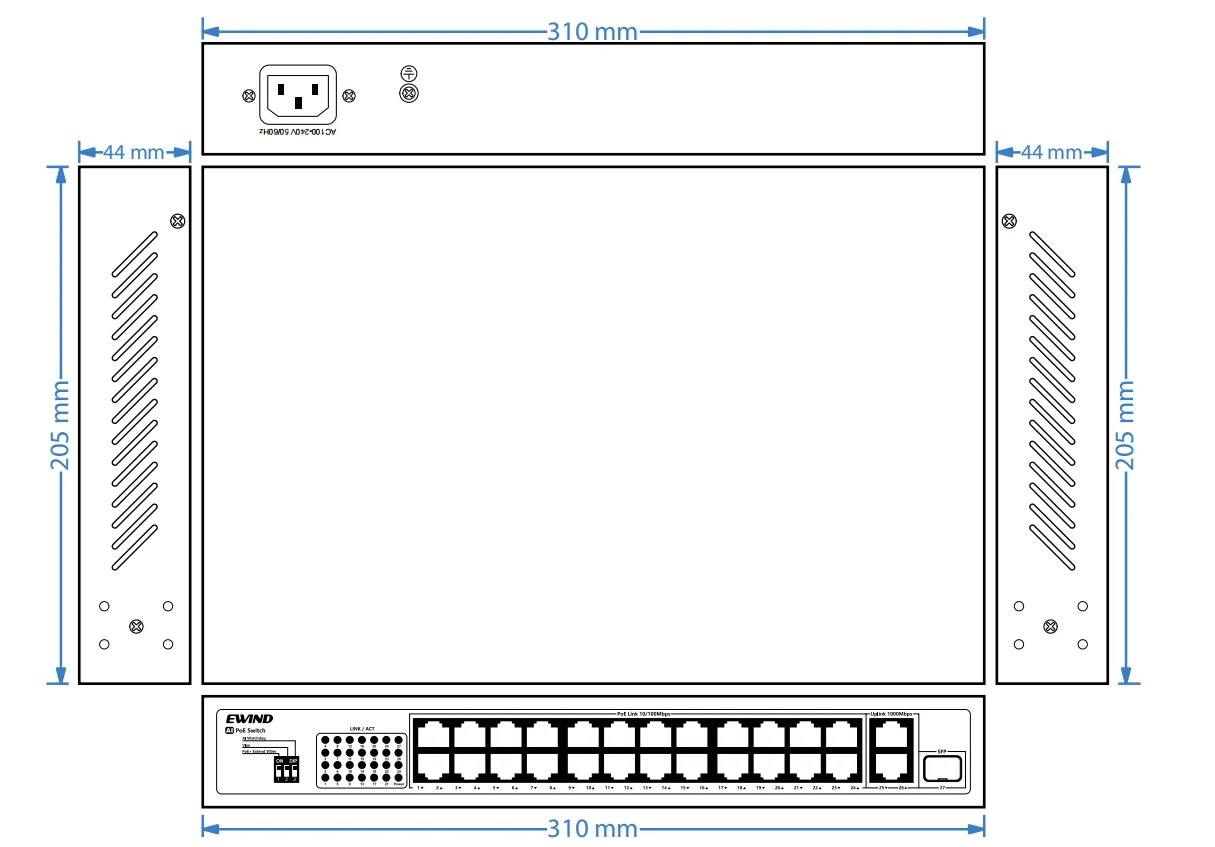

Dimensions
Order information
| Content | Quantity | Unit |
|---|---|---|
| EW-S1726CFU-AP unmanaged PoE switch | 1 | SET |
| User guide and warranty card | 1 | PC |
| AC power cord | 1 | PC |
| Hanging ear | 1 | PAIR |

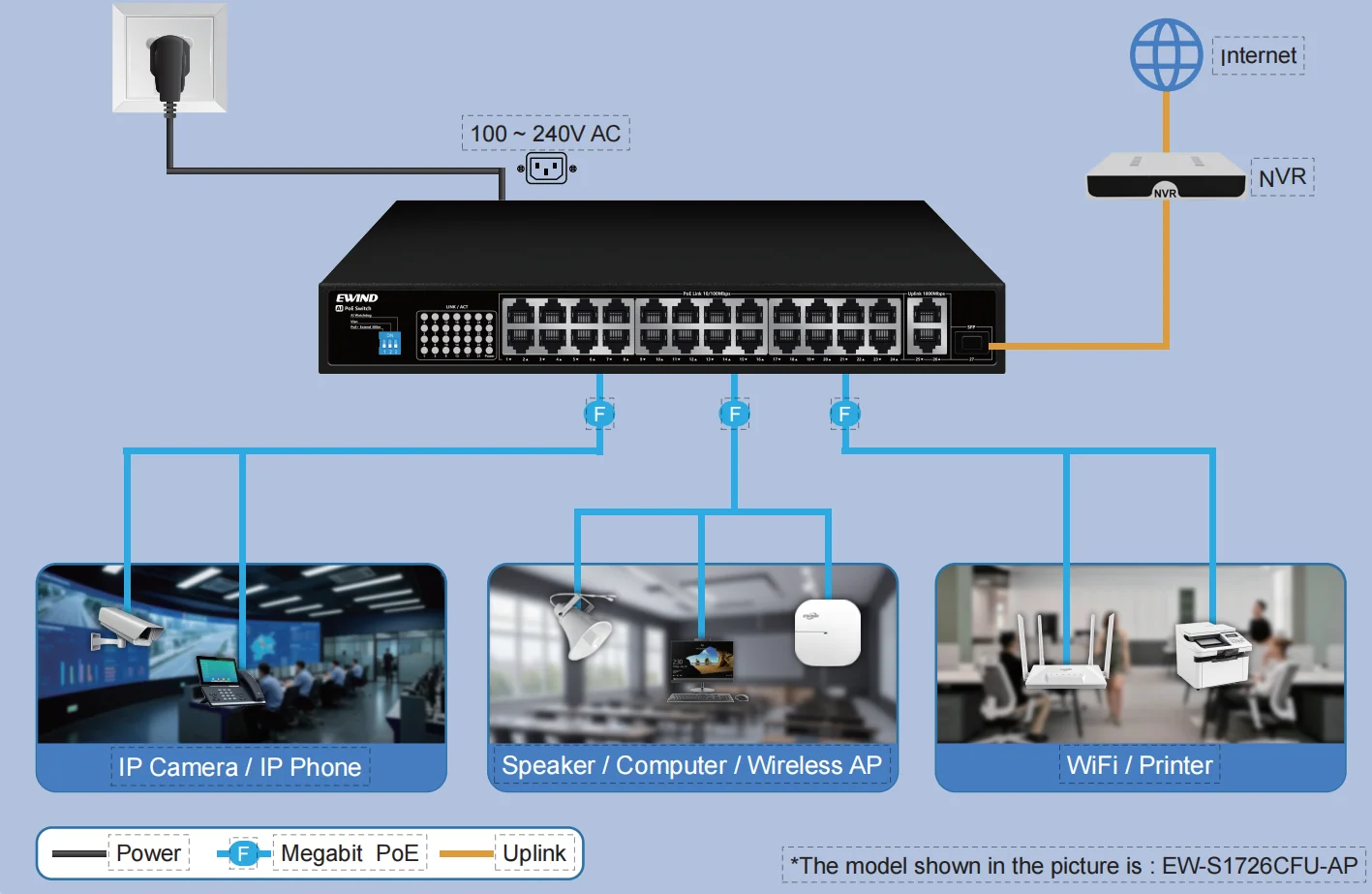

Applications
High-density surveillance, campus, office and access networks with Fast Ethernet PoE cameras, phones and wireless endpoints.
EW-S1726CFU-AP Resources
PDF · Specifications · Installation · Ordering
