Model: EW-S1806CG-AP

4-Port Gigabit AI Hi-PoE Switch with 2 Gigabit Uplinks

  • 4 × Gigabit PoE ports + 2 × Gigabit RJ45 uplinks
  • 65W total PoE budget · Port 4 supports up to 60W
  • AI PoE Watchdog · Port isolation · 300m Extend mode

Project inquiry

Request pricing and lead time

Tell us your model, quantity and project requirements. Our networking team will help you find the right fit.

info@ewindnet.com

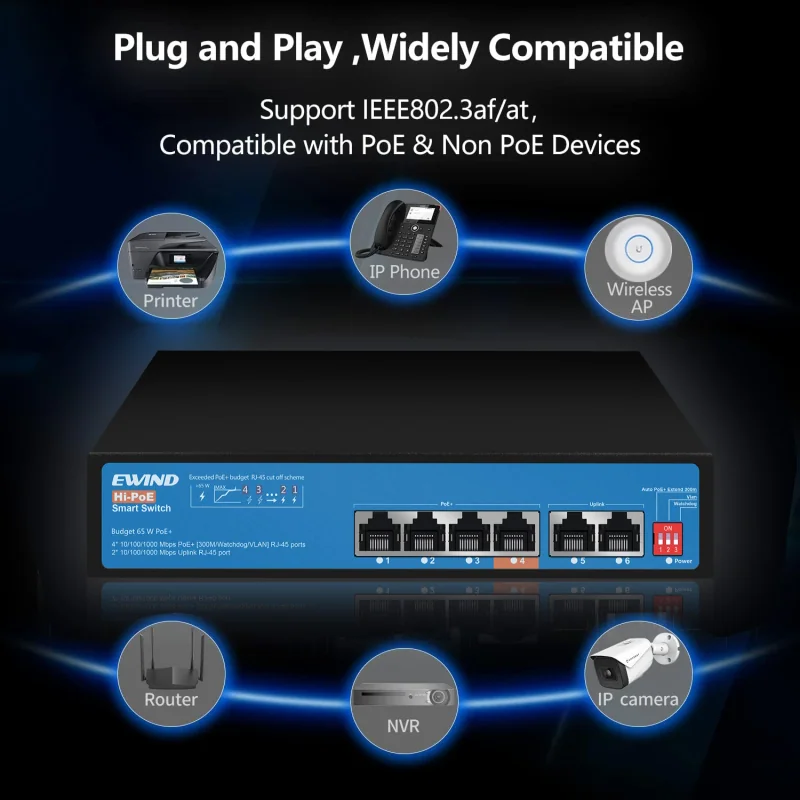

The EW-S1806CG-AP is a 6-port Gigabit unmanaged PoE switch with four PoE ports and two RJ45 uplinks. It supports IEEE 802.3af/at on ports 1–4 and IEEE 802.3bt up to 60W on port 4. AI PoE Watchdog, port isolation and up to 300m transmission in Extend mode provide practical control for surveillance and wireless access networks, in a compact desktop or wall-mount enclosure.

FCCFCC
Part 15B
Safety
EN IEC 62368-1
EMC
EN 55032 / EN 55035

Gigabit access · AI Hi-PoE

Six ports.
More possibilities.

Connect four powered devices, keep two dedicated uplinks, and use port 4 for a higher-power endpoint.

EWINDHi-PoEEW-S1806CG-APPoE+ · Ports 1–4UplinkDIP123456123PWR4 × Gigabit PoEPort 4 · Up to 60W2 × Gigabit uplinks
Port layout illustration · 65W total PoE budget shared across all powered ports.
4 + 2
PoE ports + RJ45 uplinks
60W
Maximum on port 4
300m
Extend mode at 10 Mbps
65W
Total PoE budget

Technical Specifications

Hardware Features

EW-S1806CG-AP Hardware Features
SpecificationDetails
ModelEW-S1806CG-AP
Switch TypeUnmanaged Gigabit AI Hi-PoE
PoE Ports4 × 10/100/1000BASE-T RJ45
Uplink Ports2 × 10/100/1000BASE-T RJ45
Power ConsumptionStandby <2W; full load <65W
Switching Capacity12 Gbps
Forwarding Rate8.9 Mpps
MAC Table2K entries
Packet Buffer768 KB
Ethernet StandardsIEEE 802.3 / 802.3u / 802.3ab / 802.3z / 802.3x
Ethernet FunctionsAuto-negotiation, full/half duplex, Auto MDI/MDIX
LED IndicatorsGreen PWR and ports 1–6 Link/Act
Power SupplyBuilt-in AC 100–240V, 50/60Hz, 65W
Protection LevelIP30
Operating Temperature−20°C to +55°C
Storage Temperature−40°C to +75°C
Operating Humidity5%–90% RH, non-condensing
InstallationDesktop / Wall Mount

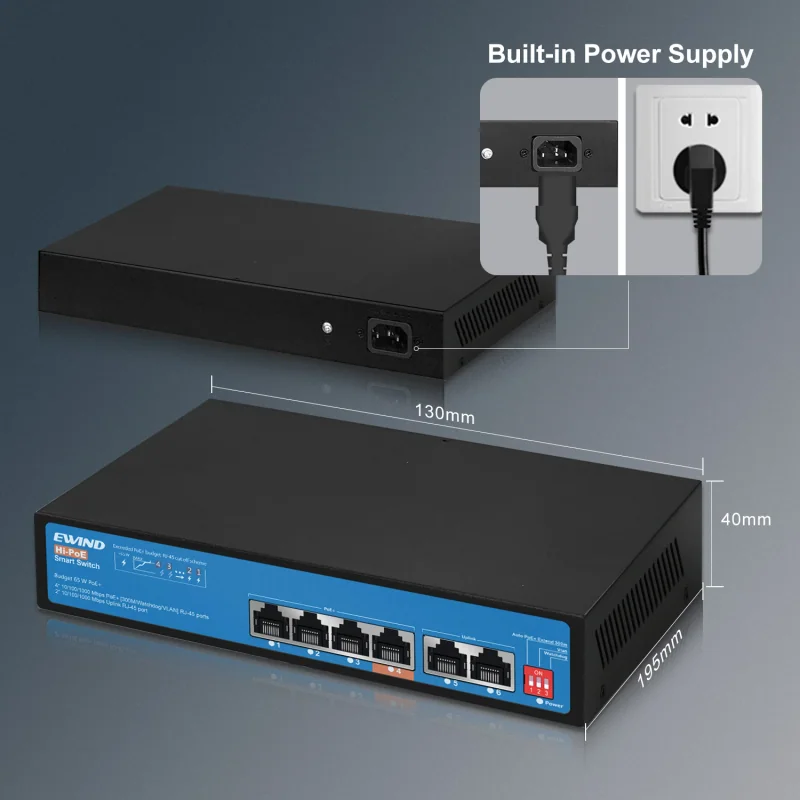

Dimensions (W × D × H)195 × 130 × 40 mm
Warranty3 years; lifelong maintenance
ESD ProtectionIEC 61000-4-2; ±8kV contact / ±15kV air
Surge ProtectionIEC 61000-4-5; power CM ±4kV / DM ±2kV; port ±4kV

PoE

EW-S1806CG-AP PoE
SpecificationDetails
PoE StandardIEEE 802.3af / at; port 4 supports 802.3bt
PoE Output15.4W standard / 30W max.; port 4 up to 60W
Total PoE Budget65W
PoE Pin Assignment1/2 (+), 3/6 (−)

Functions

EW-S1806CG-AP Functions
SpecificationDetails
AI PoE WatchdogAutomatic PoE port self-healing
Port IsolationPorts 1–4
Port PriorityLower port number = higher priority

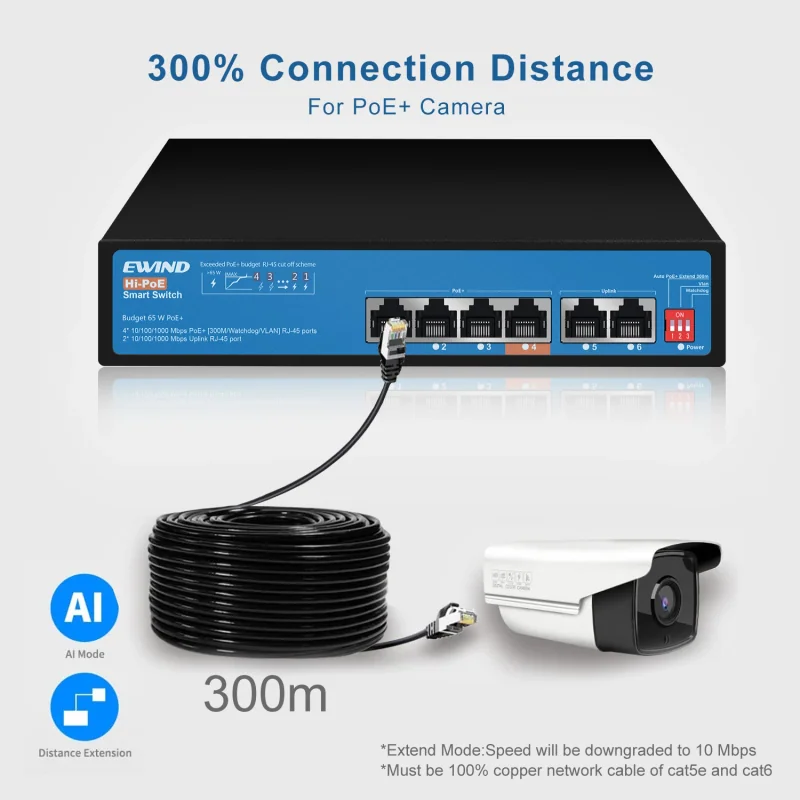

Extend ModeUp to 300m at 10 Mbps in Extend mode
Smart SpeedAutomatic speed change in Extend mode

Certification

EW-S1806CG-AP Certification
SpecificationDetails
SafetyEN IEC 62368-1:2020+A11:2020
FCCFCC Part 15B
EMC — EmissionEN 55032:2015+A11:2020; EN IEC 61000-3-2:2019+A1:2021+A2:2024; EN 61000-3-3:2013+A2:2021+AC:2022-01
EMC — ImmunityEN 55035:2017+A11:2020

Packing List

EW-S1806CG-AP Packing List
ContentQuantity
PoE / Ethernet switch1 pc
Power cord1 pc
Hanging ears1 set
Quick installation guide1 pc

Features

Flexible PoE Power

  • IEEE 802.3af / at on ports 1–4
  • IEEE 802.3bt on port 4
  • Up to 60W for a compatible high-power device
  • 65W total budget across powered ports

AI PoE Watchdog

  • Automatic PoE port self-healing
  • Recovers unresponsive powered devices
  • Hardware control through DIP switches
  • Designed for surveillance and wireless access

Extended Reach

  • Up to 300m in Extend mode
  • 10 Mbps operation at extended distance
  • Automatic speed change in Extend mode
  • Two dedicated Gigabit RJ45 uplinks

Isolation & Priority

  • Port isolation for ports 1–4
  • Lower port number has higher priority
  • DIP-switch selection on the front panel
  • Unmanaged plug-and-play operation

Order Information

  • EW-S1806CG-AP

    65W

    4 × Gigabit PoE + 2 × Gigabit RJ45 uplinks

    AI Hi-PoE Switch Series · Gigabit

    Hi-PoE ports: Port 4

  • EW-S1810CG-AP

    120W

    8 × Gigabit PoE + 2 × Gigabit RJ45 uplinks

    AI Hi-PoE Switch Series · Gigabit

    Hi-PoE ports: Ports 7–8

  • EW-S1811CG-AP

    120W

    8 × Gigabit PoE + 2 × Gigabit RJ45 + 1 × 100/1000M SFP uplink

    AI Hi-PoE Switch Series · Gigabit

    Hi-PoE ports: —

  • EW-S1818CG-AP

    200W

    16 × Gigabit PoE + 2 × Gigabit RJ45 uplinks

    AI Hi-PoE Switch Series · Gigabit

    Hi-PoE ports: —

  • EW-S1820CG-AP

    200W

    16 × Gigabit PoE + 2 × Gigabit RJ45 + 2 × 100/1000M SFP uplinks

    AI Hi-PoE Switch Series · Gigabit

    Hi-PoE ports: —

  • EW-S1828CG-AP

    300W

    24 × Gigabit PoE + 2 × Gigabit RJ45 + 2 × 100/1000M SFP uplinks

    AI Hi-PoE Switch Series · Gigabit

    Hi-PoE ports: —

  • EW-S1806CF-AP

    65W

    4 × 10/100M PoE + 2 × 10/100M RJ45 uplinks

    AI Hi-PoE Switch Series

    Hi-PoE ports: Port 4

  • EW-S1810CF-AP

    120W

    8 × 10/100M PoE + 2 × 10/100M RJ45 uplinks

    AI Hi-PoE Switch Series

    Hi-PoE ports: Ports 7–8

  • EW-S1810GU-AP

    120W

    8 × 10/100M PoE + 2 × Gigabit RJ45 uplinks

    AI Hi-PoE Switch Series

    Hi-PoE ports: Ports 7–8

  • EW-S1819CF-AP

    250W

    16 × 10/100M PoE + 2 × Gigabit RJ45 + 1 × 100/1000M SFP uplink

    AI Hi-PoE Switch Series

    Hi-PoE ports: Ports 13–16

  • EW-S1827CF-AP

    300W

    24 × 10/100M PoE + 2 × Gigabit RJ45 + 1 × 100/1000M SFP uplink

    AI Hi-PoE Switch Series

    Hi-PoE ports: Ports 21–24

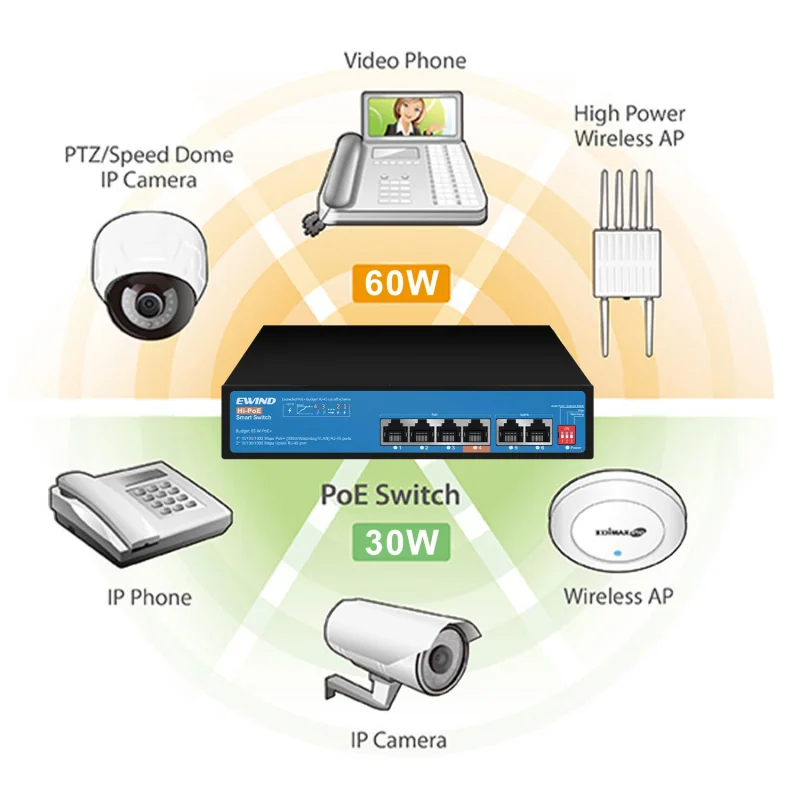

Applications

Reliable Gigabit data and PoE power for IP cameras, PTZ cameras, wireless access points and other compatible powered devices.

  • Ethernet
  • PoE data + power
PoE 1–4Uplink 5–6

IP Surveillance

Connect IP cameras to PoE ports 1–4 and use the two Gigabit uplinks for a router and recording system. AI Watchdog supports automatic port recovery.

PoE 1–4Uplink 5–6Port 4 · ≤60W

PTZ & High-Power Devices

Port 4 supplies up to 60W to a compatible PTZ camera or other high-power device. Plan all endpoint loads within the shared 65W PoE budget.

PoE 1–4Uplink 5–6

Wireless Access

Power compatible wireless access points, including WiFi 7 devices whose power requirements fit the port limit and total budget, with Gigabit upstream connectivity.
