Model: EW-S1910G-DP

8-Port Fast Ethernet PoE Switch with 2 Gigabit RJ45 Uplinks

8 × 10/100Mbps PoE ports · up to 30W per port
2 × 10/100/1000Mbps Gigabit RJ45 uplinks
120W external 52VDC supply · 20Gbps switching

Project inquiry

Request pricing and lead time

Tell us your model, quantity and project requirements. Our networking team will help you find the right fit.

info@ewindnet.com

Overview

EW-S1910G-DP powers eight Fast Ethernet PoE endpoints and provides two Gigabit RJ45 uplinks in a compact externally powered enclosure. Its 120W supply, extended-reach mode, isolation/VLAN and AI PoE watchdog suit small surveillance and access networks.

Eight PoE outputs

Ports 1–8 detect IEEE 802.3af/at endpoints within the shared 120W budget.

Two Gigabit uplinks

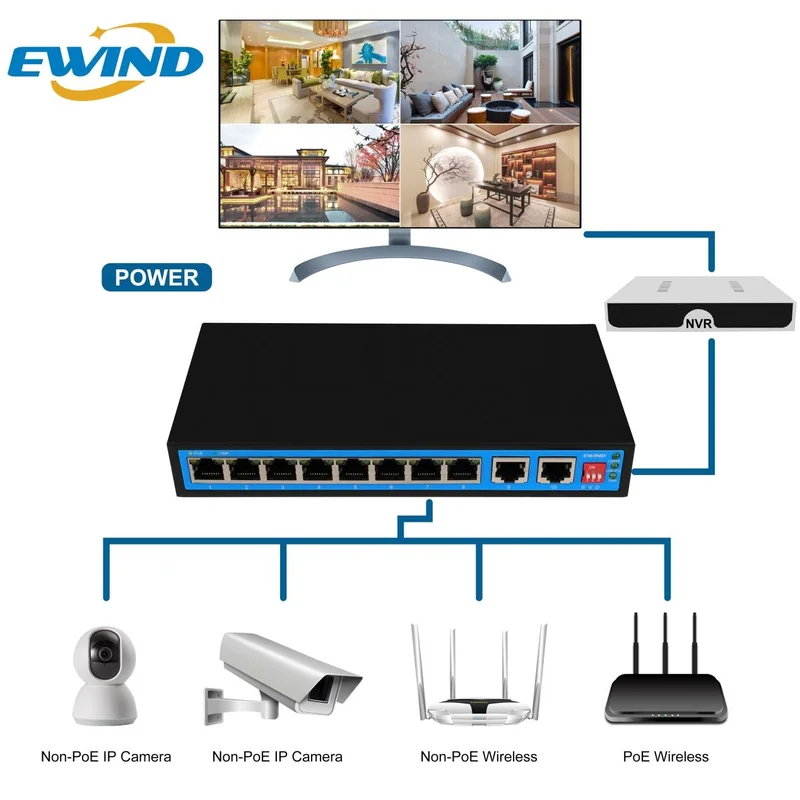

Two data-only RJ45 uplinks connect the Fast Ethernet PoE segment to an upstream network or recorder.

Hardware control modes

DIP switches enable extended reach, isolation/VLAN and PoE watchdog recovery on ports 1–4.

Product technical specifications
Specification	Details
Model	EW-S1910G-DP
PoE ports	8 × 10/100BASE-T PoE; ports 1–8
Uplinks	2 × 10/100/1000BASE-T RJ45 data ports
PoE standard / port limit	IEEE 802.3af/at; up to 30W per port
Total PoE budget / input	120W; 52VDC external adapter
Management	Unmanaged; DIP-switch controls
Switching / forwarding	20 Gbps / 14.88 Mpps
MAC / buffer	8K / 2M
Power supply	External 120W power adapter

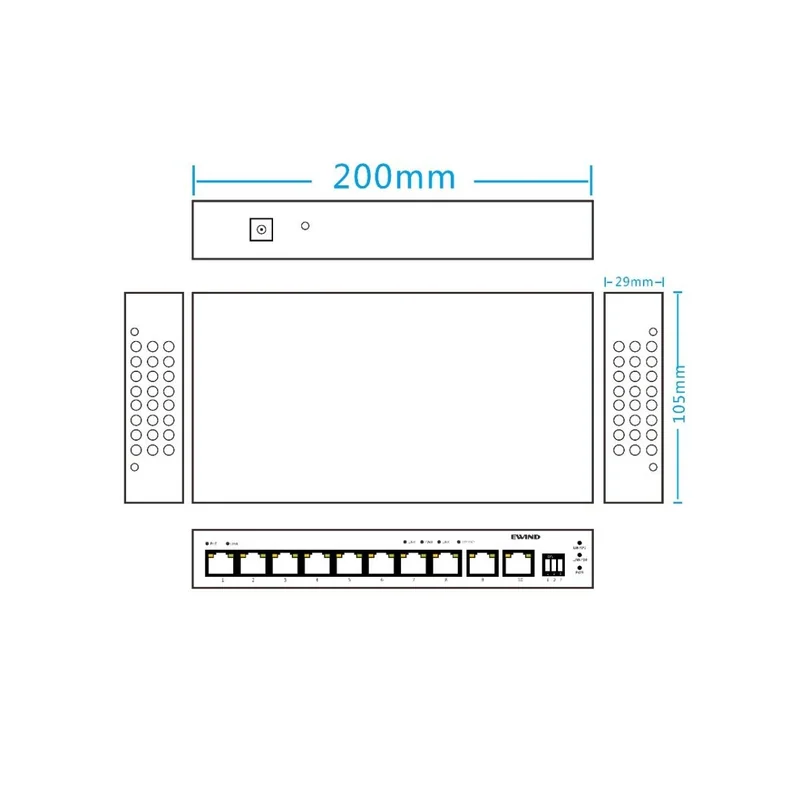

Dimensions / installation	200 × 105 × 29 mm; desktop or wall mount
Protection / environment	IP30; 4kV port surge protection; −20 to +55°C
Warranty	3 years; lifetime maintenance
