Mixed PoE power
Six IEEE 802.3af/at ports and two 60W IEEE 802.3bt ports share a 120W budget.
Model: EW-WPS811F
11-Port Outdoor PoE Switch with 2 High-Power PoE Ports
- 6 × 10/100Mbps PoE + 2 × 100/1000Mbps PoE ports
- Ports 7–8 support IEEE 802.3bt, up to 60W each
- 2 × RJ45 uplinks + 1 × SFP slot
- IP65; 120W total PoE budget
Project inquiry
Request pricing and lead time
Tell us your model, quantity and project requirements. Our networking team will help you find the right fit.
Overview
EW-WPS811F combines six Fast Ethernet PoE ports, two Gigabit-capable 60W PoE ports and three uplinks in an IP65 outdoor enclosure. A 120W total power budget, PoE watchdog and wall or pole mounting support outdoor camera and wireless networks.
Copper and fiber uplinks
Two 100/1000Mbps RJ45 uplinks and one 100/1000Mbps SFP slot connect upstream equipment.

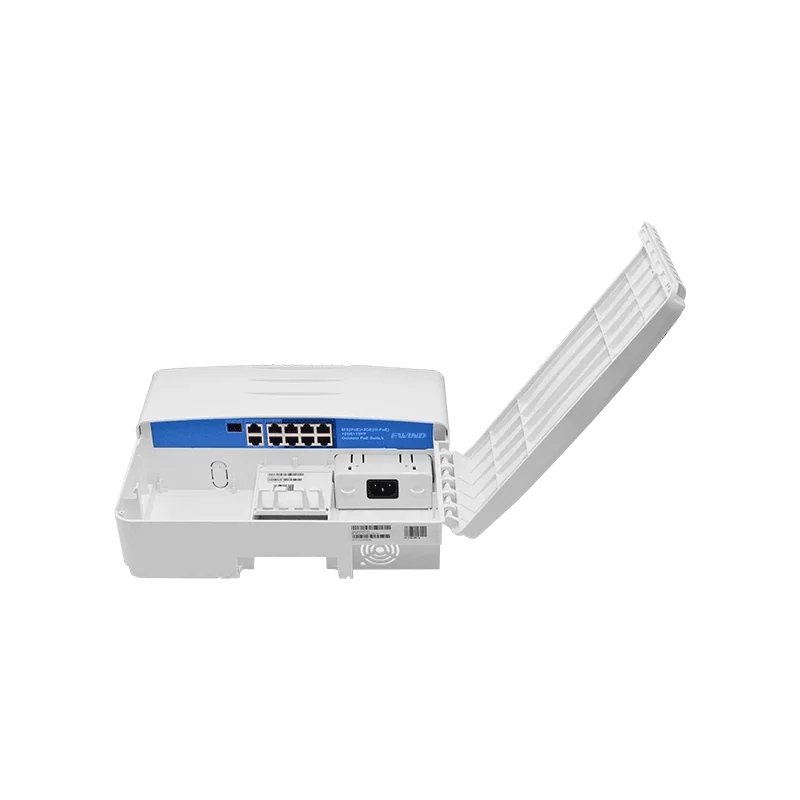

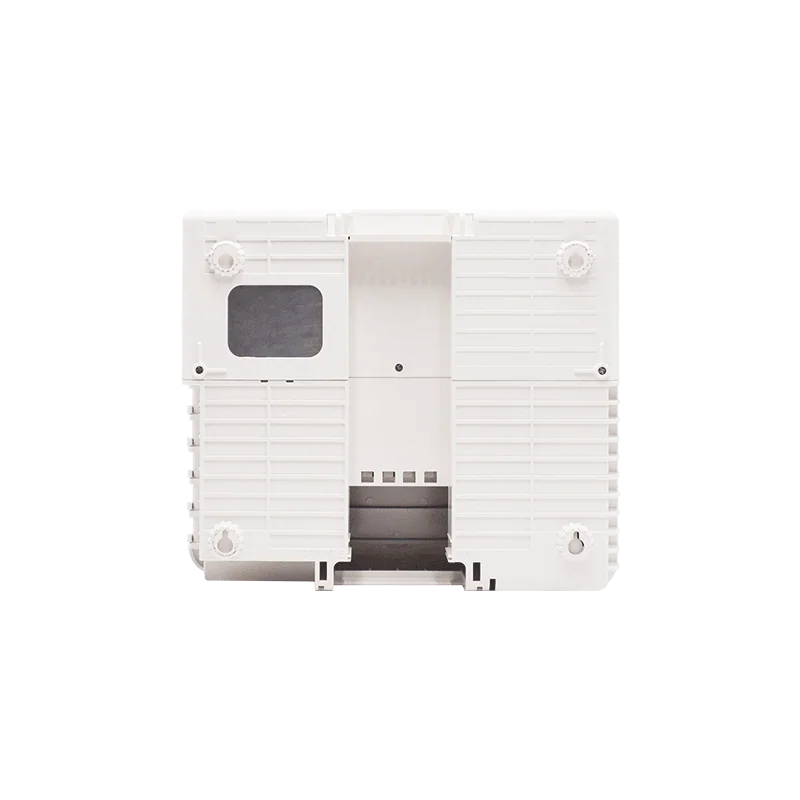

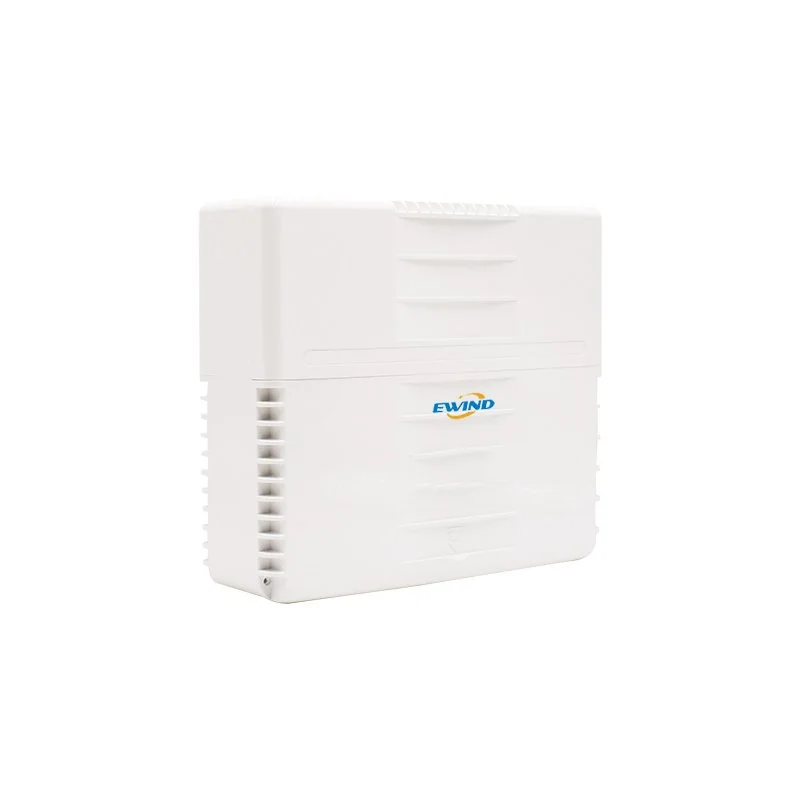

Outdoor enclosure
IP65 housing with wall and pole mounting options and −30 to +70°C operation.
| Specification | Details |
|---|---|
| Hardware version | V2 |
| PoE ports 1–6 | 6 × 10/100Mbps RJ45; IEEE 802.3af/at |
| PoE ports 7–8 | 2 × 100/1000Mbps RJ45; IEEE 802.3bt; up to 60W per port |
| Uplinks | 2 × 100/1000Mbps RJ45; 1 × 100/1000Mbps SFP |
| Total PoE budget | 120W |
| AC input | 110–240V, 50/60Hz |
| Switching / forwarding | 11.2Gbps / 8.33Mpps |
| MAC / maximum frame | 4K entries / 10240 bytes |
| Enclosure | IP65 |
| Dimensions / net weight | 350 × 255 × 90mm / 1.4kg |
| Operating temperature | −30 to +70°C |
| Warranty | 3 years |
Order information
| Content | Quantity | Unit |
|---|---|---|
| EW-WPS811F outdoor PoE switch | 1 | SET |
| Power cord | 1 | PC |
| Quick installation guide | 1 | PC |
| Wall mounting kit | 1 | SET |
| Pole mounting kit | 1 | SET |
| Screws | 6 | PCS |
| Warranty card | 1 | PC |

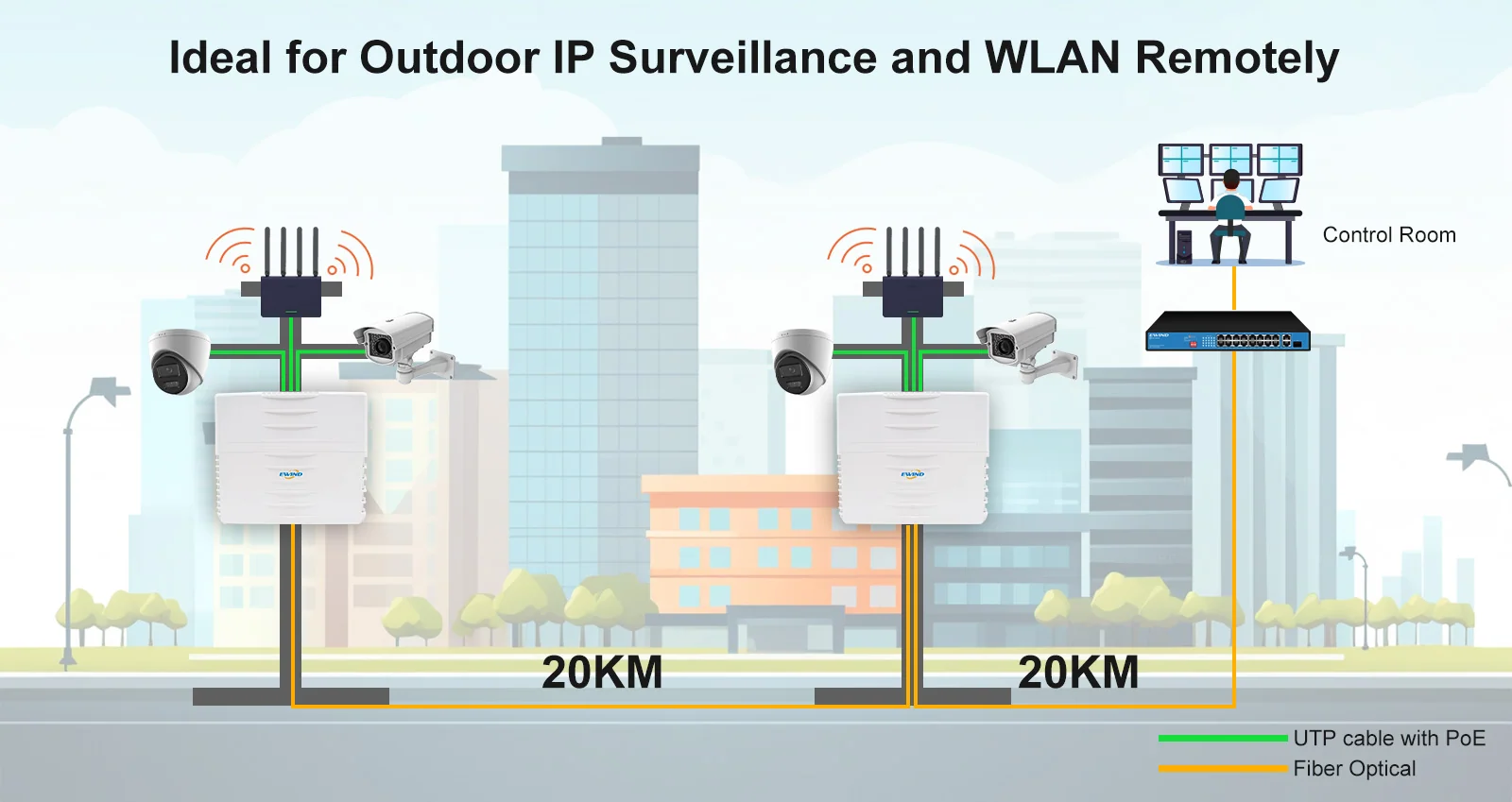

Applications
Outdoor camera and wireless networks with fiber uplinks.
