Twenty-four PoE outputs
Ports 1–24 support IEEE 802.3af/at with up to 30W per port and a shared 300W budget.
Model: EW-S1926CG-AP
24-Port Gigabit PoE Switch with 2 Gigabit SFP Uplinks
- 24 × 10/100/1000Mbps PoE ports · up to 30W per port
- 2 × 100/1000M SFP uplinks
- 300W internal AC supply · 52Gbps switching · fanless operation
Project inquiry
Request pricing and lead time
Tell us your model, quantity and project requirements. Our networking team will help you find the right fit.
Overview
EW-S1926CG-AP provides twenty-four Gigabit PoE ports and two Gigabit SFP uplinks in a fanless full-size enclosure. A 300W internal AC supply, extended-reach mode, isolation/VLAN and AI PoE watchdog support high-density surveillance and campus edge networks.
Gigabit SFP uplinks
Two SFP slots accept separately purchased single-mode or multimode modules for fiber backbone links.
Quiet recovery modes

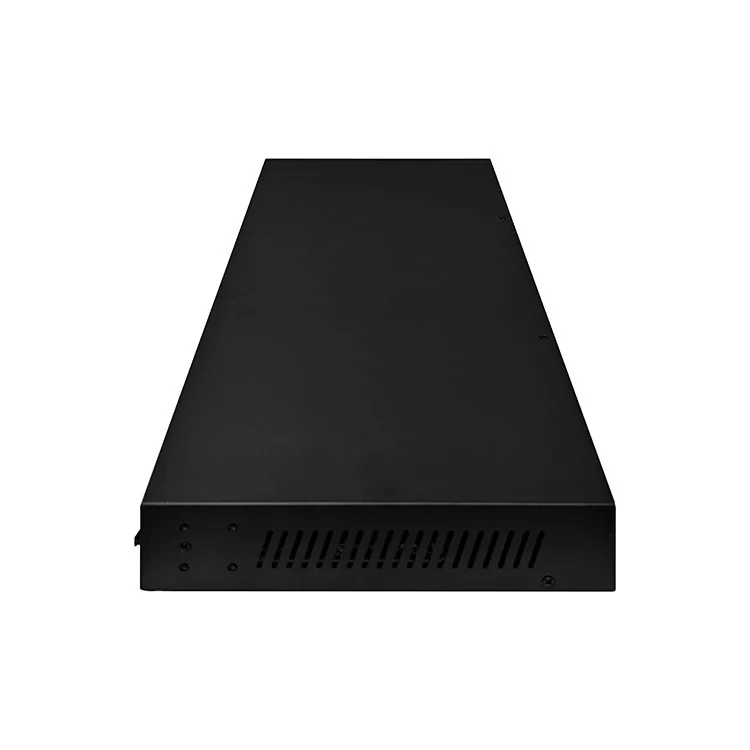

Fanless cooling, extended reach, isolation/VLAN and AI PoE watchdog controls simplify dense edge deployments.
| Specification | Details |
|---|---|
| Model | EW-S1926CG-AP |
| PoE ports | 24 × 10/100/1000BASE-T PoE; ports 1–24 |
| Uplinks | 2 × 100/1000BASE-X SFP data ports |
| PoE standard / port limit | IEEE 802.3af/at; up to 30W per port |
| Total PoE budget / supply | 300W; built-in AC 100–240V, 50/60Hz |
| Management | Unmanaged; DIP-switch extend, isolation/VLAN and AI PoE watchdog |
| Switching / forwarding | 52Gbps non-blocking / 38.69Mpps |
| MAC / buffer | 8K / 4M |
| Dimensions / installation | 330 × 244 × 45 mm; desktop, wall or 19-inch 1U cabinet mount |
| Protection / environment | IP30; −20 to +55°C; 5–90% RH, non-condensing |
| Warranty | 3 years; lifetime maintenance |
Order information
| Content | Quantity | Unit |
|---|---|---|
| EW-S1926CG-AP full Gigabit PoE switch | 1 | SET |
| Hanging ear | 1 | PAIR |
| User guide | 1 | PC |
| Warranty card | 1 | PC |
Applications

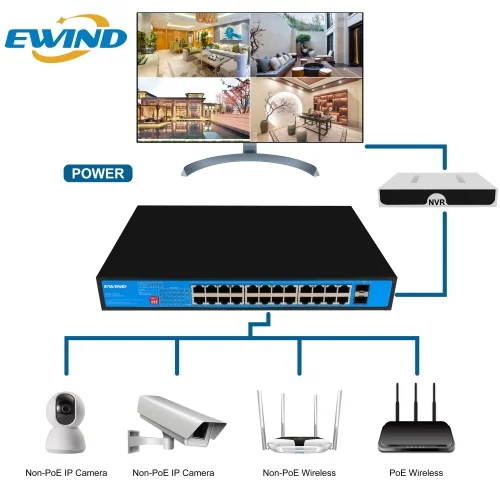

High-density surveillance, campus, hotel, factory and small-enterprise networks with mixed copper and fiber uplinks.
