27 network ports
24 PoE connections with three dedicated uplinks.
Model: EW-S1927CG-AP
24-Port Gigabit PoE Switch with RJ45 and SFP Uplinks
- 24 Gigabit IEEE 802.3af/at PoE ports
- 2 Gigabit RJ45 + 1 Gigabit SFP uplink
- 300W supply; up to 30W per PoE port
- Fanless unmanaged operation
Project inquiry
Request pricing and lead time
Tell us your model, quantity and project requirements. Our networking team will help you find the right fit.
Overview

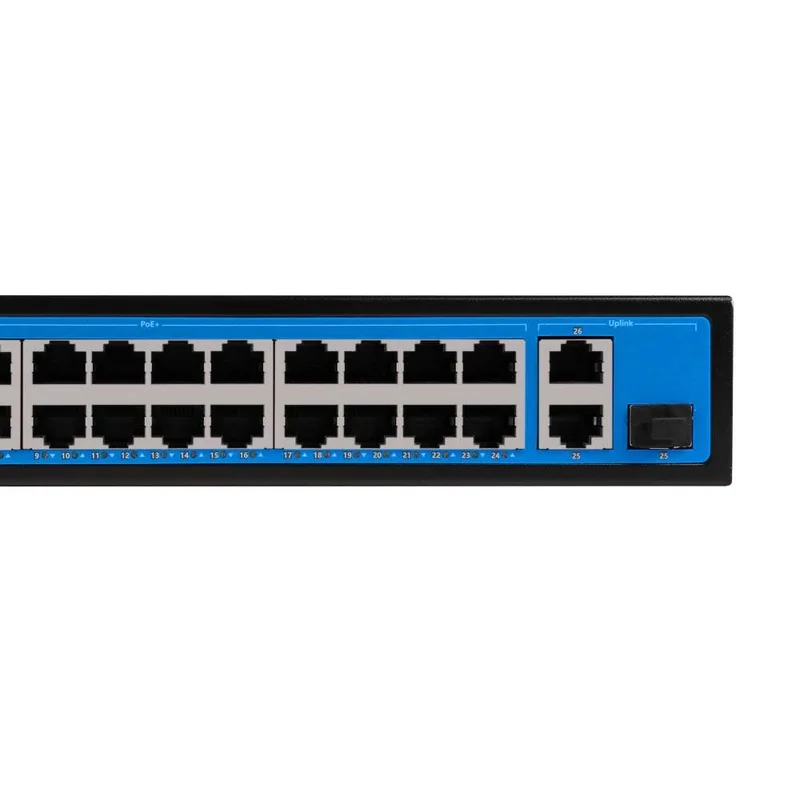

EW-S1927CG-AP provides 24 Gigabit PoE access ports, two Gigabit RJ45 uplinks and one Gigabit SFP uplink. IEEE 802.3af/at detection and a 300W supply power network endpoints, while DIP switches provide extend, isolation and PoE watchdog functions.
300W power supply
Automatic PoE detection with up to 30W per port.

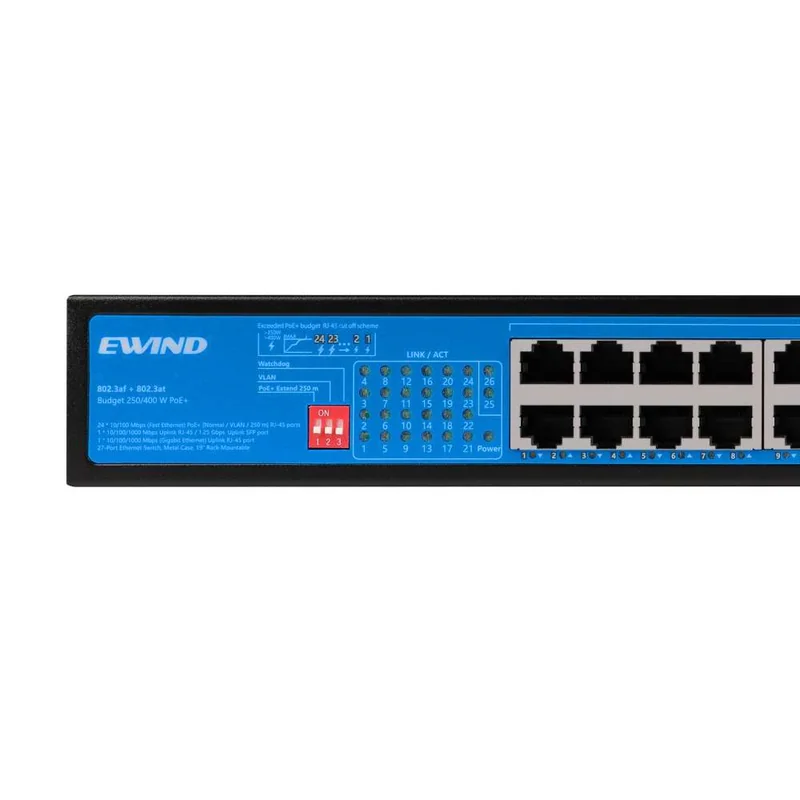

DIP-switch functions
Extend mode, port isolation and PoE watchdog.
Compact rack installation
Fanless 330mm-wide chassis with mounting brackets.
| Specification | Details |
|---|---|
| PoE access ports | 24 × 10/100/1000Mbps RJ45 |
| Uplinks | 2 × Gigabit RJ45 + 1 × Gigabit SFP |
| Management | Unmanaged |
| PoE standard | IEEE 802.3af/at |
| Power supply | 300W; 100–240V AC, 50/60Hz |
| Maximum power per port | 30W |
| Switching capacity | 54Gbps |
| Forwarding rate | 40.18Mpps |
| MAC address table | 8K entries |
| Dimensions (W × D × H) | 330 × 220 × 44mm |
| Operating temperature | −20°C to +55°C |
| Warranty | 2 years |
Dimensions
Order information
| Content | Quantity | Unit |
|---|---|---|
| EW-S1927CG-AP 24-port Gigabit PoE switch with three uplinks | 1 | SET |
| Rack-mount brackets | 1 | PAIR |
| User guide | 1 | PC |
| Warranty card | 1 | PC |
EW-S1927CG-AP Resources
PDF · Specifications · Installation · Ordering
