Model: EW-S3910G

8-Port Gigabit Fiber Switch with 2 Gigabit RJ45 Uplinks

8 × 10/100/1000M SFP fiber data ports
2 × 10/100/1000M RJ45 uplinks · 20Gbps switching
4.5–20VDC input range · IP30 · 1-year warranty

Project inquiry

Request pricing and lead time

Tell us your model, quantity and project requirements. Our networking team will help you find the right fit.

info@ewindnet.com

Overview

EW-S3910G aggregates eight 10/100/1000M SFP fiber ports and two Gigabit RJ45 uplinks in a compact plug-and-play switch. Its full-wire-speed forwarding, broad optical reach and flexible 4.5–20VDC input make it a practical fiber edge or aggregation unit.

Eight SFP fiber ports

Use separately selected single-mode or multimode SFP modules for fiber links up to the module’s rated distance.

Two Gigabit copper uplinks

RJ45 ports auto-negotiate 10/100/1000Mbps and support MDI/MDI-X for straightforward upstream connections.

Wire-speed operation

Store-and-forward forwarding, 8K MAC entries, QoS, flow control and broadcast-storm protection keep the compact switch predictable.

Product technical specifications
Specification	Details
Model	EW-S3910G
Fiber ports	8 × 10/100/1000M SFP data ports
Copper uplinks	2 × 10/100/1000M RJ45 data ports
Switching / forwarding	20Gbps / full-wire-speed store and forward
MAC / buffer / jumbo frame	8K / 1M / 9K
Fiber modules / reach	SC/LC/SFP slot; multimode 850nm up to 300m at 10G or 550m at 1.25G; single-mode 1310nm up to 40km or 1550nm up to 120km
Copper reach	10/100/1000BASE-T up to 100m with Cat3/Cat5/Cat6 or better as specified
Power input	4.5–20VDC redundant-range design; 12VDC recommended
Power consumption	<4W standby

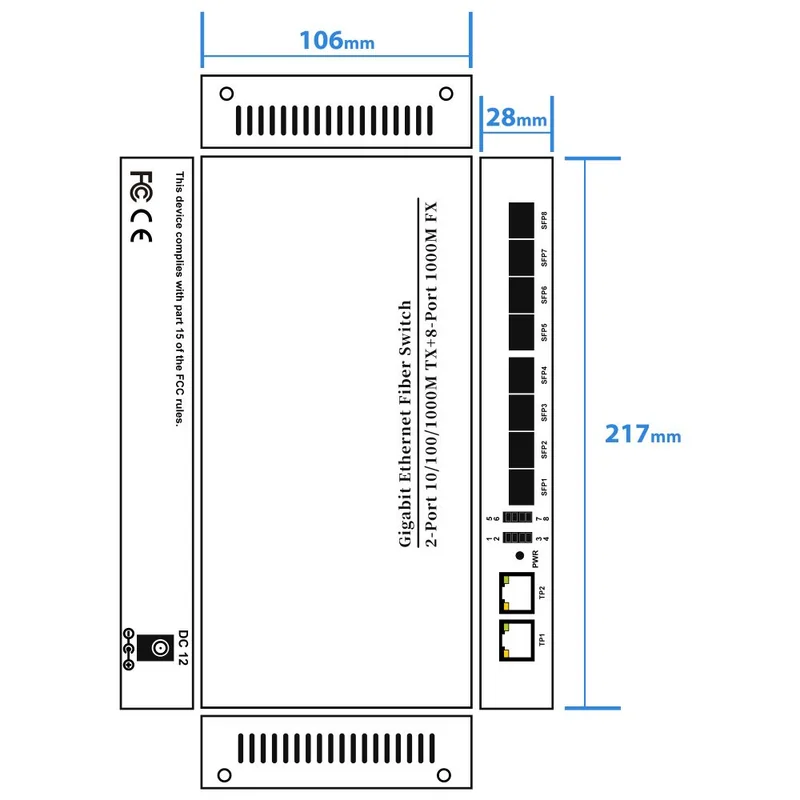

Dimensions / installation	217 × 105 × 28 mm; compact desktop or cabinet installation
Protection / environment	IP30; 4kV surge; −20 to +55°C operating
Warranty	1 year; lifetime maintenance
