Eight PoE ports
IEEE 802.3af/at ports supply compatible endpoints with up to 30W per port within the total budget.
Model: EW-S1811CG-AP
8-Port Gigabit PoE Switch with 2 RJ45 and 1 SFP Uplinks
- 8 × Gigabit PoE ports, up to 30W per port
- 2 × Gigabit RJ45 + 1 × Gigabit SFP uplinks
- Built-in 120W AC power supply
- PoE watchdog, isolation and 300m extend mode
Project inquiry
Request pricing and lead time
Tell us your model, quantity and project requirements. Our networking team will help you find the right fit.
Overview
EW-S1811CG-AP provides eight Gigabit IEEE 802.3af/at PoE ports, two Gigabit RJ45 uplinks and one Gigabit SFP slot. Its built-in 120W power supply, PoE watchdog and DIP-switch port isolation support camera, wireless and VoIP networks in offices, hotels and campuses.

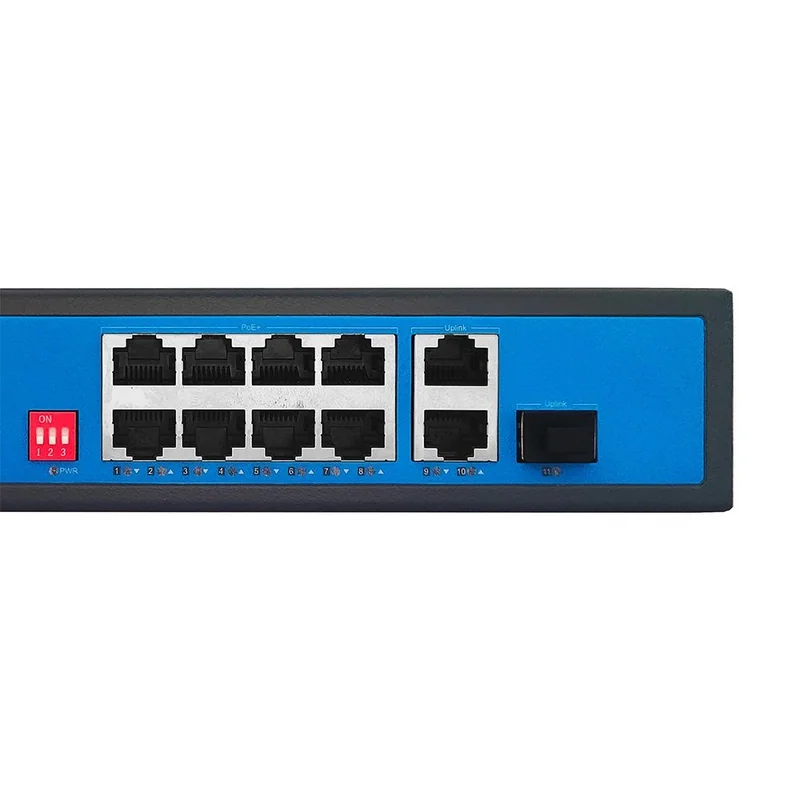

Three dedicated uplinks
Two copper uplinks and one SFP slot offer flexible upstream connections.

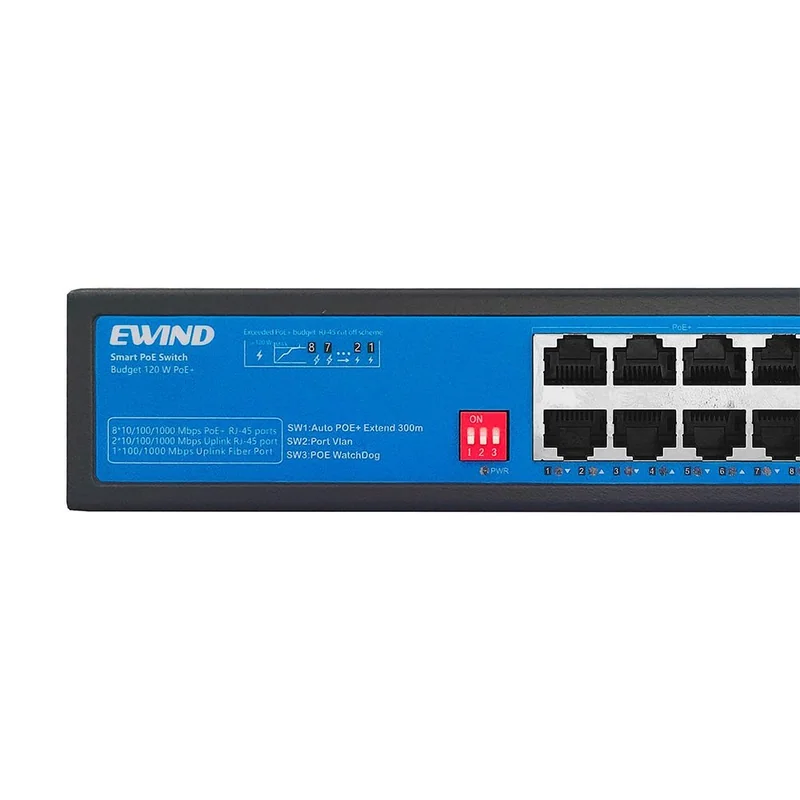

DIP-switch functions
Enable port isolation, PoE watchdog or a 10Mbps extended link up to 300m.
| Specification | Details |
|---|---|
| PoE ports | 8 × 10/100/1000Mbps RJ45 |
| Uplinks | 2 × 10/100/1000Mbps RJ45; 1 × Gigabit SFP |
| PoE standard / per-port output | IEEE 802.3af/at; up to 30W |
| PoE budget | 120W maximum, per datasheet |
| Switching / forwarding | 22Gbps / 16.368Mpps |
| MAC table / packet buffer | 4K entries / 4M |

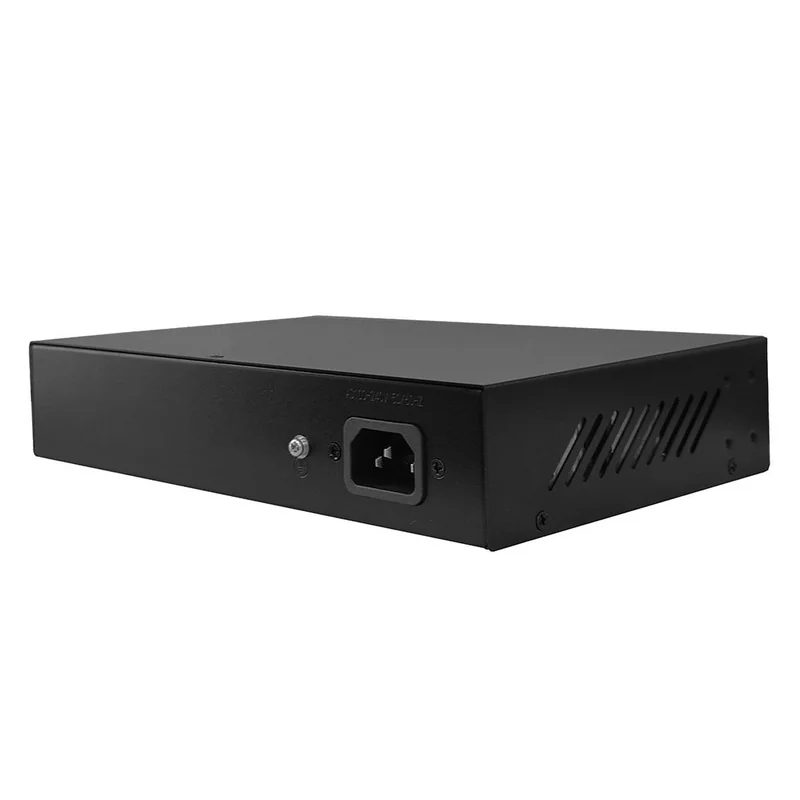

| Power supply | Built-in 120W; 100–240V AC, 50–60Hz |
| Dimensions | 220 × 145 × 45mm |
| Operating temperature | −20 to +55°C |
| Enclosure / mounting | IP30; desktop or wall |
| Warranty | 2 years |

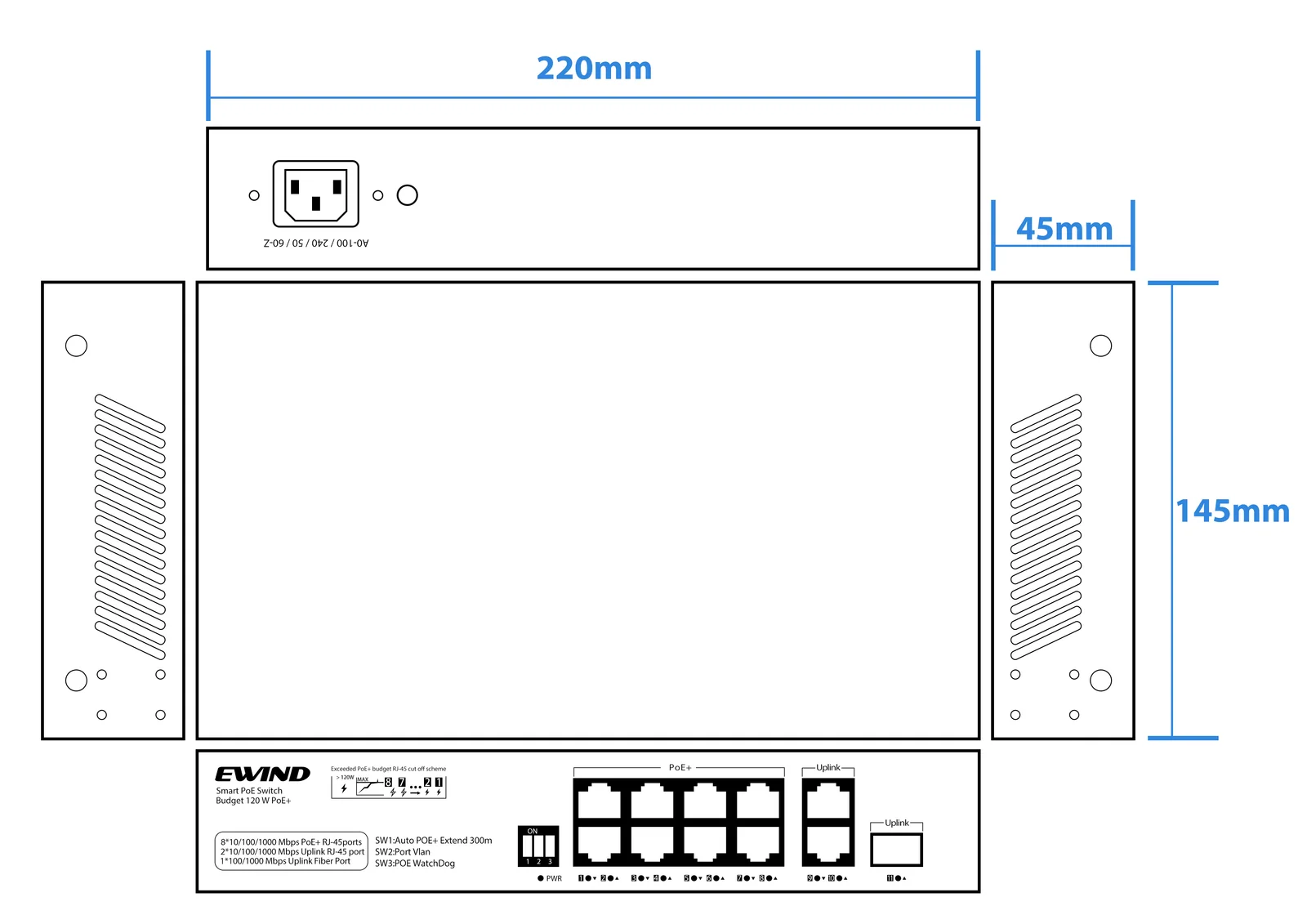

Dimensions
Order information
| Content | Quantity | Unit |
|---|---|---|
| EW-S1811CG-AP Gigabit PoE switch with built-in power supply | 1 | SET |
| User guide | 1 | PC |
| Warranty card | 1 | PC |

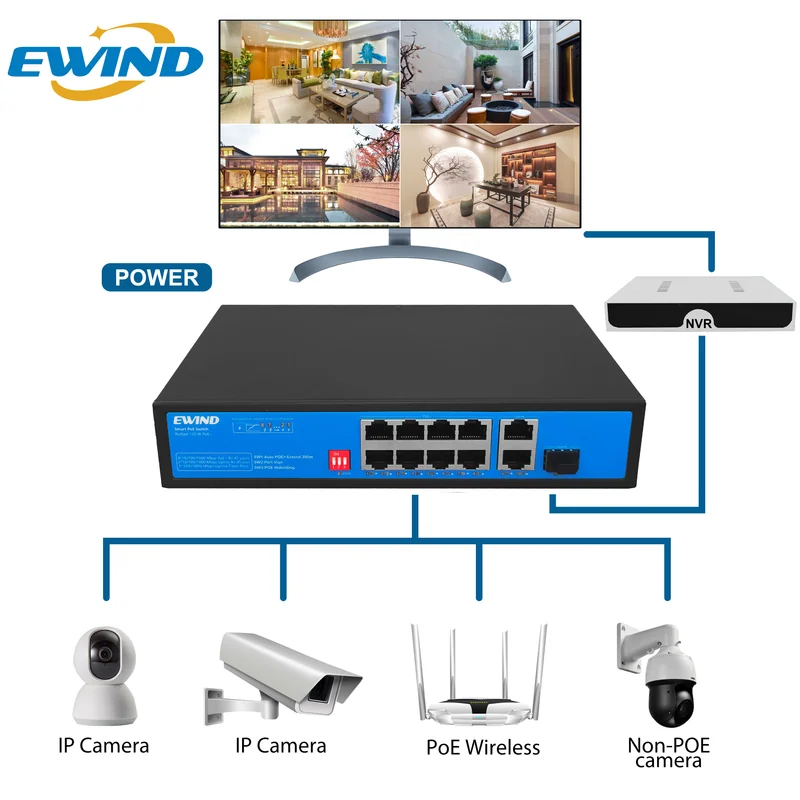

Applications
Camera, wireless and VoIP access for offices, hotels and campuses.
