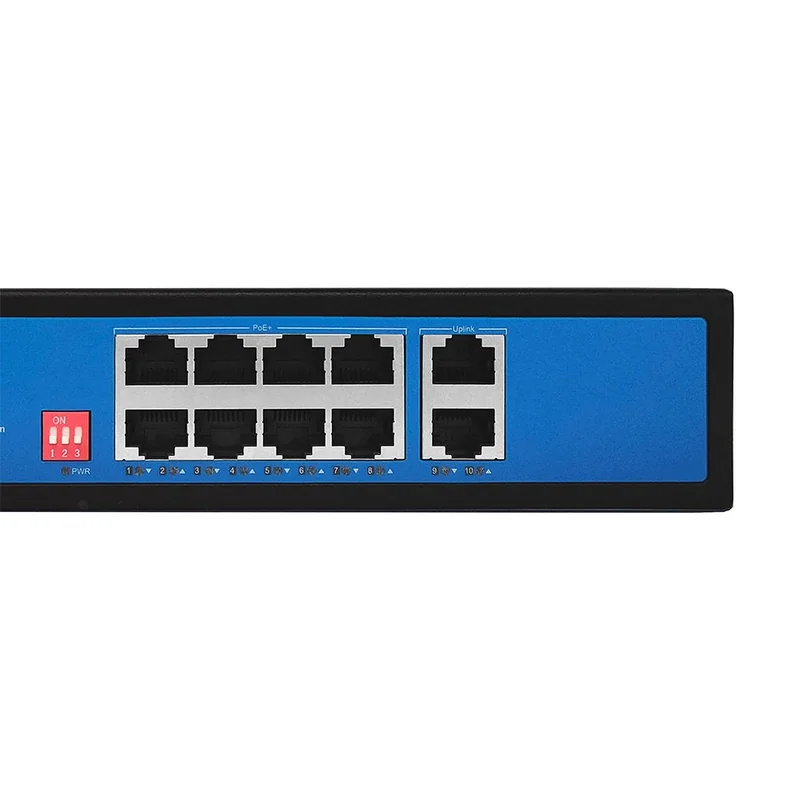

Eight PoE outputs
Ports 1–8 detect compatible 802.3af/at endpoints within the shared 120W budget.
Model: EW-S1910G-AP
8-Port Fast Ethernet PoE Switch with 2 Gigabit Uplinks
- 8 × 10/100Mbps PoE ports · up to 30W per port
- 2 × 10/100/1000Mbps Gigabit uplinks
- 120W internal supply · AI watchdog and isolation modes
Project inquiry
Request pricing and lead time
Tell us your model, quantity and project requirements. Our networking team will help you find the right fit.
Overview
EW-S1910G-AP powers eight Fast Ethernet PoE endpoints and provides two Gigabit RJ45 uplinks in a compact desktop enclosure. Its 120W internal supply, extended-reach mode, port isolation and PoE watchdog suit small surveillance and access networks.
Two Gigabit uplinks
Two data-only RJ45 uplinks connect the PoE segment to an upstream network or recorder.
Hardware control modes

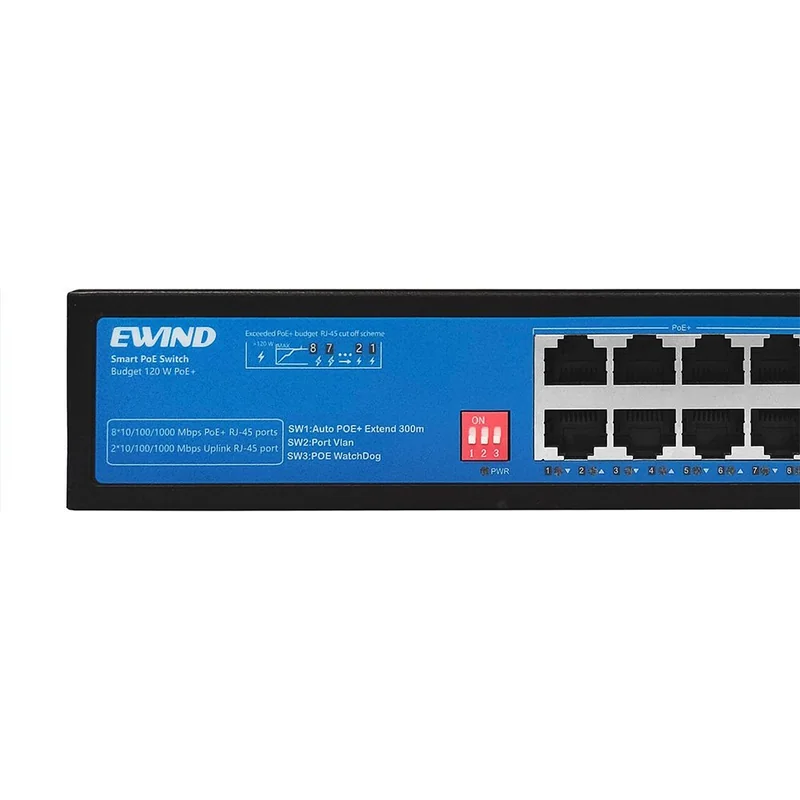

DIP switches enable extended reach, isolation/VLAN and PoE watchdog recovery.
| Specification | Details |
|---|---|
| Model | EW-S1910G-AP |
| PoE ports | 8 × 10/100BASE-T PoE |
| Uplinks | 2 × 10/100/1000BASE-T RJ45 data ports |
| PoE standard / port limit | IEEE 802.3af/at; up to 30W per port |
| Total PoE budget | 120W |
| Management | Unmanaged; DIP-switch controls |
| Switching / forwarding | 20 Gbps / 14.88 Mpps |
| MAC / buffer | 4K / 4M |

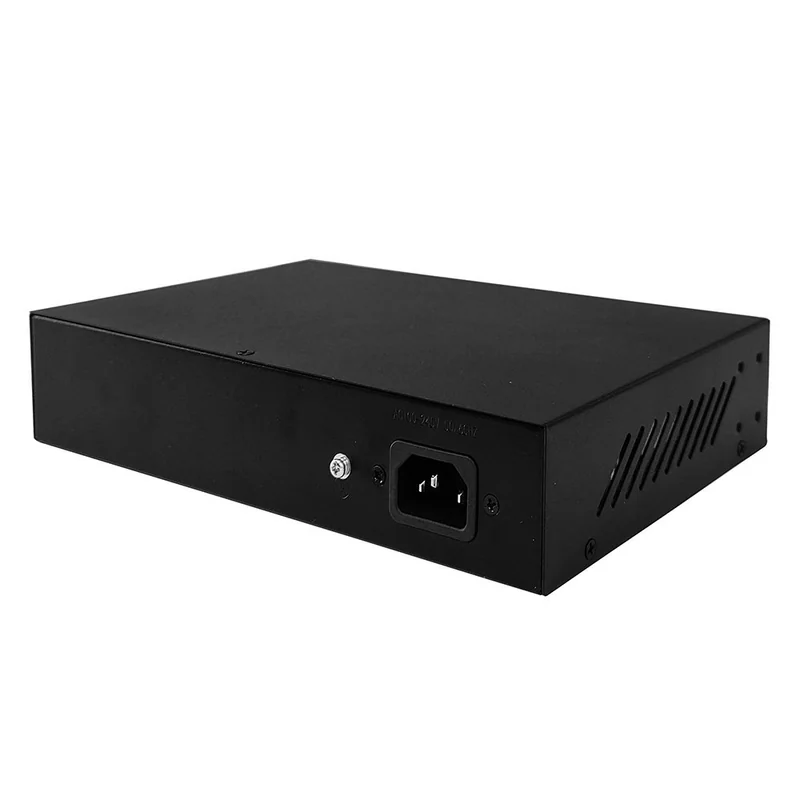

| Power supply | Built-in 120W adapter; AC 100–240V, 50/60Hz |
| Dimensions / installation | 195 × 130 × 40 mm; desktop or wall mount |
| Operating environment | −20 to +55°C; 5–90% RH, non-condensing |
| Warranty | 3 years; lifetime maintenance |
Order information
| Content | Quantity | Unit |
|---|---|---|
| EW-S1910G-AP PoE switch | 1 | SET |
| User guide | 1 | PCS |
| Warranty card | 1 | PCS |
Applications

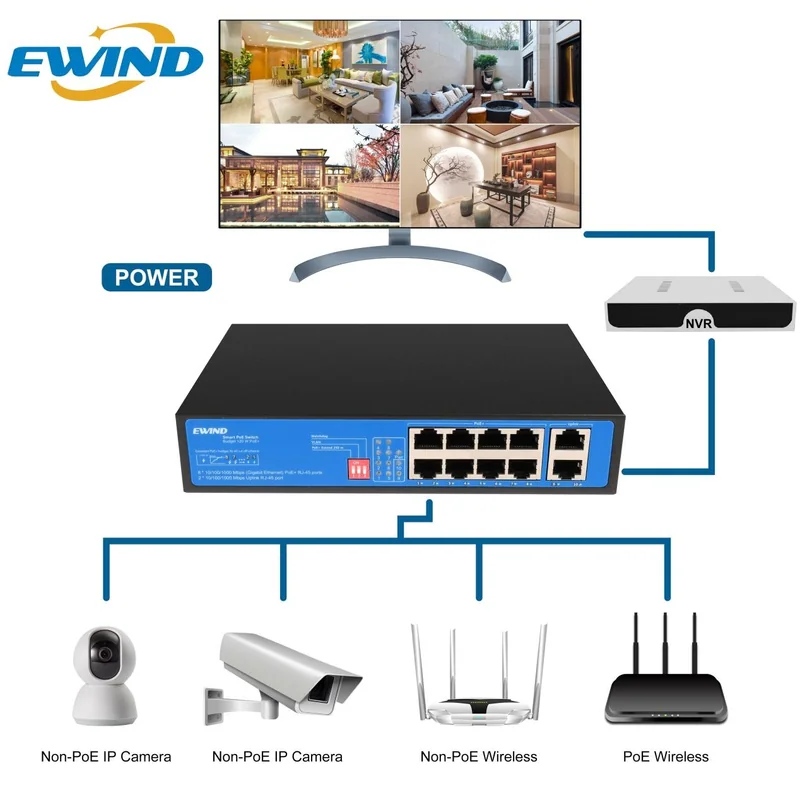

Small surveillance and wireless access networks with eight Fast Ethernet PoE endpoints.
