Model: EW-S1910FG-DP

10-Port Gigabit PoE Switch with Dual Gigabit SFP

8 × 10/100/1000Mbps PoE ports with IEEE 802.3af/at
2 × 100/1000Mbps SFP uplinks
120W total power with external DC adapter
AI Extend up to 300m, isolation/VLAN and PoE watchdog modes

Project inquiry

Request pricing and lead time

Tell us your model, quantity and project requirements. Our networking team will help you find the right fit.

info@ewindnet.com

Overview

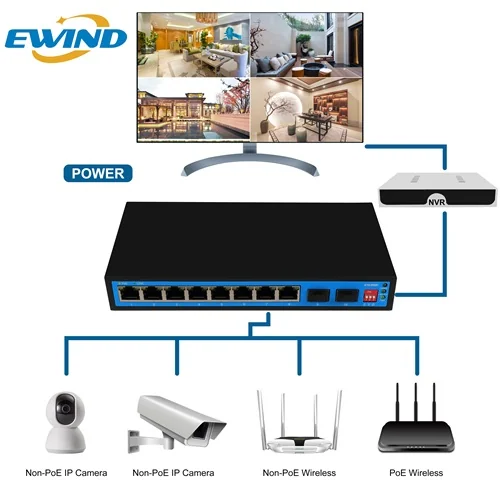

EW-S1910FG-DP provides eight Gigabit PoE ports and two Gigabit SFP uplinks in a compact 120W DC-powered enclosure. AI Extend, isolation and PoE watchdog modes support reliable CCTV and wireless deployments where an external power adapter is preferred.

Gigabit + fiber

Eight Gigabit PoE ports and two SFP uplinks connect mixed copper and fiber networks.

120W capacity

Power up to eight endpoints with 30W maximum per port.

300m Extend

Long-distance mode supports extended camera links with automatic speed adjustment.

DC powered

External adapter simplifies installations with separated power placement.

Product technical specifications
Specification	Details
Interfaces	8 × 10/100/1000Mbps PoE RJ45; 2 × 100/1000Mbps SFP uplinks
PoE standard	IEEE 802.3af/at; 30W maximum / 15.4W average per port
Power budget	120W at 52VDC
Switching performance	20Gbps; 14.88Mpps; store-and-forward
Memory	8K MAC table; 4M buffer
Power supply	External 120W DC power adapter
Long-reach modes	AI Extend up to 300m; extended port adapts to 10Mbps while standard links remain up to 100m

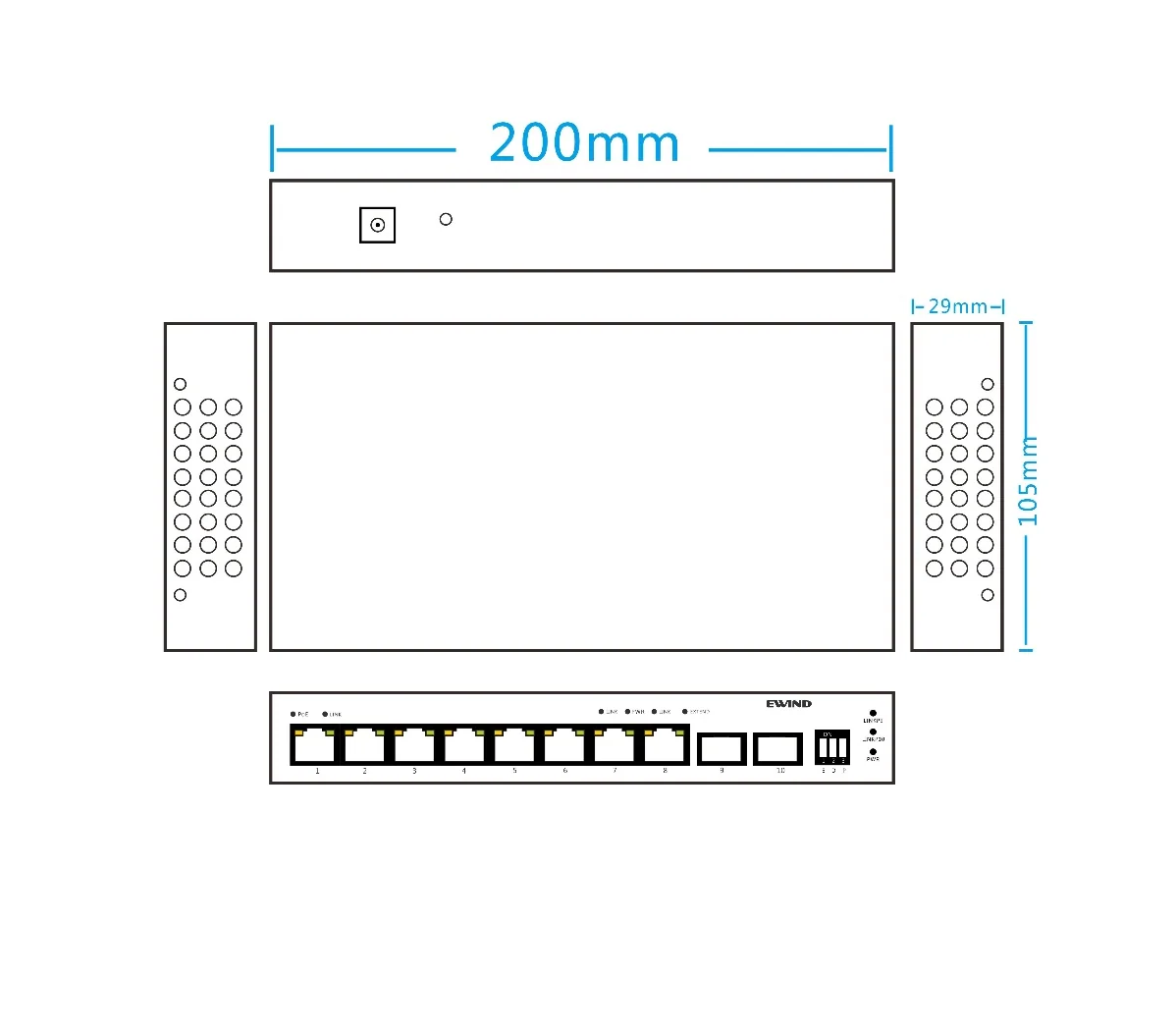

Dimensions / weight	200 × 105 × 29mm; net under 0.6kg, gross under 1.2kg
Installation	Desktop or wall mounted
Environment / protection	Operating −20°C to +55°C; storage −40°C to +75°C; IP30; 4kV port lightning protection
Warranty	3 years; lifetime maintenance
