Model: EW-S1910FG-AP

10-Port Gigabit PoE Switch with Dual SFP Uplinks

8 × 10/100/1000Mbps PoE ports with 30W maximum per port
2 × 100/1000Mbps SFP fiber uplinks
120W total PoE budget with built-in AC power supply
AI Extend up to 300m, isolation/VLAN and PoE watchdog modes

Project inquiry

Request pricing and lead time

Tell us your model, quantity and project requirements. Our networking team will help you find the right fit.

info@ewindnet.com

Overview

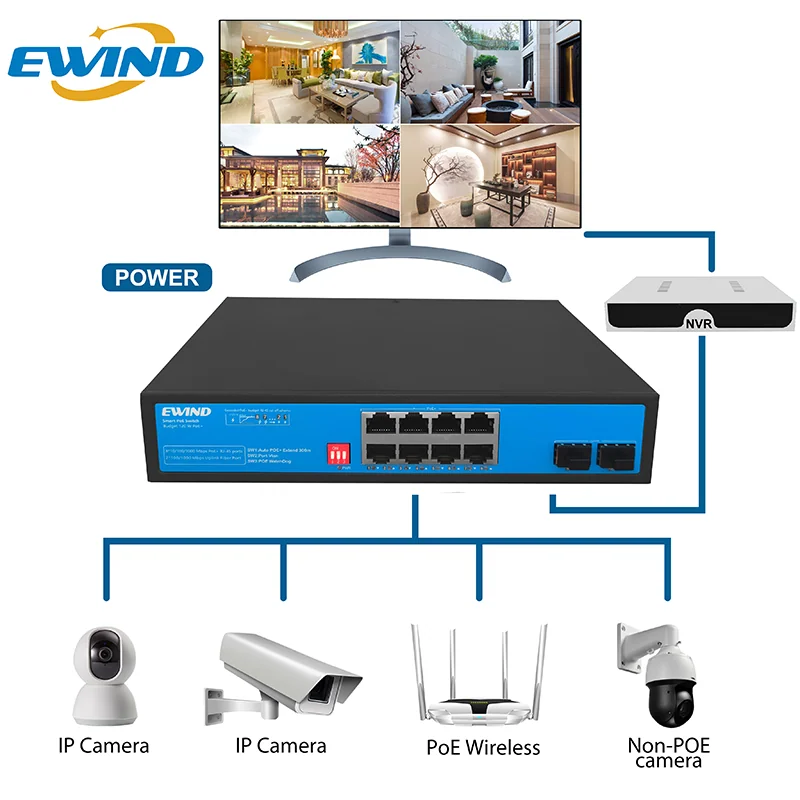

EW-S1910FG-AP provides eight Gigabit PoE ports and two Gigabit SFP fiber uplinks in a 120W desktop enclosure. AI Extend, port isolation and PoE watchdog modes help connect and maintain CCTV, NVR and wireless endpoints over copper and fiber.

Copper + fiber

Eight Gigabit PoE ports and dual SFP uplinks cover mixed media networks.

120W PoE budget

Power cameras, access points and other endpoints from one switch.

300m Extend

AI Extend supports long-distance camera links with automatic speed adjustment.

Self-healing CCTV

Isolation and PoE watchdog modes help keep remote cameras online.

Product technical specifications
Specification	Details
Interfaces	8 × 10/100/1000Mbps PoE RJ45; 2 × 100/1000Mbps SFP uplinks
PoE capability	IEEE 802.3af/at; 30W maximum / 15.4W average per port
PoE budget	120W total
Switching performance	20Gbps; 14.88Mpps; store-and-forward
Memory	4K MAC table; 4M buffer
Power supply	Built-in 100–240VAC, 50–60Hz, 120W
Long-reach modes	AI Extend up to 300m; extended port adapts to 10Mbps while standard links remain up to 100m

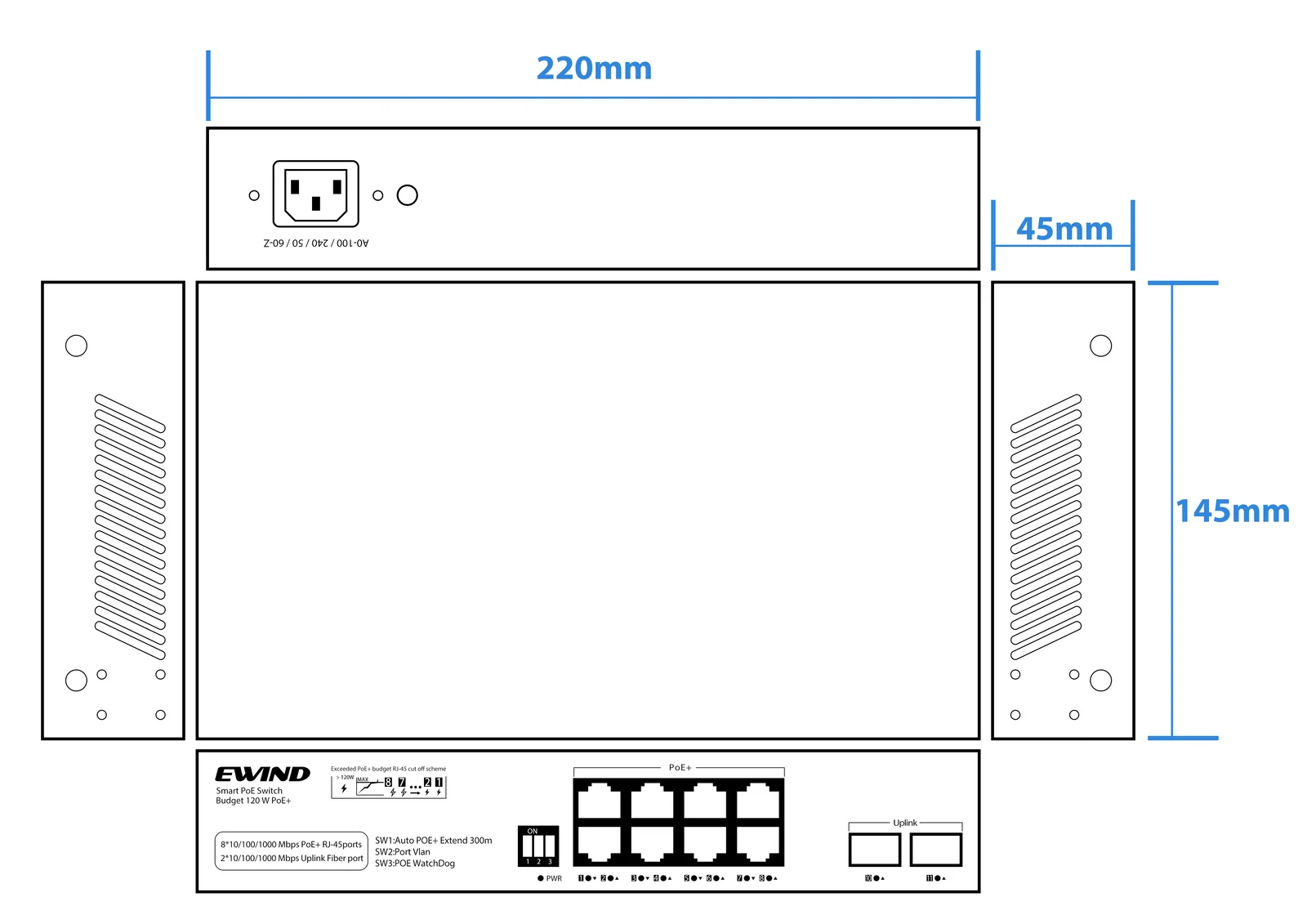

Dimensions / weight	220 × 145 × 45mm; net under 1kg, gross under 1.2kg
Installation	Desktop or wall mounted
Environment / protection	Operating −20°C to +55°C; storage −40°C to +75°C; IP30 and ESD/surge protection
Warranty	3 years; lifetime maintenance
