High-density PoE
IEEE 802.3af/at ports power compatible APs, cameras, phones and sensors within the shared 800W output.

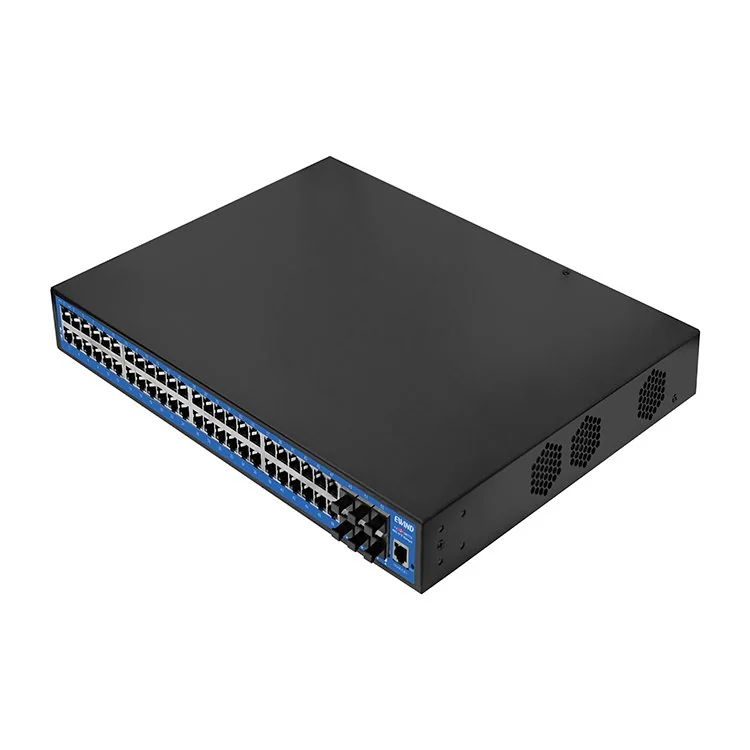

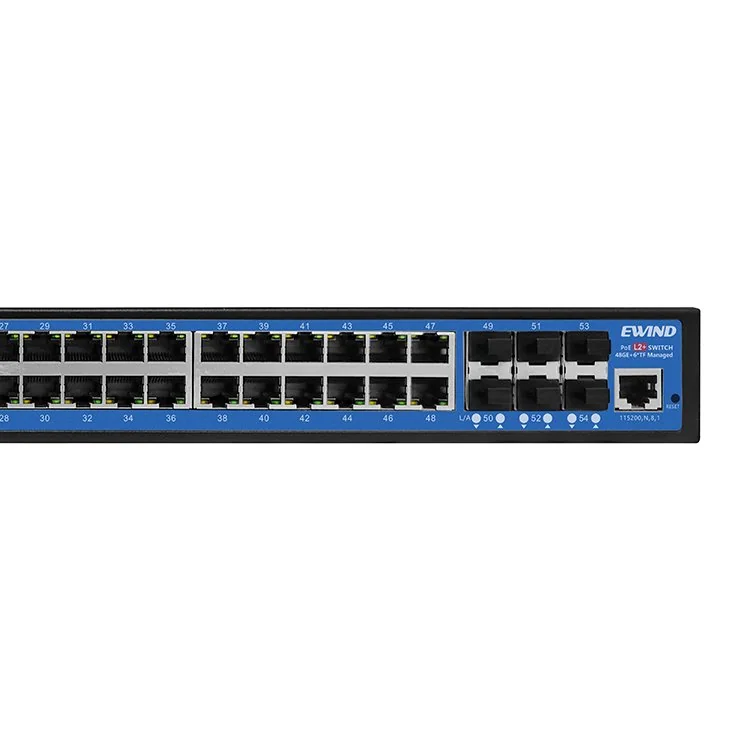

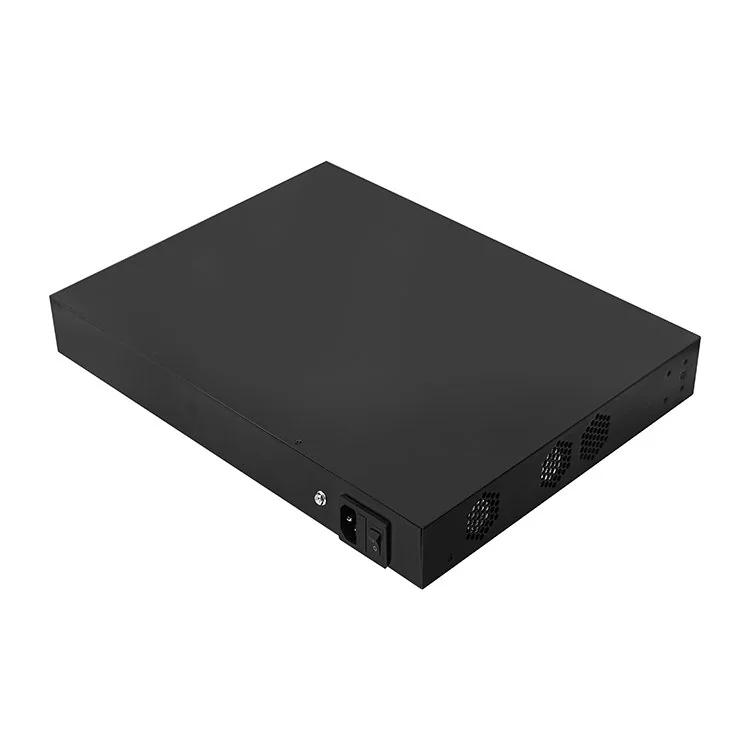

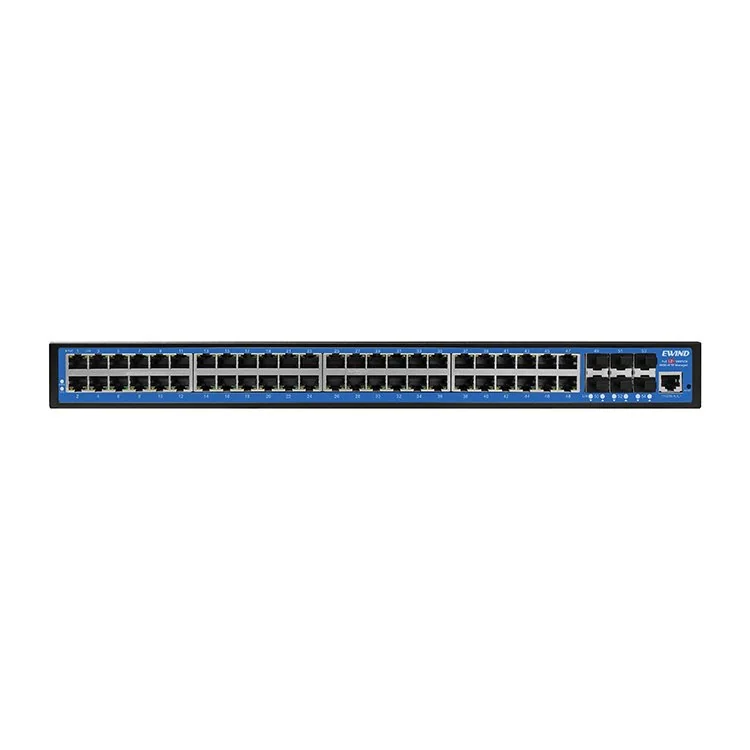

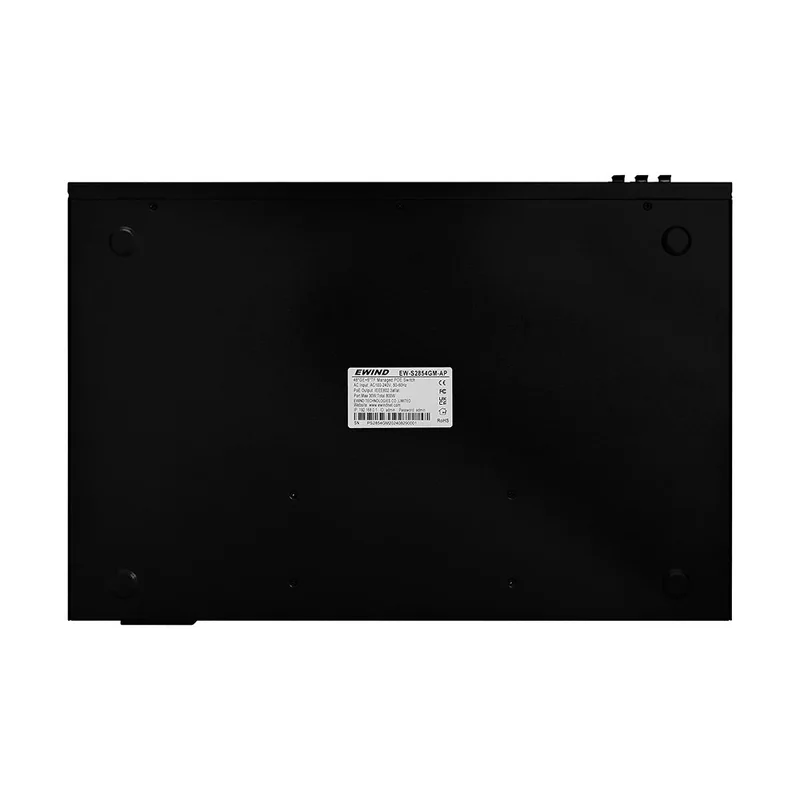

Model: EW-S2854GM-AP
48-Port Gigabit Managed PoE Switch with 6 10G SFP+ Uplinks
- 48 × Gigabit PoE ports · up to 30W per port
- 6 × 1/2.5/10G SFP+ uplinks
- 800W PoE output · L2+ management
Project inquiry
Request pricing and lead time
Tell us your model, quantity and project requirements. Our networking team will help you find the right fit.
Overview
EW-S2854GM-AP powers 48 Gigabit endpoints and aggregates them through six 1/2.5/10G SFP+ uplinks. L2+ management, PoE scheduling and VLAN, ACL and QoS controls suit high-density industrial, campus and security networks.
Six multi-rate uplinks
Use compatible SFP+ modules for 1G, 2.5G or 10G aggregation and fiber reach.
Managed access
VLAN, QoS, ACL, PoE watchdog and scheduled output support resilient network operation.
| Specification | Details |
|---|---|
| Model | EW-S2854GM-AP |
| PoE ports | 48 × 10/100/1000BASE-T PoE |
| Uplinks | 6 × 1/2.5/10G SFP+; modules sold separately |
| PoE standard / port limit | IEEE 802.3af/at; up to 30W per port |
| Total PoE budget | 800W |
| Management | L2+ managed |
| Switching / forwarding | 216 Gbps / 210.94 Mpps, per product datasheet |
| MAC / buffer | 32K / 32M |
| Power input | 48–57V DC, per product datasheet |
| Enclosure / installation | IP40 in product datasheet; verify supplied enclosure revision |
| Operating environment | −20 to +55°C; 5–90% RH, non-condensing |
| Warranty | 3 years |
Order information
| Content | Quantity | Unit |
|---|---|---|
| EW-S2854GM-AP managed PoE switch | 1 | SET |
| User guide | 1 | PCS |
| Warranty card | 1 | PCS |
EW-S2854GM-AP Resources
PDF · Specifications · Installation · Ordering
