Power scheduling
Set per-port limits, priority and operating schedules for compatible PoE devices.

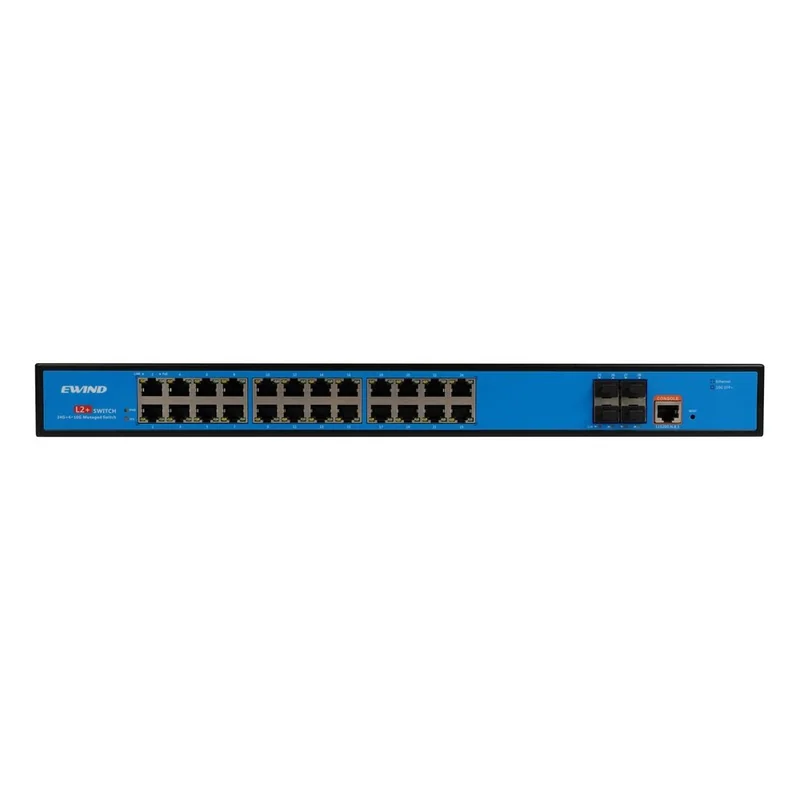

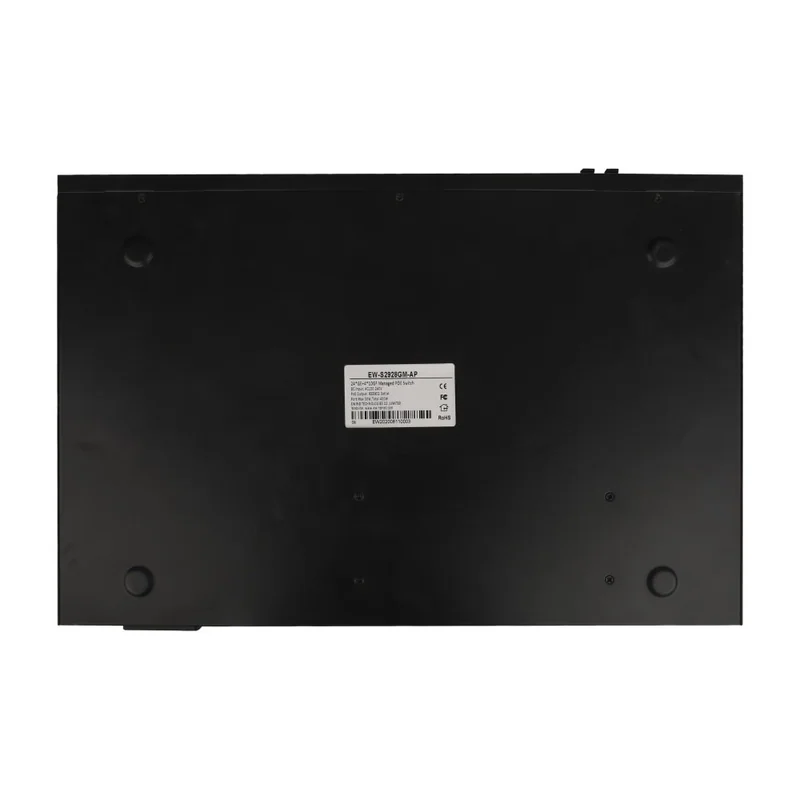

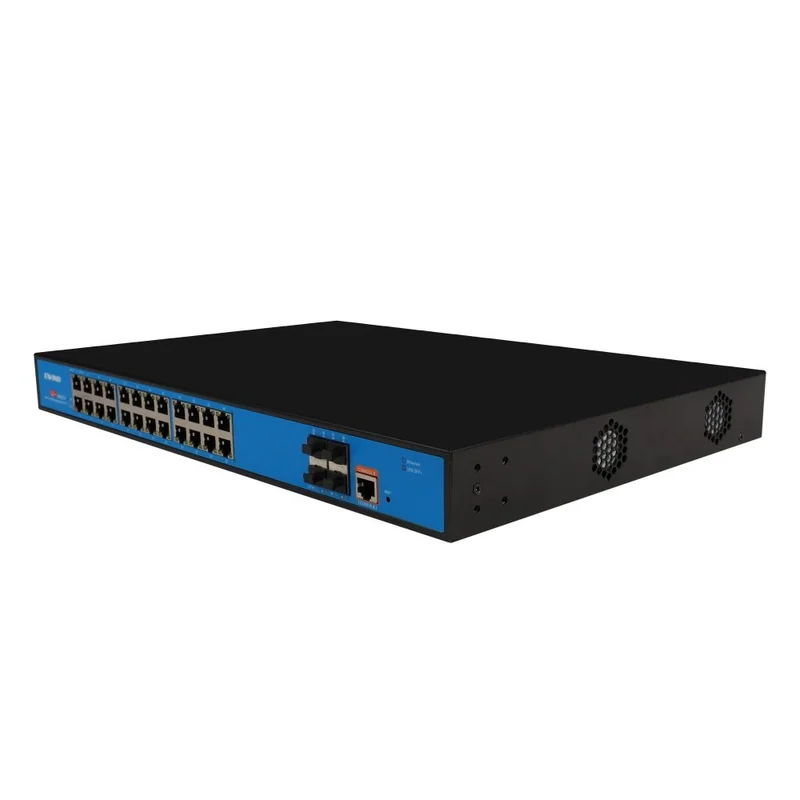

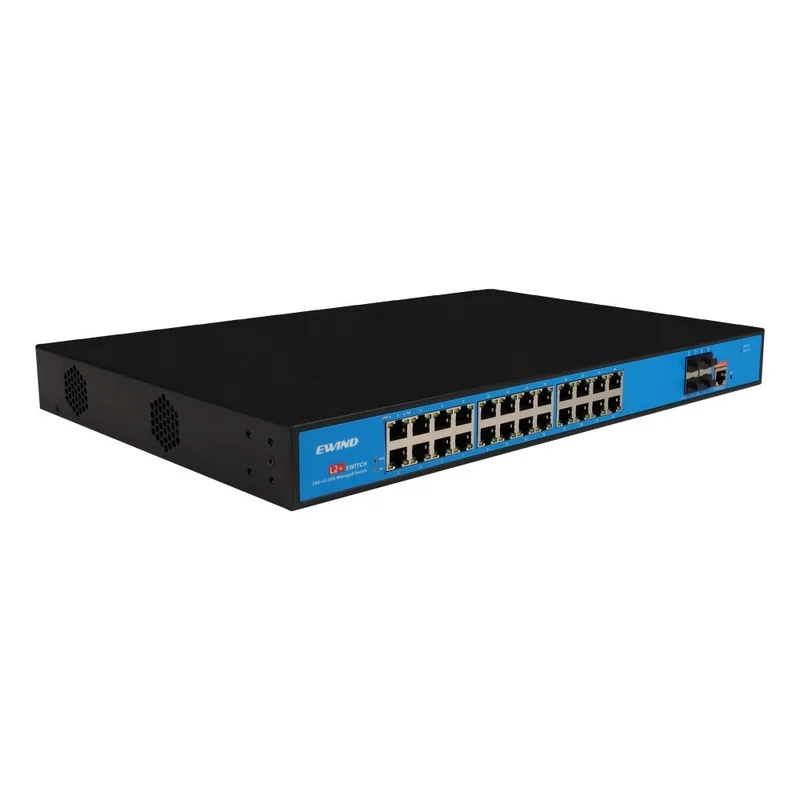

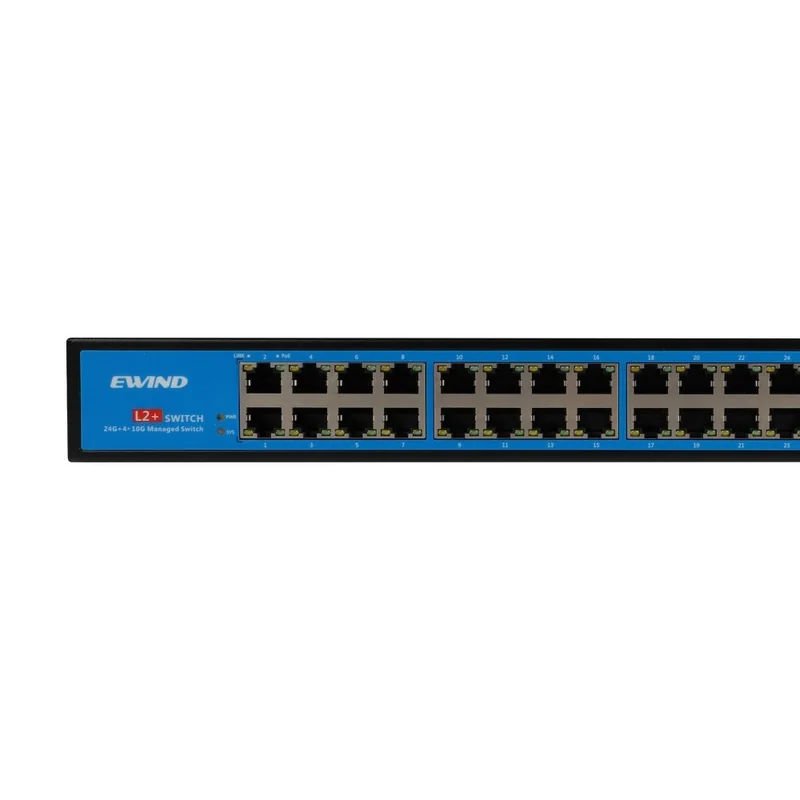

Model: EW-S5728GM-AP
24-Port Gigabit L3 Managed PoE Switch with 4 10G SFP+ Uplinks
- 24 Gigabit PoE ports; up to 30W per port
- 4 × 1G/2.5G/10G SFP+ uplinks
- 400W built-in AC supply
- Static routing, ERPS and managed PoE
Project inquiry
Request pricing and lead time
Tell us your model, quantity and project requirements. Our networking team will help you find the right fit.
Overview
EW-S5728GM-AP provides 24 Gigabit PoE ports and four 1G/2.5G/10G SFP+ uplinks with a built-in 400W supply. Static routing, VLANs, ring protection and scheduled PoE controls support managed enterprise and surveillance networks.

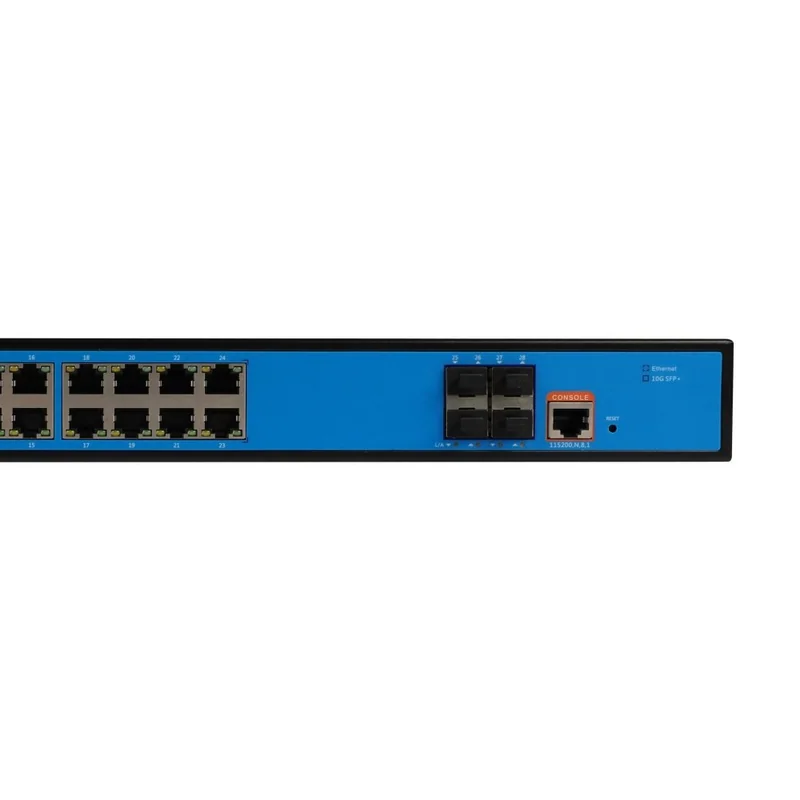

10G uplinks
Four SFP+ slots provide fiber connectivity to aggregation switches and servers.
Managed access
Static routes, VLANs, QoS and authentication help control network traffic.
| Specification | Details |
|---|---|
| Model | EW-S5728GM-AP |
| PoE ports | 24 × 10/100/1000BASE-T RJ45 |
| Uplinks | 4 × 1G/2.5G/10G SFP+ |
| PoE standard | IEEE 802.3af/at; up to 30W per port |
| Power supply | 400W; AC 100–220V, 50–60Hz |
| Management | L3 managed; web, CLI, SNMP and console |
| Routing | Static/default routing; up to 128 entries |
| MAC table | 32K entries |
| Dimensions | 440 × 290 × 44.5 mm |
| Installation | Desktop or 19-inch 1U rack |
| Operating temperature | −20°C to +55°C |
| Warranty | 3 years |
Order information
| Content | Quantity | Unit |
|---|---|---|
| EW-S5728GM-AP switch, 400W configuration | 1 | SET |
| Rack mounting brackets | 1 | PAIR |
| User guide | 1 | PC |
| Warranty card | 1 | PC |
EW-S5728GM-AP Resources
PDF · Specifications · Installation · Ordering
