26 logical ports
Four combo ports share their copper and fiber interfaces; each pair operates as one port.
Model: EW-S2926GM-AP
26-Port Gigabit L2+ Managed PoE Switch with 4 Combo Ports
- 20 Gigabit PoE RJ45 + 4 Gigabit combo + 2 Gigabit SFP
- IEEE 802.3af/at, up to 30W per PoE port
- L2+ management with static routing and ERPS
- 1U rack enclosure; 3-year warranty
Project inquiry
Request pricing and lead time
Tell us your model, quantity and project requirements. Our networking team will help you find the right fit.
Overview
EW-S2926GM-AP combines 20 Gigabit PoE RJ45 ports, four Gigabit combo ports and two dedicated Gigabit SFP uplinks. Web and console management provide VLANs, static routing, ring protection and scheduled PoE control for access networks.
Managed PoE
Ports 1–24 support power monitoring, priority, delayed startup and scheduled power control.
Network resilience
VLANs, ACLs, spanning tree and ERPS support segmented access networks.
| Specification | Details |
|---|---|
| Model | EW-S2926GM-AP |
| PoE access ports | 20 × 10/100/1000BASE-T RJ45 |
| Combo ports | 4 × Gigabit RJ45/SFP combo; copper interfaces support PoE |
| Dedicated uplinks | 2 × 100/1000BASE-X SFP |
| PoE standard | IEEE 802.3af/at; up to 30W per port |
| Management | L2+; web, CLI, SNMP and RS232 console |
| MAC table | 8K entries |
| Power supply | Built-in AC supply |
| Dimensions | 440 × 290 × 44.5 mm |
| Operating temperature | −20°C to +55°C |
| Enclosure | IP30; 1U rack mounting |
| Warranty | 3 years |

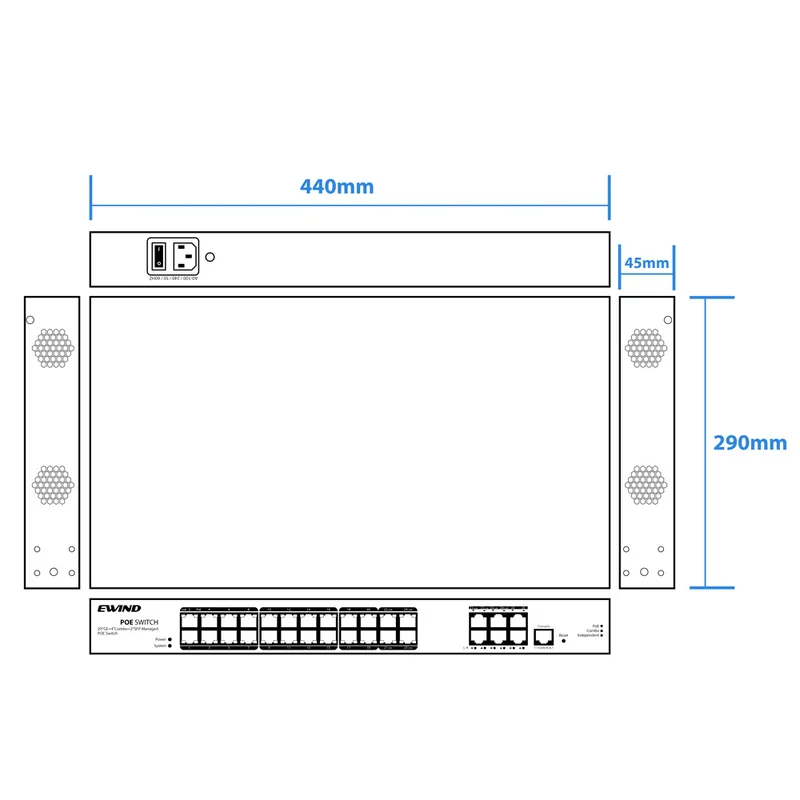

Dimensions
Order information
| Content | Quantity | Unit |
|---|---|---|
| EW-S2926GM-AP switch | 1 | PC |
| User guide | 1 | PC |
| Warranty card | 1 | PC |
EW-S2926GM-AP Resources
PDF · Specifications · Installation · Ordering
