10G uplinks

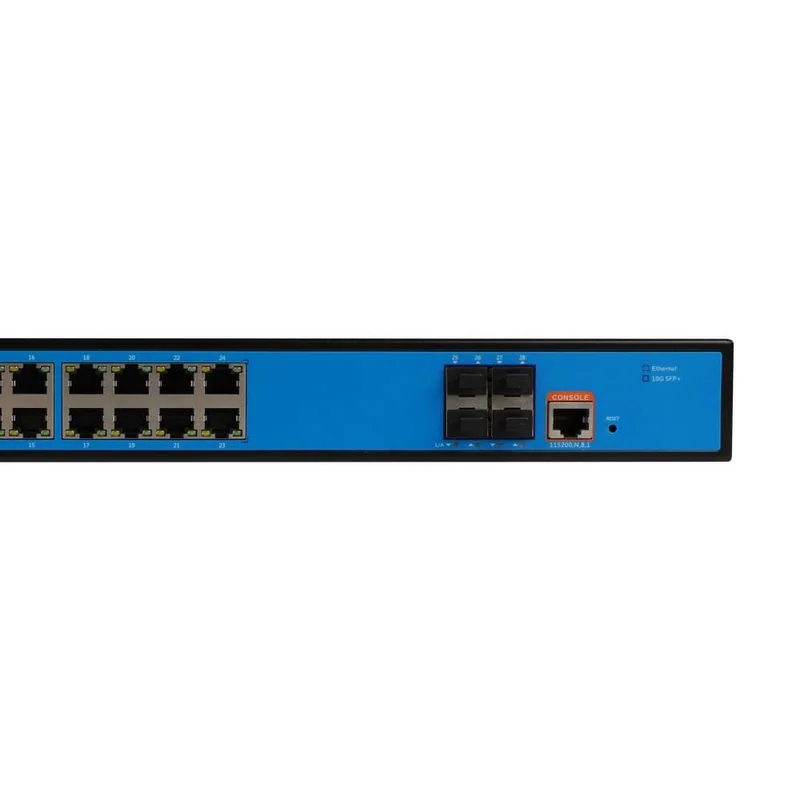

Four SFP+ slots support higher-speed links to the upstream network.
Model: EW-S2928GM

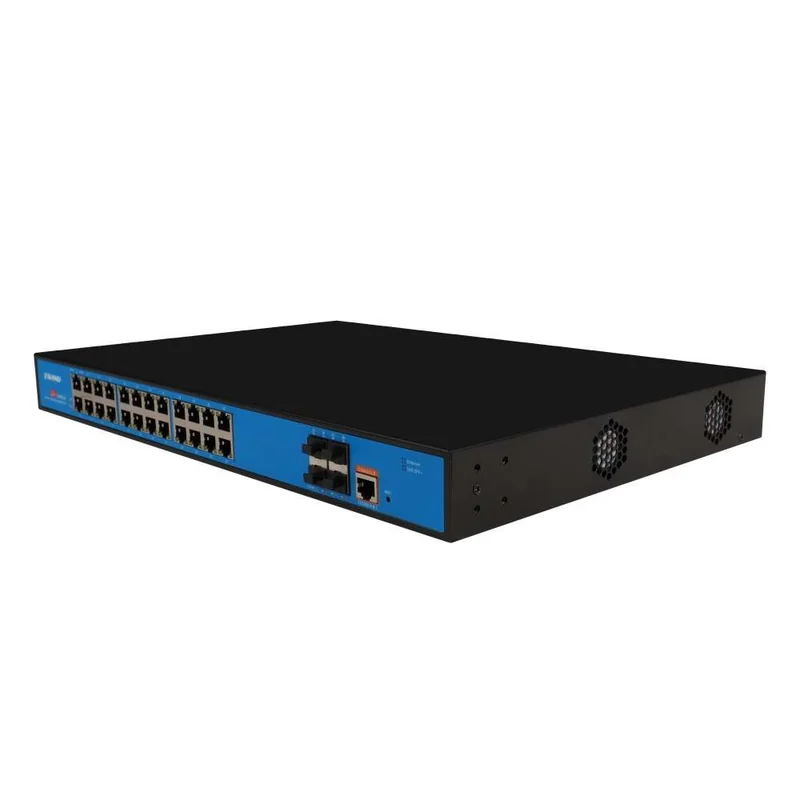

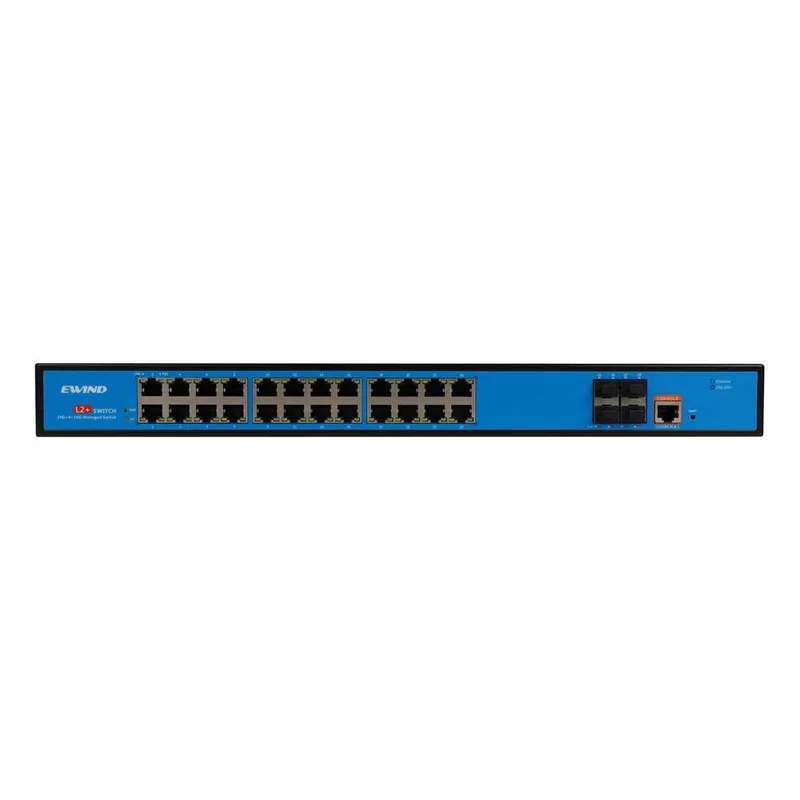

24-Port Gigabit L2+ Managed Switch with 4 10G SFP+ Uplinks
- 24 Gigabit data-only RJ45 ports
- 4 SFP+ uplinks supporting 1G / 2.5G / 10G
- L2+ management and static routing
- 32K MAC table; 3-year warranty
Project inquiry
Request pricing and lead time
Tell us your model, quantity and project requirements. Our networking team will help you find the right fit.
Overview
EW-S2928GM connects 24 Gigabit copper devices to four SFP+ uplinks supporting 1G, 2.5G and 10G. L2+ management combines VLANs, static routing, ERPS and access controls for enterprise and campus access networks.
Access control
VLANs, ACLs, 802.1X and IP-MAC-port binding segment and protect traffic.
Managed access
Web, CLI and SNMP expose routing, diagnostics and redundancy settings.
| Specification | Details |
|---|---|
| Model | EW-S2928GM |
| Access ports | 24 × 10/100/1000BASE-T RJ45; data only |
| Fiber uplinks | 4 × 1G/2.5G/10G SFP+ |
| Management | L2+; HTTPS, CLI and SNMP |
| Routing | Static and default routes; software forwarding |
| MAC table | 32K entries |
| Console | RS232; 115200 baud, N/8/1 |

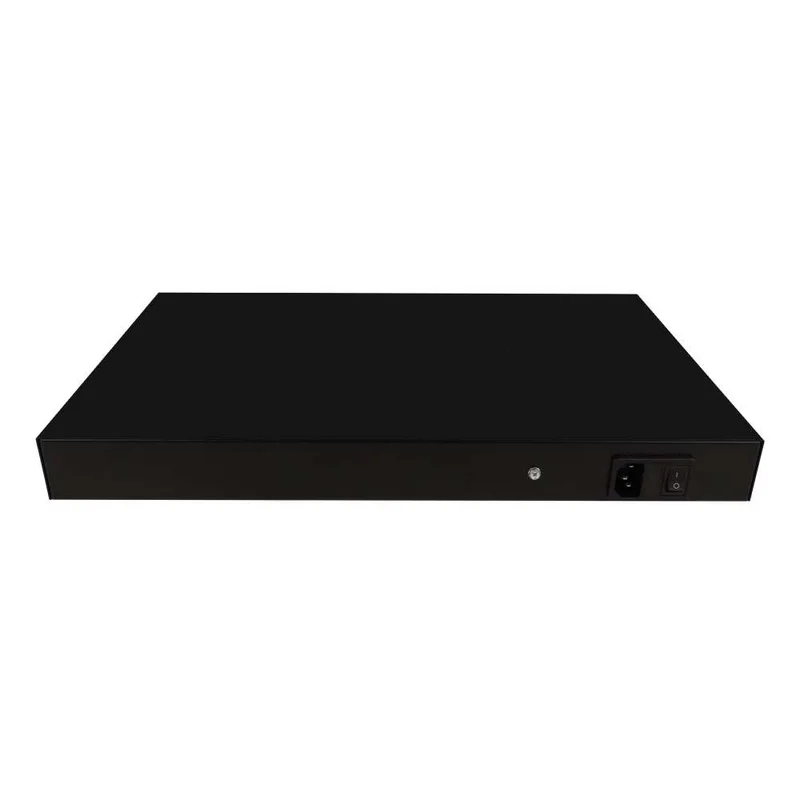

| Power input | AC 100–220V, 50–60Hz; built-in supply |
| Dimensions | 440 × 290 × 44.5 mm |
| Installation | Desktop or 19-inch 1U rack |
| Operating temperature | −20°C to +55°C |
| Warranty | 3 years |
Order information
| Content | Quantity | Unit |
|---|---|---|
| EW-S2928GM switch | 1 | SET |
| Rack mounting brackets | 1 | PAIR |
| User guide | 1 | PC |
| Warranty card | 1 | PC |
EW-S2928GM Resources
PDF · Specifications · Installation · Ordering
