High-density PoE
IEEE 802.3af/at detection powers compatible cameras, APs and phones across 48 ports within the 800W budget.
Model: EW-S2948GM-AP

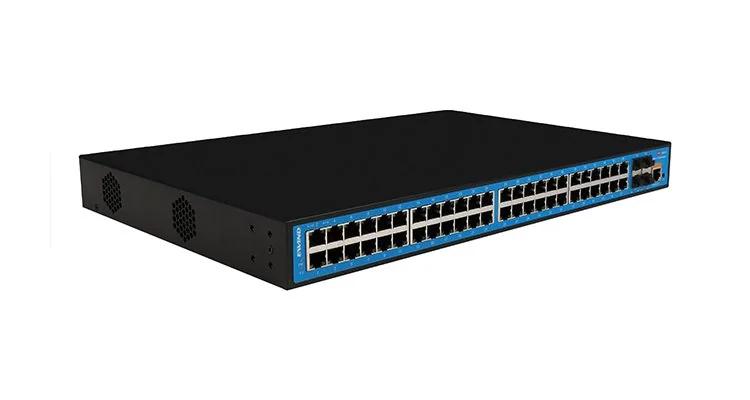

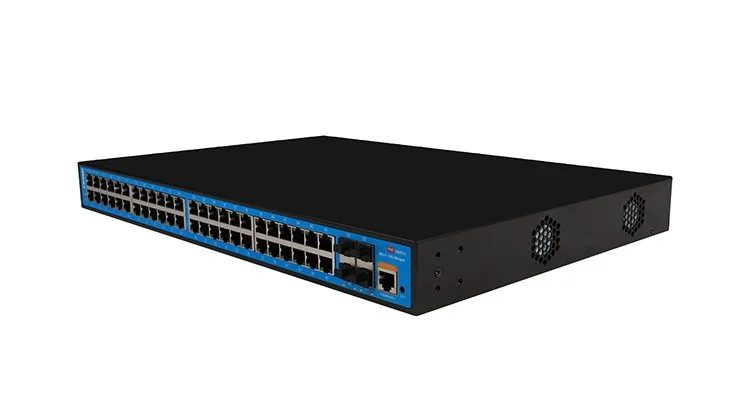

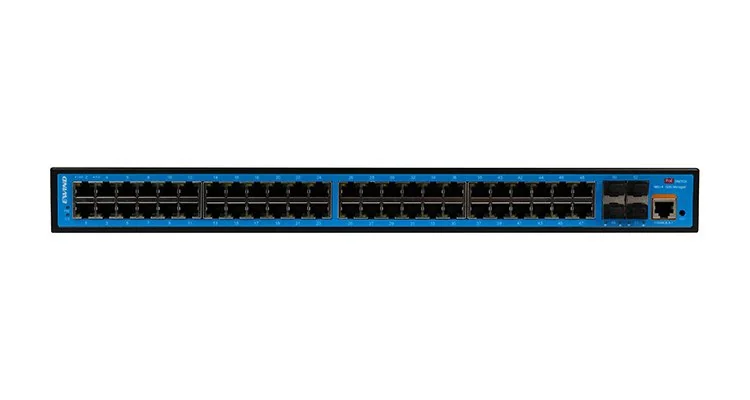

48-Port Gigabit Managed PoE Switch with 4 Multi-Rate SFP+ Uplinks

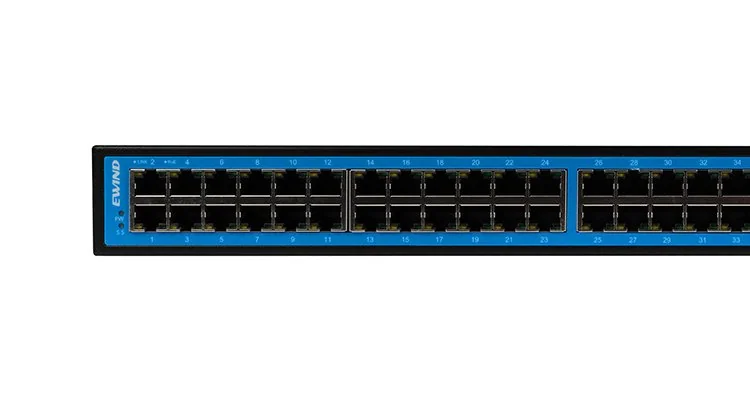

- 48 × Gigabit PoE ports · up to 30W per port
- 4 × 1/2.5/10G SFP+ uplinks
- 800W PoE budget · L2+ Web management
Project inquiry
Request pricing and lead time
Tell us your model, quantity and project requirements. Our networking team will help you find the right fit.
Overview
EW-S2948GM-AP powers up to 48 Gigabit endpoints and aggregates them through four 1/2.5/10G SFP+ uplinks. L2+ management adds scheduled PoE control, VLAN, QoS, ACL and redundant-link features for high-density access networks.
Multi-rate uplinks

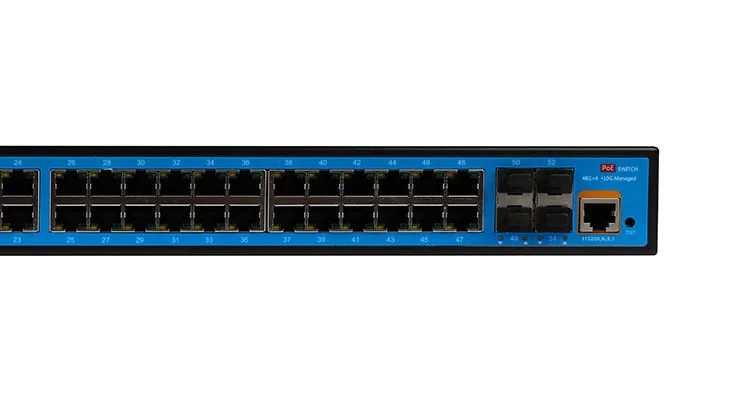

Four SFP+ slots accept 1G, 2.5G or 10G modules for flexible aggregation.
Managed power and traffic
Schedule PoE, set port priority, segment VLANs and apply ACL/QoS rules through Web and SNMP management.
| Specification | Details |
|---|---|
| Model | EW-S2948GM-AP |
| PoE ports | 48 × 10/100/1000BASE-T PoE |
| Uplinks | 4 × 1/2.5/10G SFP+; modules sold separately |
| PoE standard / port limit | IEEE 802.3af/at; up to 30W per port |
| Total PoE budget | 800W |
| Management | L2+ Web, CLI and SNMP management |
| Switching / forwarding | 598 Gbps / 107.14 Mpps, as listed in the datasheet |
| MAC / buffer | 32K / 32M |
| Power input | Built-in supply; 100–220V AC, 50/60Hz |
| Enclosure / installation | IP30; desktop or 19-inch 1U rack |
| Dimensions | 440 × 290 × 44.5 mm |
| Operating environment | −20 to +55°C; 5–90% RH, non-condensing |
| Warranty | 3 years |

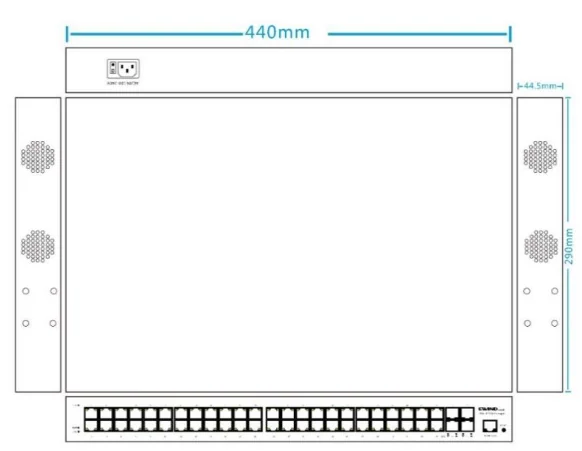

Dimensions
Order information
| Content | Quantity | Unit |
|---|---|---|
| EW-S2948GM-AP managed PoE switch | 1 | SET |
| Rack-mount brackets | 1 | PAIR |
| User guide | 1 | PCS |
| Warranty card | 1 | PCS |

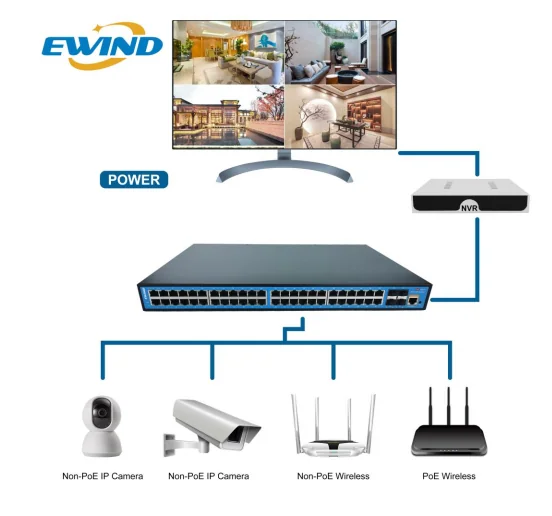

Applications
High-density PoE access for campus, hotel, factory and enterprise surveillance networks.
