Managed PoE access
Power compatible endpoints through 48 AF/AT ports and monitor or schedule output per port.
Model: EW-S5748GM-AP
48-Port Gigabit L3 Managed PoE Switch with 4 10G Uplinks
- 48 × Gigabit PoE ports · up to 30W per port
- 4 × 1/2.5/10G SFP+ uplinks
- 600W PoE budget · IPv4/IPv6 management
Project inquiry
Request pricing and lead time
Tell us your model, quantity and project requirements. Our networking team will help you find the right fit.
Overview
EW-S5748GM-AP combines 48 Gigabit PoE ports with four 1/2.5/10G SFP+ uplinks and Layer 3 management. Static routing, VLAN, ACL, QoS and scheduled PoE control support large access networks in a 1U chassis.
Flexible aggregation
Four multi-rate SFP+ slots provide 1G, 2.5G or 10G uplink options.
Layer 3 controls
Static routing, VLAN, ACL, QoS and redundant-link protocols support segmented networks.
| Specification | Details |
|---|---|
| Model | EW-S5748GM-AP |
| PoE ports | 48 × 10/100/1000BASE-T PoE |
| Uplinks | 4 × 1/2.5/10G SFP+; modules sold separately |
| PoE standard / port limit | IEEE 802.3af/at; up to 30W per port |
| Total PoE budget | 600W |
| Management | L3 Web, CLI and SNMP management |
| Routing | Static/default routing; 128 entries; 1,024 ARP entries |
| MAC / buffer | 32K / 32M |
| Power input | Built-in supply; 100–220V AC, 50/60Hz |
| Enclosure / installation | IP30; desktop or 19-inch 1U rack |
| Dimensions | 440 × 290 × 44 mm |
| Operating environment | −20 to +55°C; 5–90% RH, non-condensing |
| Warranty | 3 years |

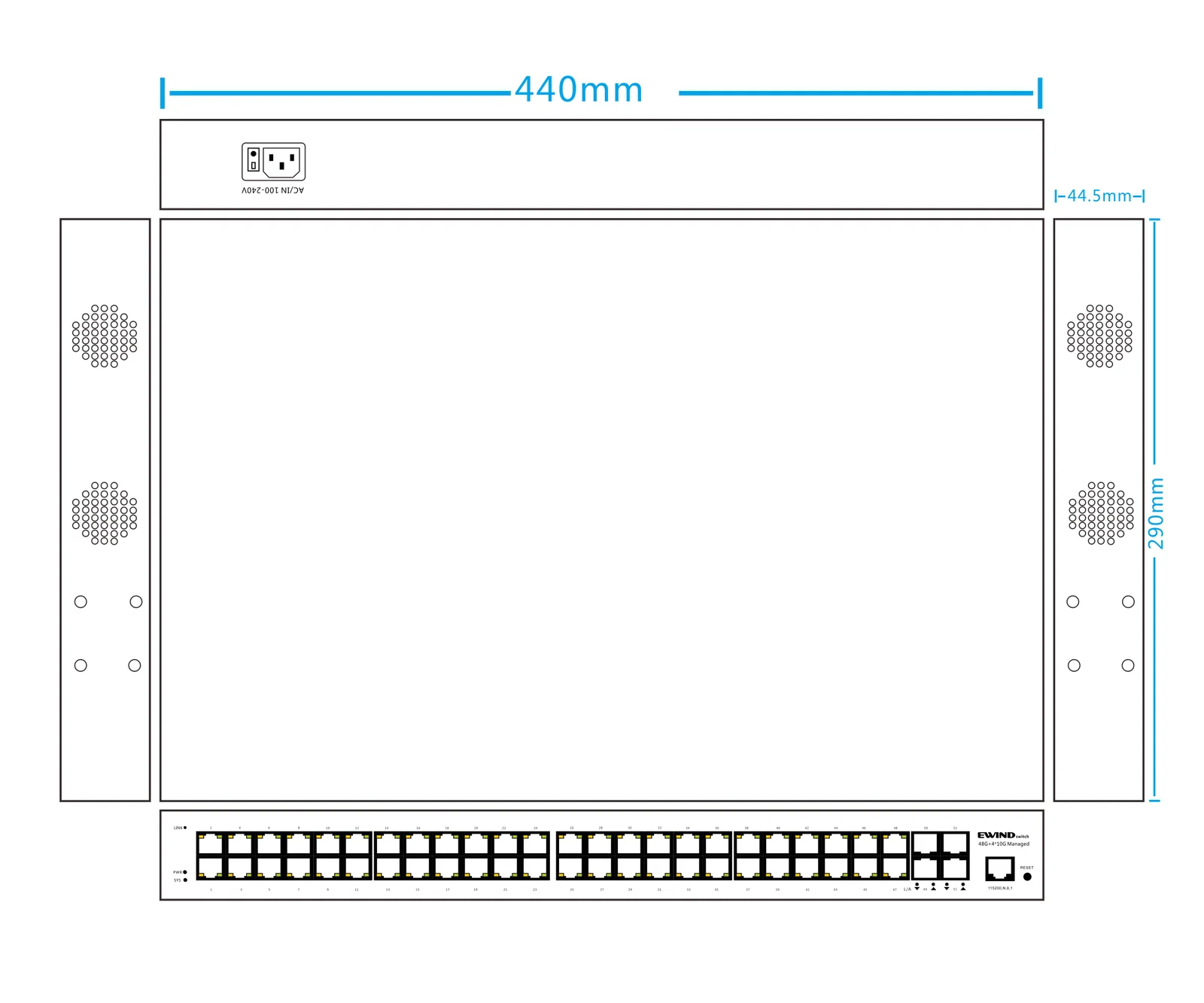

Dimensions
Order information
| Content | Quantity | Unit |
|---|---|---|
| EW-S5748GM-AP managed PoE switch | 1 | SET |
| Rack-mount brackets | 1 | PAIR |
| User guide | 1 | PCS |
| Warranty card | 1 | PCS |

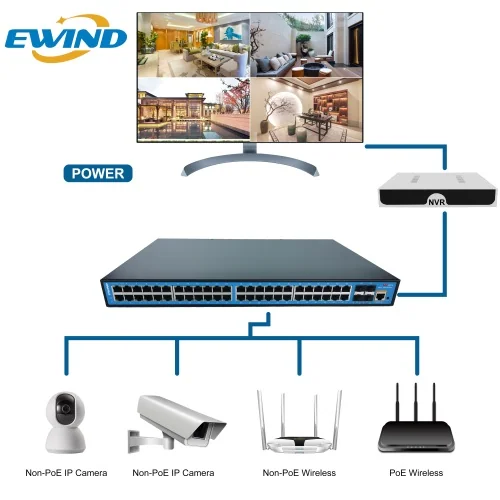

Applications
Managed PoE access for enterprise, campus, hotel and industrial networks.
EW-S5748GM-AP Resources
PDF · Specifications · Installation · Ordering
