Fiber-focused aggregation

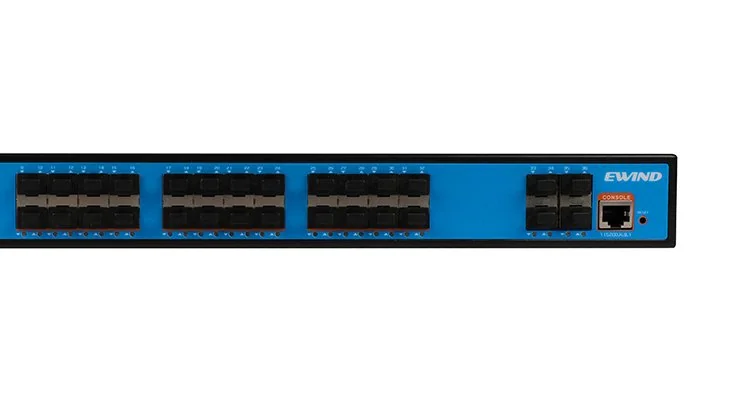

Twenty-four Gigabit SFP ports serve access links, with four SFP+ uplinks up to 10G.
Model: EW-S5736GM-AP

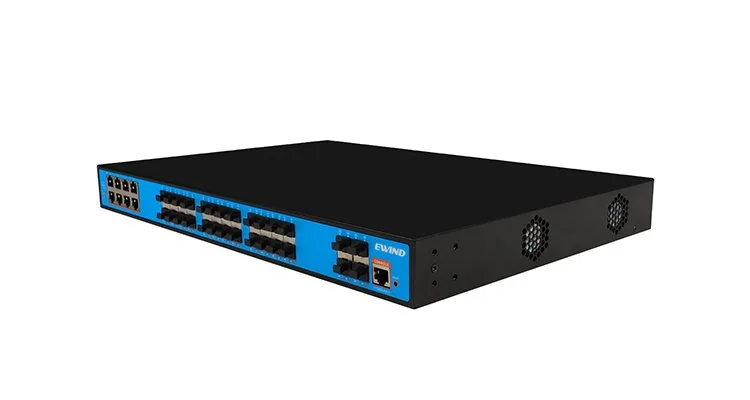

36-Port Managed Fiber Switch with 8 PoE Ports and 10G Uplinks
- 8 Gigabit PoE + 24 Gigabit SFP + 4 10G SFP+
- 130W supply; up to 30W per PoE port
- Static routing, VLANs and ERPS
- Web, CLI and SNMP; 3-year warranty
Project inquiry
Request pricing and lead time
Tell us your model, quantity and project requirements. Our networking team will help you find the right fit.
Overview
EW-S5736GM-AP combines eight Gigabit PoE ports, 24 Gigabit SFP ports and four 1G/2.5G/10G SFP+ uplinks. A 130W supply and per-port PoE controls support powered endpoints alongside fiber aggregation and static routing.
Eight powered ports
Ports 1–8 provide IEEE 802.3af/at PoE within the shared power configuration.
Managed traffic
Static routes, VLANs, QoS and ACLs support segmented networks.
| Specification | Details |
|---|---|
| Model | EW-S5736GM-AP |
| PoE ports | 8 × Gigabit RJ45; IEEE 802.3af/at |
| Fiber ports | 24 × 100/1000Mbps SFP |
| Uplinks | 4 × 1G/2.5G/10G SFP+ |
| Per-port PoE | Up to 30W on ports 1–8 |
| Power supply | 130W; AC 100–220V, 50–60Hz |
| Management | L3; static routing, web, CLI and SNMP |
| Forwarding / MAC table | 107.14Mpps / 32K entries |
| Dimensions | 440 × 290 × 44.5 mm |
| Installation | Desktop or 19-inch 1U rack |
| Operating temperature | −20°C to +55°C |
| Warranty | 3 years |
Order information
| Content | Quantity | Unit |
|---|---|---|
| EW-S5736GM-AP switch, 130W configuration | 1 | SET |
| Rack mounting brackets | 1 | PAIR |
| User guide | 1 | PC |
| Warranty card | 1 | PC |
