Model: EW-CPE610

5GHz Outdoor Wireless Bridge for Links up to 3km

5GHz IEEE 802.11a/n/ac wireless bridge
Up to 3km line-of-sight links · IP65 enclosure
24V passive PoE or 12V DC power input

Project inquiry

Request pricing and lead time

Tell us your model, quantity and project requirements. Our networking team will help you find the right fit.

info@ewindnet.com

Overview

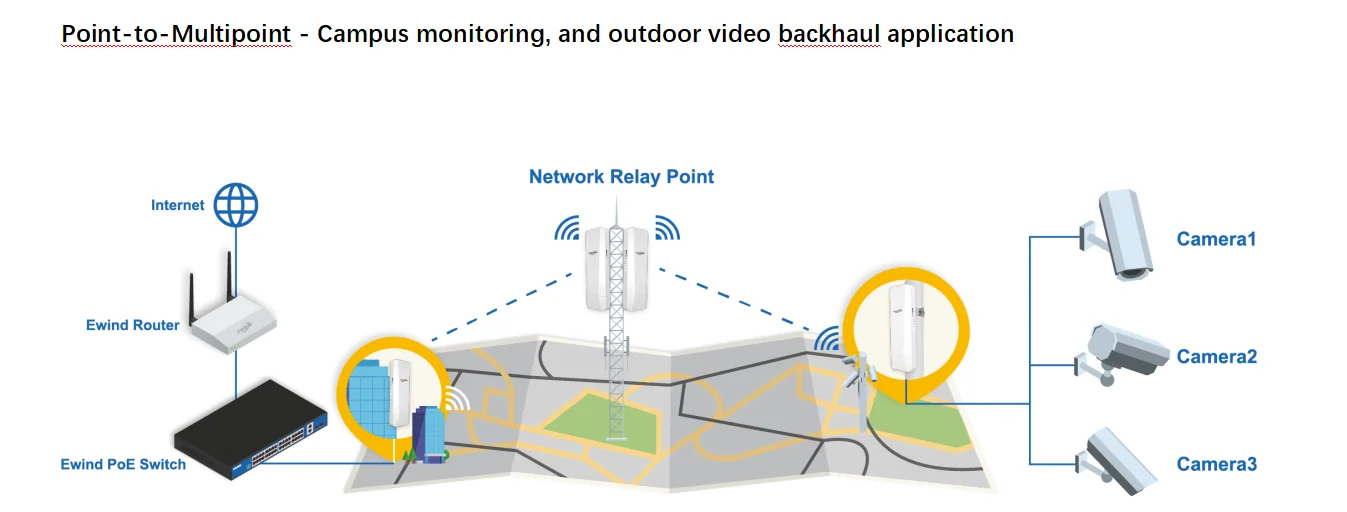

EW-CPE610 provides outdoor wireless backhaul for cameras and remote Ethernet devices. Its directional antenna, point-to-point or point-to-multipoint modes and simple pairing controls support links up to 3km in suitable open conditions.

Directional wireless links

A built-in 13dBi directional antenna supports outdoor links with a clear path and careful alignment.

Flexible bridge topology

Use bridge AP/client modes for point-to-point or point-to-multipoint deployments with up to eight devices.

Outdoor installation

IP65 housing, wall or pole mounting and status indicators support camera backhaul installations.

Product technical specifications
Specification	Details
Model	EW-CPE610
Wireless standard	5GHz IEEE 802.11a/n/ac
Nominal wireless rate	Up to 450Mbps, as specified by the manufacturer

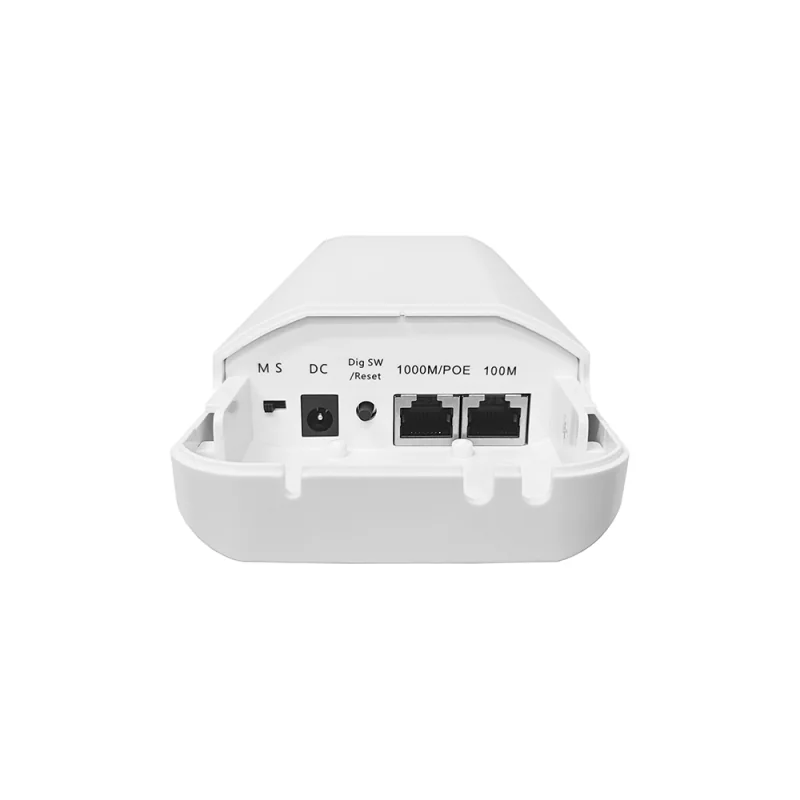

Ethernet ports	1 × 10/100Mbps LAN + 1 × 10/100Mbps PoE/WAN
Antenna	Internal 13dBi directional panel; 60° horizontal / vertical beamwidth
Link distance	Up to 3km in open, line-of-sight conditions
Topology	Point-to-point or point-to-multipoint; up to 8 devices
Power input	24V passive PoE, 0.5A; or 12V DC, 1A
Enclosure / mounting	IP65; pole or wall mount

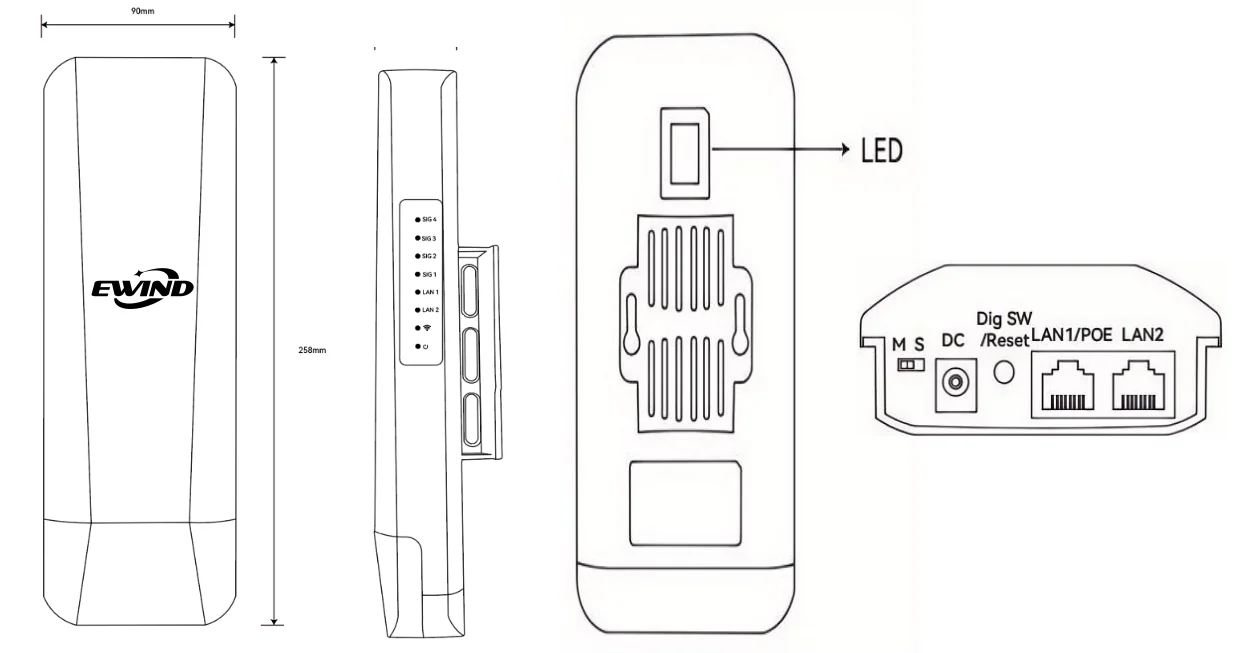

Dimensions / weight	258 × 90 × 56.4 mm; 0.4kg
Operating environment	−30 to +55°C; 5–90% RH, non-condensing
