Model: EW-CPE601

2.4GHz 300Mbps 500m Wireless CPE Bridge

802.11b/g/n at up to 300Mbps on 2.4GHz
Up to 500m point-to-point transmission in open areas
Built-in dual-polarized 8dBi directional antenna
24V passive PoE or 12V DC input; IP65

Project inquiry

Request pricing and lead time

Tell us your model, quantity and project requirements. Our networking team will help you find the right fit.

info@ewindnet.com

Overview

EW-CPE601 is a compact 2.4GHz point-to-point wireless bridge for elevator and short-range outdoor surveillance. Its dual-polarized 8dBi directional antenna, 24V passive PoE or 12V DC input and IP65 enclosure support links up to 500m in open conditions.

2.4GHz bridge

Bridge Access Point and Bridge Client modes for PtP links.

500m open-area link

Directional antenna for elevator and short-range outdoor connections.

Flexible power

24V passive PoE at 0.5A or 12V DC at 1A.

Compact outdoor unit

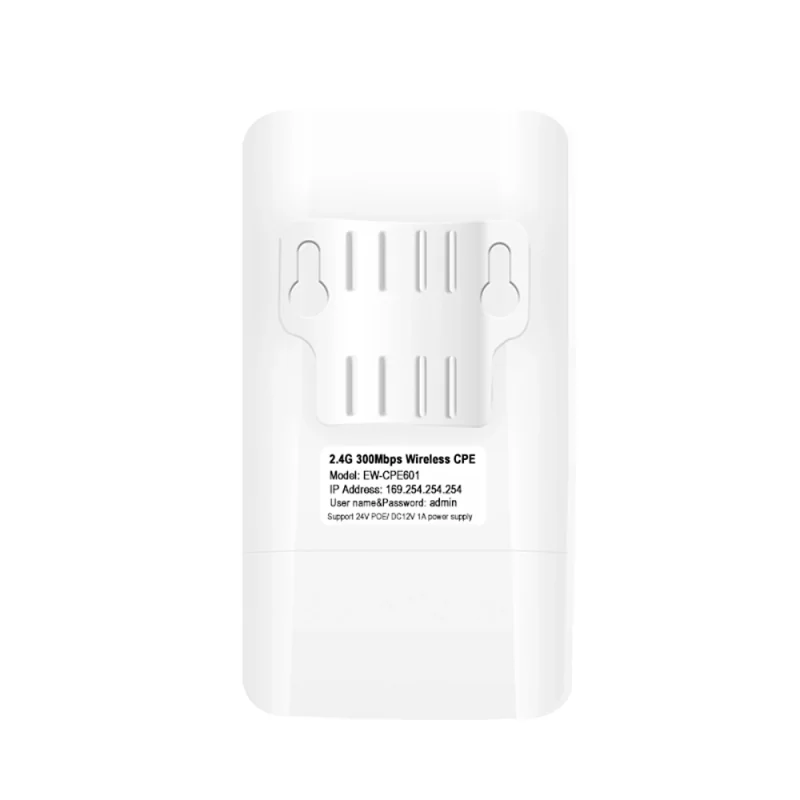

IP65 housing with wall and pole mounting options.

Product technical specifications
Specification	Details
Wireless standard	IEEE 802.11b/g/n; 2.4GHz
Maximum wireless rate	300Mbps
Network interface	1 × 10/100Mbps LAN/PoE
Antenna	Built-in dual-polarized 8dBi directional panel; 90° H / 90° V beamwidth
Power input	24V passive PoE, 0.5A remote; or 12V DC, 1A
Wireless modes	Bridge Access Point; Bridge Client
Topology	Point-to-Point

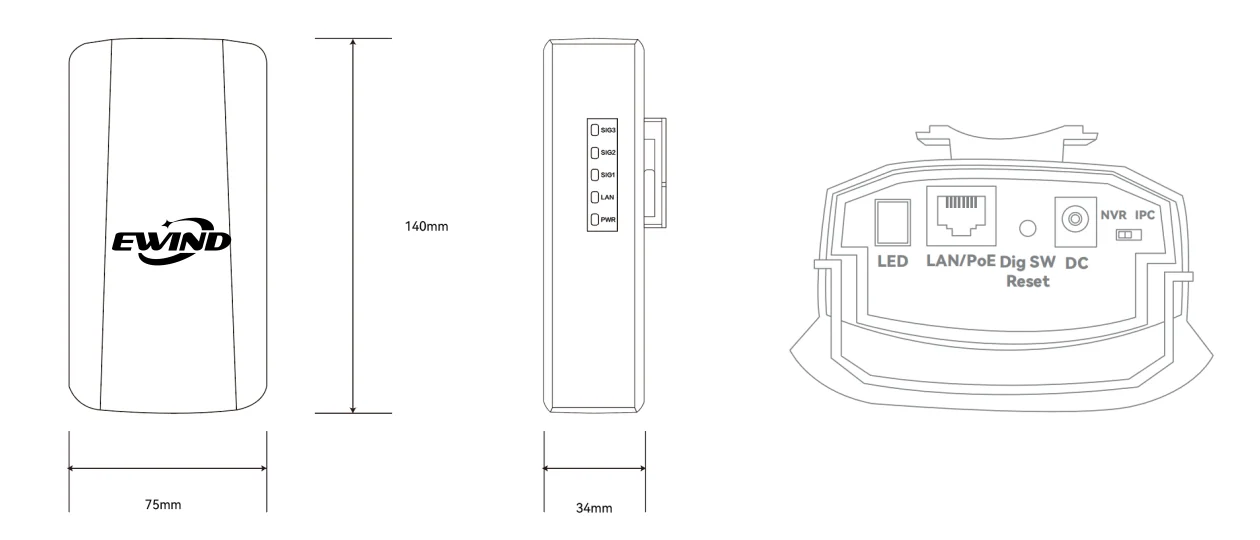

Dimensions (H × W × D)	140 × 75 × 34mm
Weight	0.15kg
Protection	IP65; 15kV ESD and 6kV lightning
Operating temperature	−30°C to +55°C

Advanced capabilities

Detailed network functions stay available here without interrupting the main selection path.

Wireless link planning

The 500m figure applies to open-area conditions. Actual range and throughput depend on mounting height, alignment, interference, channel use and local regulations. The directional antenna has 90° horizontal and vertical beamwidth.

Pairing and management

One-Key Connection supports quick PtP pairing. Web management provides bridge, interface and system status, wireless channel/bandwidth/TX power, encryption and static or DHCP network settings.

Power and cabling

The unit accepts 24V passive PoE at 0.5A or 12V DC at 1A. The datasheet specifies PoE transmission up to 70m depending on cable quality; use correctly rated power equipment.

Environmental installation

IP65 outdoor enclosure with wall and pole mounting. Operating humidity: 5–90%, non-condensing. Storage: −40°C to +70°C and 5–95% RH, non-condensing. Long-press the reset/digital button for at least 5 seconds to restore factory settings.
