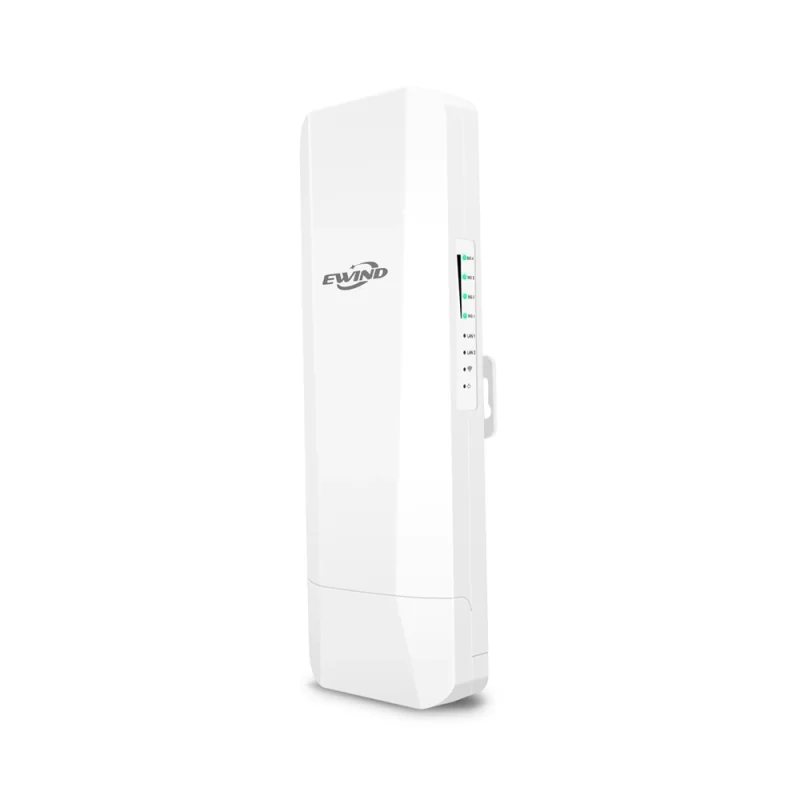

Model: EW-CPE616

5GHz Outdoor Wireless Bridge for Links up to 5km

5GHz 2T2R wireless bridge · up to 5km line of sight
Gigabit PoE/WAN port + Fast Ethernet LAN port
14dBi directional antenna · IP65 housing

Project inquiry

Request pricing and lead time

Tell us your model, quantity and project requirements. Our networking team will help you find the right fit.

info@ewindnet.com

Overview

EW-CPE616 provides directional wireless backhaul for outdoor Ethernet and camera networks. It supports point-to-point and point-to-multipoint links, a Gigabit PoE/WAN interface and one-key pairing for deployments up to 5km in suitable line-of-sight conditions.

Long-distance backhaul

A 14dBi directional antenna supports aligned outdoor links for cameras and remote network sites.

Gigabit uplink interface

A 10/100/1000Mbps PoE/WAN port and a separate 10/100Mbps LAN port provide wired connections.

Simple outdoor setup

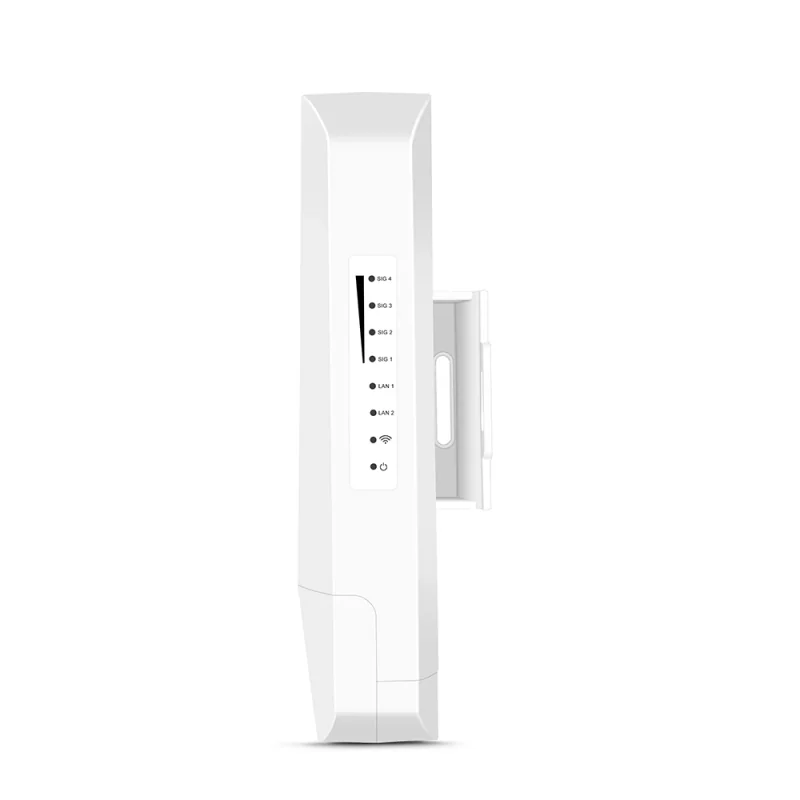

One-key pairing, signal indicators and bridge AP/client modes simplify installation and alignment.

Product technical specifications
Specification	Details
Model	EW-CPE616
Wireless standard	5GHz IEEE 802.11a/n/ac; 2T2R
Nominal wireless rate	Up to 900Mbps, as specified by the manufacturer
Ethernet ports	1 × 10/100/1000Mbps PoE/WAN + 1 × 10/100Mbps LAN
Antenna	Internal 14dBi directional panel; 60° horizontal / vertical beamwidth
Link distance	Up to 5km in open, line-of-sight conditions
Topology	Point-to-point or point-to-multipoint; up to 8 devices
Remote power input	24V passive PoE, 1A
Management	Web interface; one-key pairing; watchdog function
Enclosure / mounting	IP65; pole or wall mount
Operating environment	−30 to +55°C; 5–90% RH, non-condensing

Advanced capabilities

Detailed network functions stay available here without interrupting the main selection path.

Link capacity

900Mbps is the manufacturer’s nominal radio rate, not guaranteed application throughput. The LAN port is limited to 100Mbps; use the Gigabit PoE/WAN interface where higher wired capacity is needed. Distance depends on alignment, obstacles and radio conditions.

Power selection

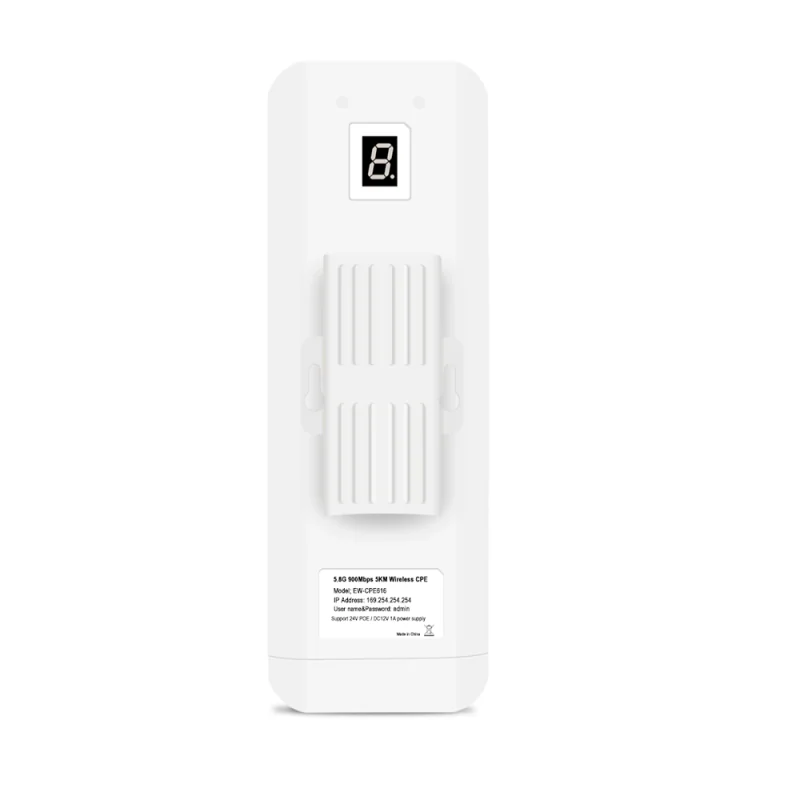

The datasheet consistently specifies 24V passive PoE. Its DC-input descriptions conflict between 12V and 24V; confirm the label on the supplied unit before choosing a local DC adapter. The package includes two 24V PoE adapters.

Bridge configuration

Supports WPA2, hidden SSID, AP/client bridge modes, transmit-power settings, channel selection, DHCP or static IP, firmware upgrades and configuration through a Web interface.
