Model: EW-CPE602

2.4GHz 300Mbps 1km Wireless CPE Bridge

802.11b/g/n at up to 300Mbps on 2.4GHz
Up to 1km point-to-point transmission in open areas
Built-in dual-polarized 10dBi directional antenna
24V passive PoE or 12V DC local input; IP65

Project inquiry

Request pricing and lead time

Tell us your model, quantity and project requirements. Our networking team will help you find the right fit.

info@ewindnet.com

Overview

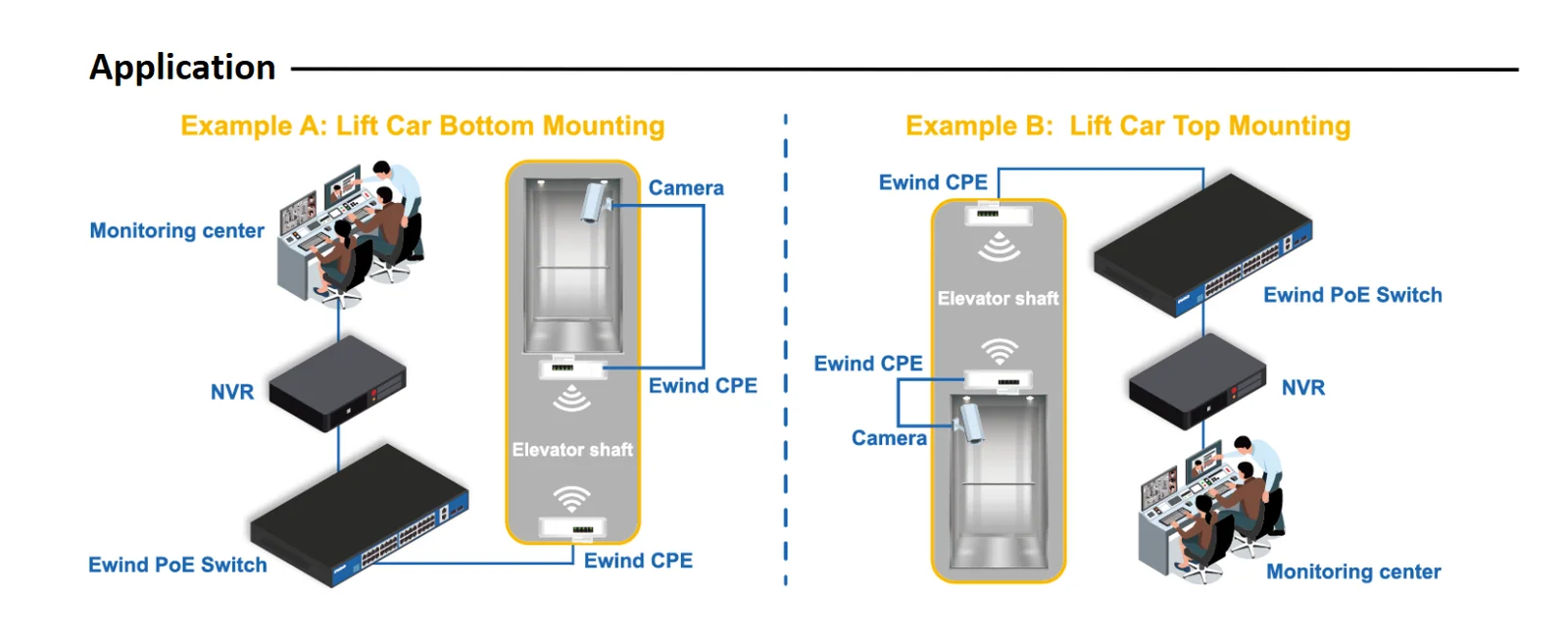

EW-CPE602 is an outdoor 2.4GHz wireless bridge for point-to-point elevator surveillance and short-range outdoor links. Its dual-polarized 10dBi directional antenna, 24V passive PoE or 12V DC input and IP65 enclosure support cable-free connections up to 1km in open conditions.

2.4GHz wireless bridge

Bridge Access Point and Bridge Client modes for PtP links.

1km open-area link

Directional antenna supports long-range elevator and outdoor connections.

Flexible power

24V passive PoE or 12V DC, 1A input.

Outdoor enclosure

IP65 housing with wall and pole mounting options.

Product technical specifications
Specification	Details
Wireless standard	IEEE 802.11b/g/n; 2.4GHz
Maximum wireless rate	300Mbps
Network interfaces	1 × 10/100Mbps LAN; 1 × 10/100Mbps PoE/WAN
Antenna	Built-in dual-polarized 10dBi directional panel; 90° H / 90° V beamwidth
Power input	24V passive PoE, 0.5A remote; or 12V DC, 1A
Wireless modes	Bridge Access Point; Bridge Client
Topology	Point-to-Point

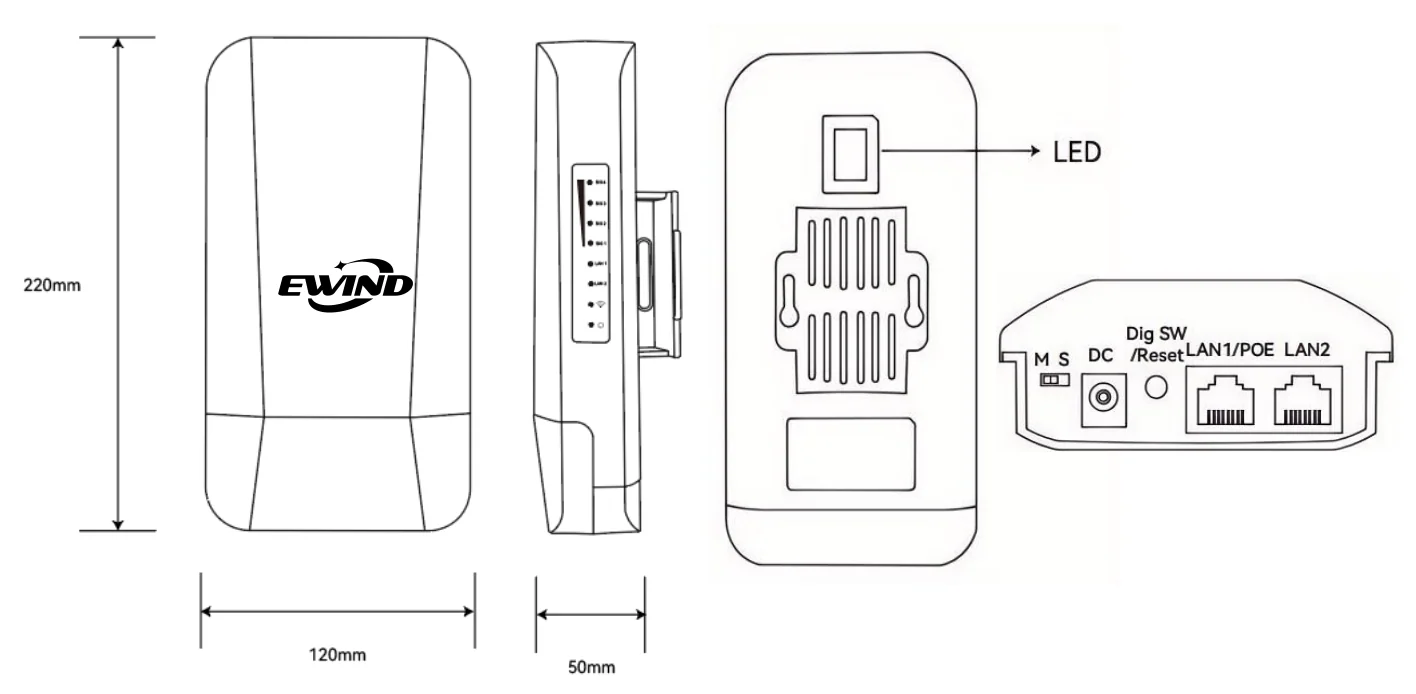

Dimensions (H × W × D)	220 × 120 × 50mm
Weight	0.35kg
Protection	IP65; 15kV ESD and 6kV lightning
Operating temperature	−30°C to +55°C

Advanced capabilities

Detailed network functions stay available here without interrupting the main selection path.

Wireless link planning

The 1km figure applies to open-area conditions. Actual range and throughput depend on mounting height, alignment, interference, channel use and local regulations. The directional antenna has 90° horizontal and vertical beamwidth.

Pairing and management

One-Key Connection supports quick PtP pairing. Web management provides bridge, interface and system status, wireless channel/bandwidth/TX power, encryption and static or DHCP network settings.

Power and cabling

The unit accepts 24V passive PoE at 0.5A or 12V DC at 1A. The datasheet specifies PoE transmission up to 70m depending on cable quality; use the supplied or correctly rated power equipment.

Environmental installation

IP65 outdoor enclosure with wall and pole mounting. Operating humidity: 5–90%, non-condensing. Storage: −40°C to +70°C and 5–95% RH, non-condensing. Reset/digital button restores factory settings after a long press of at least 5 seconds.
