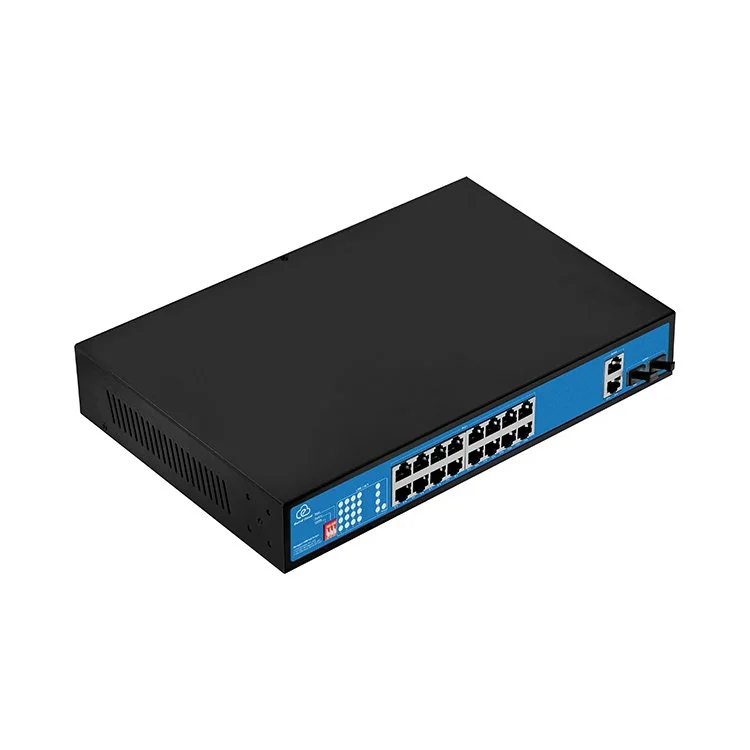

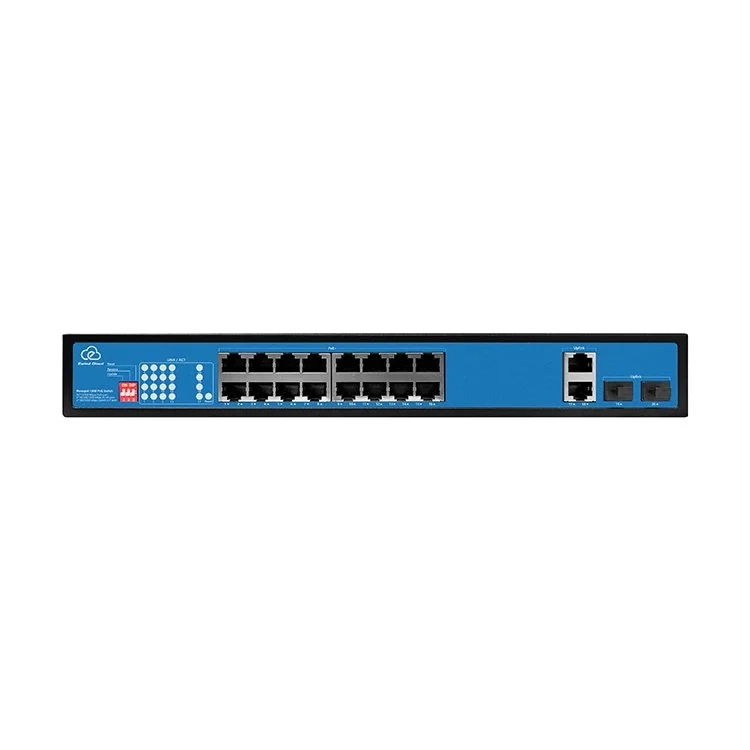

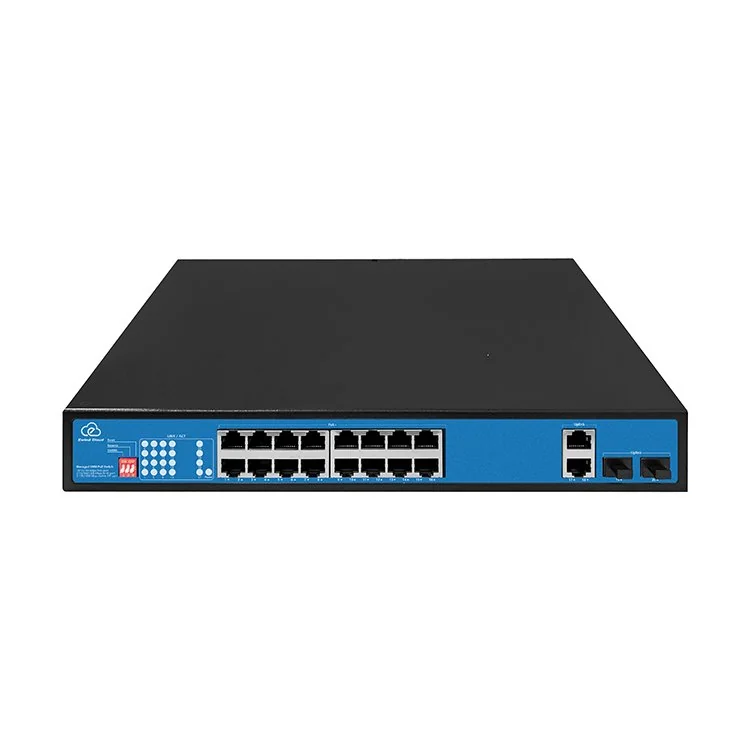

Model: EW-ES2020CF-AP

20-Port Fast Ethernet Cloud Managed PoE Switch

16 × 10/100Mbps IEEE 802.3af/at PoE ports
2 × Gigabit RJ45 + 2 × Gigabit SFP uplinks
250W total PoE budget; 30W maximum per port
Cloud/mobile management, topology and remote alerts

Project inquiry

Request pricing and lead time

Tell us your model, quantity and project requirements. Our networking team will help you find the right fit.

info@ewindnet.com

Overview

EW-ES2020CF-AP is a cloud-managed PoE switch with 16 Fast Ethernet PoE ports, two Gigabit RJ45 uplinks and two Gigabit SFP fiber uplinks. Its 250W PoE budget, remote monitoring and 300m long-distance mode suit CCTV and small-business networks.

Cloud management

Remote monitoring, alarms, port restart, VLAN and topology mapping.

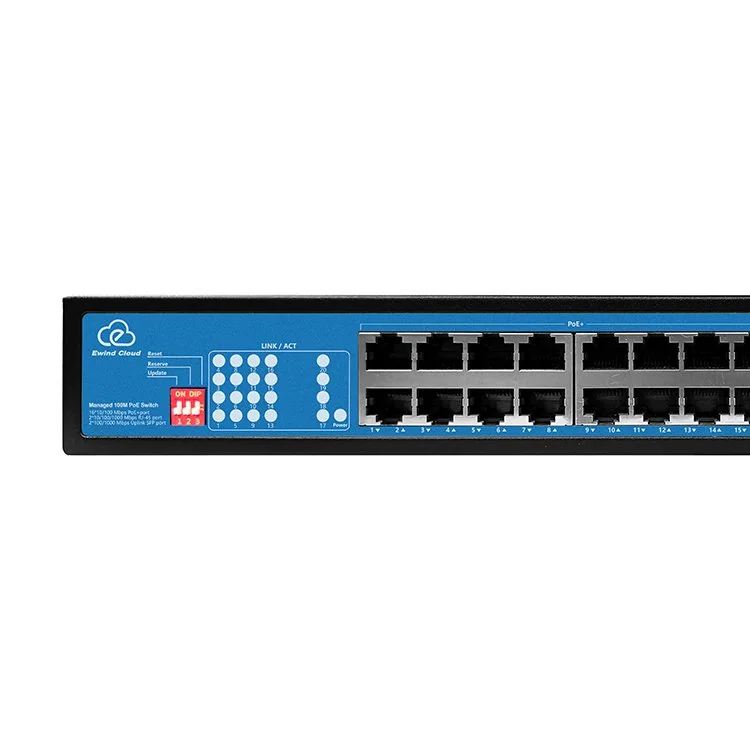

16 PoE ports

Fast Ethernet power and data for CCTV endpoints.

Four uplinks

Two Gigabit copper and two Gigabit fiber uplinks.

250W budget

IEEE 802.3af/at with long-distance mode up to 300m.

Product technical specifications
Specification	Details
PoE ports	16 × 10/100Mbps RJ45; ports 1–16
Copper uplinks	2 × 10/100/1000Mbps RJ45
Fiber uplinks	2 × 1000Mbps SFP
PoE standard	IEEE 802.3af/at
PoE power	30W maximum per port; 250W total budget
PoE pins	1/2 (+), 3/6 (−)
Switching capacity	11.2Gbps
Forwarding rate	10.94Mpps
MAC address table	8K entries

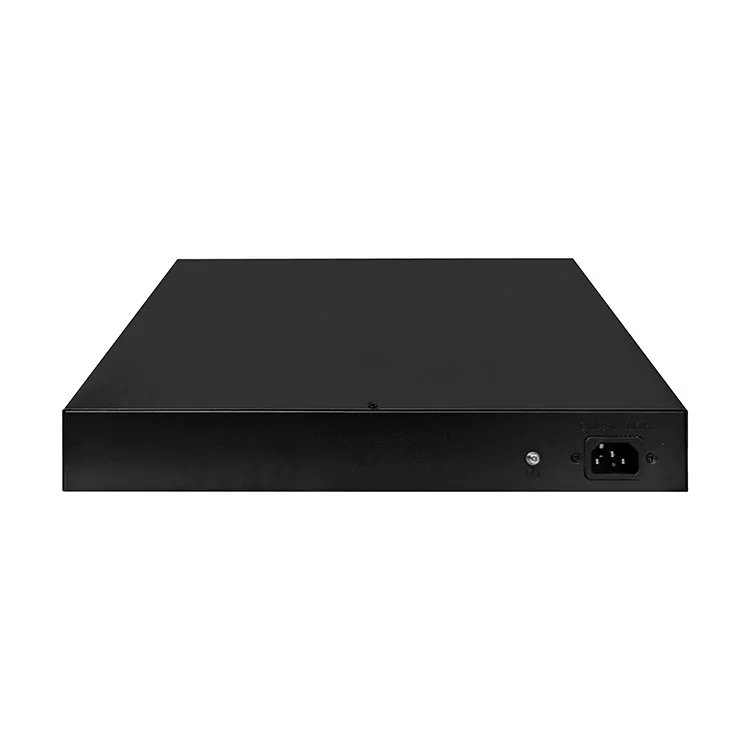

Power supply	Built-in AC100–240V, 50/60Hz
Dimensions	330 × 215 × 44mm
Installation / protection	Desktop or rack-mount; IP30
Warranty	3 years

Advanced capabilities

Detailed network functions stay available here without interrupting the main selection path.

Cloud platform

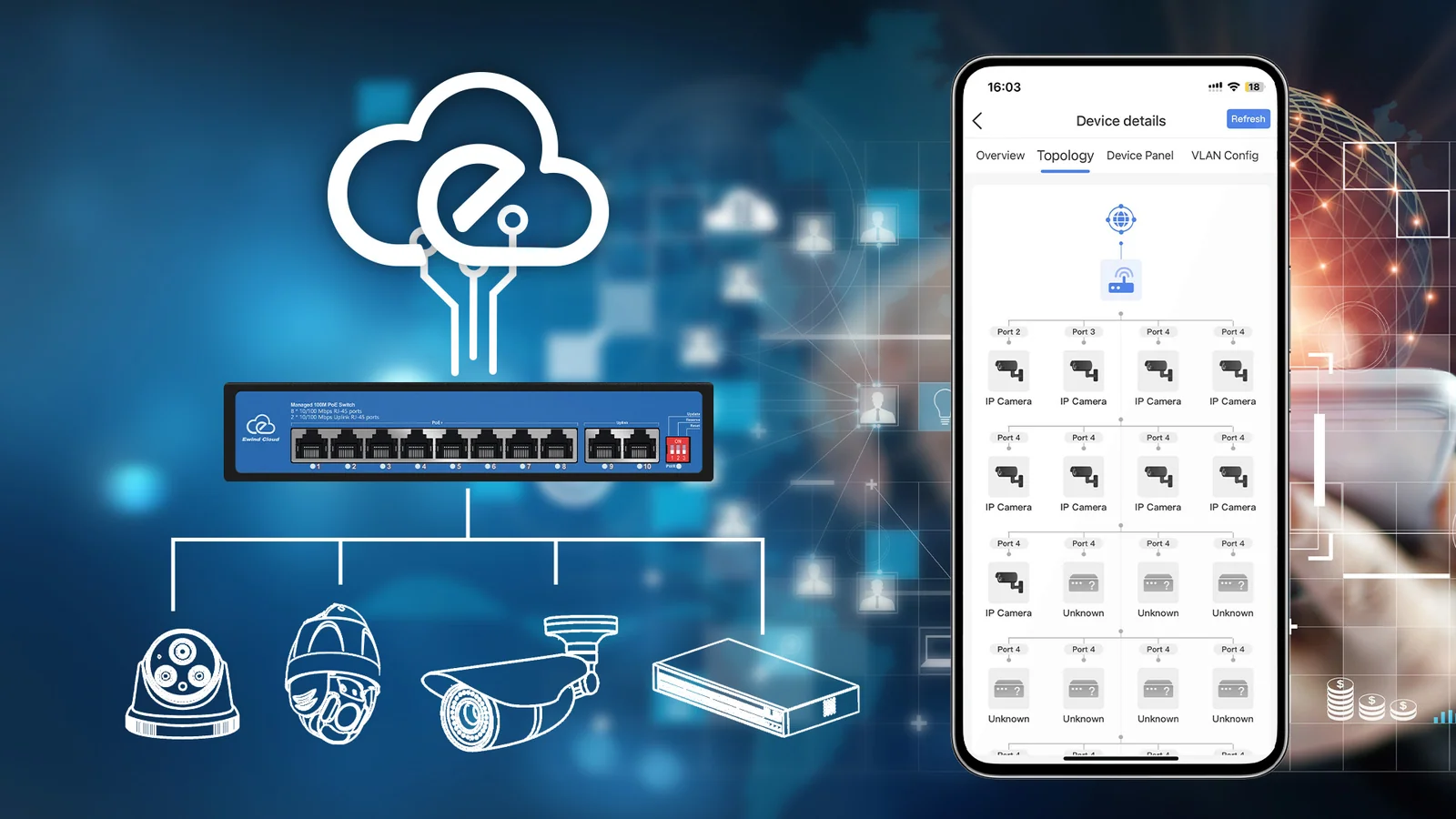

EWIND cloud and mobile app provide remote status, real-time alerts, fault detection, port restart, software updates, PoE scheduling, auto-alive checks, VLAN configuration and connected-device topology using ONVIF discovery.

PoE operation

Ports 1–16 support IEEE 802.3af/at. The 30W value is a per-port maximum; the shared total budget is 250W. Long-distance mode can deliver PoE up to 300m when cable and endpoint conditions permit.

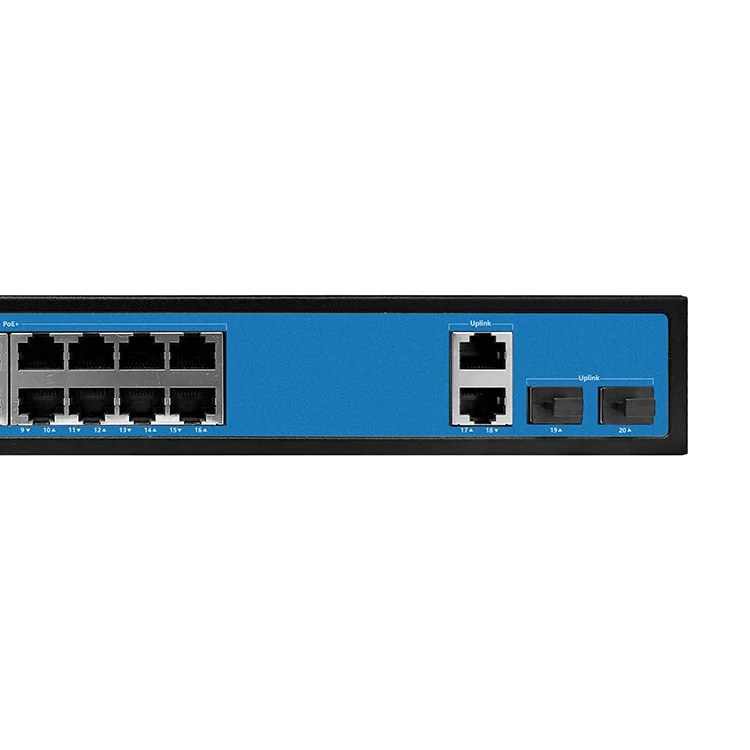

Uplinks and forwarding

Two Gigabit RJ45 and two Gigabit SFP uplinks connect upstream networks. Store-and-forward switching, 8K MAC learning and the listed non-blocking capacity support CCTV traffic.

Installation and environment

Desktop or rack mounting. Operating humidity: 5–90%, non-condensing. Storage: −40°C to +75°C and 5–95% RH. IP30 enclosure and listed ESD/surge protection apply.
