Model: EW-ES2010CF-AP

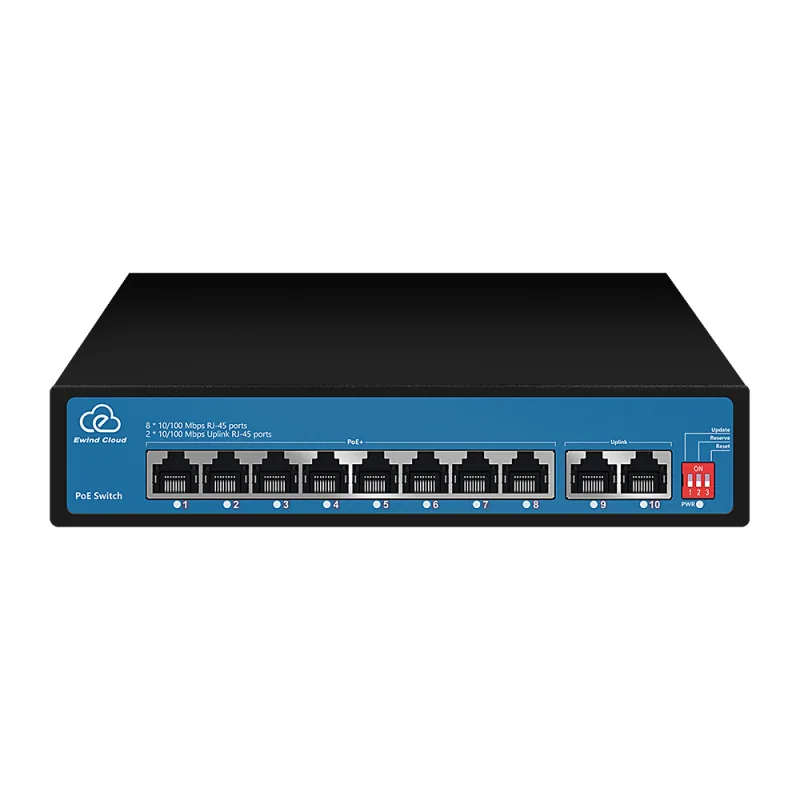

8-Port Fast Ethernet Cloud Smart PoE Switch

8 × 10/100Mbps PoE ports with IEEE 802.3af/at
2 × 10/100Mbps RJ45 uplinks
120W total PoE budget and built-in 100–240VAC supply
EWIND Cloud and mobile app remote management

Project inquiry

Request pricing and lead time

Tell us your model, quantity and project requirements. Our networking team will help you find the right fit.

info@ewindnet.com

Overview

EW-ES2010CF-AP is the 8-port 10/100Mbps cloud smart PoE switch with two 100Mbps RJ45 uplinks, a 120W total PoE budget and a built-in AC supply. EWIND Cloud adds remote topology and maintenance for small CCTV and business networks.

120W budget

Power eight endpoints with up to 30W available per PoE port.

Fast uplinks

Two 10/100Mbps RJ45 uplinks connect NVRs or upstream switches.

Cloud managed

Remote topology, alarms and maintenance simplify CCTV operations.

Compact install

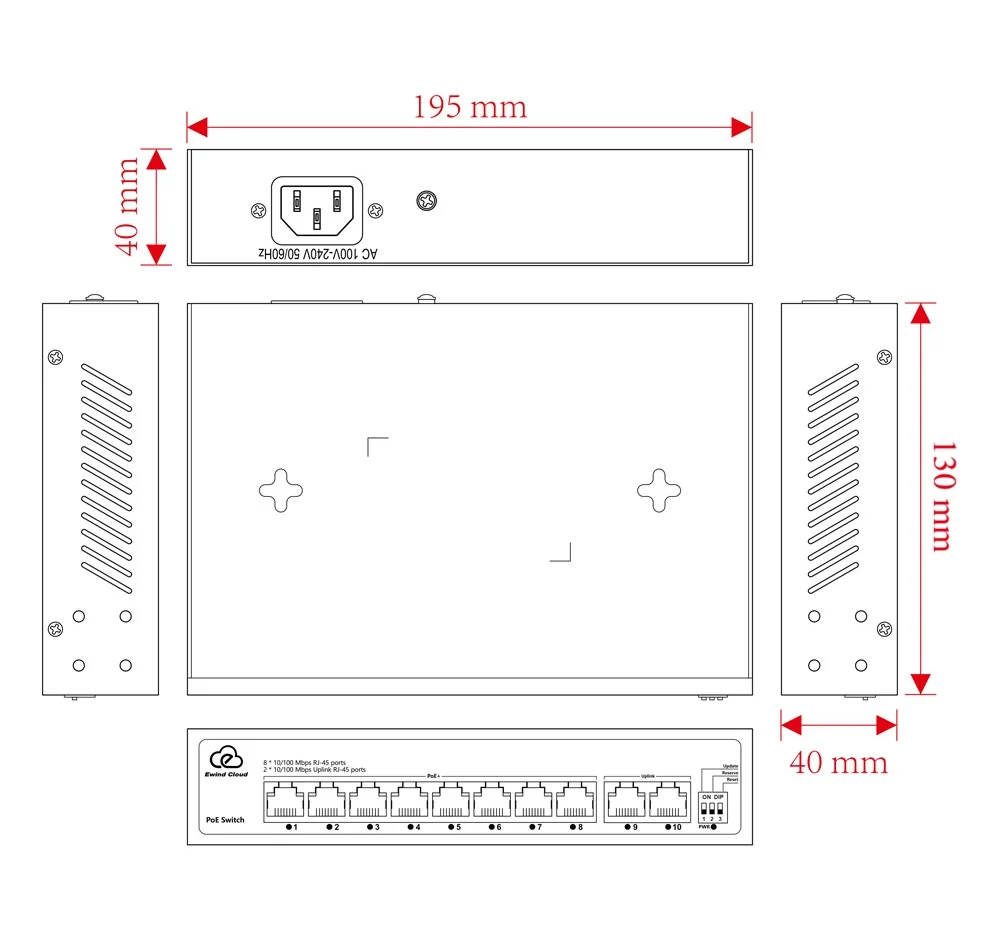

195 × 130 × 40mm desktop enclosure for offices and security sites.

Product technical specifications
Specification	Details
PoE ports	8 × 10/100Mbps RJ45; IEEE 802.3af/at
Uplinks	2 × 10/100Mbps RJ45
PoE power	15.4W standard / 30W maximum per port; 120W total
Switching performance	2Gbps; 1.95Mpps; store-and-forward
Memory	1K MAC table; 768K buffer
Power supply	Built-in 100–240VAC, 50/60Hz
Dimensions / weight	195 × 130 × 40mm; net under 0.95kg, gross under 1.2kg
Installation	Desktop
Environment	Operating −20°C to +55°C; storage −40°C to +75°C
Protection / warranty	IP30; ESD and surge protection; 3-year warranty
