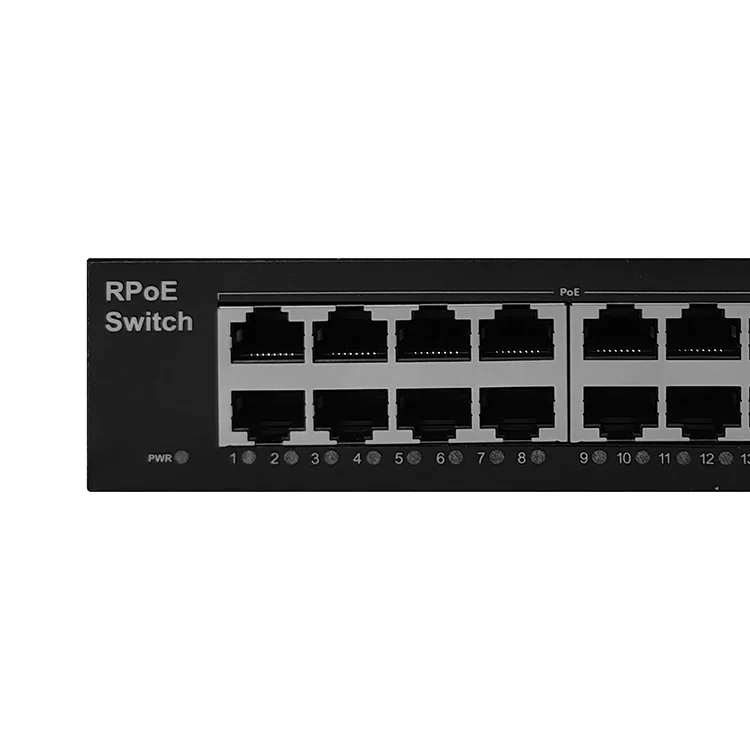

Reverse PoE input
Ports 1–16 accept power from compatible access-side equipment.

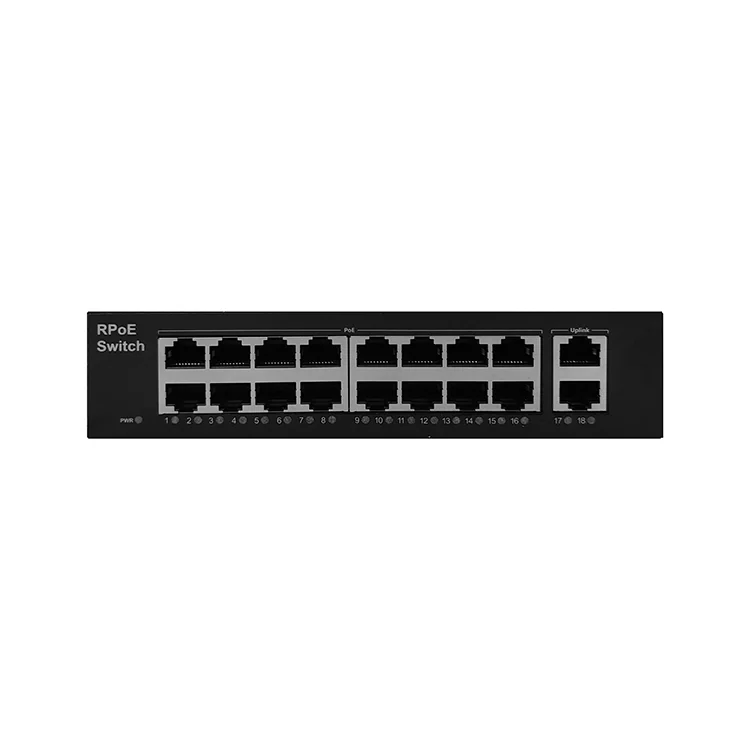

Model: EW-S2218CF

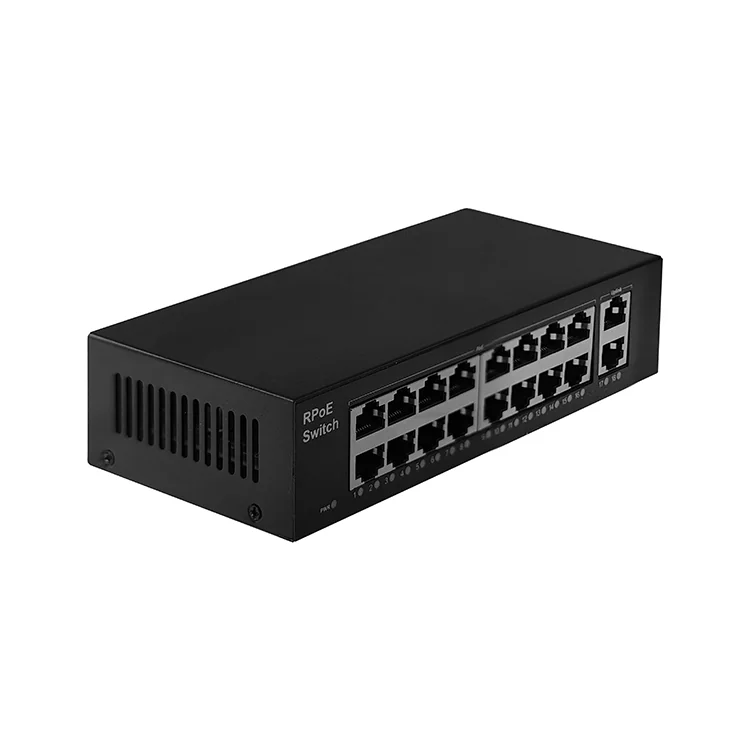

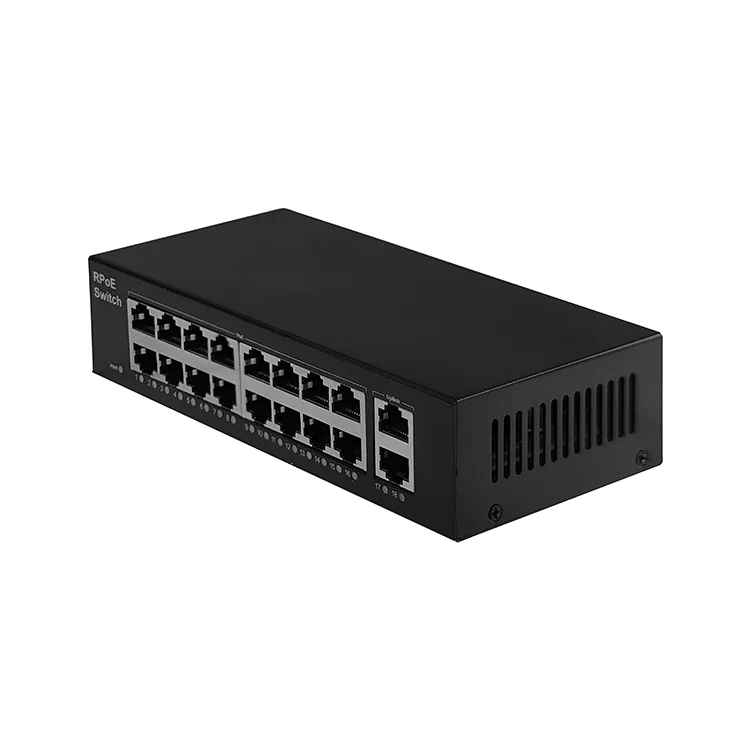

18-Port Fast Ethernet Reverse PoE Switch
- 16 × 10/100Mbps reverse-PoE input ports
- 2 × 10/100Mbps uplinks, numbered 17–18
- Unmanaged operation with automatic speed negotiation
- Compact 180 × 90 × 45mm enclosure
Project inquiry
Request pricing and lead time
Tell us your model, quantity and project requirements. Our networking team will help you find the right fit.
Overview
EW-S2218CF provides 16 Fast Ethernet reverse-PoE access ports and two Fast Ethernet uplinks. The access ports accept power from the connected network side, allowing the switch to be used in distributed access installations with compatible reverse-PoE equipment.
Two uplinks
Fast Ethernet ports 17 and 18 connect the upstream network.
Plug-and-play access
Automatic 10/100Mbps negotiation in a compact enclosure.
| Specification | Details |
|---|---|
| Access ports | 16 × 10/100Mbps RJ45; reverse PoE input |
| Uplinks | 2 × 10/100Mbps RJ45; ports 17–18 |
| Management | Unmanaged |
| Forwarding mode | Store-and-forward |
| Switching capacity | 3.6Gbps |
| MAC address table | 1K entries |
| Dimensions (W × D × H) | 180 × 90 × 45mm |
| Weight | 0.6kg |
| Warranty | 1 year |

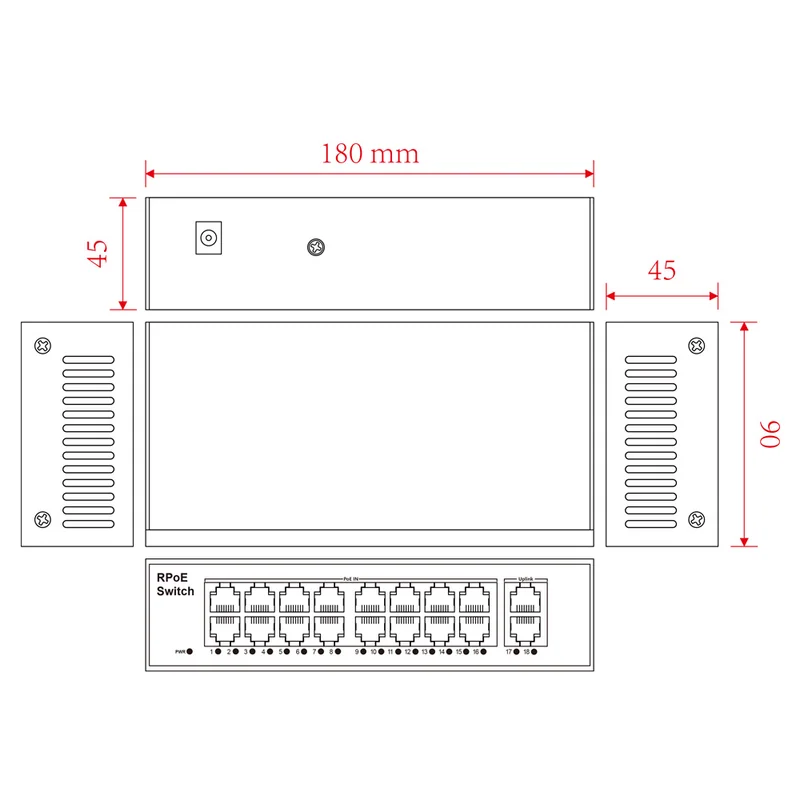

Dimensions
Order information
| Content | Quantity | Unit |
|---|---|---|
| EW-S2218CF 18-port Fast Ethernet reverse PoE switch; power supply excluded | 1 | SET |
| User guide | 1 | PC |
| Warranty card | 1 | PC |
EW-S2218CF Resources
Datasheet and configuration information for this product are available from the EWIND team.
