24 powered connections
Fast Ethernet access for cameras, APs and phones.
Model: EW-S1926CF-AP
24-Port Fast Ethernet PoE Switch with Gigabit Combo Uplink
- 24 × 10/100Mbps PoE access ports
- 1 Gigabit RJ45 + 1 RJ45/SFP combo uplink
- IEEE 802.3af/at; up to 30W per port
- 300W built-in power supply
Project inquiry
Request pricing and lead time
Tell us your model, quantity and project requirements. Our networking team will help you find the right fit.
Overview
EW-S1926CF-AP provides 24 Fast Ethernet PoE access ports, one Gigabit RJ45 uplink and one RJ45/SFP combo uplink. IEEE 802.3af/at delivery, a 300W power supply and DIP-switch extend, isolation and watchdog functions support surveillance and access networks.
Copper or fiber uplink
One dedicated RJ45 uplink and one shared RJ45/SFP connection.
Managed power detection
IEEE 802.3af/at detection with a shared 300W supply.
DIP-switch controls
Extend, isolation and PoE watchdog modes.
| Specification | Details |
|---|---|
| PoE access ports | 24 × 10/100Mbps RJ45 |
| Uplinks | 1 × Gigabit RJ45 + 1 × RJ45/SFP combo |
| Management | Unmanaged |
| PoE standard | IEEE 802.3af/at |
| Maximum power per port | 30W |
| Power supply | Built-in 300W; 100–240V AC, 50/60Hz |
| MAC address table | 8K entries |
| Dimensions (W × D × H) | 330 × 220 × 44mm |
| Operating temperature | −20°C to +55°C |
| Enclosure | IP30 |
| Warranty | 3 years |

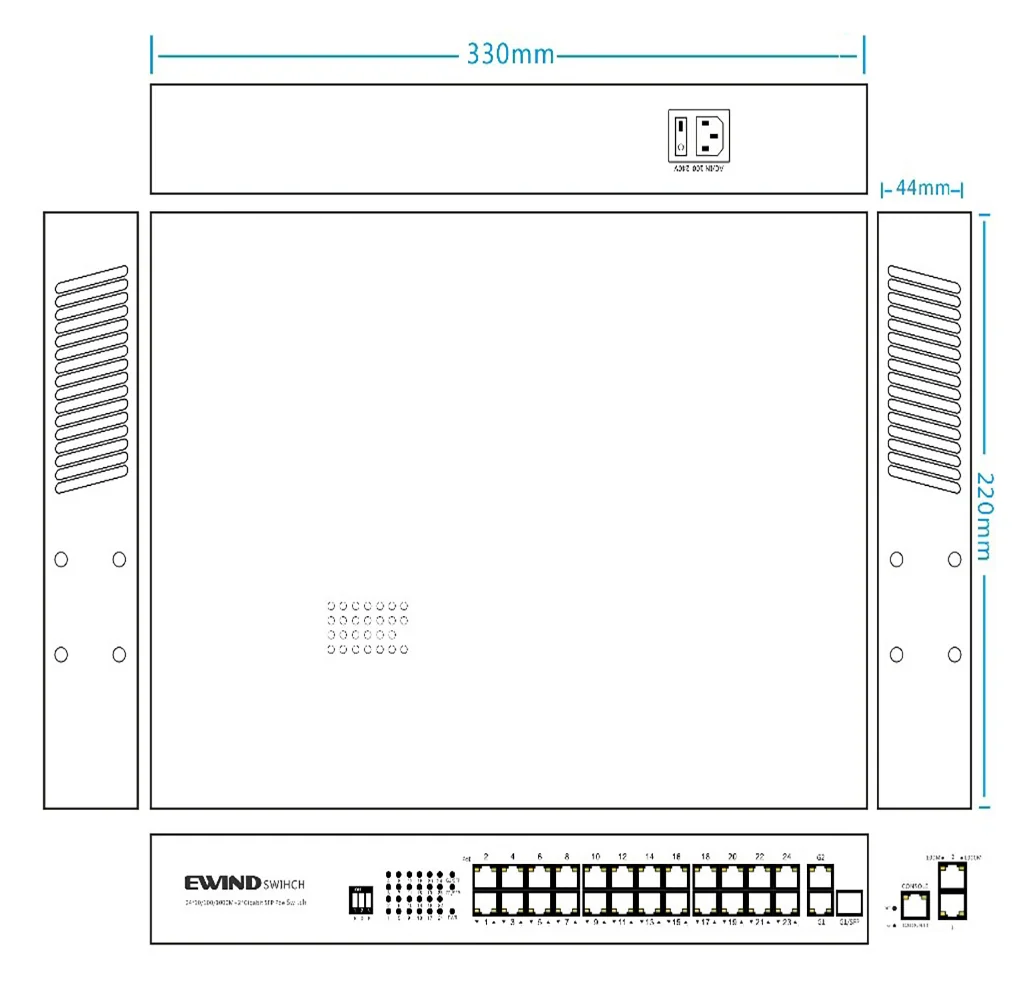

Dimensions
Order information
| Content | Quantity | Unit |
|---|---|---|
| EW-S1926CF-AP 24-port Fast Ethernet PoE switch with Gigabit uplinks | 1 | SET |
| Rack-mount brackets | 1 | PAIR |
| User guide | 1 | PC |
| Warranty card | 1 | PC |
